Parameter
Machine Model
|
ZS-DTDP-4P
|
Voltage
|
110/220V 50-60HZ
|
Power
|
250W
|
Maximum flow velocity
|
4000ml/min(Each nozzle and base on water)
|
Working speed
|
1500-3000 bottles/hour(depends on bottle size and liquid)
|
Air pressure
|
0.3-0.4MPa
|
Filling accuracy
|
≤+1% (For water)
|
Bottle height
|
<220mm(Can be customized,max height 300mm)
|

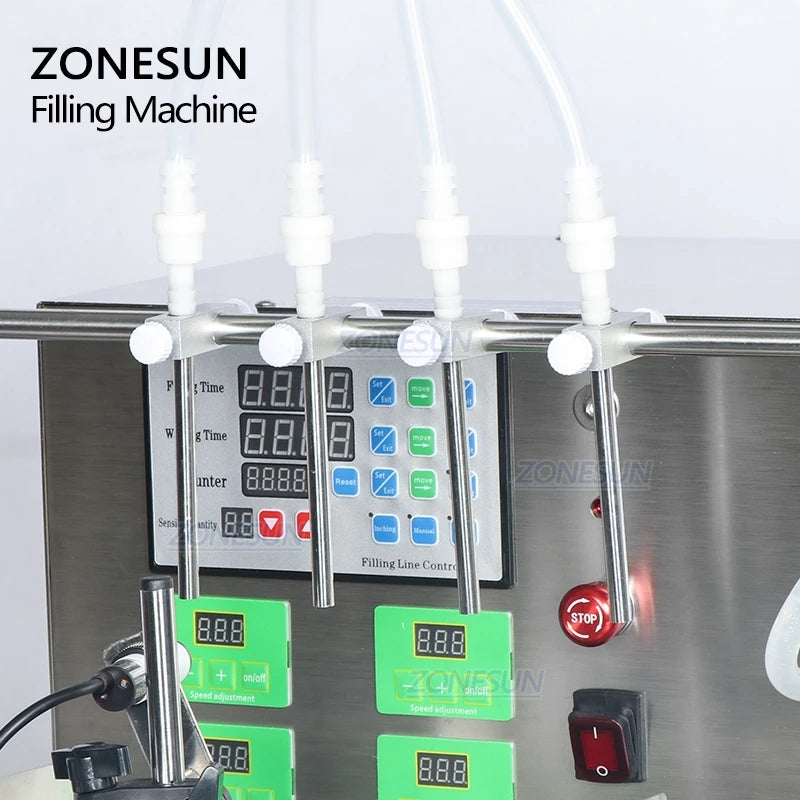

Diameter of filling nozzle
|
6/8mm
|
Conveyor size
|
1030*115mm(L*W)
|
Size of air compressor connector
|
OD 8mm
|
Machine size
|
About 1114*650*765mm
|
Package size
|
About 1145*605*795mm
|
Net weight/Gross weight
|
About 52kg/78kg
|
Description

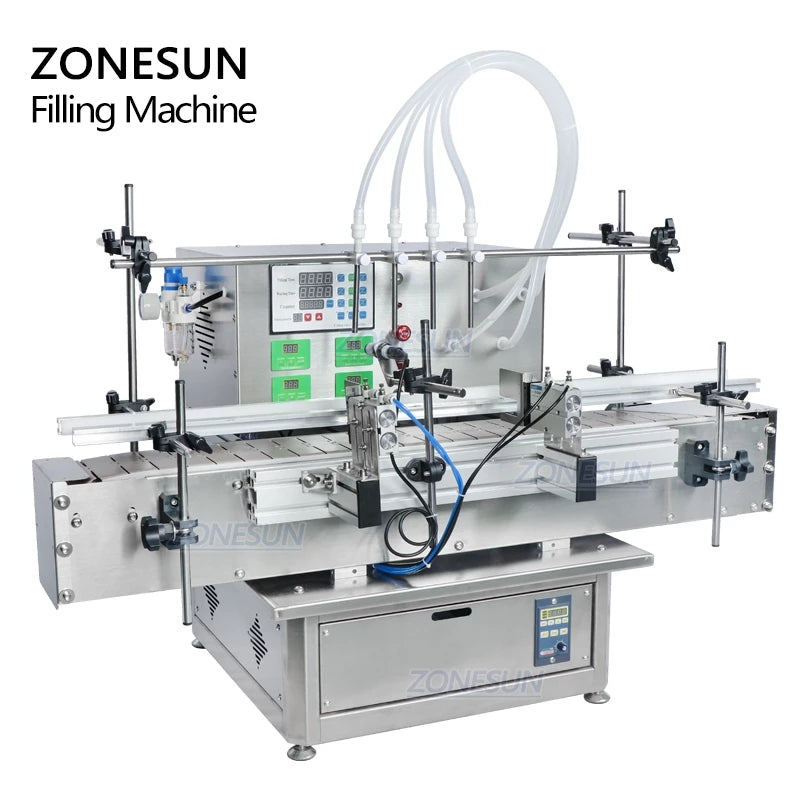

This automatic filling machine is suitable for liquid that has no particles, such as shampoo, juice, perfume, essential oil, etc. Equipped with a chain conveyor, it can bear heavy products, and the conveyor belt will run steadily. Durable and reliable. The machine can be widely used in pharmaceutical, cosmetic, beverage, daily chemical industries.
