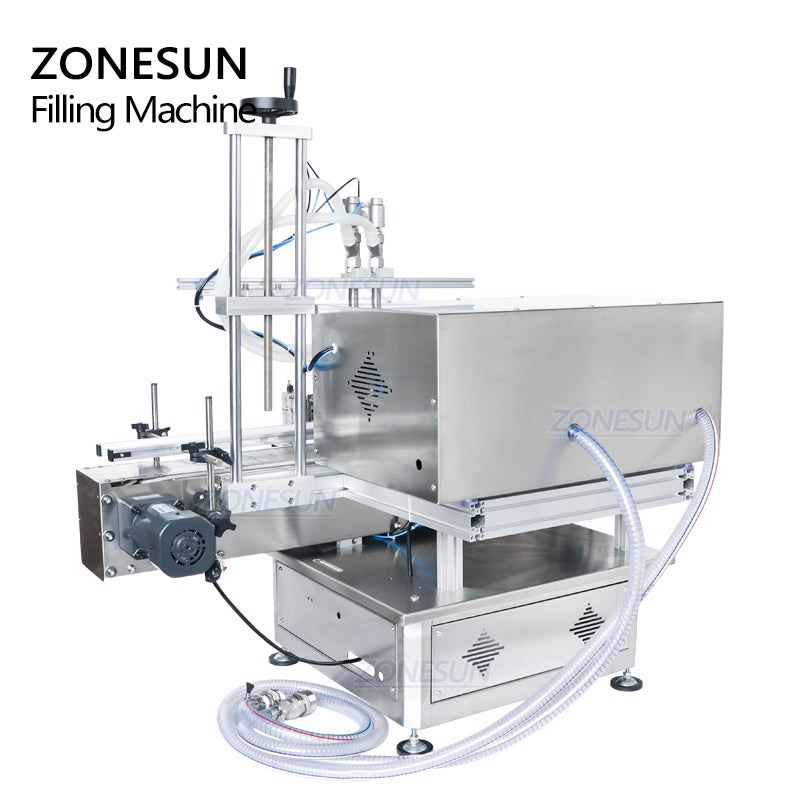

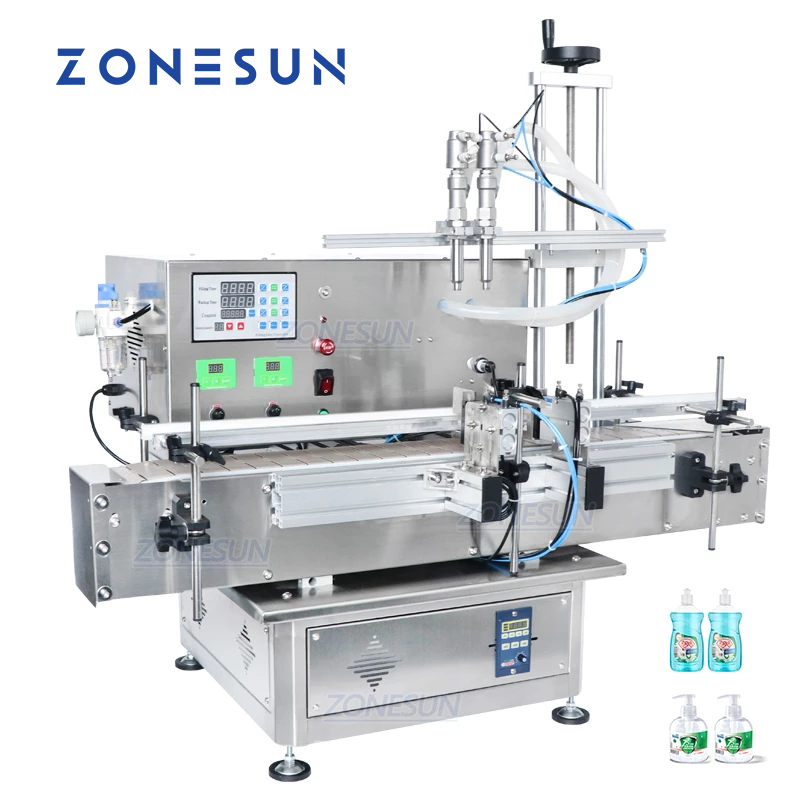

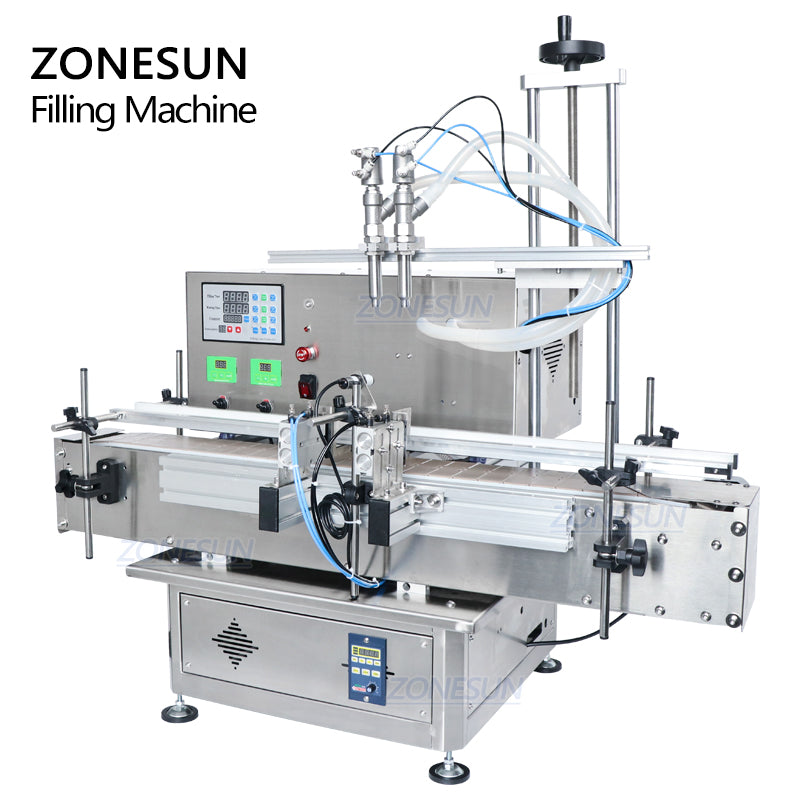

The ZONESUN ZS-DTDP20-2 is a desktop dual-head liquid filling machine designed for efficient and accurate filling of various liquids, including juice, perfume, milk, gel, and shampoo. Each pneumatic nozzle delivers up to 20L/min, ensuring high-speed performance for small to medium-scale production. Its chain conveyor system supports stable transport of heavier containers, while the adjustable bottle height and nozzle diameter offer flexibility across product types. Ideal for cosmetics, pharmaceuticals, catering, and daily chemical industries, this machine can be integrated with capping and labeling units for a complete automated packaging line.
ZS-DTDP20-2 Dual Nozzle Liquid Filling Machine Specifications
Specification Details
Machine Model ZS-DTDP20-2
Voltage 110V / 220V, 50–60Hz
Power 500W × 2
Max Flow Velocity 20 L/min per nozzle (based on water)
Working Speed 20–25 bottles/min × 2 (depends on bottle & liquid)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤±1% (for water)
Bottle Height <220 mm (customizable, max 300 mm)
Filling Nozzle Diameter 10 mm
Conveyor Size 1130 × 115 mm (L × W)
Air Compressor Connector Outer Diameter 8 mm
Machine Size Approx. 1130 × 710 × 1070 mm
Package Size Approx. 1150 × 730 × 830 mm
Net/Gross Weight Approx. 74 kg / 103.5 kg

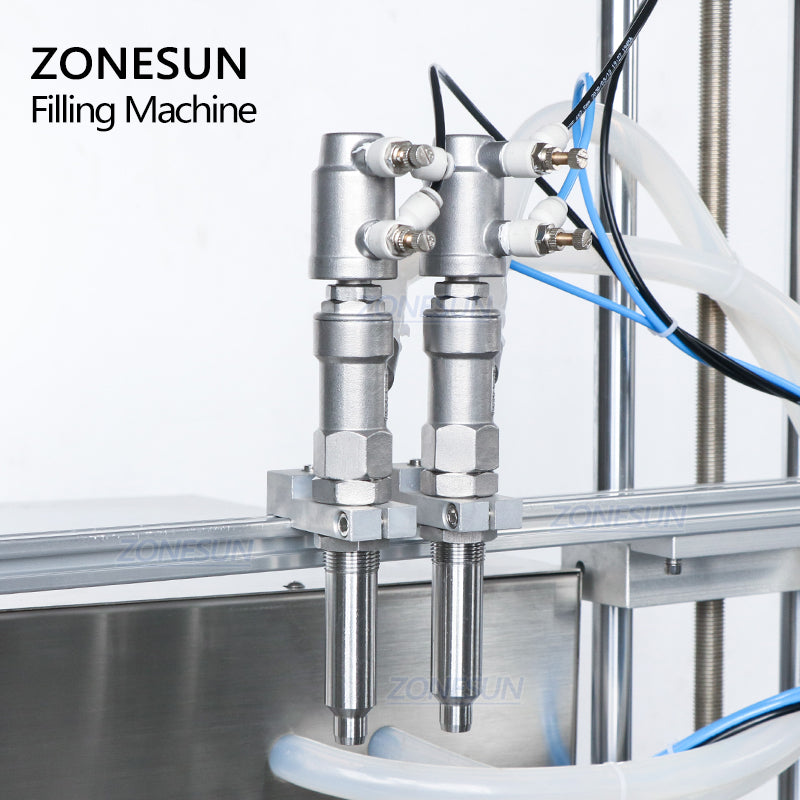

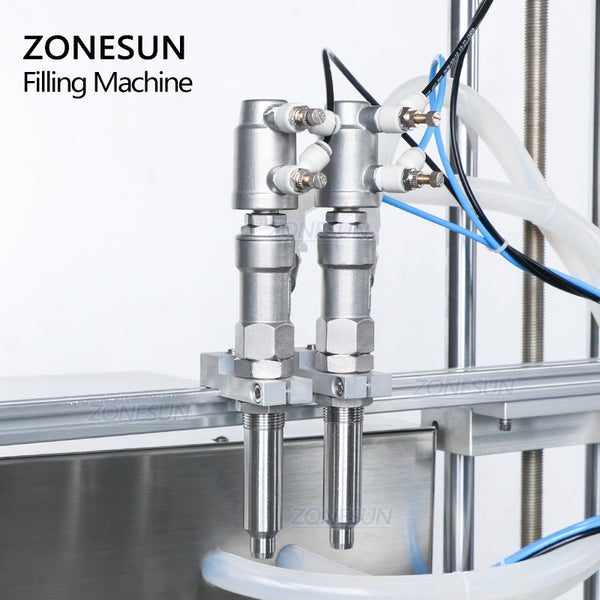

Dual-Head Liquid Filling
The two pneumatic nozzles are suitable for thicker liquids such as gel. Each nozzle can be controlled separately, and the chain conveyor supports stable container transfer.
Suitable Applications
Suitable for liquids such as juice, perfume, milk, gel, shampoo, detergent, and similar products shown in the image.
Automatic Electric Eye
The electric eye detects passing bottles and controls the machine for automatic filling.
Heavy-Duty Chain Conveyor

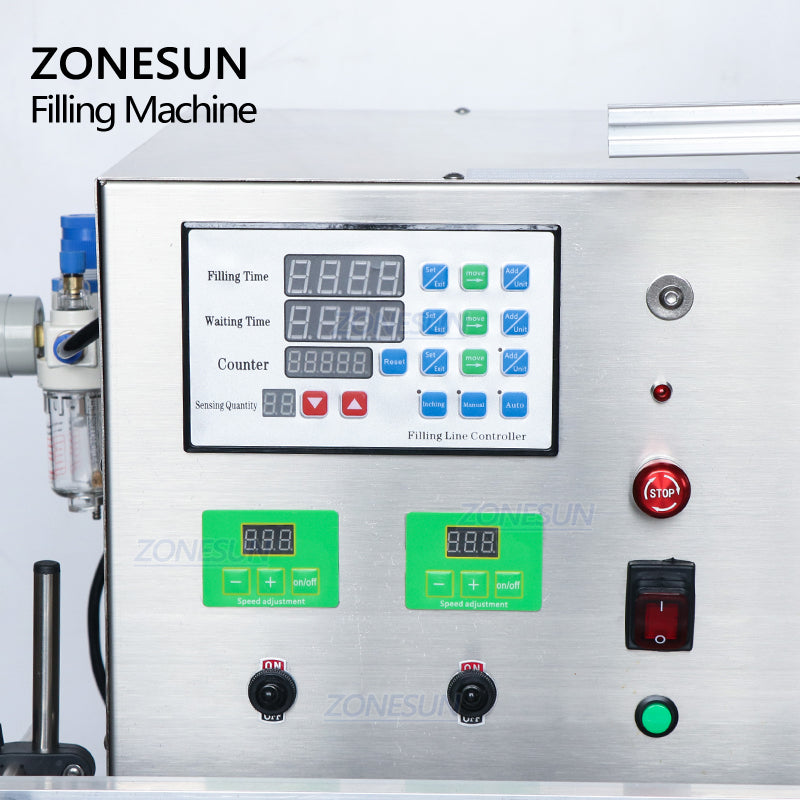

The chain conveyor transports heavier products smoothly. Its speed can be adjusted through the control panel.

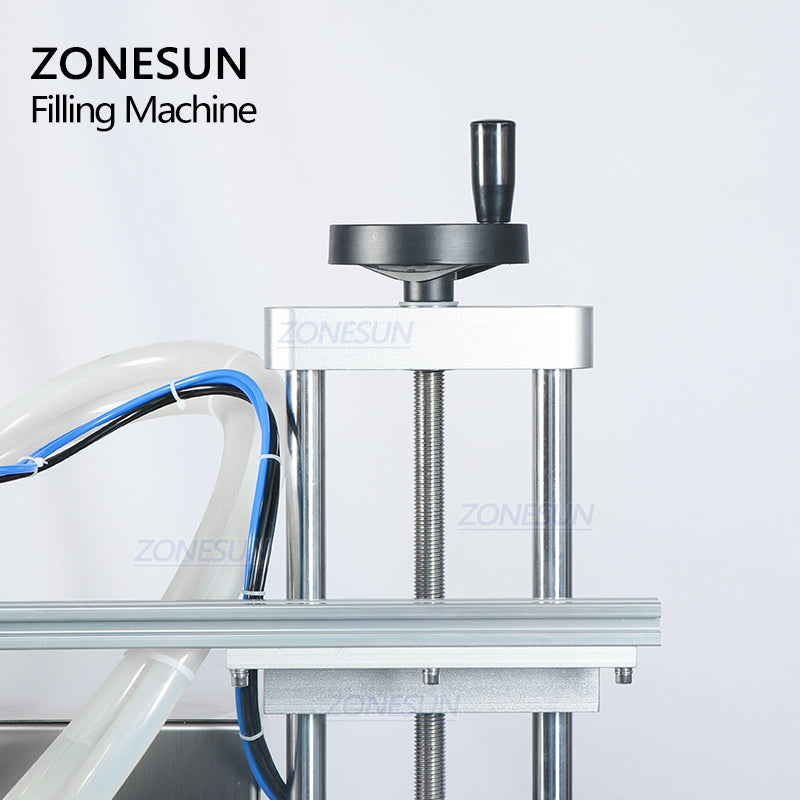

Adjustable Filling Height
The rotary knob adjusts the filling-head height to suit bottles of different sizes.
Large-Diameter Hose
The larger filling hose supports smooth liquid transfer during filling.
Air Compressor Required
This pneumatic machine must be used with an air compressor, which is sold separately.
