Description

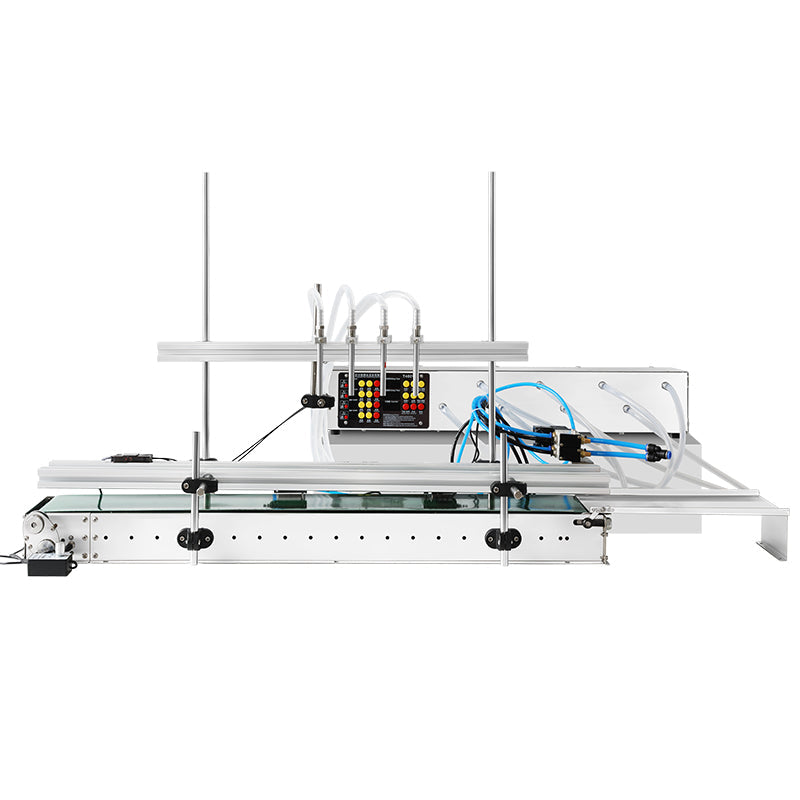

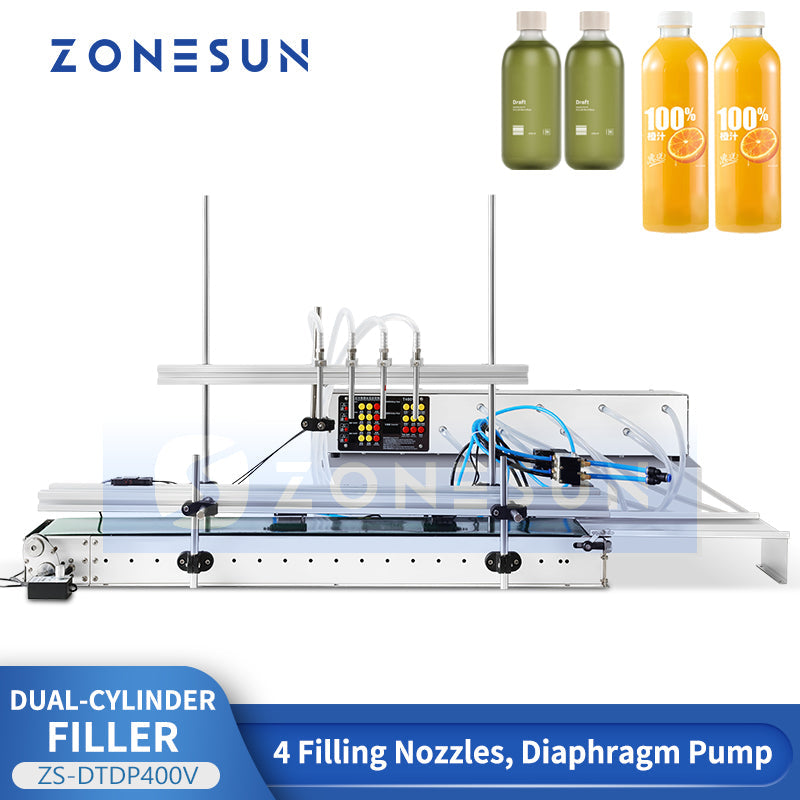

The ZS-DTDP400V is a precision-engineered liquid filling machine featuring dual-cylinder bottle separation and four independent filling heads. Designed for high-efficiency dispensing of low-viscosity liquids, it supports jog, manual, and automatic sensor-based operation. With PWM-controlled brushless pumps, adjustable nozzle spacing, and a modular aluminum alloy platform, this compact tabletop system is ideal for small-scale production lines in cosmetics, pharmaceuticals, and food industries.
Parameter
- Model: ZS-DTDP400V
- Voltage: Input: AC 110–220V，50/60Hz；Output: DC 15V
- Pump Type: Diaphragm Pump
- Pump Speed: Adjustable
- Speed Range: Slow: 0.1–9.9 / Fast: 00–99
- Application: High-fluidity liquid, no original granules
- Operating Modes: Jog / Manual / Automatic (Sensor-Controlled)
- Max Bottle Outer Diameter: 100 mm
- Bottle Height Range: 70–200 mm
- Minimum Bottle Neck Inner Diameter: >12 mm
- Adjustable Filling Bracket Range: 50–250 mm
- Filling Volume Range: 30–1000 ml (customizable)
- Conveyor Dimensions: 900 × 150 × 80 mm
- Main Machine Dimensions: 660 × 150 × 170 mm
- Machine Weight: 22 kg

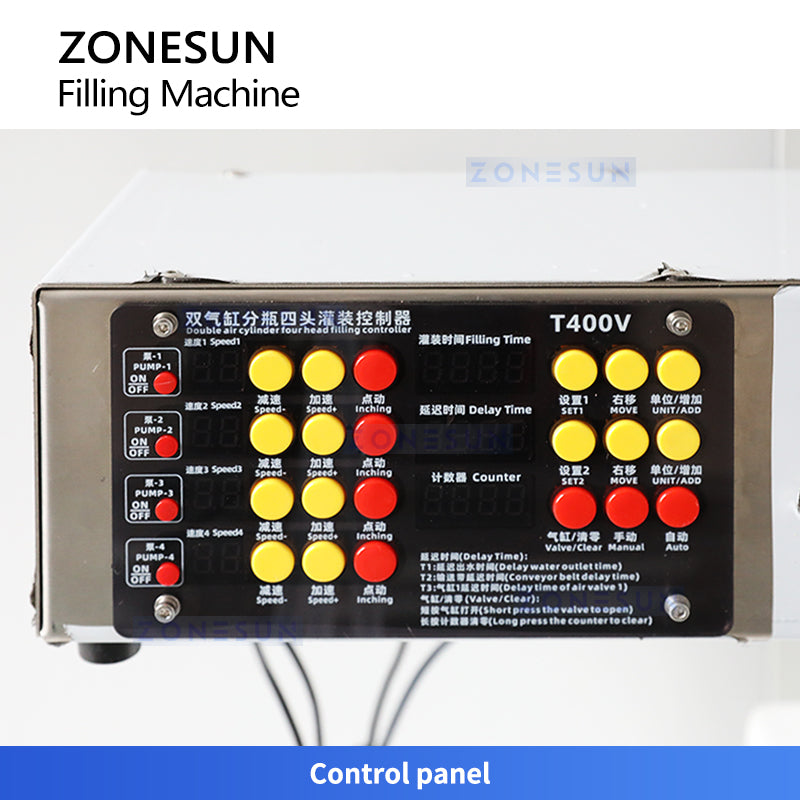

CONTROL PANEL
Controls pump activation, filling and delay timing, counter modes, and real-time parameter viewing.

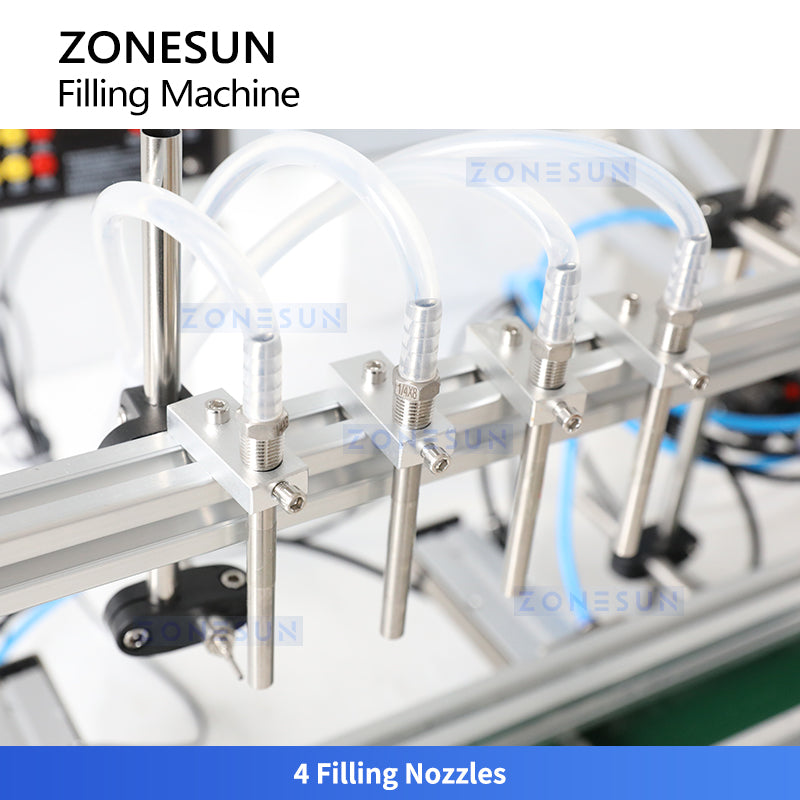

4 FILLING NOZZLES
Dispenses precise volumes of liquid through four nozzles for fast, clean, multi-bottle filling.

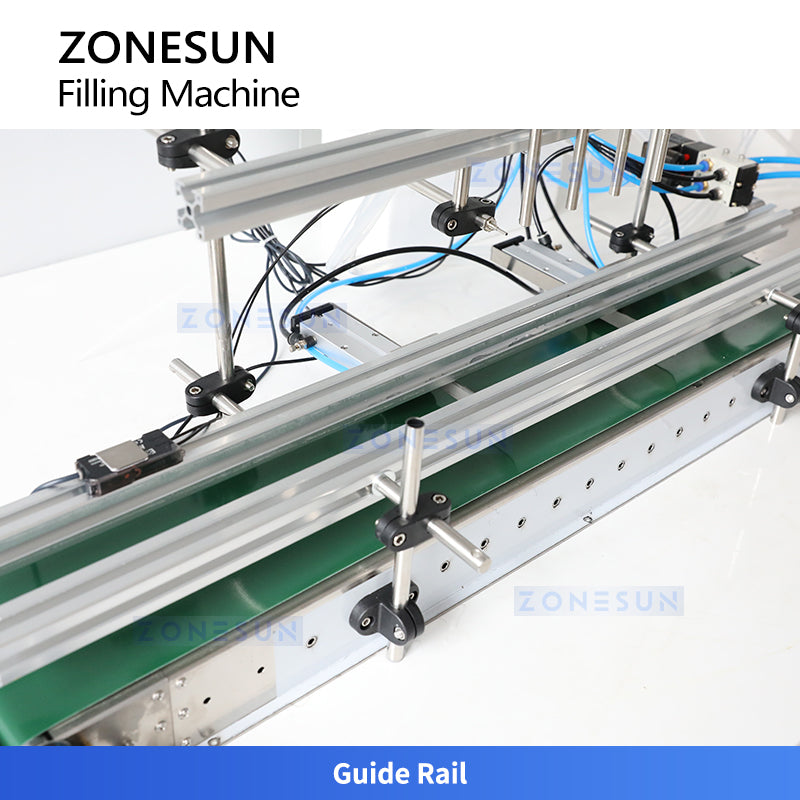

GUIDE RAIL
Provides stable, precise movement and positioning of bottles for synchronized multi-head filling.

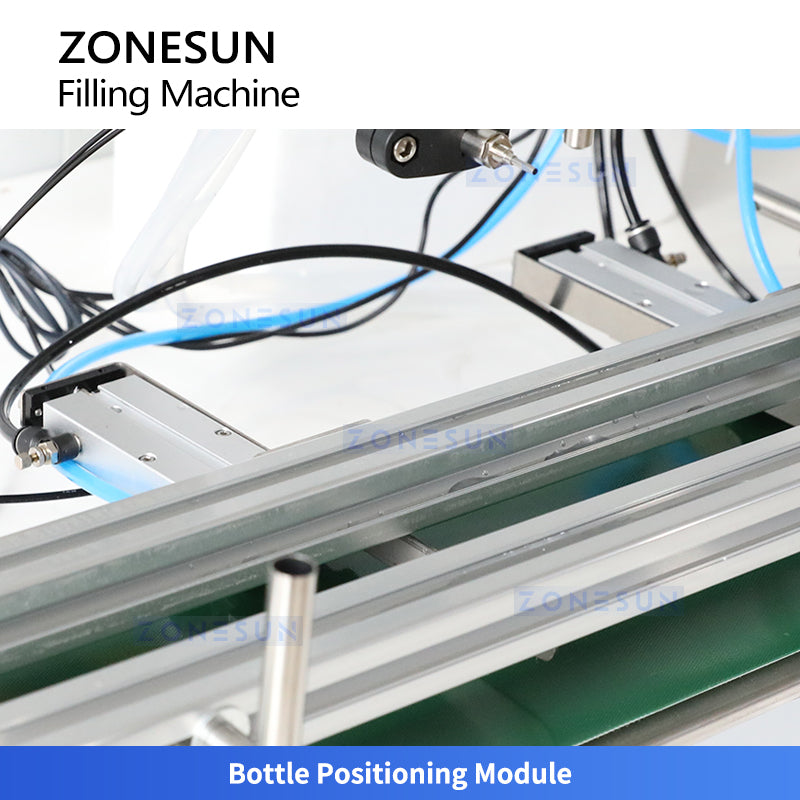

POSITIONING MODULE
Secures bottles in place during filling to ensure accurate alignment and prevent movement.

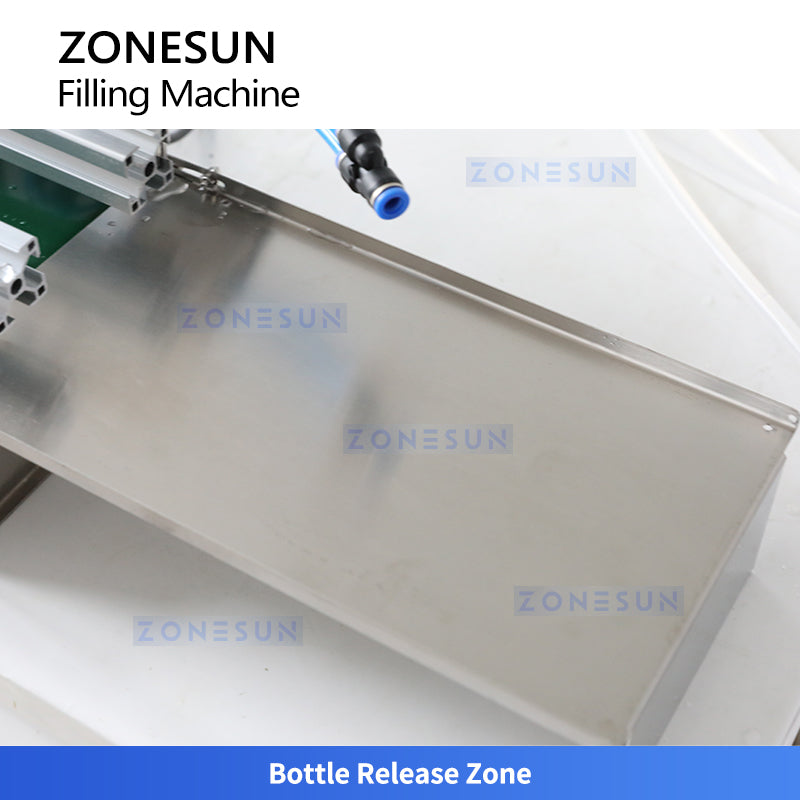

RELEASE ZONE
Allows filled bottles to exit the filling station smoothly, preventing blockage and ensuring continuous flow.
