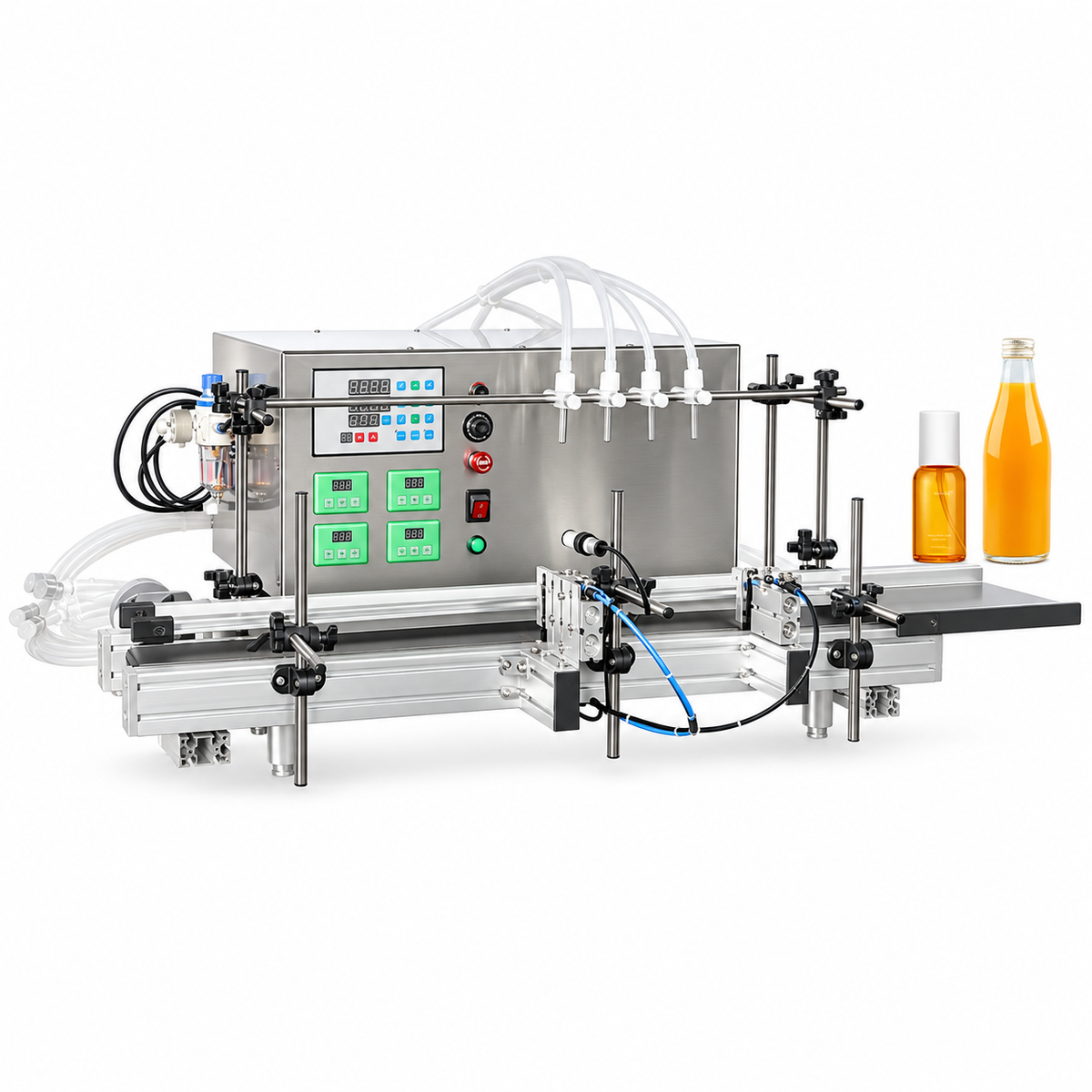

The ZS-DTPP4F is a compact, fully automatic desktop liquid filling machine designed for precision and hygiene. Featuring four independently controlled peristaltic pump nozzles, it ensures that liquid never contacts the pump interior, maintaining product purity. With an intelligent electric eye for accurate bottle detection and a high-quality conveyor belt for stable transport, this machine streamlines small-scale production. It supports both low-viscosity and foamy liquids such as eye drops, essential oils, juice, and soy milk. Compatible with desktop capping and labeling machines, the ZS-DTPP4F is ideal for cosmetic, pharmaceutical, and beverage industries.
ZS-DTPP4F Liquid Filling Machine – Technical Specification
Item Specification
Machine Model ZS-DTPP4F
Filling Nozzles 4 (customizable based on user requirements)
Voltage AC 110V / 220V, 50–60Hz
Power 60W (per pump)
Recommended Filling Volume 10–500mL (110V) / 10–1000mL (220V)
Max Flow (per nozzle) 4000mL/min (based on water)
Working Speed 30–50 bottles/min (depends on bottle & liquid type)
Air Pressure 0.3–0.4MPa
Filling Accuracy ≤±1% (based on water)
Filling Nozzle Diameter Standard 8mm and 6mm
Delay Range 0.01s – 999.9s
Conveyor Belt Length 1.0m
Air Compressor Connector Size OD 8mm
Suitable Bottle Height <220mm (customizable, max height 300mm)
Machine Dimensions Approx. 650mm × 430mm × 400mm
Machine Weight Approx. 55.5kg
Package Dimensions Approx. 1115mm × 770mm × 440mm
Package Weight Approx. 73kg
Application
This desktop machine is suitable for filling low-viscosity liquid, such as eye drop, essential oil, juice, soy milk, etc. Equipped with peristaltic pumps, the liquid won't pass through the pump, ensuring its cleanliness. The machine can be widely used in cosmetic, beverage, medicine industries.
Four-Nozzle Peristaltic Pump Filling Machine
Four independently controlled peristaltic pumps support accurate filling. The liquid passes only through the tubing, helping maintain product cleanliness.
Control Panel and Filling Nozzles
The control panel allows filling time and speed to be set for each pump. Each nozzle can be used for different liquids and controlled independently.
Bottle Detection, Peristaltic Pumps and Conveyor
The electric eye detects bottles and sends a signal for accurate filling. Liquid passes through the pump and tubing for easier cleaning, while the conveyor transports bottles smoothly.
