DESCRIPTION

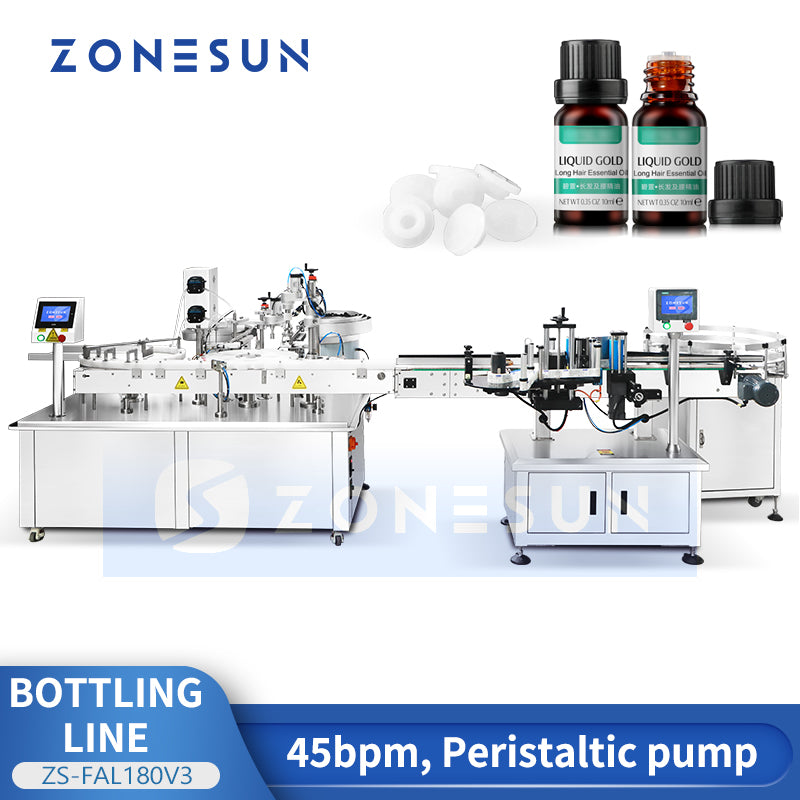

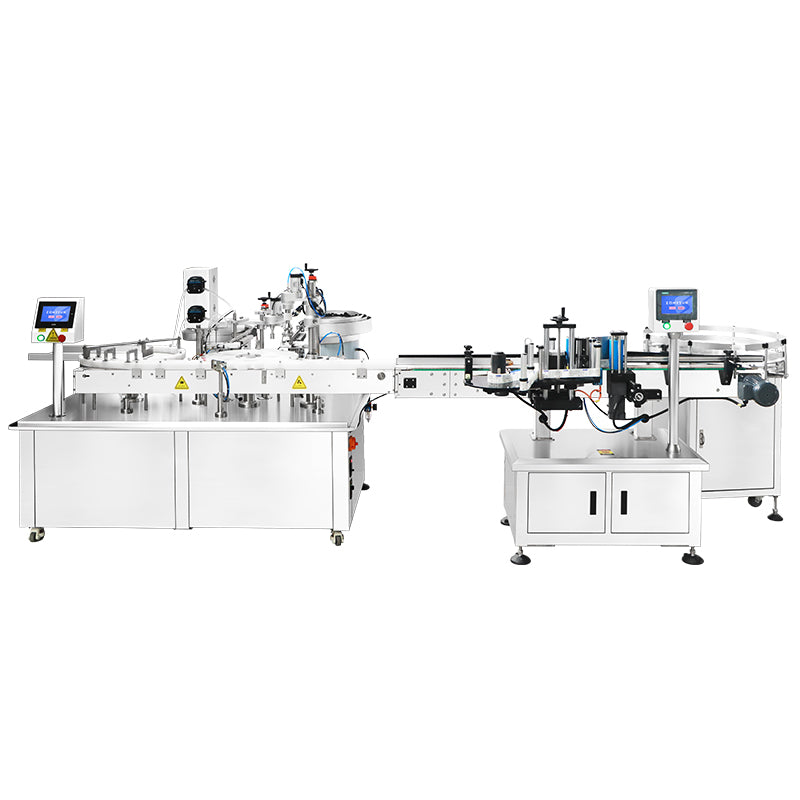

ZONESUN ZS-FAL180V3 is an integrated packaging solution that combines filling, capping, labeling, and bottle collecting into one streamlined process. Specially engineered for automotive ceramic coating products, this line includes a precision monoblock filler and capper, a high-speed wrap-around labeling system, and an automated bottle collection unit. With a capacity of up to 2700 bottles per hour (BPH), it ensures consistent quality and maximum throughput for industrial-grade packaging workflows.
Parameter
- Machine Model: ZS-AFC43
- Working Voltage: 110/220V, 50–60Hz, 3KW
- Filling Pump: Peristaltic pump
- Working Capacity: 30–45 BPM (based on filling range)
- Filling Accuracy: ±1%
- Suitable Bottle Size: Customizable
- Suitable Cap Size: Customizable
-
Machine Size:
- Main Machine: 2200 × 1630 × 1430mm
- Vibratory Bowl Sorter for Stopper: 605 × 455 × 1040mm
- Vibratory Bowl Sorter for Caps: 605 × 455 × 1070mm
- Total Machine Weight: ≤600kg

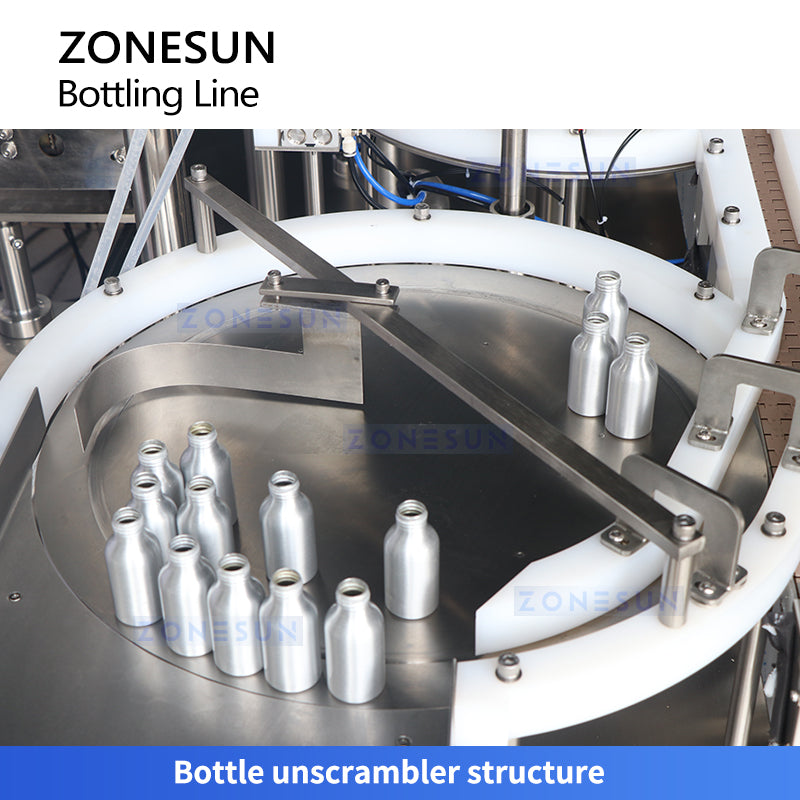

BOTTLE INFEED SORTING
Arranges bottles in order before filling and capping, reducing manual handling.

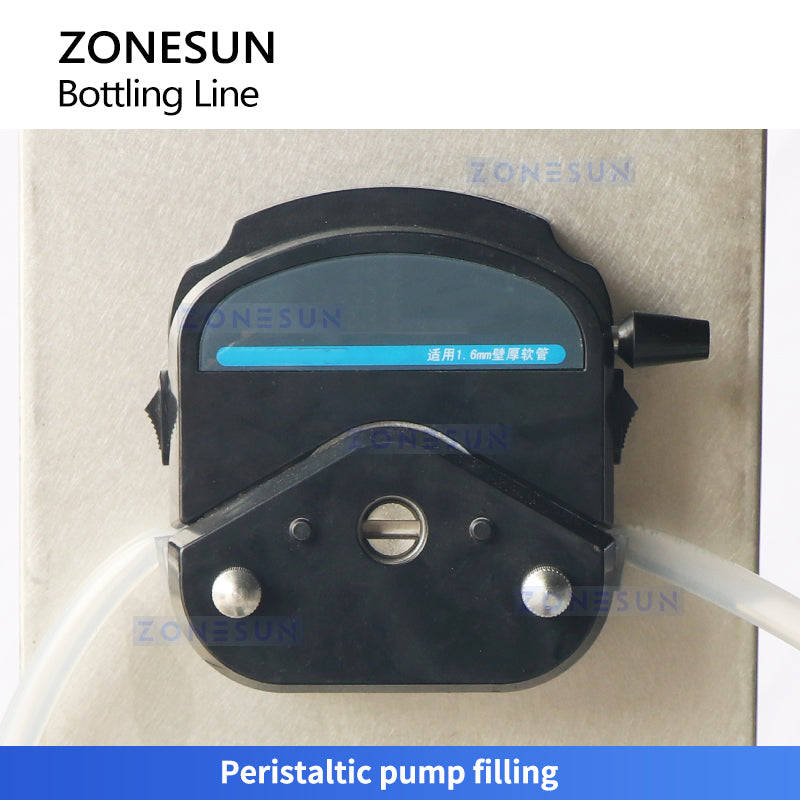

PERISTALTIC PUMP
Liquid passes only through the filling hose, supporting packaging quality.

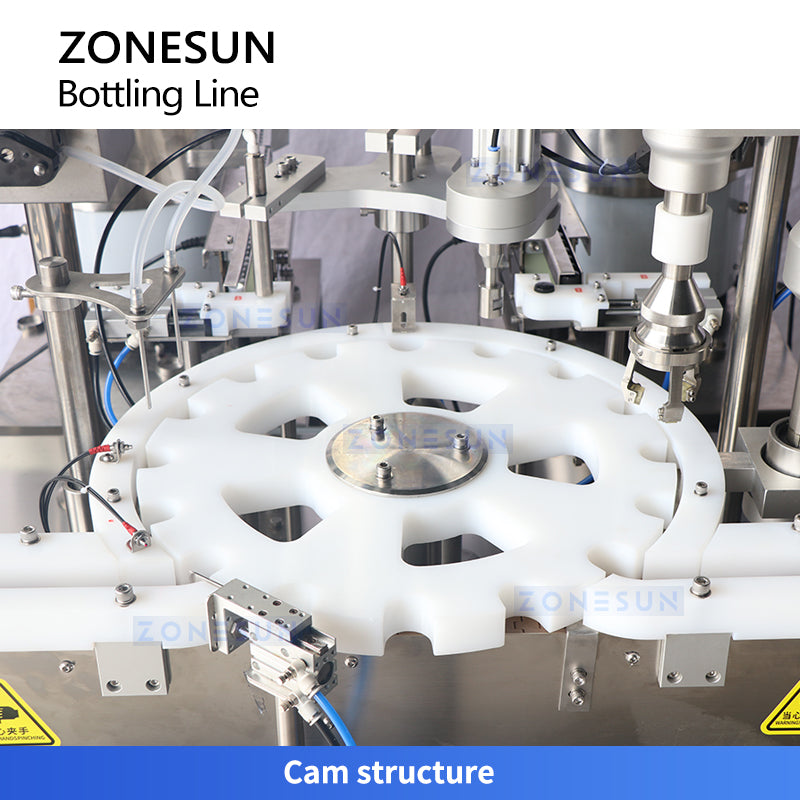

CAM SYSTEM
Uses a cam system to control filling and capping. Each working station can operate at the same time to improve efficiency at 35–40 BPM.

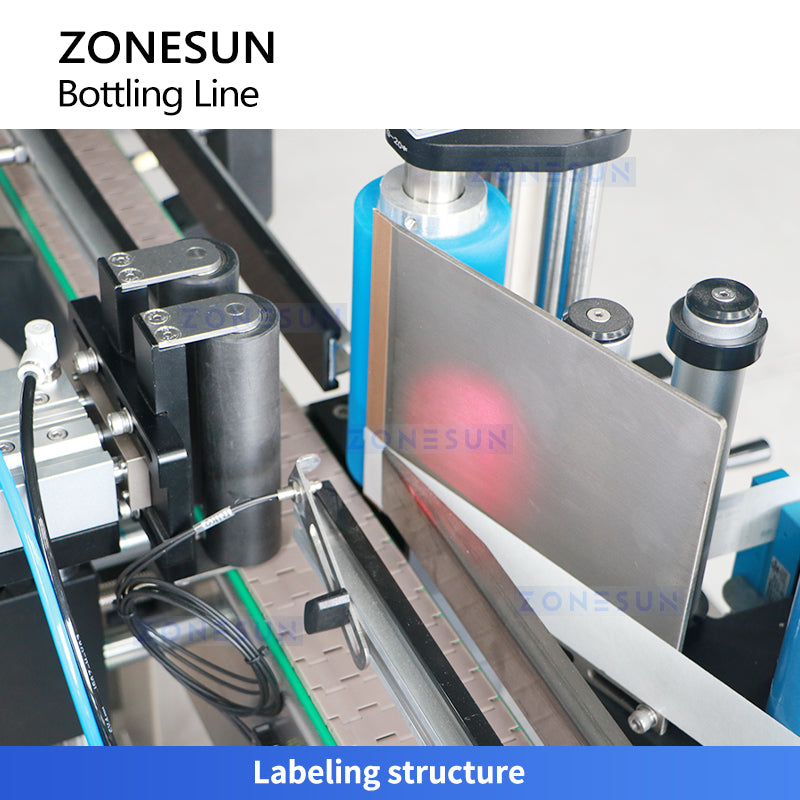

LABELING STRUCTURE
Uses a three-roller labeling structure suitable for single-side, double-side, and wrap-around labeling.
CHAIN CONVEYOR
The conveyor width and length can be customized according to product size to support smooth conveying.

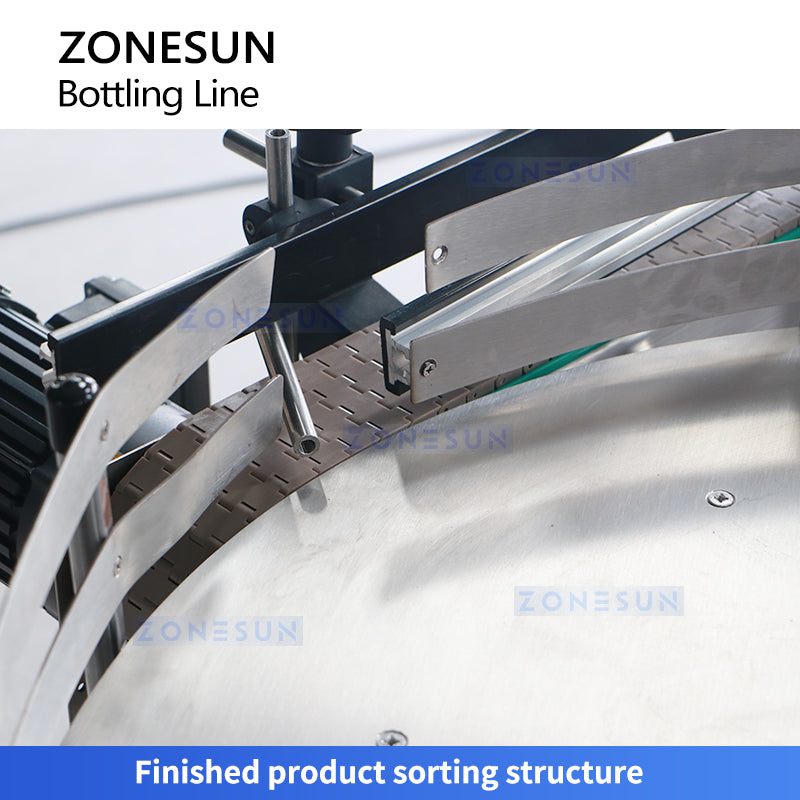

FINISHED BOTTLE COLLECTION
Collects finished products and makes them easier to move to the next production process.
