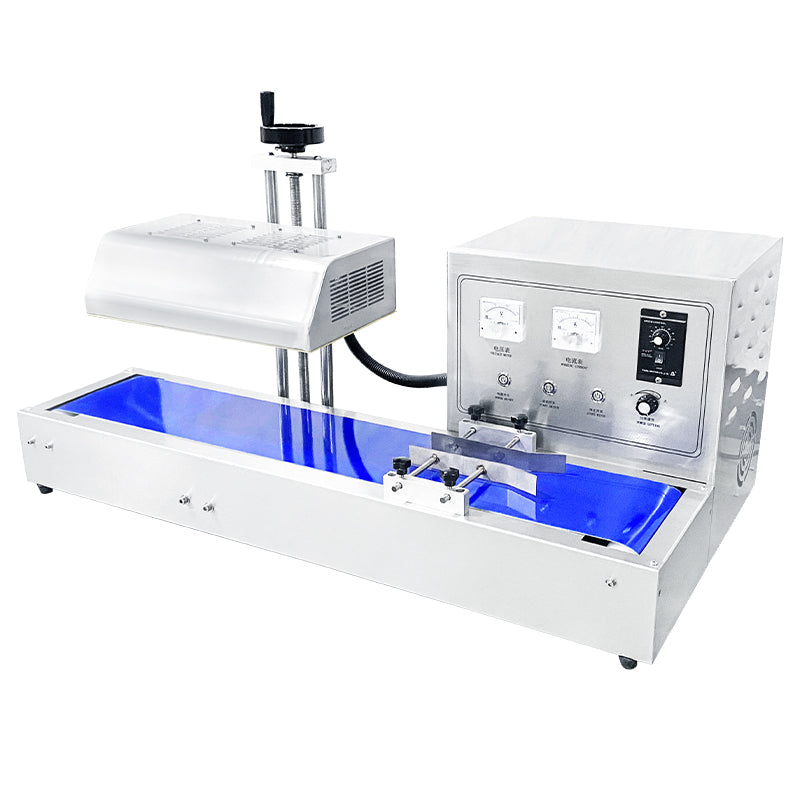

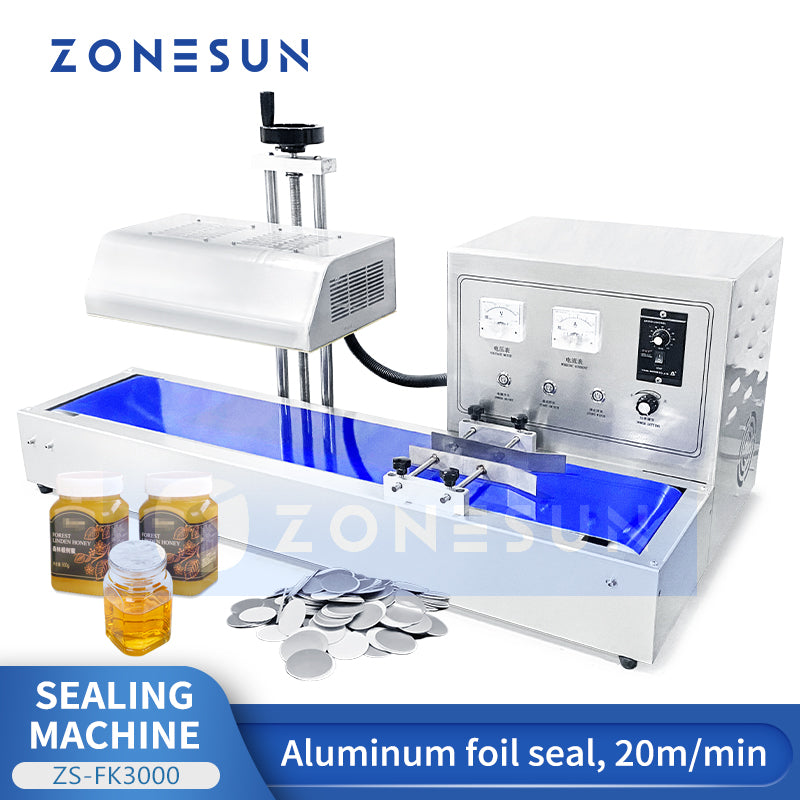

The ZONESUN ZS-FK3000 is a high-performance tabletop induction sealing machine designed for sealing aluminum foil caps on plastic and glass bottles. Ideal for food, pharmaceutical, cosmetic, and chemical packaging, it features a powerful sealing output and a fast conveyor system for continuous operation. This machine ensures consistent, airtight seals across a wide range of bottle sizes, making it perfect for high-speed production lines.
Parameter
- Machine model: ZS-FK3000
- Input power: AC220V, 50/60Hz
- Input current: <10A
- Output current: Static <2A, Dynamic <10A
- Operating frequency: 75–85kHz
- Output power: 500–3000W
- Sealing diameter: 20–95mm
- Bottle height: 20–280mm
- Sealing speed: 0–20 m/min
- Conveying platform bearing load: 4.5kg
- Machine size (L×W×H): About 1040×570×590mm
- Package size: About 1150×680×780mm
- Net weight / Gross weight: About 31kg / 60kg

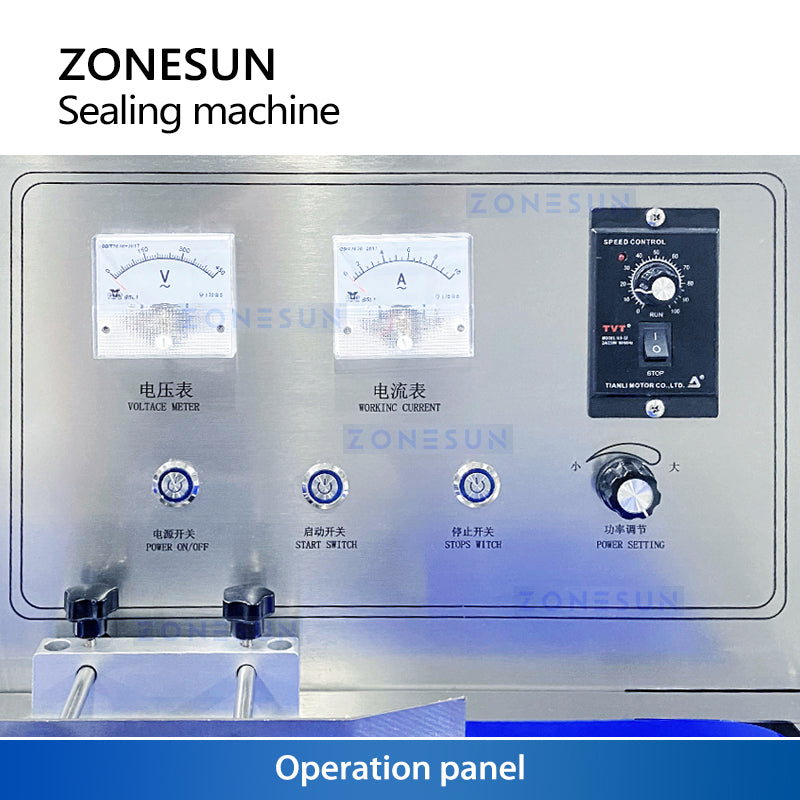

Operation Panel
The panel displays voltage and current, while allowing operators to adjust conveyor speed.

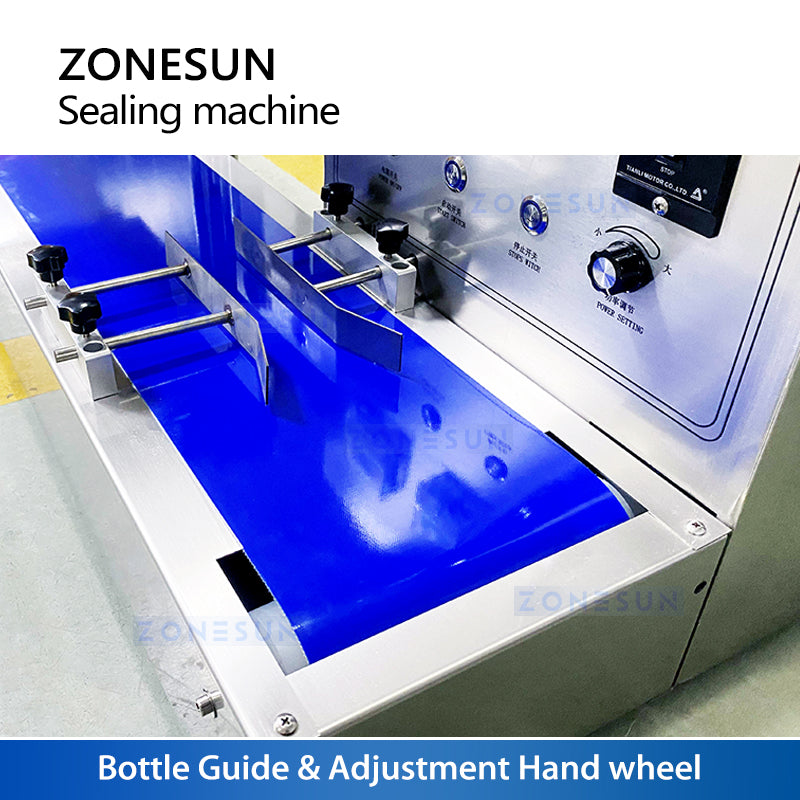

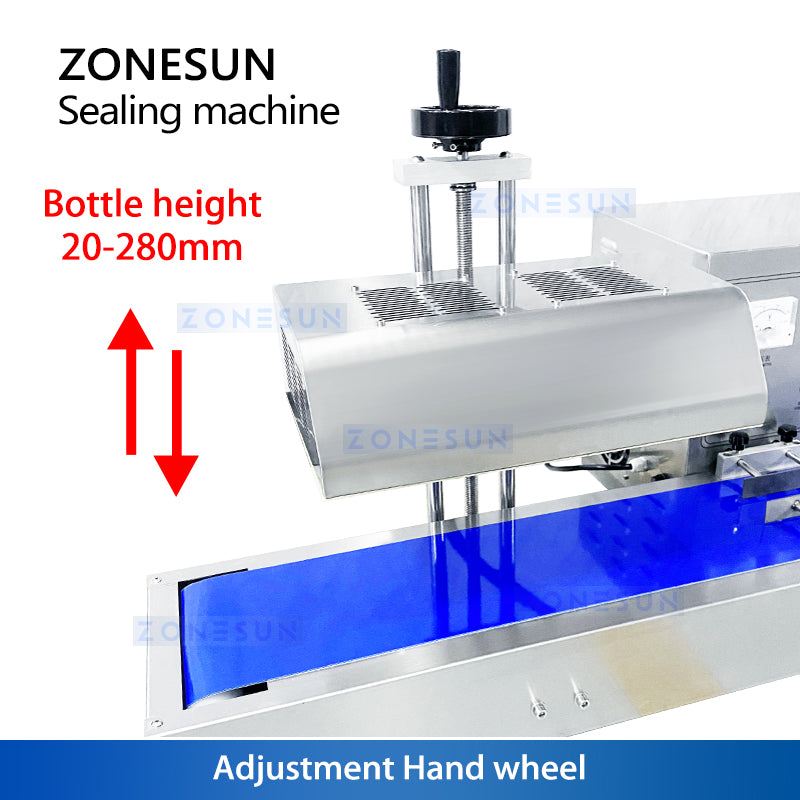

Bottle Guide and Height Adjustment
The working width and sealing-head height can be adjusted for different bottle sizes.

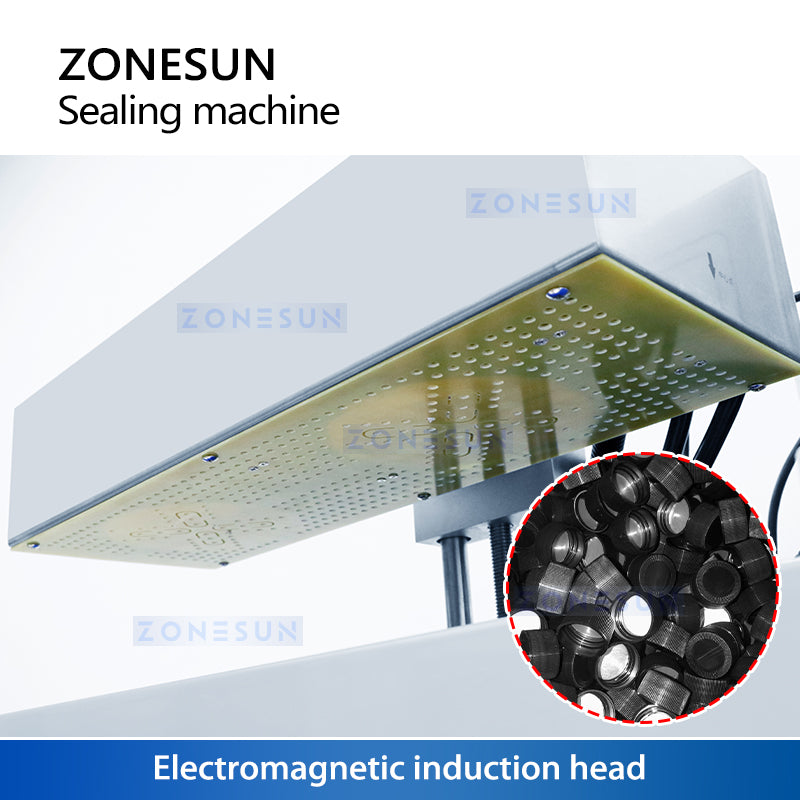

Electromagnetic Induction Head
The induction head heats the foil continuously to create a secure seal.

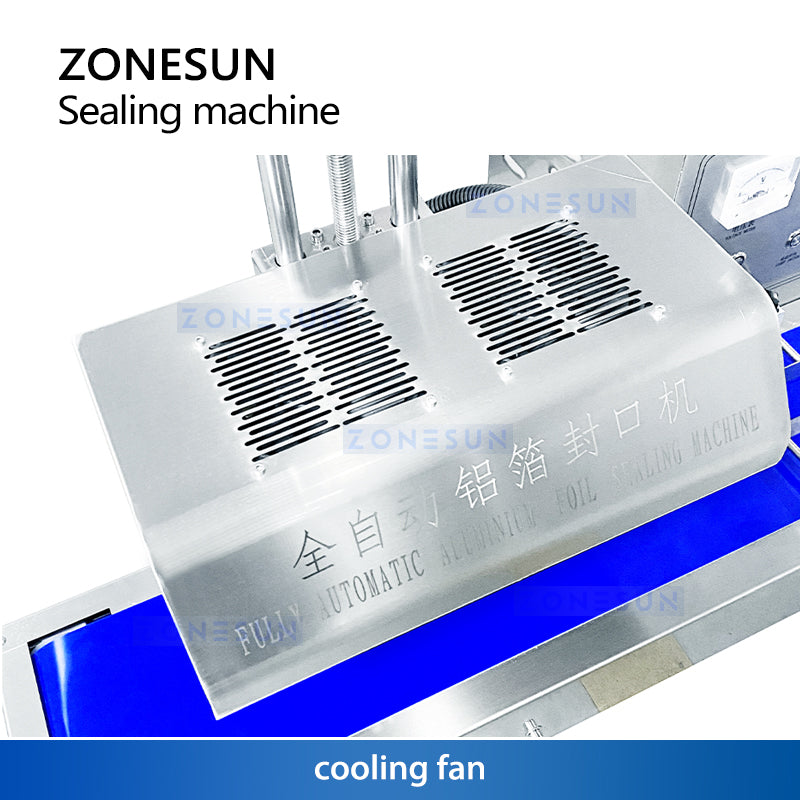

Forced-Air Cooling
The air-cooled system helps maintain stable sealing performance during continuous operation.
