Description

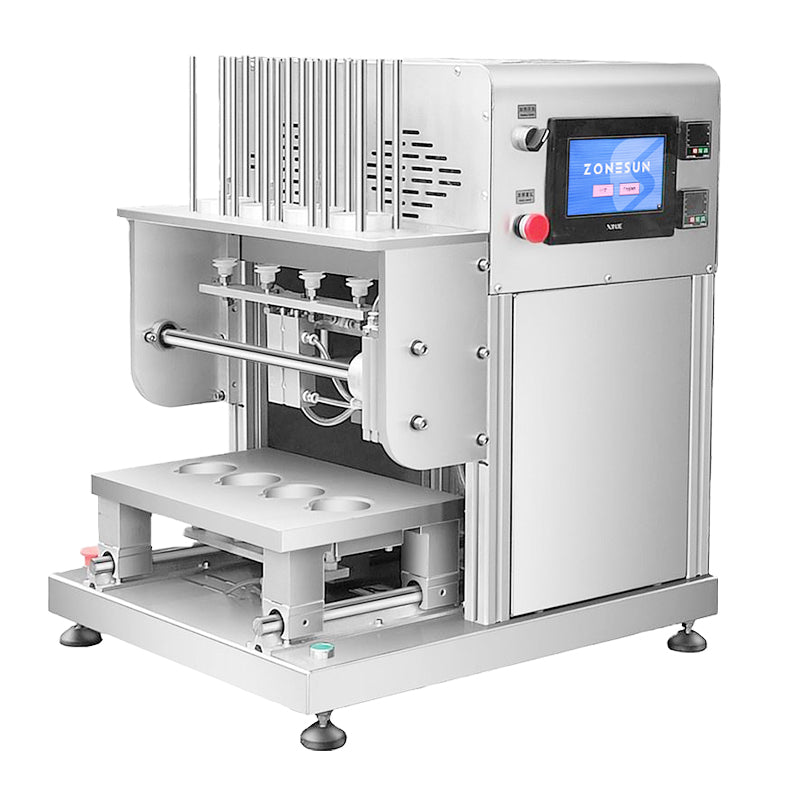

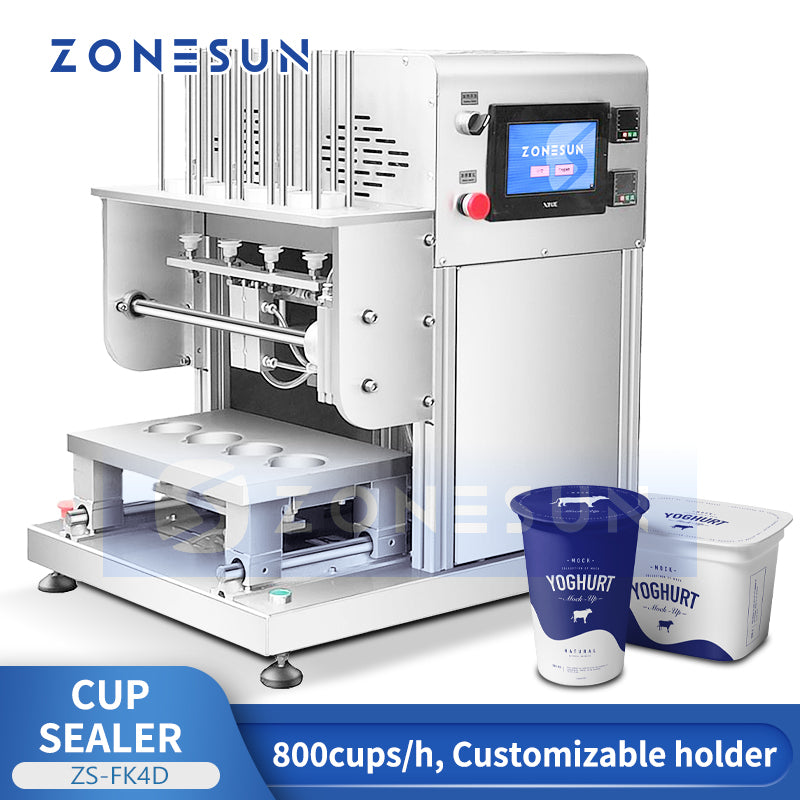

The ZONESUN ZS-FK4D Semi-Automatic Cup Sealing Machine integrates pre-cut lid suction, automatic lid placement, cup positioning, and heat pressing into an efficient sealing process. Designed for round cups, bowls, and similar containers, the machine is suitable for packaging milk tea, juice, yogurt, sauces, and other compatible products. With a production capacity of 500–800 cups/hour, the machine uses a vacuum suction system to pick up and position pre-cut sealing lids before applying heat and pressure to seal the cup rims. The PLC control system and touchscreen interface allow operators to adjust sealing temperature and other parameters according to different packaging materials. Its customizable and interchangeable cup holder supports different container sizes and shapes, providing flexible sealing options for various packaging applications.
|
Model |
ZS-FK4D |
|
Power Supply / Rated Power |
220 V / 50 Hz; 1.5 kW |
|
Production Capacity |
500–800 cups/hour |
|
Working Air Pressure |
0.6–0.8 MPa |
|
Gas Type |
Vacuum Generator Air Supply |
|
Maximum Cup-and-Lid Height |
130 mm |
|
Maximum Square Film Size (2-Cavity Mold) |
Within 180 × 160 mm |
|
Maximum Round Film Diameter (2-Cavity Mold) |
Within 180 mm |
|
Maximum Square Film Size (3-Cavity Mold) |
Within 160 × 110 mm |
|
Maximum Square Film Size (4-Cavity Mold) |
Within 160 × 80 mm |
|
Tabletop Machine Dimensions (L × W × H) |
920 × 820 × 850 mm |
|
Tabletop Machine Packaging Dimensions (L × W × H) |
1020 × 850 × 950 mm |
|
Total Machine Weight |
Net Weight: 80 kg; Gross Weight: 100 kg |

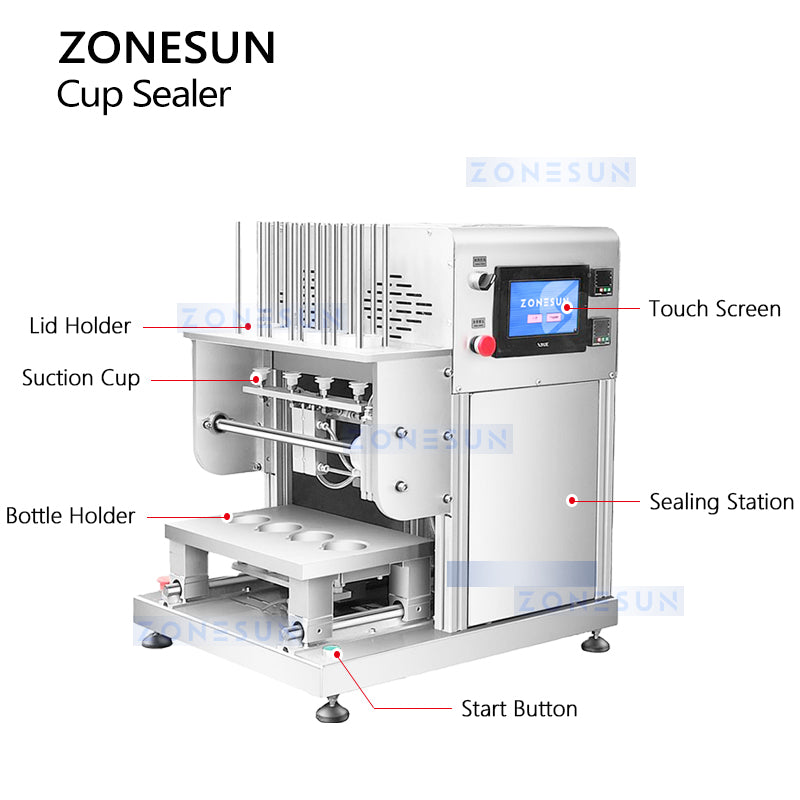

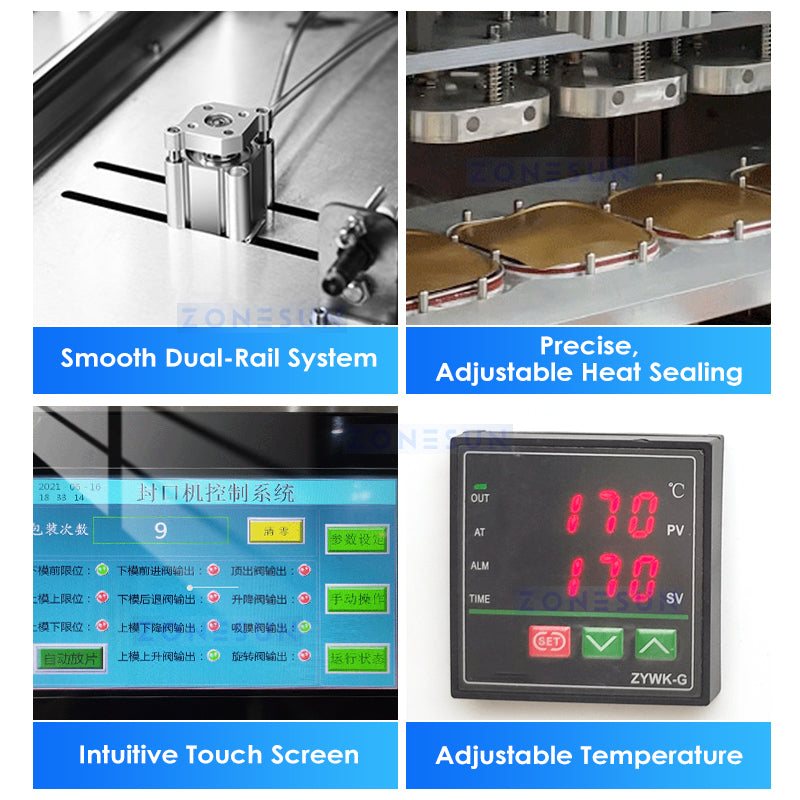

Touch Control Panel
Provides intuitive operation and convenient parameter adjustment, allowing operators to control the sealing process efficiently and monitor machine settings with ease.
Lid Storage Holder
Stores and organizes pre-cut sealing lids for convenient feeding, helping maintain an orderly supply of lids and support continuous sealing operations.

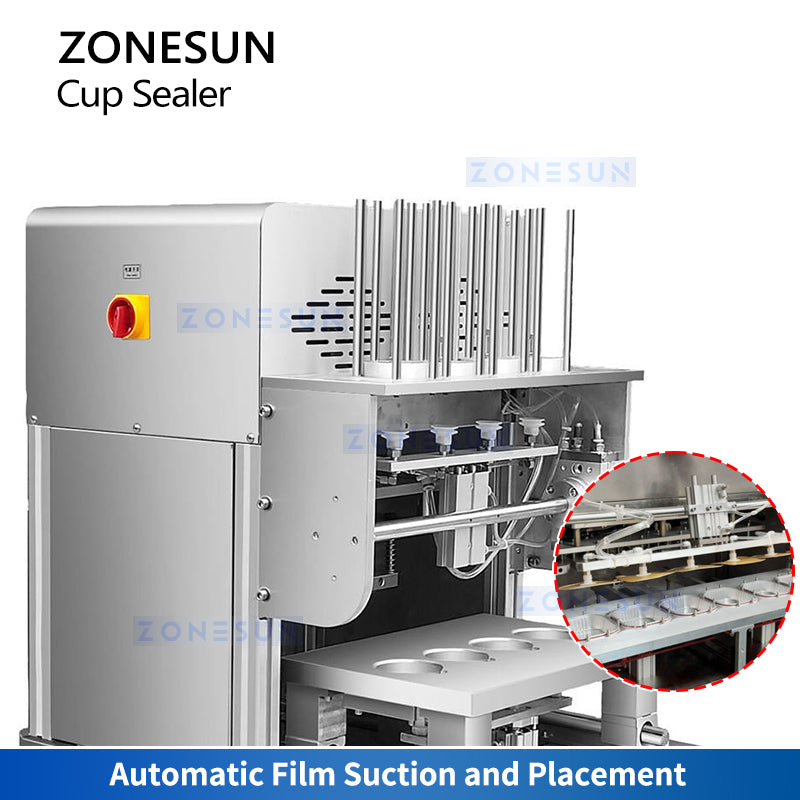

Automatic Lid Suction System
Automatically picks up and positions pre-cut sealing lids using vacuum suction, reducing manual handling and ensuring accurate lid placement for consistent sealing results.
Heat Sealing Station
Applies heat and pressure to bond the sealing film securely to the cup rim, helping achieve reliable seals and reduce leakage during storage and transportation.

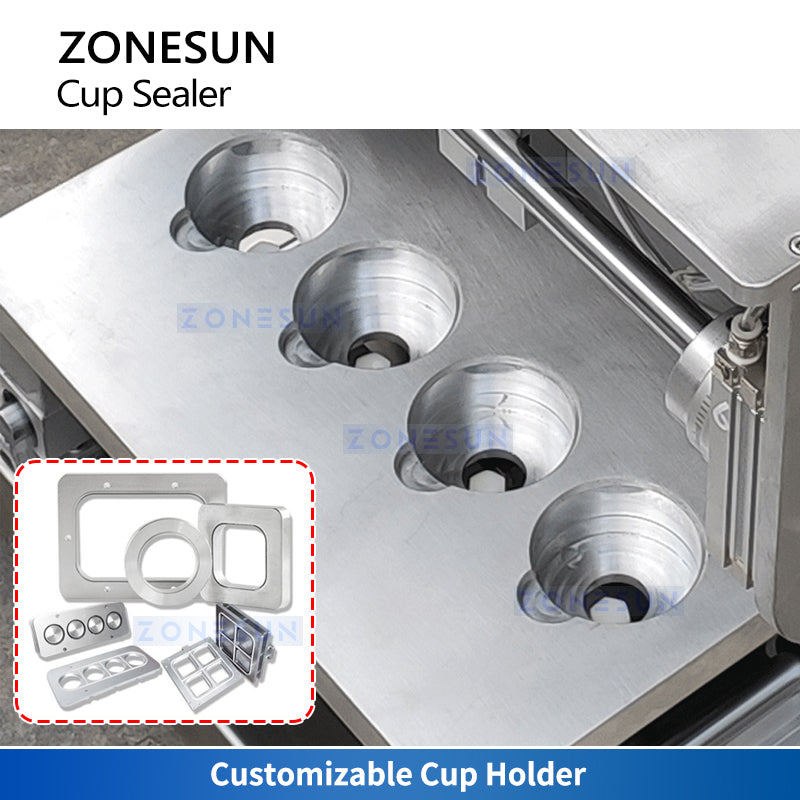

Interchangeable Cup Holder
Features interchangeable molds to accommodate different cup sizes and shapes, offering flexible production options while reducing the need for additional sealing equipment.
