Description

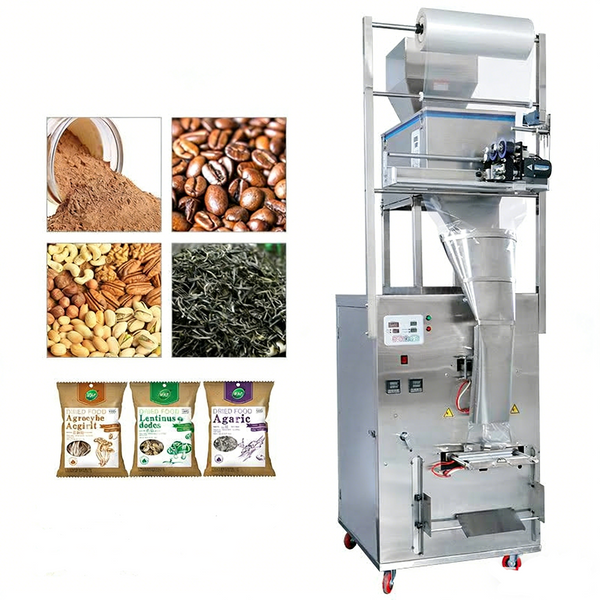

This fully automatic large-capacity packaging machine is made of stainless steel fuselage material and adopts intelligent control panel. Simple and stable operation, fast and accurate, good quality, suitable for food, medicine, seeds, tea, grain shape chemicals and pharmaceuticals and other industries.
Parameter
-
Model: ZS-FM1000
-
Voltage: 220V/50Hz, 110V/60Hz
-
Rated Power: 650W
-
Packing Speed: 10–15 bags/min (depending on the materials)
-
Weighing Range: 10–999g (adjustable)
-
Error Range: About 2g (depending on the materials)
-
Suitable Film: Heat sealed film
-
Machine Size: 63.4cm(L) × 70cm(W) × 204.2cm(H)
-
Machine Weight: About 116kg
-
Film Width: ≤420mm
-
Sealed Bag Width: ≤200mm
-
Sealed Bag Length: ≤280mm
-
Hopper Size: About 32.2 × 32.2 × 35.3cm
Application
This back sealing machine is suitable for granules, powder, pills, seeds, Chinese wolfberry, melon seeds, dog food, coffee beans, oatmeal, raisins, tea, dried fruits, pine nuts, walnut kernels, condiments, fertilizers, butterfly noodles, electronics, small hardware, etc.
Feature
1. Stainless steel discharge aisle keeps the materials clean.
2. Back sealing design, beautiful and generous packaging. Improve the packaging quality.
3. With a cursor locator, it can cut the bag accurately.
4. Strong vibration, no matter particle or powder can be uniformly unloading, no stuffing and no plugging.
Notice
1. This one is not suitable for tea. If you want to pack tea , please contact us.
2. This product includes a roll of package film, whose width is about 423mm.
Granule and Powder Applications
The machine is suitable for packaging compatible materials such as spices, nuts, beans, coffee, powder, tea, candy, seeds, and other granules.
Cursor Positioning
The cursor sensor positions printed packaging film accurately so bags can be cut to the required length.
Back-Seal Packaging
The machine produces firmly sealed back-seal bags for compatible packaging film.
Digital Control Panel
The panel provides automatic counting and adjustable filling speeds for efficient operation.
Exchangeable Outlet
The discharge outlet can be changed to suit different compatible bag sizes.
Adjustable Material Valve
The material valve controls the filling speed and flow to support accurate packaging.
Horizontal Sealing Area
The heated horizontal sealing jaws clamp the bag to complete the seal.
Adjustable Buffer Plate
The buffer plate slows the finished bag after sealing and can be adjusted according to bag weight.
Optional Date Coder
An optional date coder can print production dates and is operated through its control box.
