DECRIPTION

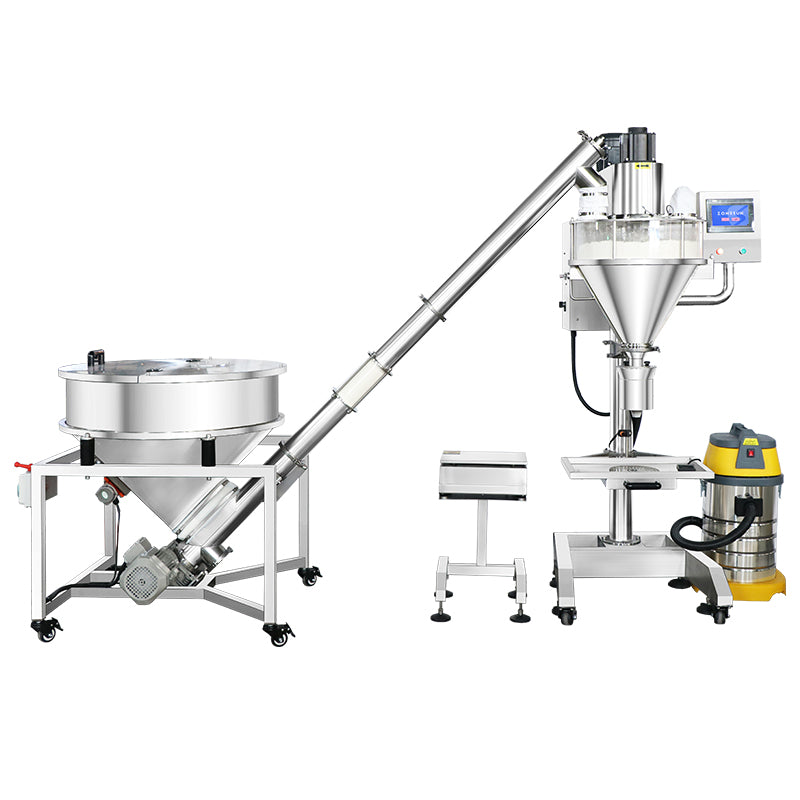

The ZONESUN ZS-FM750F is a semi-automatic auger powder filling machine designed for precise dosing of dry powders such as spices, coffee, protein powder, and talcum powder. It uses a servo-driven auger system for volumetric filling and can integrate a weighing feedback system to achieve accurate weight-based filling regardless of powder density variations. Equipped with a 50 L hopper, PLC touchscreen control, and foot pedal operation, it ensures flexible and efficient production. Optional vacuum dust extraction and screw feeding systems improve cleanliness and efficiency, while interchangeable augers allow filling ranges from 5 g to 5000 g.
PARAMETER
- Model: ZS-FM750F
- Supply Voltage: 110 V / 220 V / 380 V, 50–60 Hz
- Power: 2.2 kW
- Production Capacity: Based on filling volume
- Filling Range: 5–50 g / 50–300 g / 300–1000 g / 1000–5000 g (by changing auger)
- Hopper Size (Filling Machine): 50 L
- Hopper Size (Feeding Machine): 150 L
- Feeder Pipe Diameter: 102 mm
- Feeder Ground Height: Customizable
- Number of Filling Heads: 1 head (multiple heads optional)
- Measurement Error: ±1%
- Machine Size (L × W × H): 2950 × 1150 × 2000 mm
APPLICATION
The ZS-FM750F is widely used across industries that require precise and hygienic dry powder dosing. Typical applications include:
- Food & Beverage: Spices, coffee, flour, protein powder, milk powder, seasoning blends
- Pharmaceutical & Nutraceutical: Herbal powders, vitamin supplements, API powders, talcum powder
- Chemical & Industrial: Detergent powder, pesticide powder, chemical additives, pigments
- Cosmetics: Face powder, dry shampoo, bath salts, body powder
- Agriculture: Fertilizer powder, soil conditioners, seed coatings
With interchangeable augers covering a filling range of 5 g to 5000 g and a measurement error of ±1%, the ZS-FM750F adapts to a wide variety of powder types and container sizes — from small sachets to large jars and canisters.

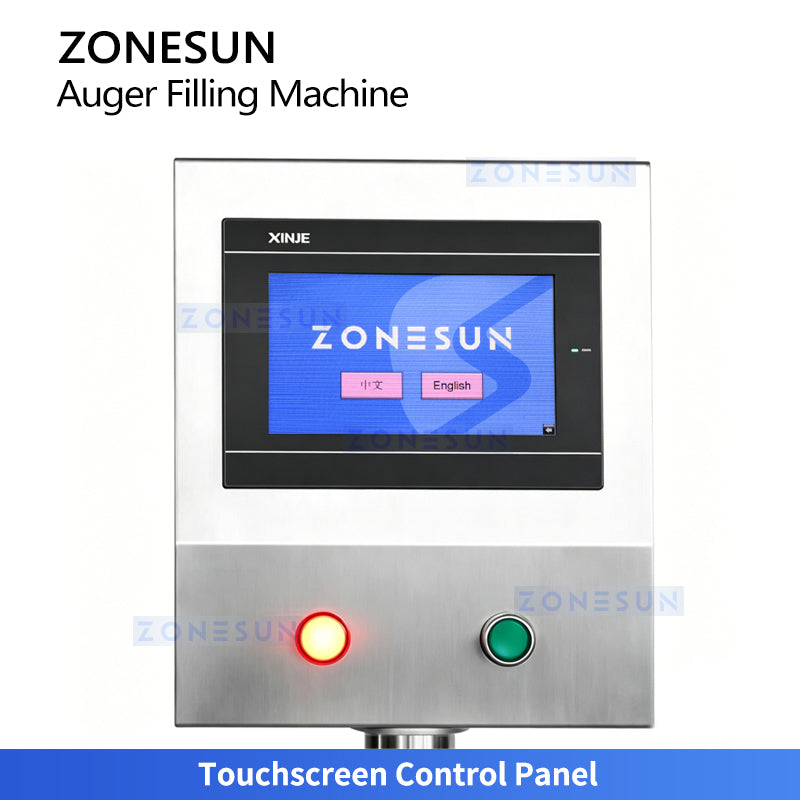

CONTROL PANEL
PLC-based interface allows operators to easily adjust filling speed, weight, and key parameters, making operation intuitive and precise.

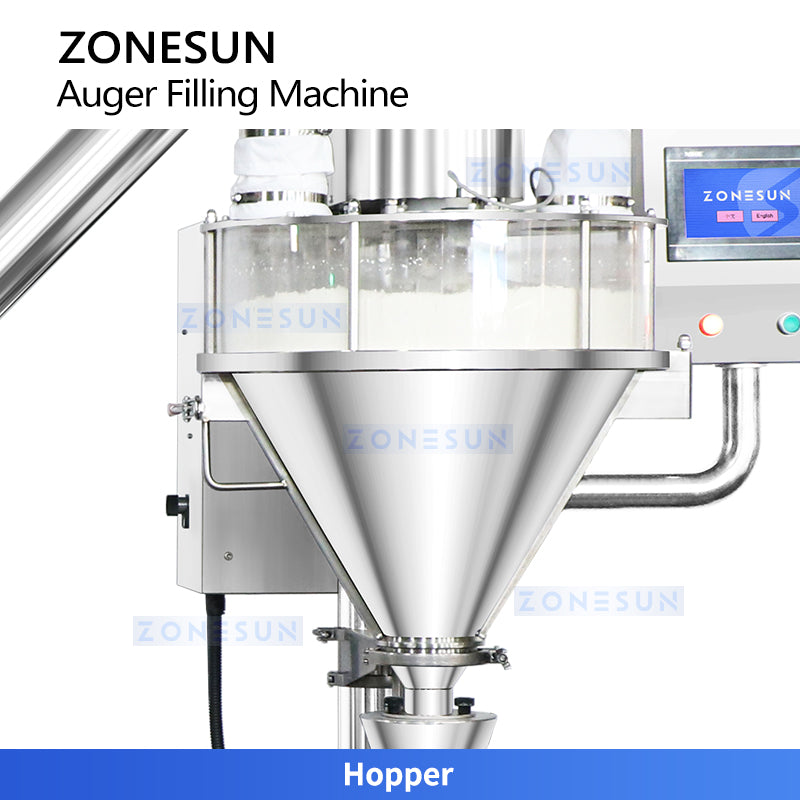

HOPPER
Stores powder, stabilizes feeding into the screw system, reduces refills, and supports connect to a feeder for automatic supply.

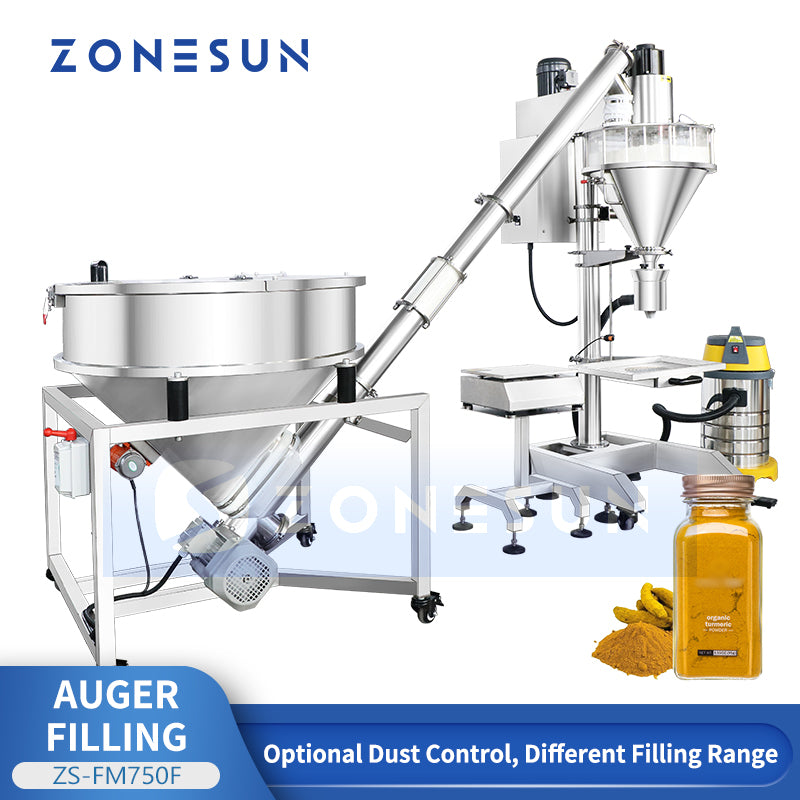

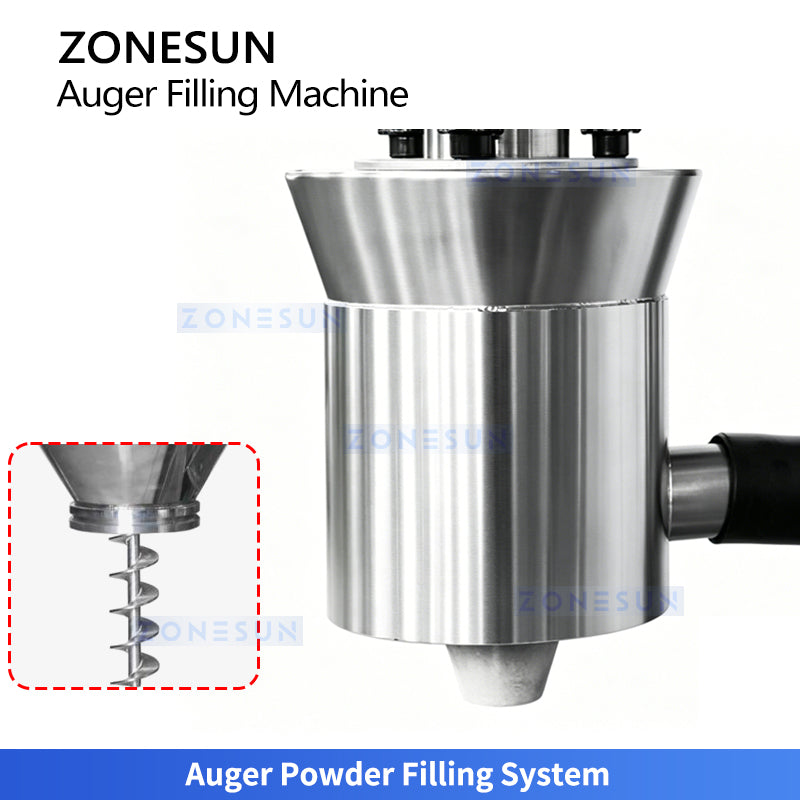

AUGER FILLING
Servo-driven auger dispenses powders precisely, while the anti-dust nozzle reduces scattering. Together they ensure accurate, stable, and hygienic filling.

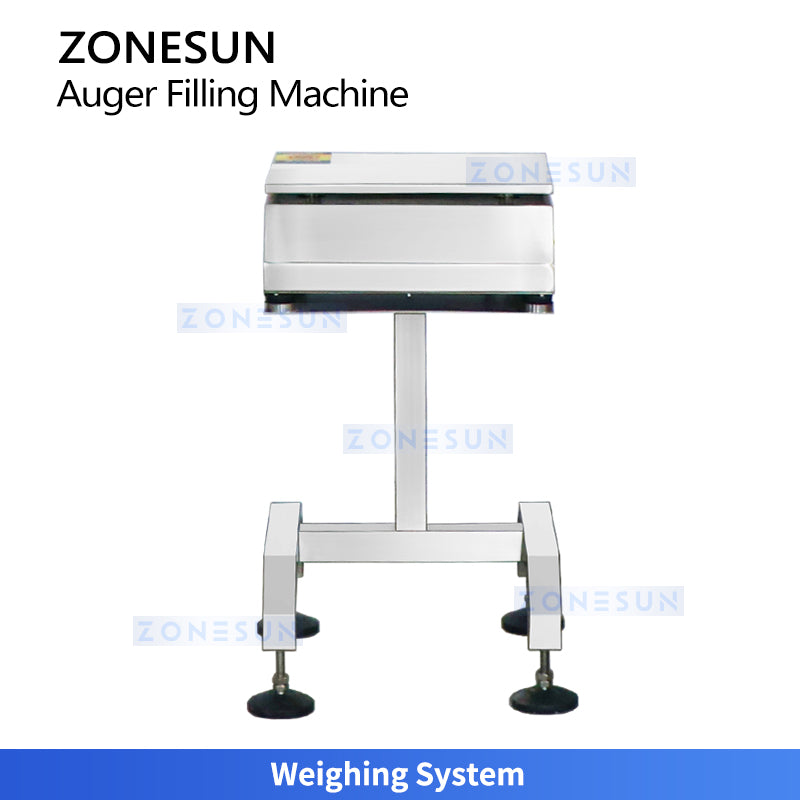

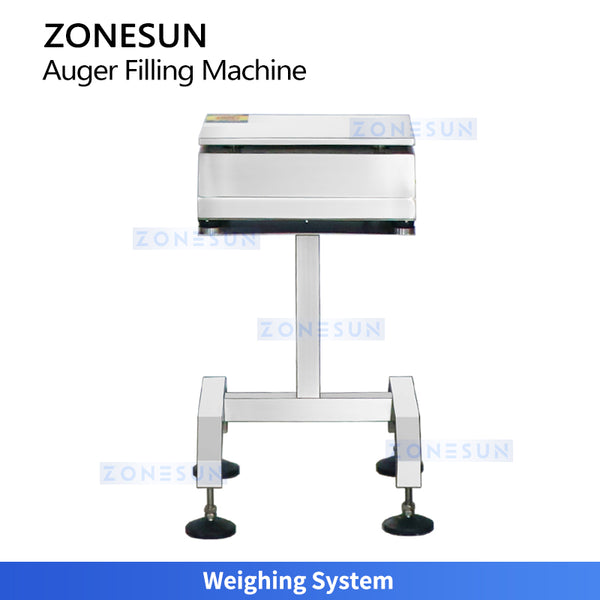

WEIGHING SYSTEM
Provides feedback control to keep filling accurate despite powder density changes. It monitors weight and adjusts the auger automatically for precision.
VACUUM DUST COLLECTION
Removes airborne powder during filling, improves the working environment, and keeps products clean.

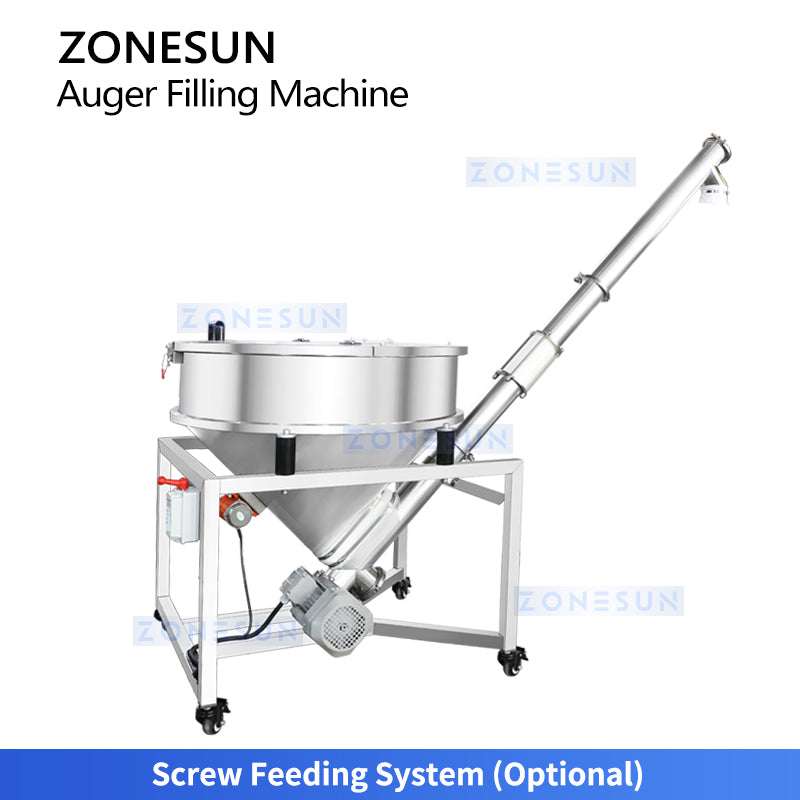

SCREW FEEDING
Automatically supplies powder to the hopper for continuous operation, reducing manual refills and ensuring stable, efficient filling.
FOOT PEDAL SWITCH
Enables hands-free control, improving convenience and operation efficiency of this semi automatic auger filler.
KEY FEATURES & ADVANTAGES
- ✅ High Filling Accuracy (±1%) — Servo-driven auger combined with optional weighing feedback ensures consistent dosing regardless of powder density variations, minimizing product waste and rework.
- ✅ Wide Filling Range (5 g – 5000 g) — Interchangeable auger screws allow one machine to handle everything from small sachets to large containers, reducing the need for multiple machines.
- ✅ Intelligent PLC Touchscreen Control — Operators can quickly set and adjust filling speed, weight targets, and cycle parameters via an intuitive interface, shortening changeover time and reducing training costs.
- ✅ Hands-Free Foot Pedal Operation — Frees both hands for container positioning, improving ergonomics and throughput on semi-automatic lines.
- ✅ Large 50 L Hopper + Optional 150 L Screw Feeder — Reduces manual refill frequency and supports near-continuous operation, boosting overall line efficiency.
- ✅ Optional Vacuum Dust Extraction — Captures airborne powder at the source, protecting operators, maintaining a clean workspace, and meeting GMP/food-grade hygiene requirements.
- ✅ Flexible Voltage Options (110 V / 220 V / 380 V) — Ready for global deployment without additional electrical modifications.
- ✅ Expandable to Multi-Head Configuration — Optional multiple filling heads increase throughput to match growing production demands without replacing the entire machine.
- ✅ Robust Industrial Build — Stainless steel contact parts meet food and pharmaceutical hygiene standards, ensuring long service life and easy cleaning.
- ✅ Low Total Cost of Ownership — Simple mechanical structure, readily available spare parts, and minimal maintenance requirements keep operating costs low over the machine's lifetime.
