DESCRIPTION

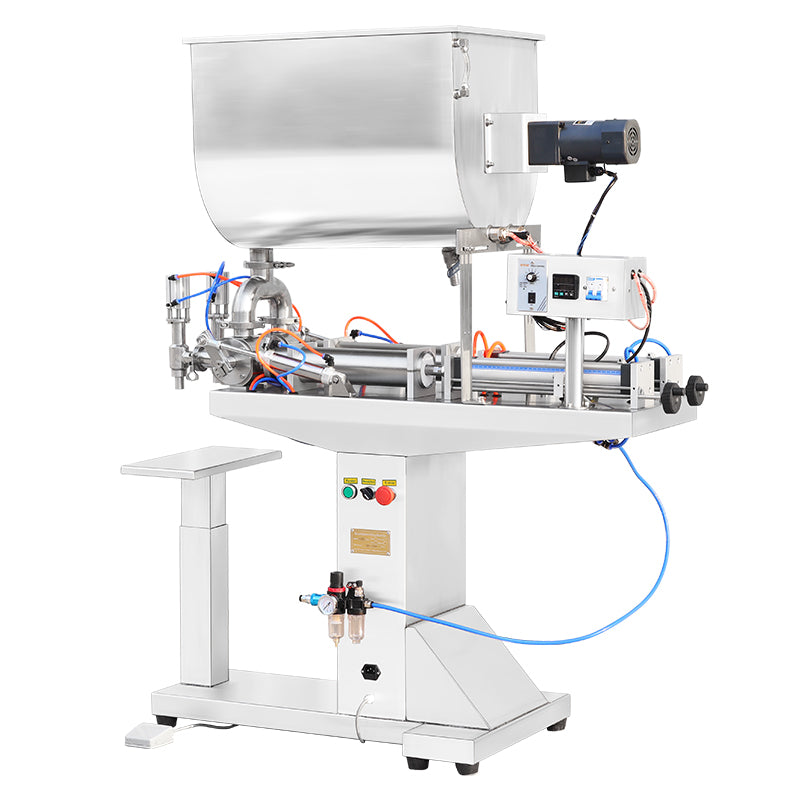

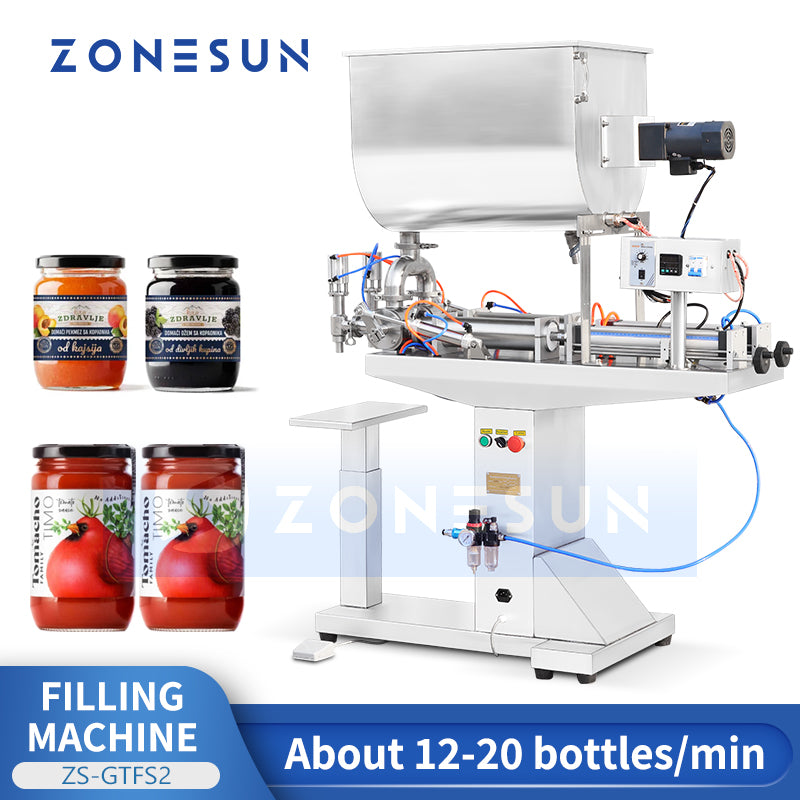

Introducing our innovative piston filler, designed for effortless and precise filling of viscous liquids and pastes. This versatile machine features a sturdy stand base, eliminating the need for a separate table. Its semi-automatic operation allows for easy and efficient filling, simply place your container on the filling platform and let the piston do the work. The large U-shaped hopper ensures a consistent supply of material, while the adjustable filling volume caters to your specific needs. Experience the convenience and accuracy of our piston filler, perfect for a wide range of applications.
Parameter
- Machine model: ZS-GTFS2
- Voltage: 220V/110V, 50–60Hz
- Machine power: About 2130W
- Filling pump: Piston Pump
- Filling range:10–100ml/10–200ml/30–300ml/50–500ml/100–1000ml/500–2500ml/1000–5000ml
- Filling speed: About 12–20 bottles/min
- Filling accuracy: ≤ ±1%
- Hopper capacity: 90L
- Air pressure: 0.4–0.6Mpa
- Package size:
- Hopper: About 1020×570×610mm
- Filling machine (1000ML): About 1360×570×1060mm
- Gross weight:
- Hopper: About 55kg
- Filling machine (1000ML): About 90kg

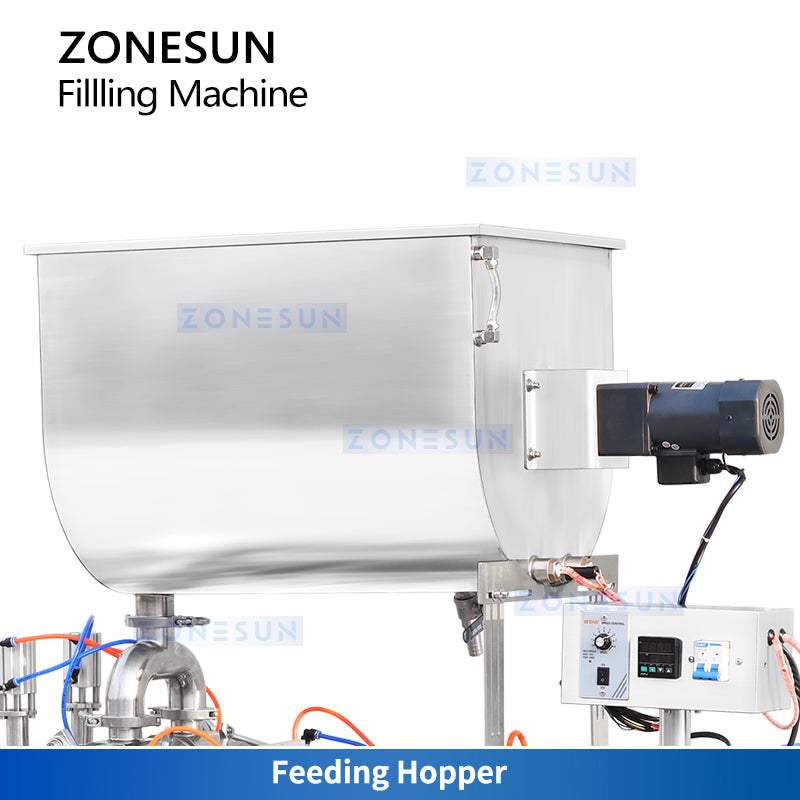

Large-Capacity Feeding Hopper
The large hopper holds more paste material, helping reduce frequent refilling during production.

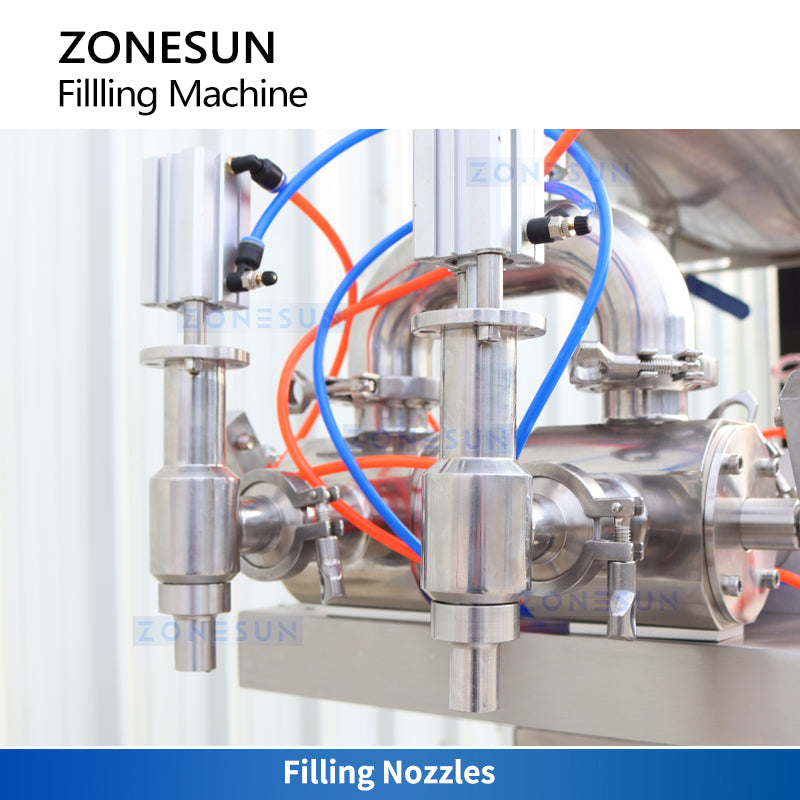

Pneumatic Filling Nozzles
Clamped pneumatic nozzles support controlled filling of viscous products such as sauces and jams.

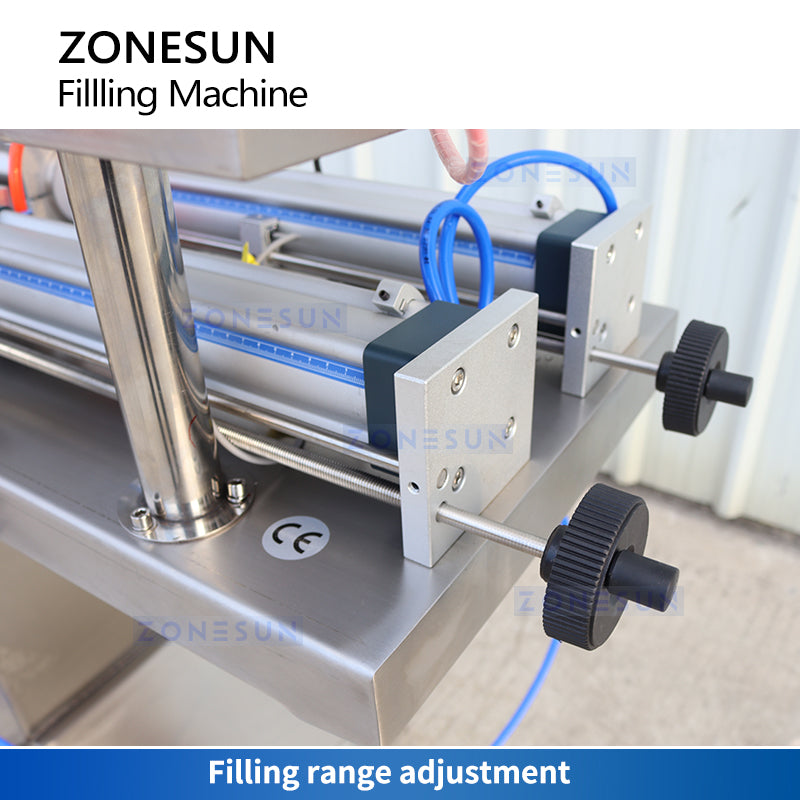

Adjustable Filling Range
Rotary handles make it easy to adjust the filling volume for different production requirements.

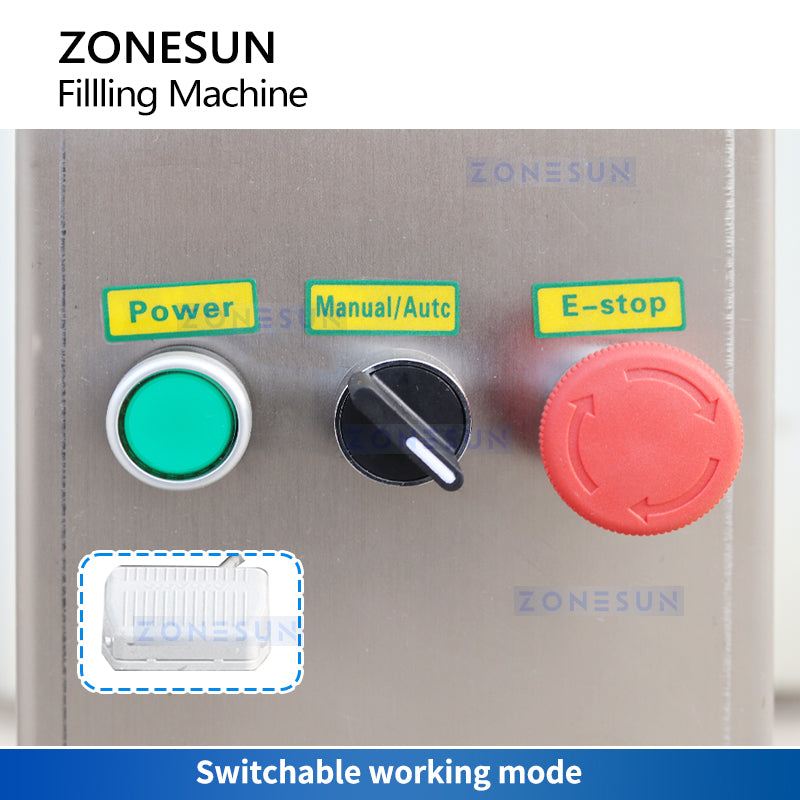

Selectable Working Modes
Automatic and manual modes can be selected to match different operating needs.

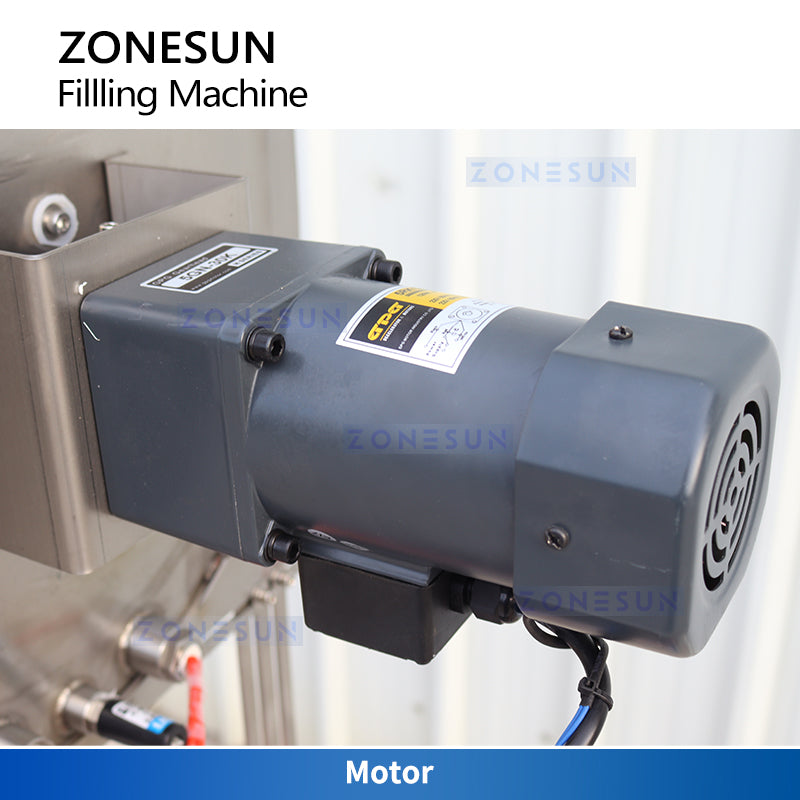

Stable Motor
The motor provides stable, low-noise operation for reliable long-term use.
