Description

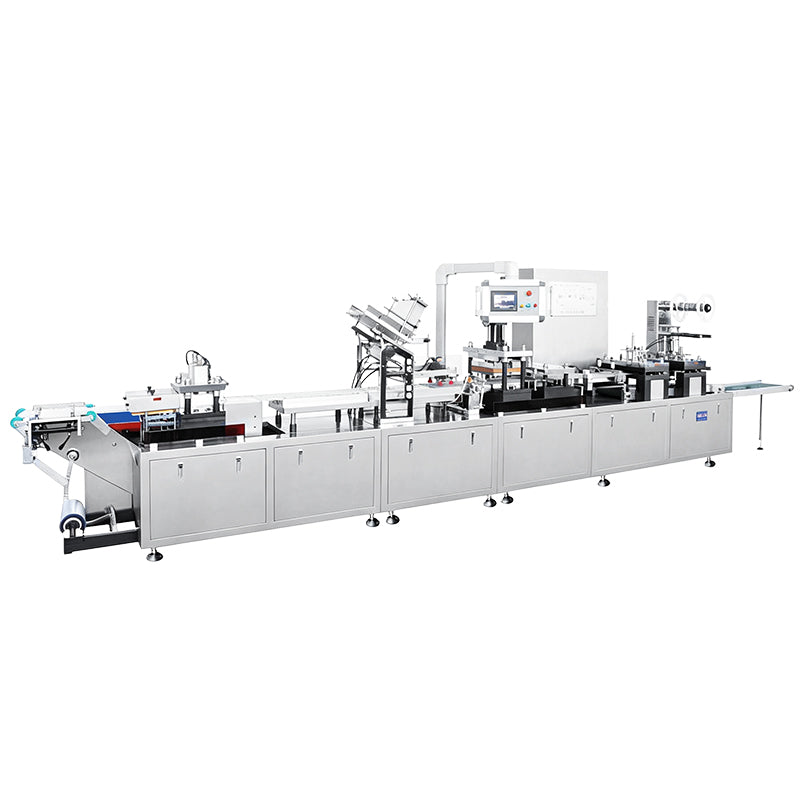

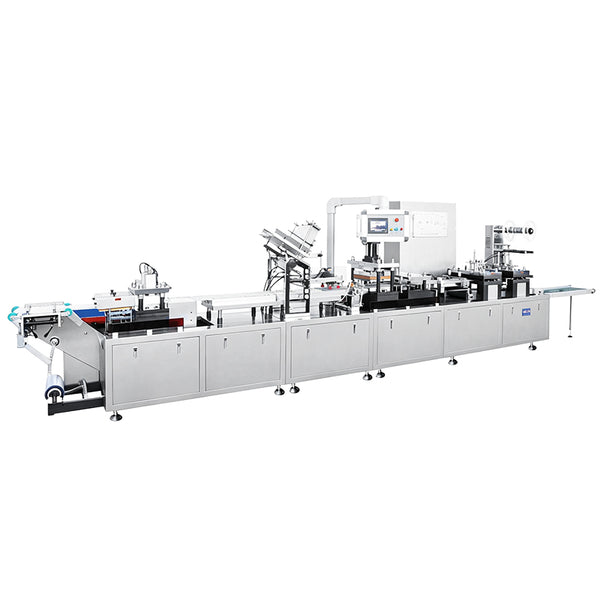

The ZONESUN ZS-HFQ2 is an automatic linear thermoforming blister packaging machine for compatible PVC/PET blister and paper-card packs. It combines sheet forming, a product-loading stage, heat sealing and punching in one production sequence. Custom molds shape the blister cavities to fit the packaged products.
A Siemens touchscreen and servo-driven movement support parameter adjustment and coordinated operation. The listed punching speed is 15 cycles per minute, with a forming area of 330 × 210 mm and a standard forming depth up to 40 mm. Product loading can be manual or configured for automation, making the system suitable for retail hardware, stationery, accessories and other compatible solid products.
Technical Specifications
| Model | ZS-HFQ2 |
|---|---|
| Punching Speed | 15 cycles/min (paper / plastic) |
| Feed Stroke Range | 30–210mm |
| Formed Area | 330 × 210mm |
| Forming Depth | Up to 40mm standard (65mm for special requirements) |
| Forming Heating Power (upper + lower) | 2 kW × 2 = 4 kW |
| Heat Sealing Heating Power | 3.5 kW |
| Main Motor Power | 1.5 kW |
| Total Power Supply | Three-phase four-wire 380V 50Hz (200V 60Hz), 11.8 kW |
| Air Pump Volume Flow | ≥ 1 m³/min |
| Plastic Hard Sheet (PVC/PET) | Thickness 0.2–0.5mm, max width 350mm |
| Paper Card Size | Max 350 × 220 × 0.5mm |
| Machine Dimensions (L×W×H) | 3800 × 2000 × 1850mm |
| Machine Weight | 1,800 kg |
Applications
- Blister-card packaging for batteries, small tools and hardware accessories.
- Stationery, small toys and promotional items.
- Cosmetic accessories, grooming tools and other retail products requiring shaped display packaging.
Product Details

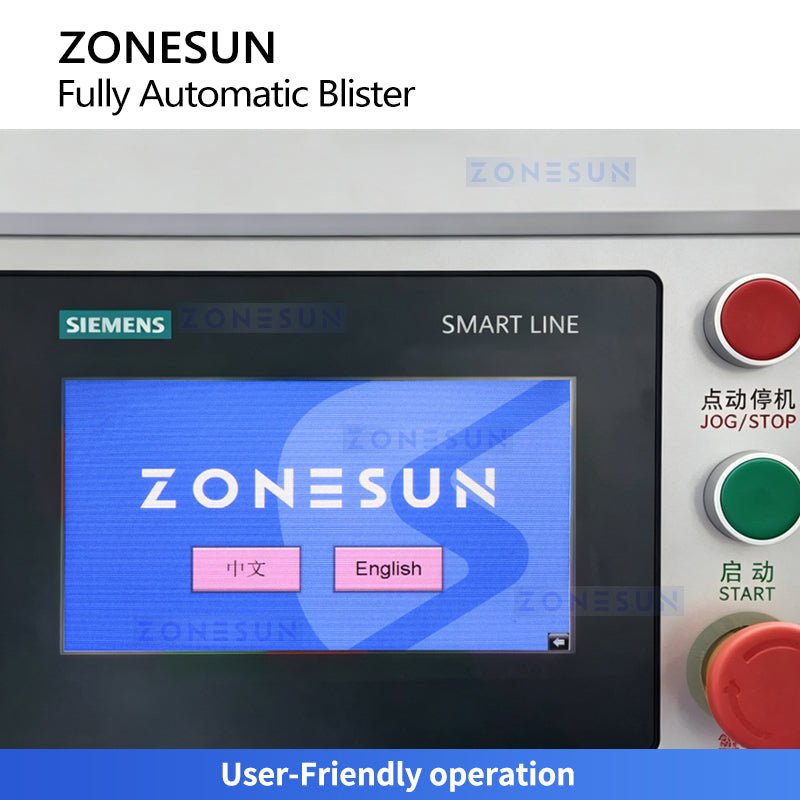

Touchscreen Operation
The Siemens interface provides access to operating parameters and production monitoring.

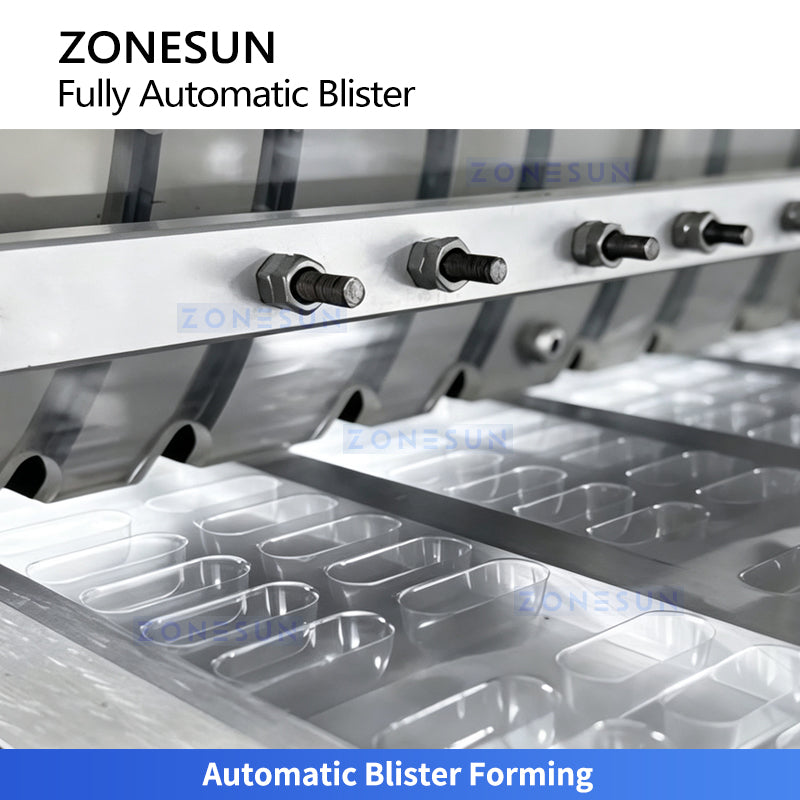

Blister Forming
Heated PVC/PET sheet is shaped into product cavities using the selected mold.

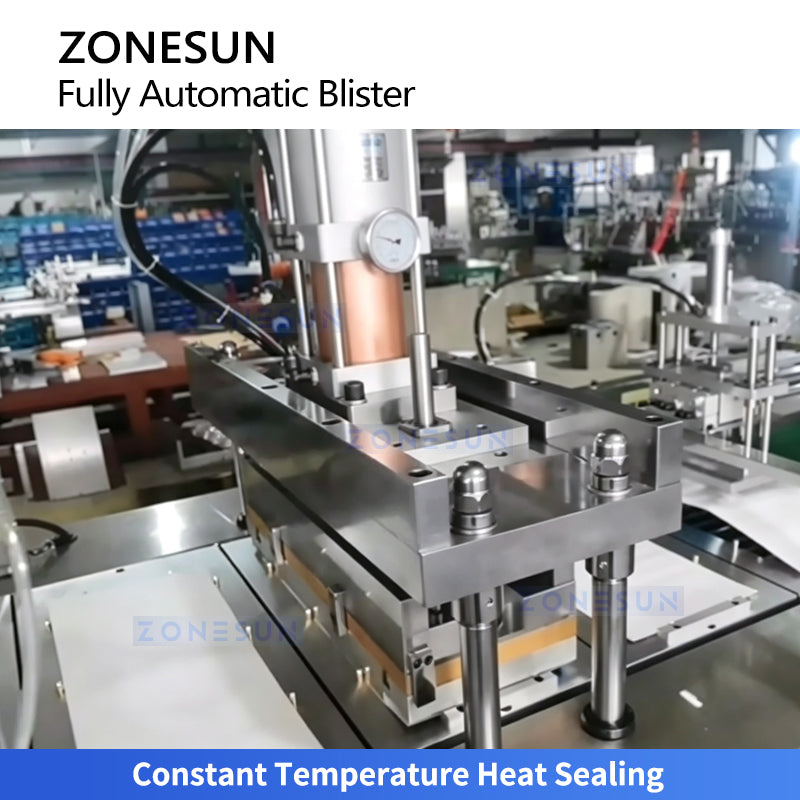

Heat Sealing
Heat and pressure bond compatible blister material to suitable coated backing cards.

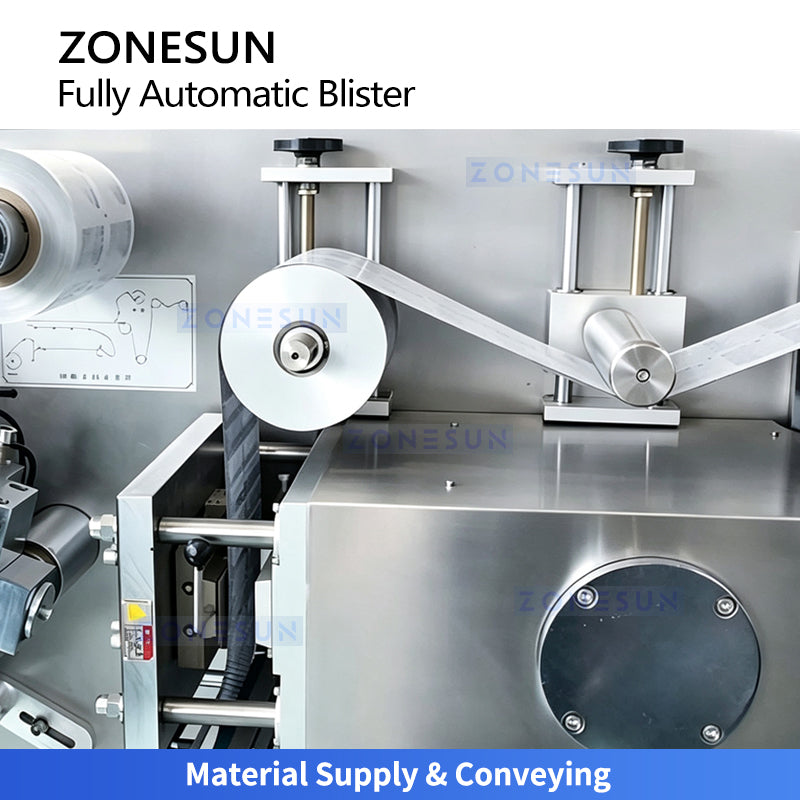

Material Supply
Guide rollers support sheet feeding through the production stations.

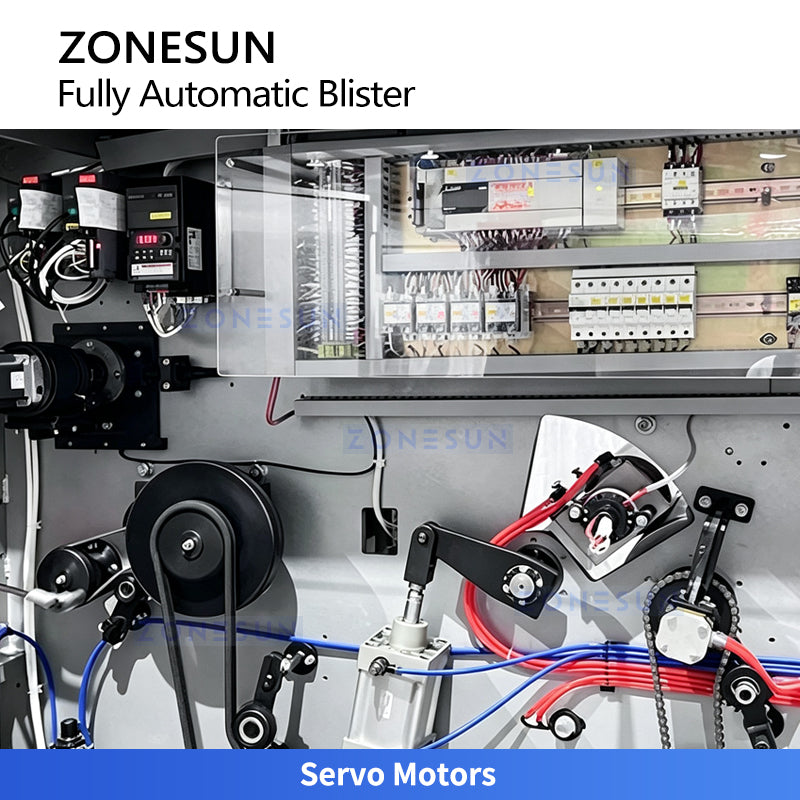

Servo Drive
Servo-driven movement coordinates material indexing with the packaging sequence.
Key Features
- Integrated packaging stages: Connects thermoforming, product loading, sealing and punching to reduce transfers between separate machines.
- Custom cavity tooling: Forms blister shapes around the product dimensions and pack layout.
- Adjustable feed stroke: The listed 30–210 mm range supports different tooling layouts.
- Siemens touchscreen: Supports parameter setting and production monitoring.
- PVC/PET sheet compatibility: Accepts specified sheet thicknesses of 0.2–0.5 mm and widths up to 350 mm.
- Loading choices: Manual loading or a product-specific automatic feeding configuration can be evaluated.
How It Works
- Feed the compatible plastic sheet and heat it for forming.
- Use the mold to create the blister cavities.
- Load the products manually or through the configured feeding system.
- Apply compatible backing cards and heat seal the packs.
- Punch the sealed material into finished packaging units.
Choosing the Right Configuration
Share product dimensions, weight, pack drawing, cavity count, sheet material and backing-card samples. Specify the loading method, target output and available electrical and compressed-air supplies. Tooling layout and packs per cycle determine finished-pack output. A 65 mm forming depth requires a special configuration.
Frequently Asked Questions
Does it form blisters or only seal pre-made ones?
The ZS-HFQ2 integrates PVC/PET sheet thermoforming with card sealing and punching.
Are products loaded automatically?
Loading can be manual or automatic depending on the project configuration. Automatic product feeding should be specified for the actual product.
Does 15 cycles per minute mean 15 packs per minute?
The specification lists 15 punching cycles per minute. Finished-pack quantity depends on the number of packs in each tooling layout and the loading process.
Can it produce Alu-Alu packs or fill liquids and sauces?
The listed specifications establish PVC/PET thermoforming and paper-card packaging. Cold-form aluminum packaging or liquid dispensing requires separate tooling, feeding and sealing assessment and should not be assumed to be included.
What forming depths are available?
The standard depth is up to 40 mm. A depth of 65 mm is listed for special requirements.
What utilities does it require?
The listed standard supply is three-phase four-wire 380V, 50Hz, with 11.8 kW total power and an air-pump flow of at least 1 m³/min. A 200V, 60Hz supply is also listed as an alternative configuration.
Discuss Your Blister Packaging Project
Use the chat window on this page to send product photos, dimensions, pack samples and required output. Our team can help evaluate forming molds, loading arrangements and card-sealing materials.
Related Equipment
- ZS-HFQ1 Semi-Automatic Blister Card Sealing Machine — compare a separate sealing option for pre-made blister-card packs.
