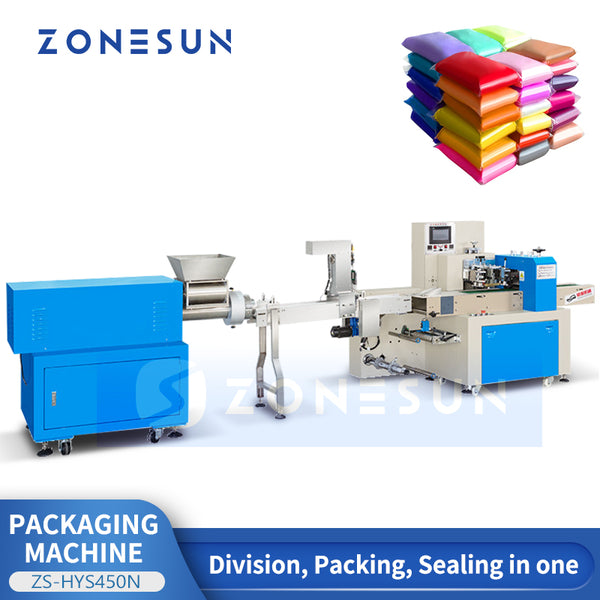

The ZONESUN S-HYS450N is a high-efficiency horizontal flow packaging machine engineered for products like plasticine, sealant, and other moldable materials. It features a front-end feeding hopper that compresses raw material into a continuous tube, which is then evenly segmented into squares at the splitting station. These squares are automatically wrapped in film, sealed for freshness, and cut to precise dimensions. Compatible with various composite films including PE, OPP, PET, and paper-based laminates, the machine supports bag sizes from 50–350mm in length and 30–200mm in width. With a robust 11KW motor and PLC-controlled automation, it’s ideal for manufacturers seeking speed, consistency, and clean presentation.
S-HYS450N Automatic Plasticine Packaging Machine – Technical Specifications
Parameter Details
Model S-HYS450N
Power Supply 220V, 50/60Hz, 11KW
Applicable Film Width ≤450mm, Roll Diameter ≤420mm
Bag Size Range Length: 50–350mm<br>Width: 30–200mm<br>Height: 5–70mm
Compatible Film Types PE, OPP, PET, paper film, aluminized film, and other composite films
Machine Dimensions 5000 × 1300 × 1500mm
Machine Weight Approx. 1000kg

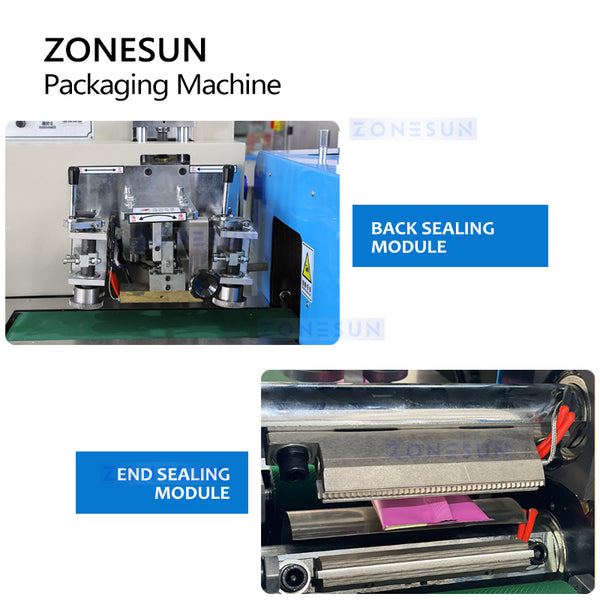

Touchscreen Control, Forming, and Back Sealing
The touchscreen provides centralized parameter control. Plasticine is formed through the molding section, then the packaging film is closed by the back-sealing module.

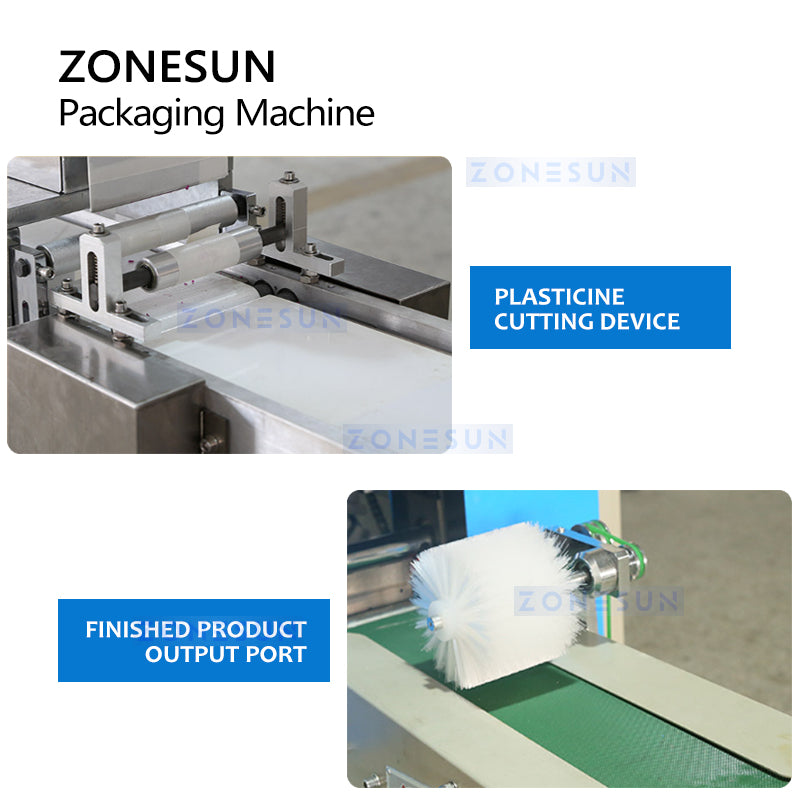

End Sealing, Cutting, and Discharge
The end-sealing module closes each package, the cutting device separates the plasticine portions, and finished packs leave through the output conveyor.
