Description

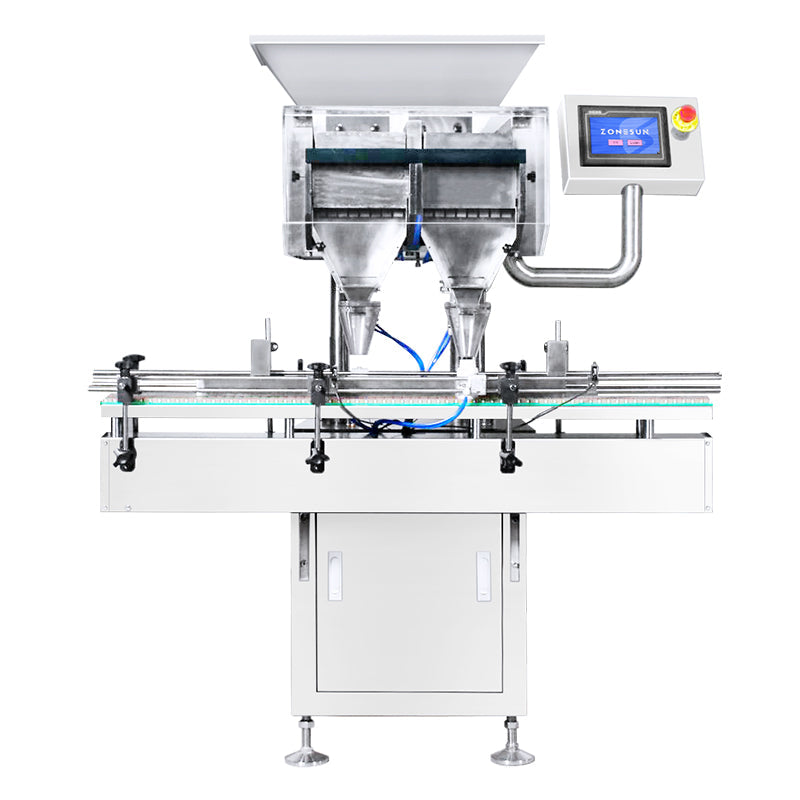

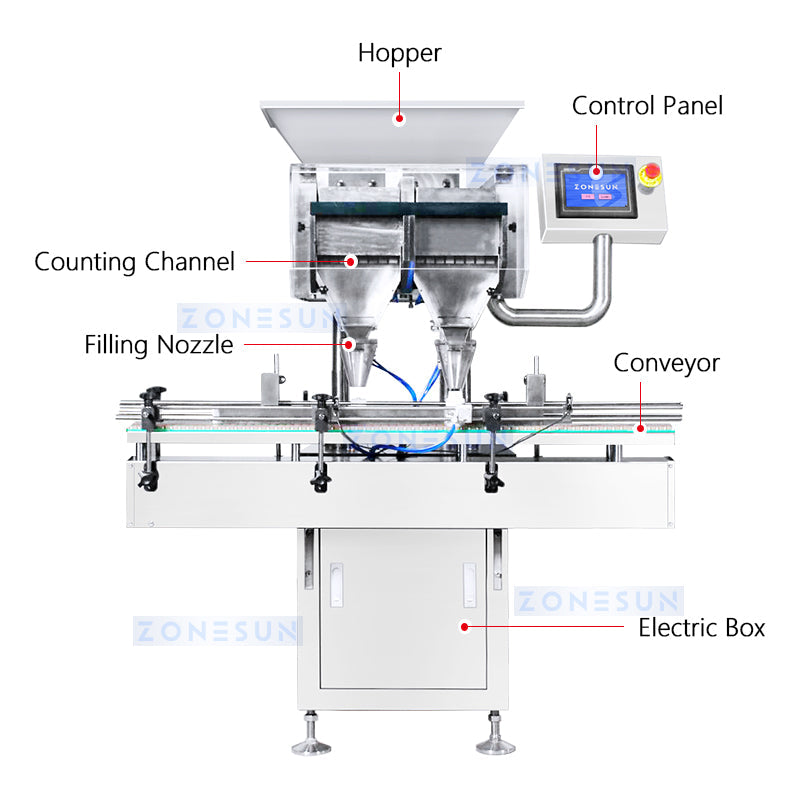

The ZONESUN ZS-JF70 is an automatic granule counting and filling machine designed for capsules, tablets, softgels, and granular products such as seeds, nuts, pistachios, candies, and coffee beans. Operating at 40–100 bottles per minute, it features a PLC touchscreen, electric eye sensors, and a high-capacity chain conveyor to ensure precise, efficient, and hygienic filling. Counting channels and nozzle quantity are customizable to meet diverse production needs, including irregular-shaped granules and snack-type items. This machine can be integrated with automated capping and labeling systems to form a complete production line, making it widely applicable in food, daily chemical, cosmetic, and nutraceutical industries.
Parameters
- Machine Model: ZS-JF70
- Voltage: 110V / 220V, 50–60Hz
- Applicable Products: 00–5# capsules / softgels / Ø5.5–22 mm tablets / Ø3–22 mm pills, etc.
- Applicable Containers: 10–300 ml round bottles / square bottles
- Filling Range: 1–9999 pcs/bottle
- Working Speed: About 40–100 BPM (based on filling range)
- Filling Accuracy: ≥99.5%
- Air Pressure: 0.6 MPa
- Machine Size: About 1360 × 1500 × 1680 mm
- Machine Weight: About 550 kg

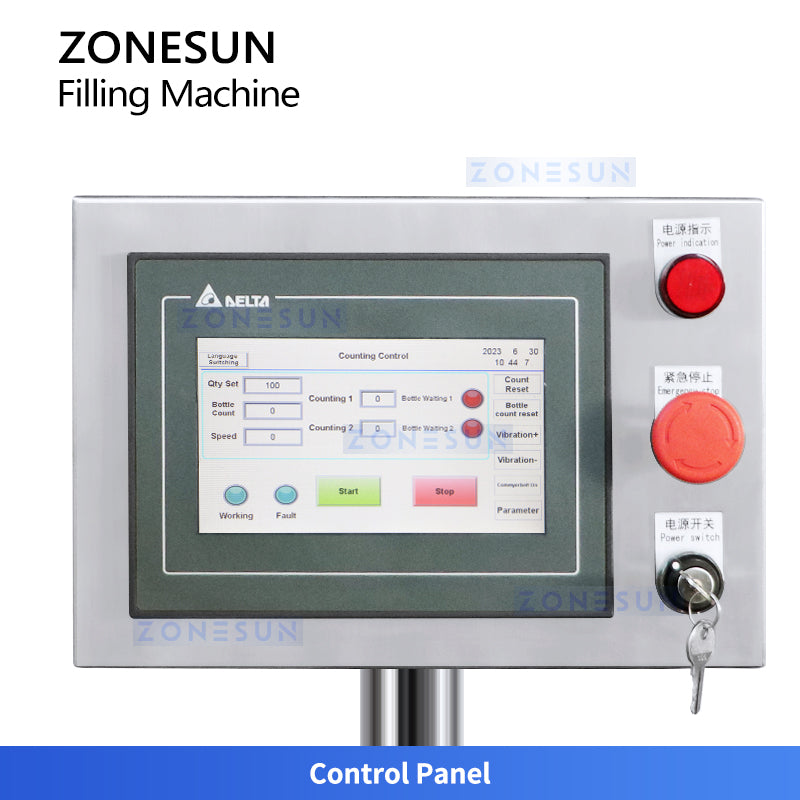

CONTROL PANEL
Equipped with a PLC touch screen control panel, it displays machine data intuitively and simplifies debugging. Operation language is customizable as needed.

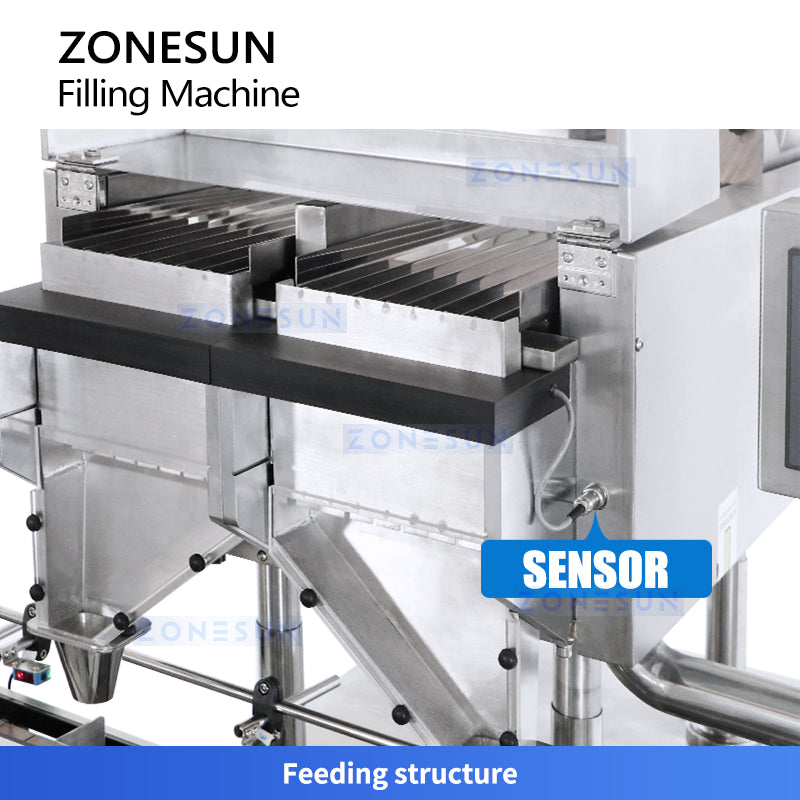

FEEDING STRUCTURE
The feeding system ensures timely granule supply, with customizable counting channels. Dual sensors guarantee equal filling per bottle, boosting efficiency.

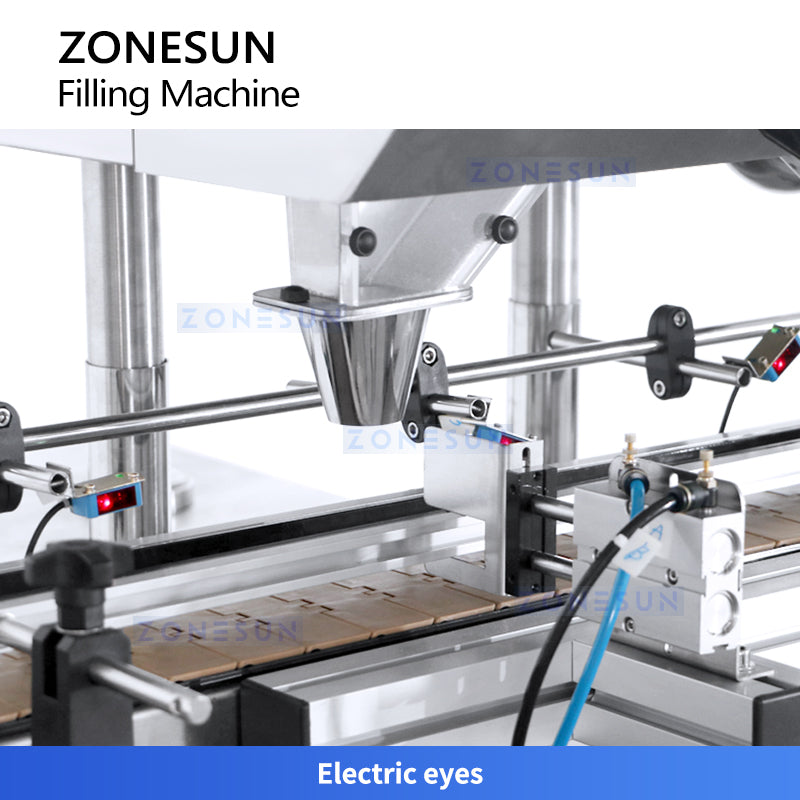

ELECTRIC EYES
Electric eyes detect passing bottles and trigger automated bottling. Filling nozzle quantity is customizable as needed.

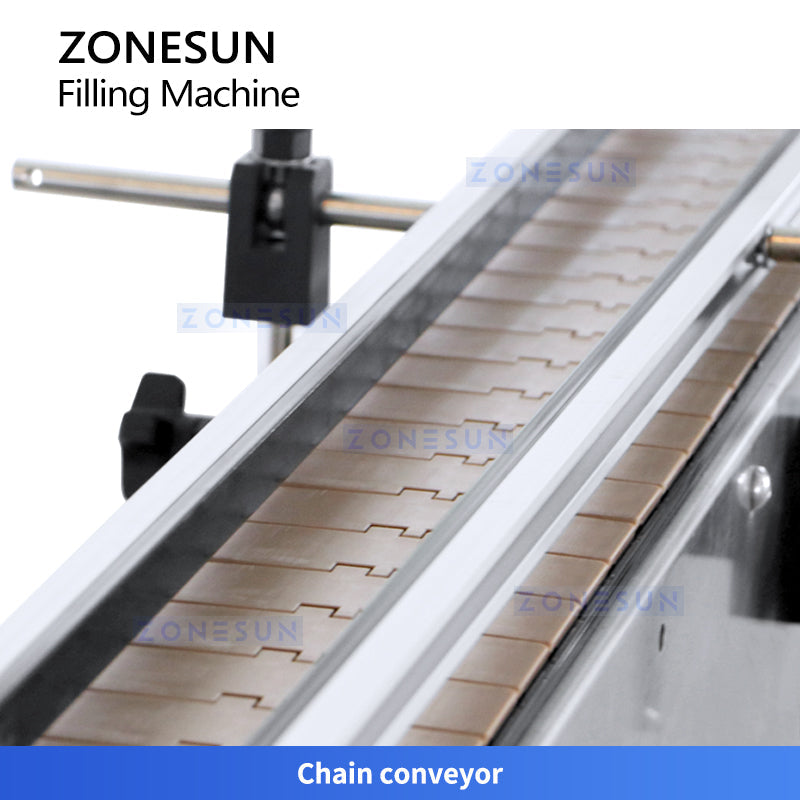

CHAIN CONVEYOR
The chain conveyor offers higher weight capacity for smooth product transfer, with customizable width and length as needed.
