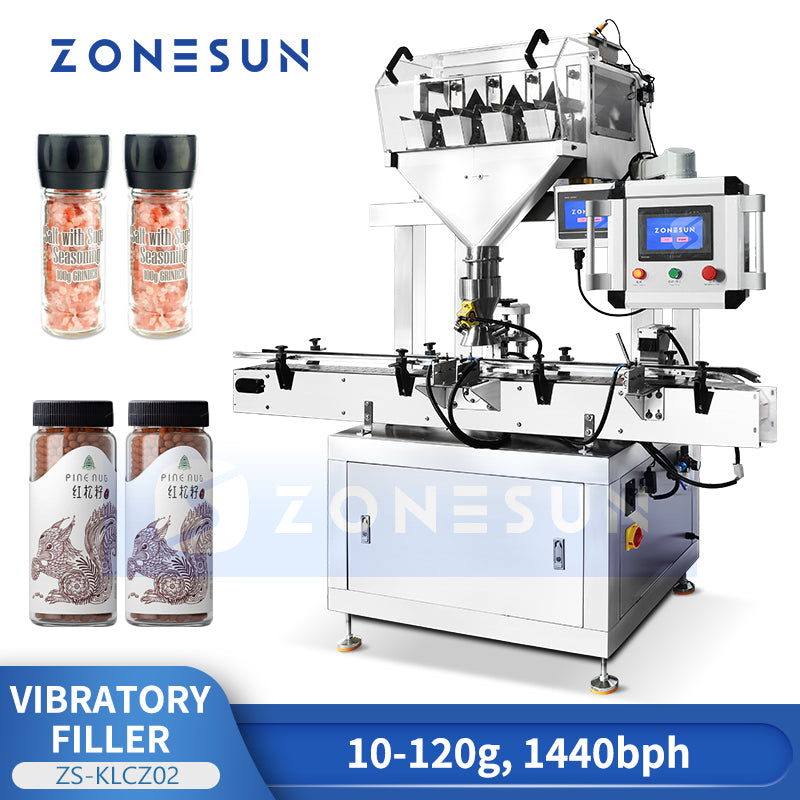

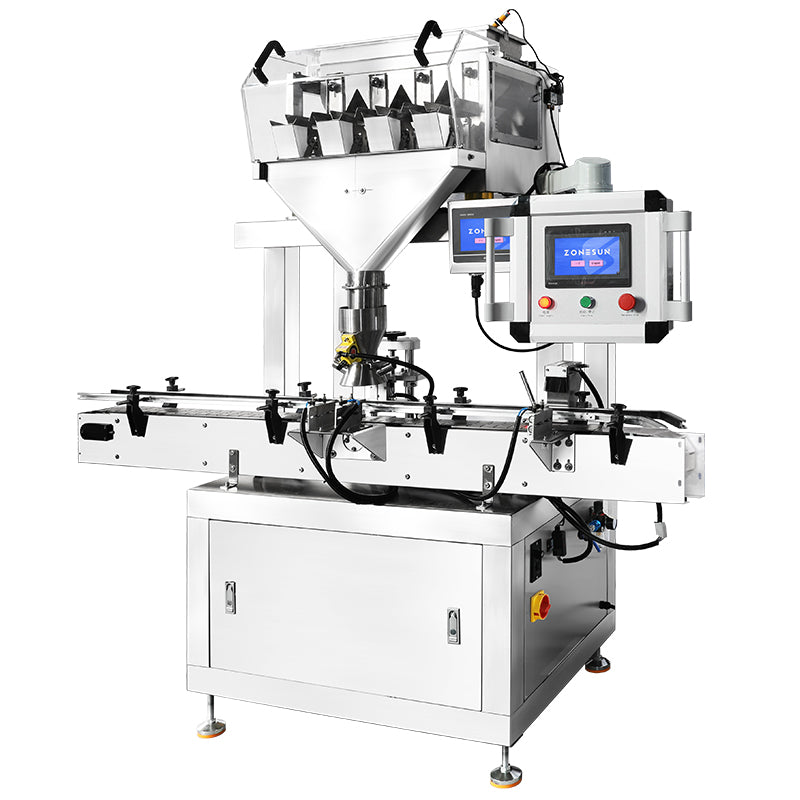

The ZONESUN ZS-KLCZ02 is a high-speed vibratory weigh filler designed for precise bottling of granules, cereals and tea leaves. Ideal for food, chemical, and supplement industries, it features a 4-lane weighing system, magnetic vibrating funnel, and dual-pin bottle indexing for clean, accurate fills. With dust control and memory settings, it streamlines high-volume production with exceptional consistency.
TECHNICAL SPECIFICATIONS
- Model: ZS-KLCZ02
- Voltage: 110V/220V, 50/60Hz
- Hopper Capacity: 20L
- Lane Count: 4
- Weigh Bucket: 4 buckets, 500ml each
- Weighing Range: 10–120g
- Accuracy: ±0.2–2g
- Storage: 10 product memory slots
- Capacity: 20–24 bottles/min
- Machine Size (L×W×H): 2180 × 884 × 2038mm
- Packing Size: 212 × 97 × 231cm
- Gross Weight: 407kg

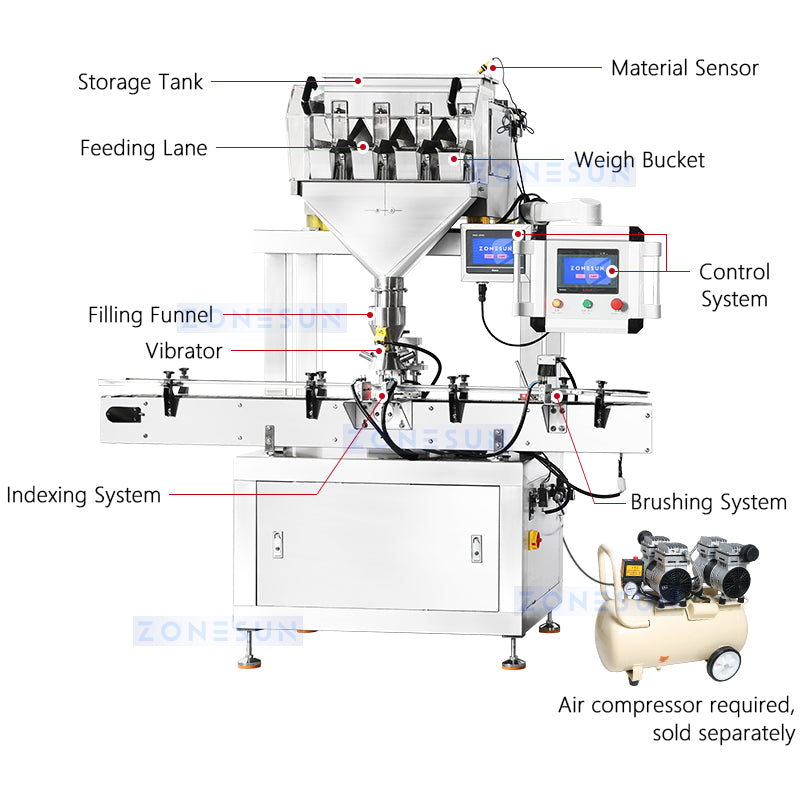

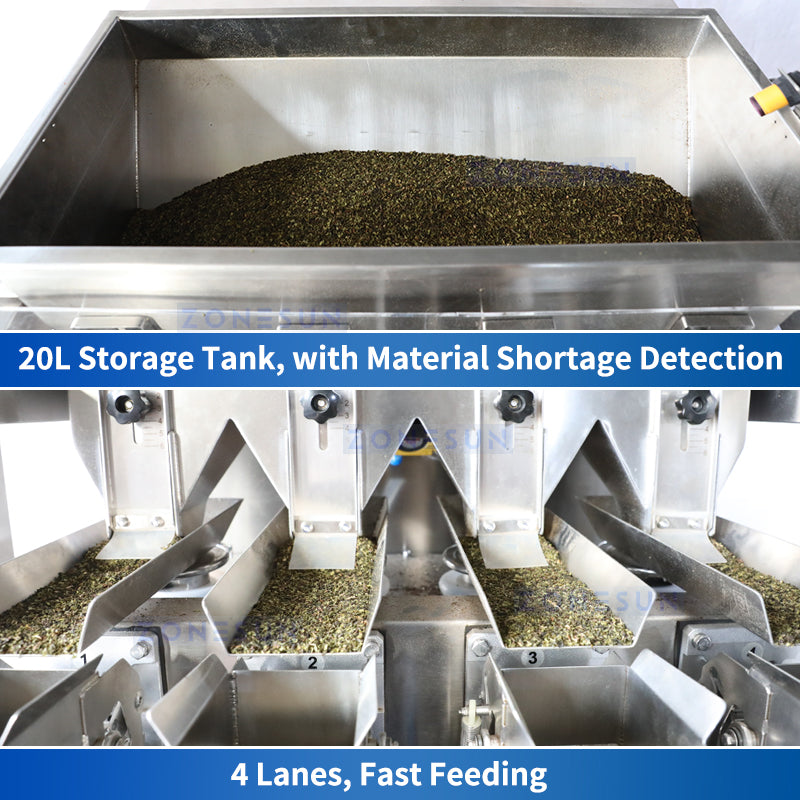

20 L Storage Tank
The large-capacity tank maintains a consistent material supply and helps reduce production interruptions.
Four Feeding Lanes
The multi-lane design increases overall filling throughput.

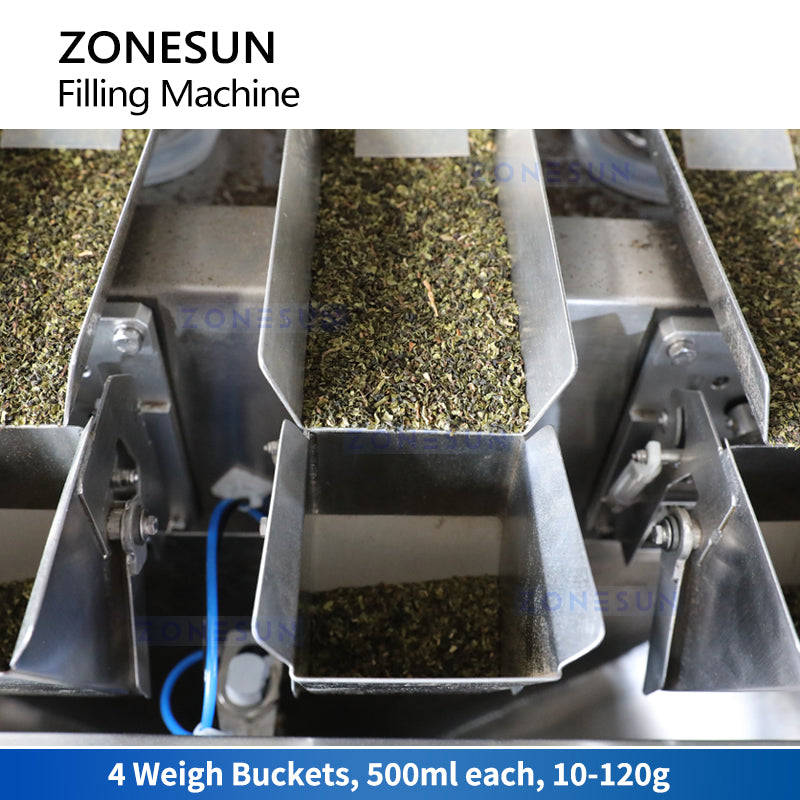

Weigh Bucket
Supports weighing of different materials, including solids, powders, and capsules, for accurate filling.

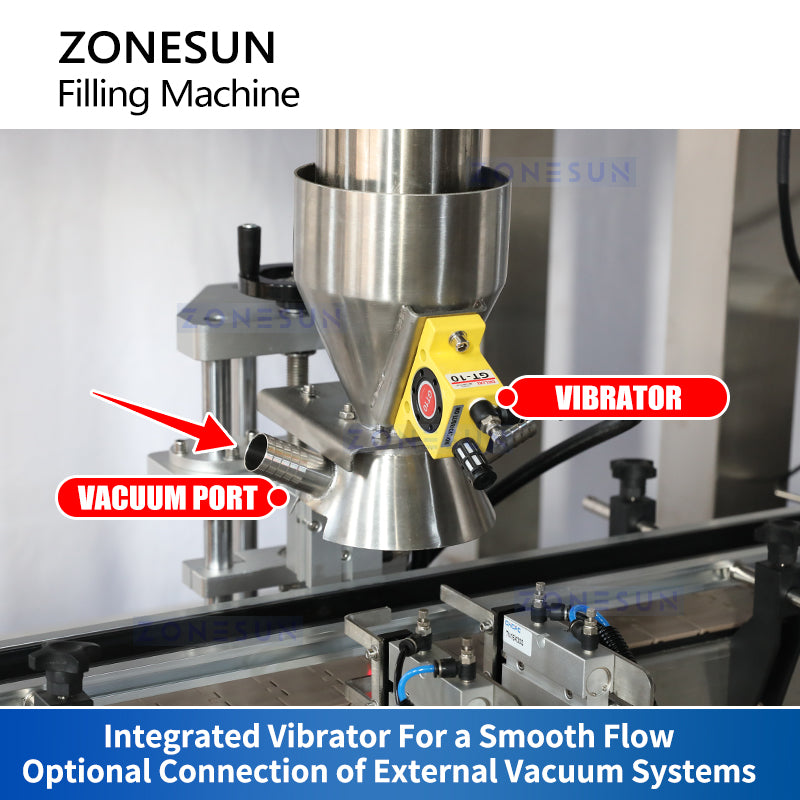

Filling
The integrated vibration system maintains smooth, consistent material flow and helps prevent clogging.

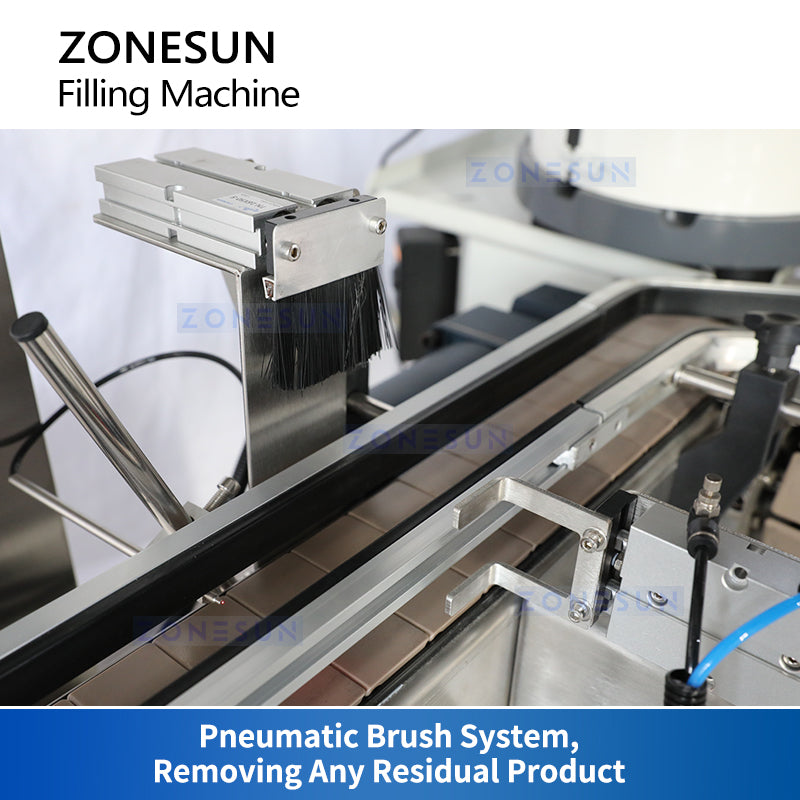

Brush System
After filling, a pneumatic mechanism activates the brush to help level the material and support smooth bottle transfer.
