Description
The ZONESUN ZS-LP1200L disc-type accumulation table is designed to be positioned immediately after a VFFS packaging machine, enabling finished sachets or pouches to drop directly onto the rotating surface for organized collection. Constructed from SUS304 stainless steel, it ensures durability, hygiene, and long service life. Featuring variable speed control and customizable diameter and height, it adapts seamlessly to different production requirements. Ideal for snacks, tea, sauces, and other bagged products, it provides efficient accumulation, buffering, and orderly outfeeding for small to medium-scale packaging lines.
Parameter
- Machine Model: ZS-LP1200L
- Voltage: 50RV, 0.37 kW
- Turntable Diameter: 1200 mm (customizable, max 1500 mm)
- Working Height Adjustment: Standard 800 mm (Adjustable from 750 mm to 850 mm)
- Machine Material: SUS304 stainless steel
- Package Size (L×W×H): About 1250 × 1230 × 590 mm
- Package Weight: About 94 kg

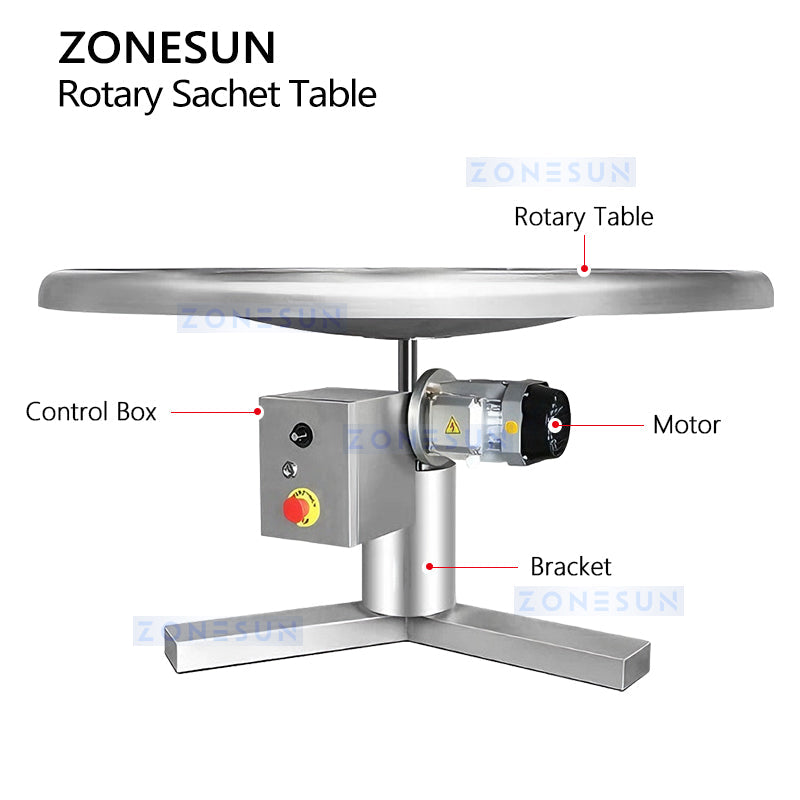

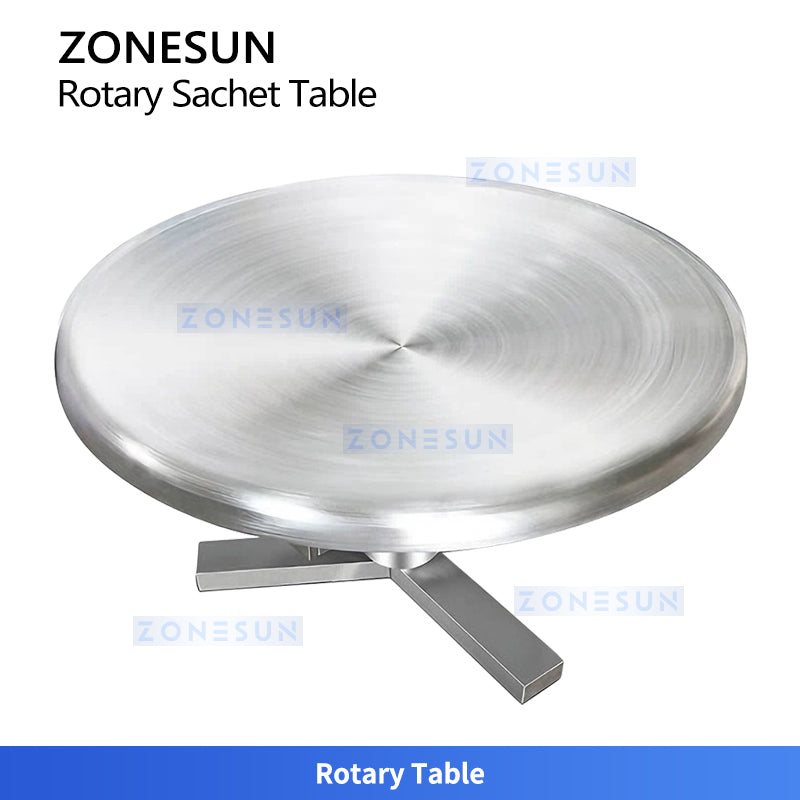

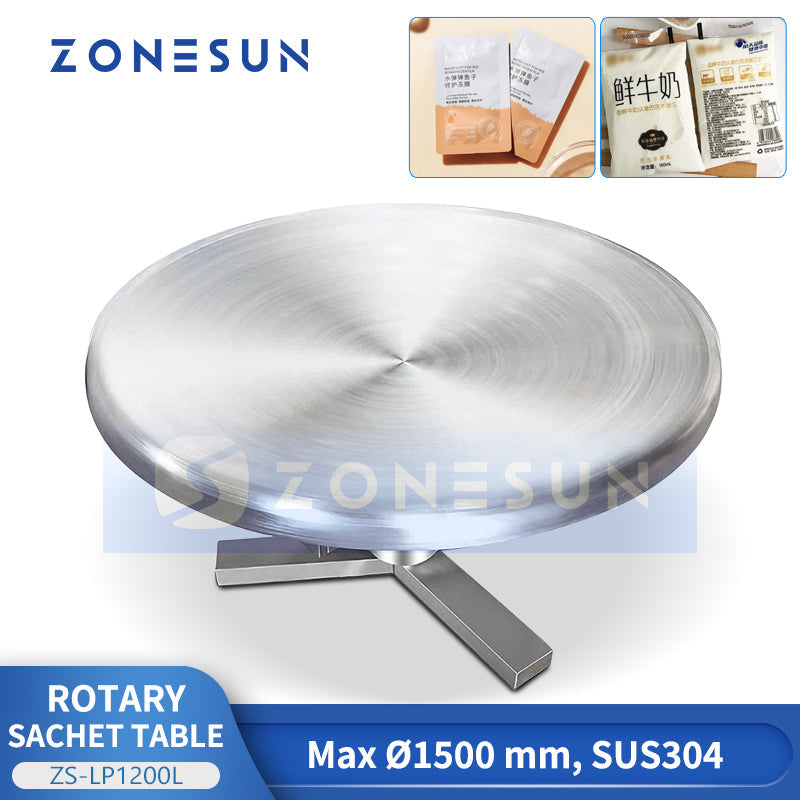

ROTARY TABLE
Rotates and accumulates small pouches for buffering, sorting, and downstream packing, with tables in various diameters to match bag size and throughput.

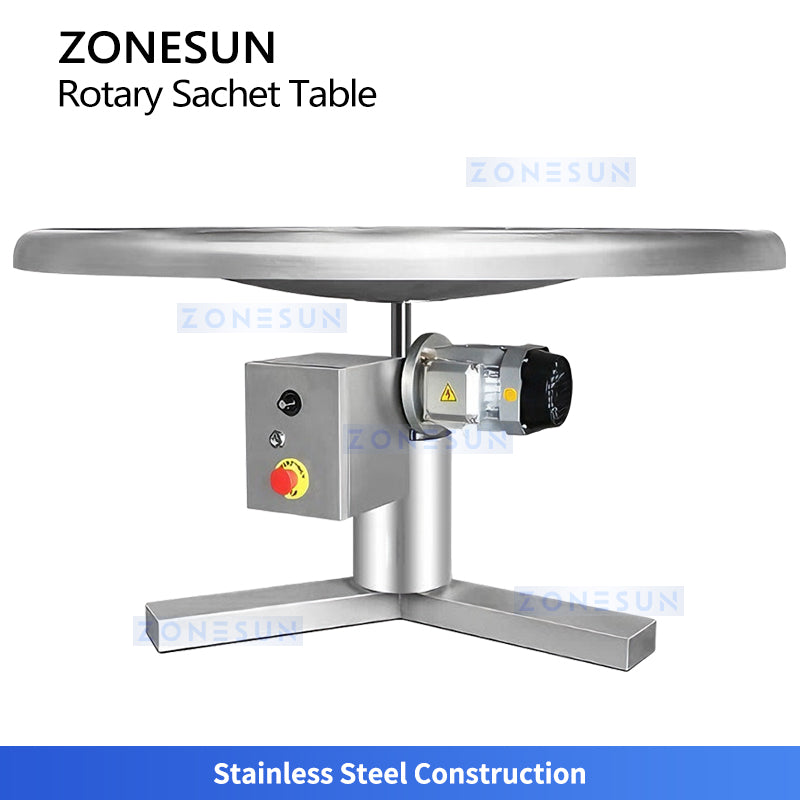

CONSTRUCTION
The turntable body is typically made from 304 stainless steel plate, providing durable, safe and clean operation for food-grade applications.

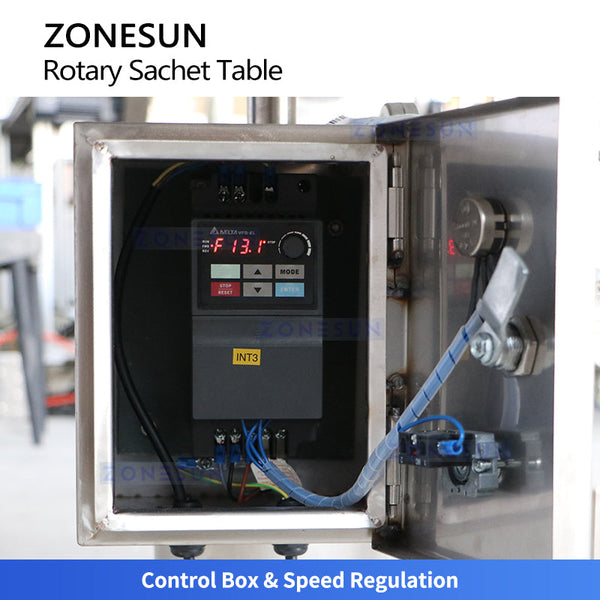

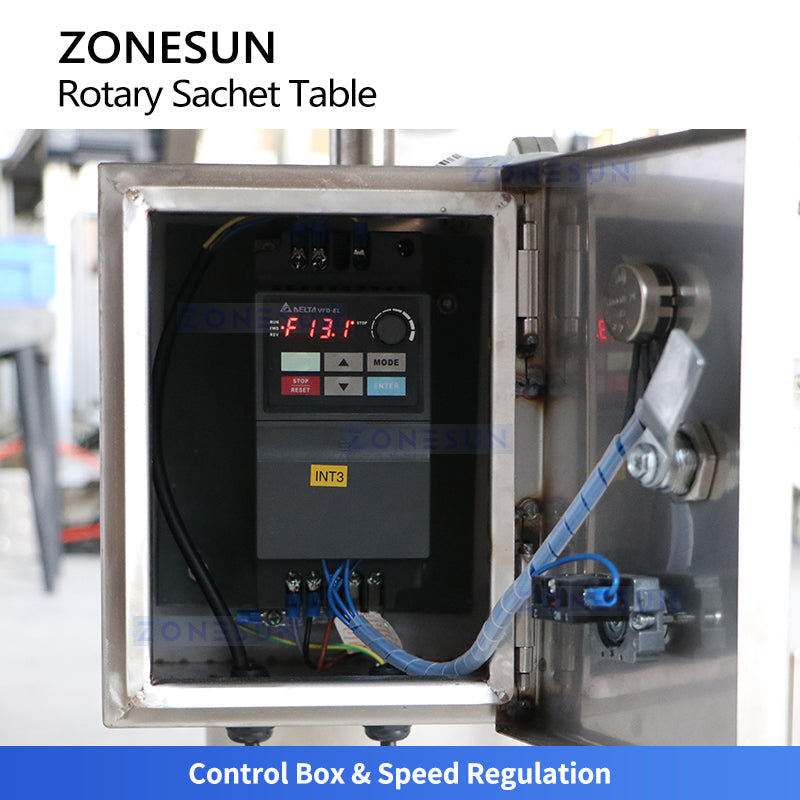

CONTROL BOX
Equipped with a frequency inverter for adjustable rotation speed to match the VFFS packing machine, ensuring synchronized flow.

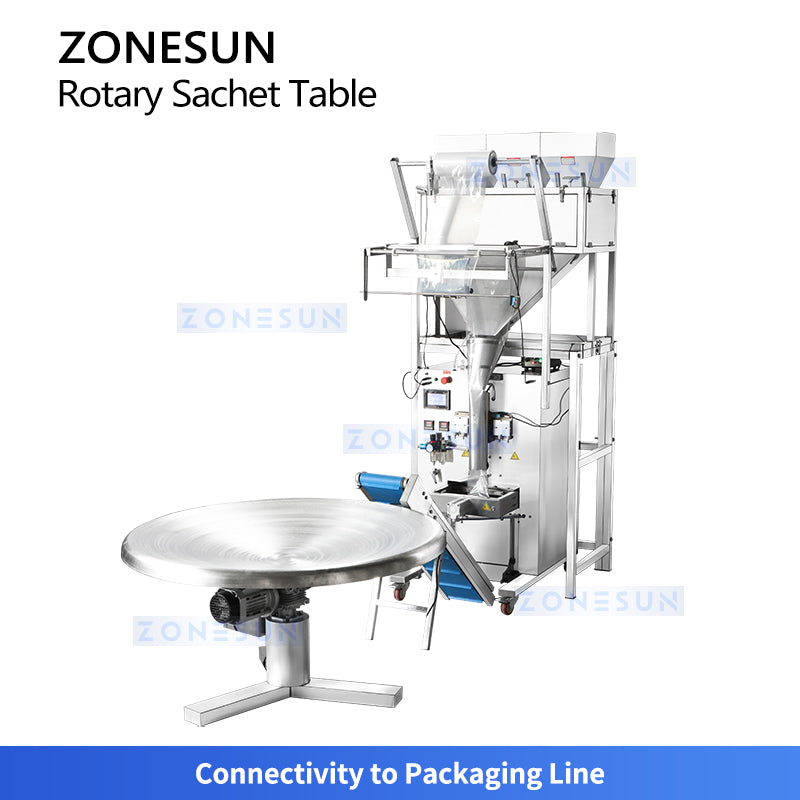

PACKAGING LINE
Can direct connect with the finishing conveyor of the VFFS machine, enabling bag drop-in, accumulation and orderly outfeed handling.
