DESCRIPTION

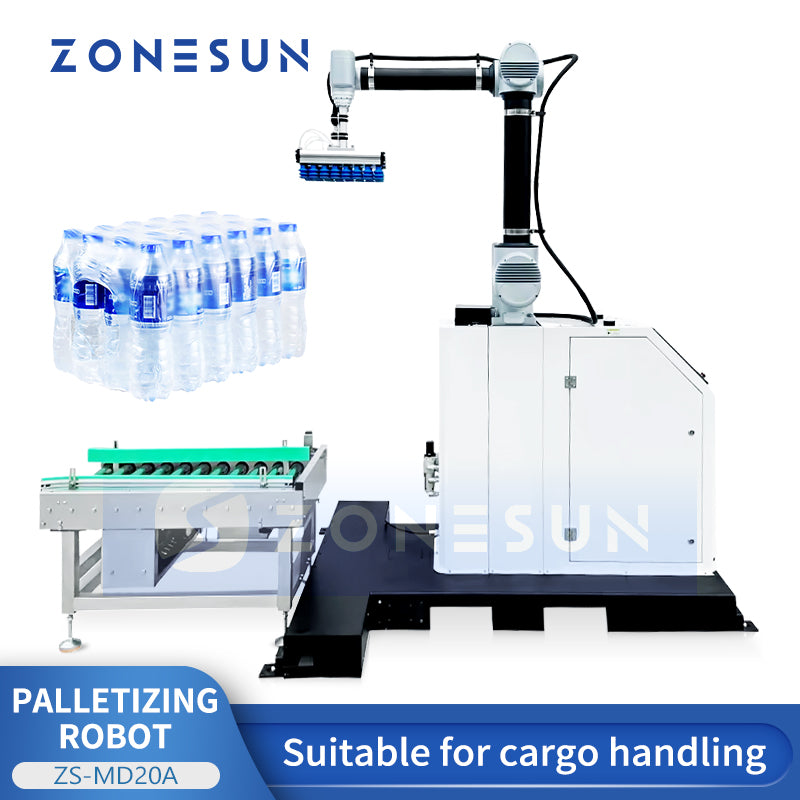

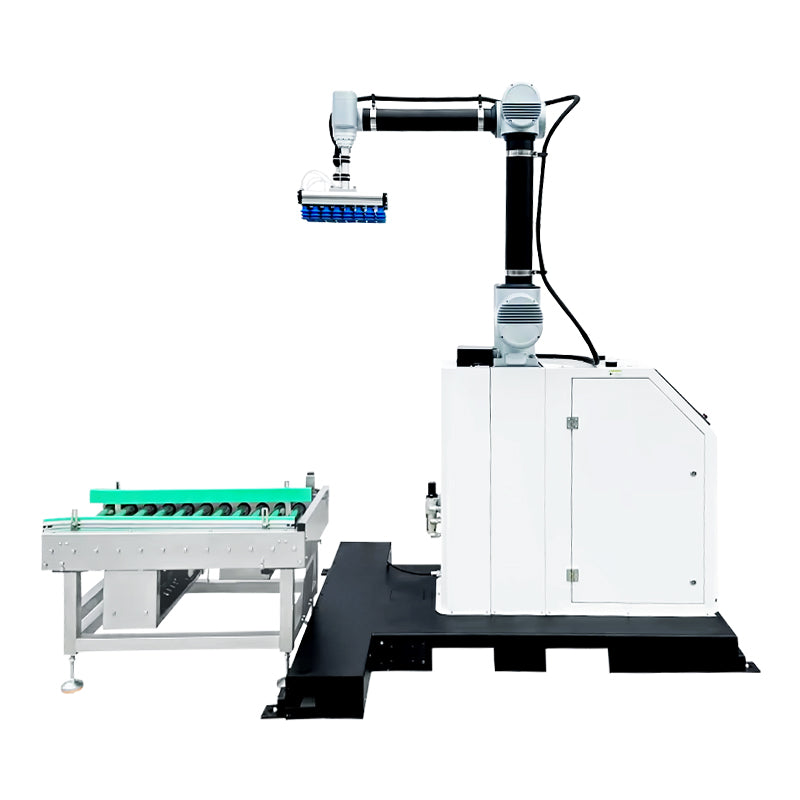

The ZONESUN ZS-MD20A is a high-performance robotic palletizer engineered to enhance logistics and packaging efficiency in industrial settings. With a 20kg payload capacity and a 1460mm working radius, it accommodates a wide range of carton sizes and pallet configurations. Designed for automatic carton handling and stacking, this compact unit is ideal for factories, warehouses, and distribution centers seeking automation in their end-of-line operations. Its precise motion control and compatibility with cartons from 180–500mm in length make it a reliable solution for high-throughput environments.
PARAMETER
| Parameter | Specification |
|---|---|
| Model | ZS-MD20A |

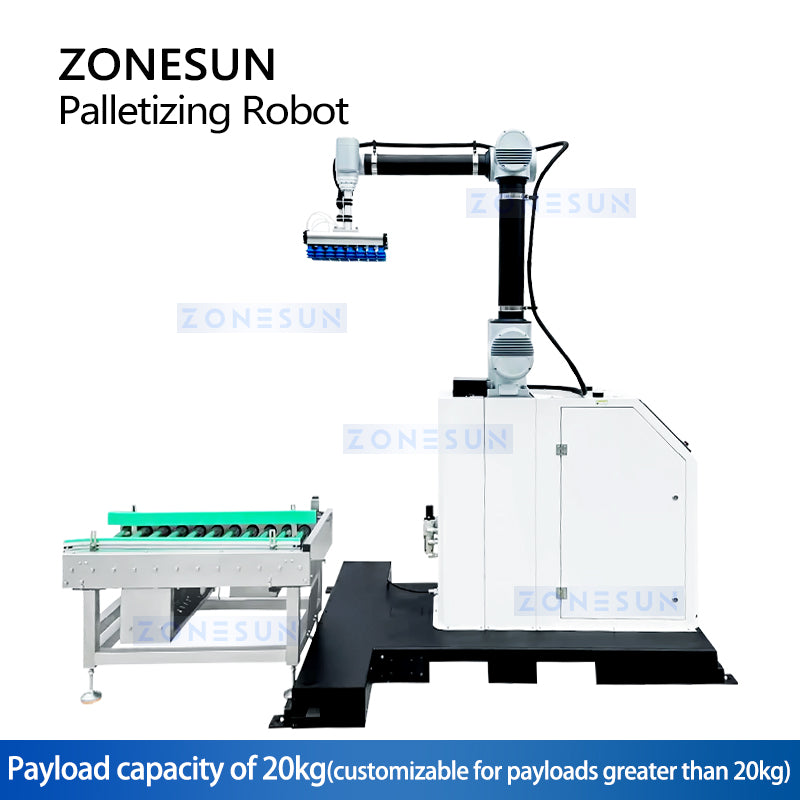

| Payload Capacity | 20 kg |
| Working Radius | 1460 mm |
| Palletizing Height (Excl. Pallet) | 1700 mm |
| Palletizing Height (Incl. Pallet) | 1950 mm |
| Pallet Size | 1200 mm × 1200 mm |
| Palletizing Speed | 8 pallets/min |
| Applicable Carton Size — Length | 180–500 mm |
| Applicable Carton Size — Width | 200–450 mm |
| Applicable Carton Size — Height | 200–400 mm |
| Power Supply | 220V, 2.5 kW |
| Machine Weight | 82 kg |

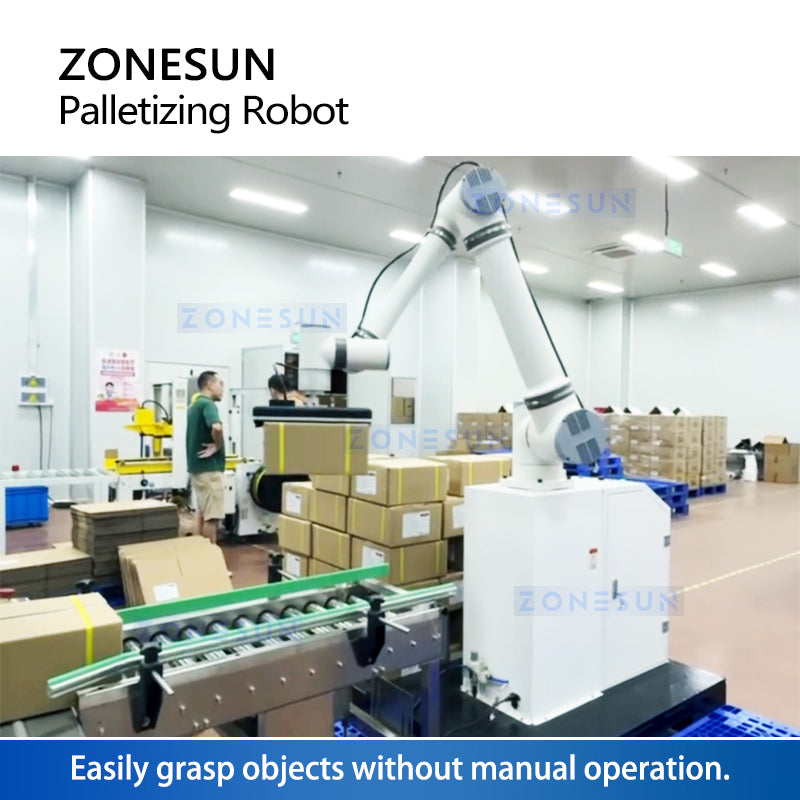

Flexible Object Handling
The robotic arm grips and places products automatically for efficient palletizing.

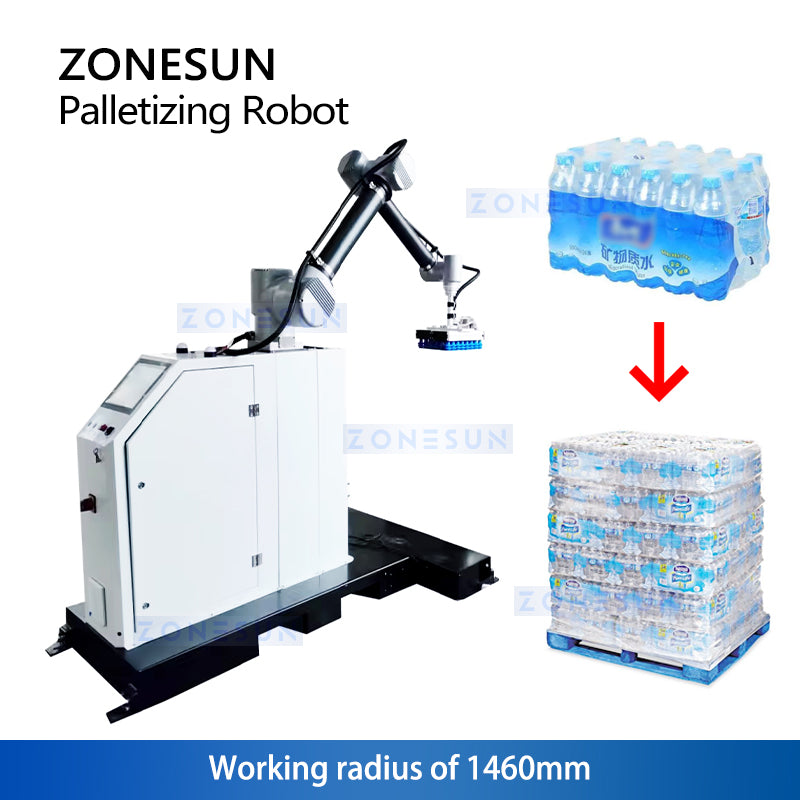

Wide Working Radius
A large working range supports flexible layouts in warehouse and factory production lines.
Instruction Video
Before Ordering
- Send carton dimensions, filled weight, surface material, pallet size, and stacking pattern to confirm the gripper and robot configuration.
- Confirm the usable product load within the listed 20 kg payload, including the effect of gripper weight and handling conditions.
- Confirm the speed unit, conveyor layout, utilities, and required guarding or protective devices in the complete cell proposal.
Frequently Asked Questions
What cartons and pallets are listed?
The listed carton dimensions are L180–500 × W200–450 × H200–400 mm, with a pallet size of 1200 × 1200 mm. Confirm the carton structure, filled weight, and required stacking pattern for your application.
What are the working radius and stacking height?
The specifications list a 1460 mm working radius, 1700 mm palletizing height excluding the pallet, and 1950 mm including the pallet. Confirm the usable reach and height together in the final cell layout.
Can it connect to an existing packaging line?
Connection can be assessed using your conveyor height, carton orientation, arrival rate, pallet positions, and available floor space. Confirm the gripper, infeed, controls, and protective equipment included in the quotation.
