ZONESUN ZS-MGZ630 Automatic Sauce Filling Sealing Machine for High-Viscosity Foods, Syrups, Paste

Price
$36,500

Please click "Buy It Now". Shipping will be calculated at checkout.


Voltage:110V
Shipping Information

Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.

To check available shipping options and estimated shipping costs, add the product to your cart and enter your delivery address during checkout. The available shipping methods for your destination will be displayed automatically.

DDP (Delivered Duty Paid) shipping options may also be available for selected destinations. Where DDP is available and selected, the applicable duties, taxes, customs clearance, and delivery arrangements will be handled according to the terms of the quoted DDP shipping service. Please contact us if you would like to confirm DDP availability for your destination before ordering.

For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.

For non-DDP shipping methods, import duties, customs clearance fees, local taxes, and other destination charges may apply and are generally determined by local customs authorities.

About Us

ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.

ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.

Description

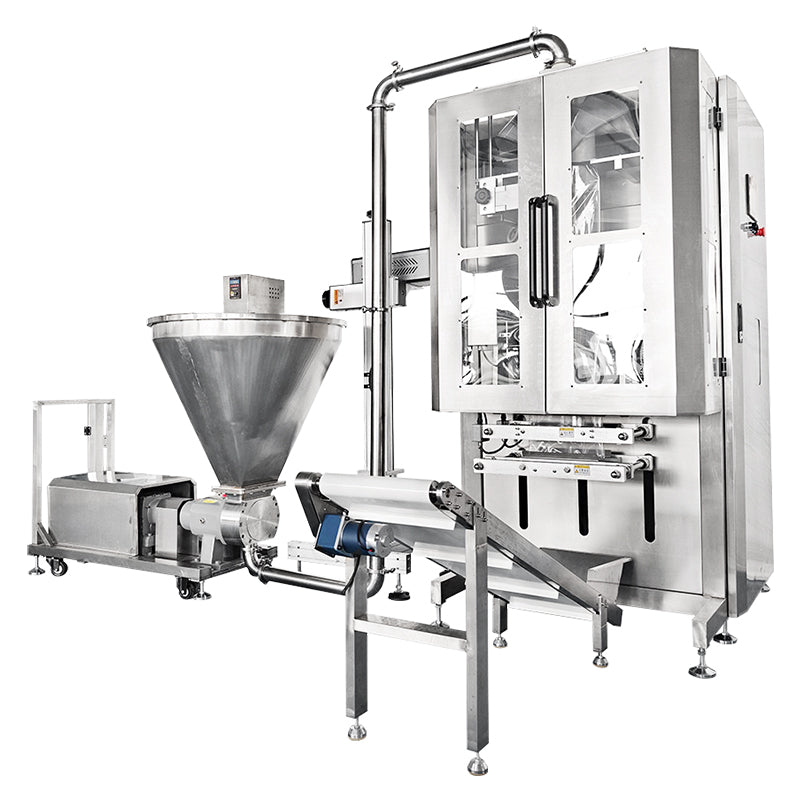

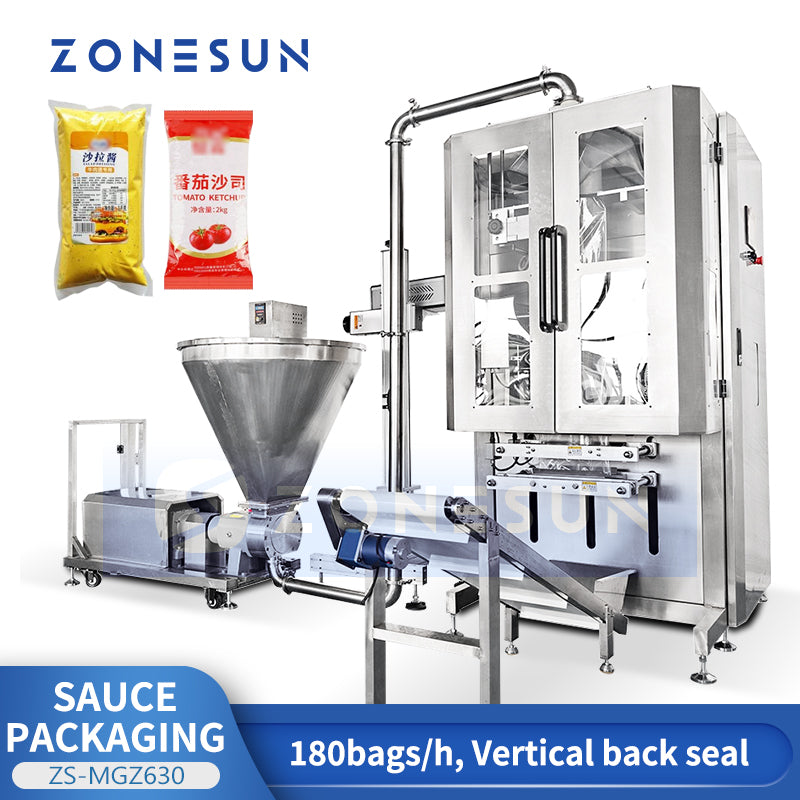

This fully automatic sauce filling machine is designed for high-viscosity foods, semi-fluid fillings, syrups and homogenized liquids. Equipped with a cleaning roller, it can achieve bubble-free packaging, prevent oxidation and deterioration, and greatly extend the shelf life. Simple and stable operation, it is an ideal choice for food production lines that pursue efficiency, hygiene and long-term freshness.

Parameter

  • Model: ZS-MGZ630
  • Conveying Pipeline: Diameter 63mm
  • Conveying System: Standard L=1300 belt conveyor
  • Packaging Form: Vertical back seal, rectangular bag
  • Packaging Weight: 5000g
  • Packaging Speed: 3–5 bags/minute
  • Bag Length: 660mm
  • Bag Width: 300mm (film width 630mm)
  • Date Printing: Date coder (standard)
  • Power Supply: 380V 50Hz
  • Power: 4KW
  • Air Source: 0.7MPa, 0.5m³/min
  • Packaging Material: NY/PE (thickness 9–10 wire)
  • Machine Weight: Approx. 800kg (main machine 450kg, pump 350kg)
  • Main Machine Dimensions: 1200 × 1100 × 2050mm (L × W × H)
  • Filling Pump Dimensions: 1700 × 900 × 1250mm (L × W × H)
Automatic Sauce Filling Machine
Automatic Sauce Filling Machine
Automatic Sauce Filling Machine

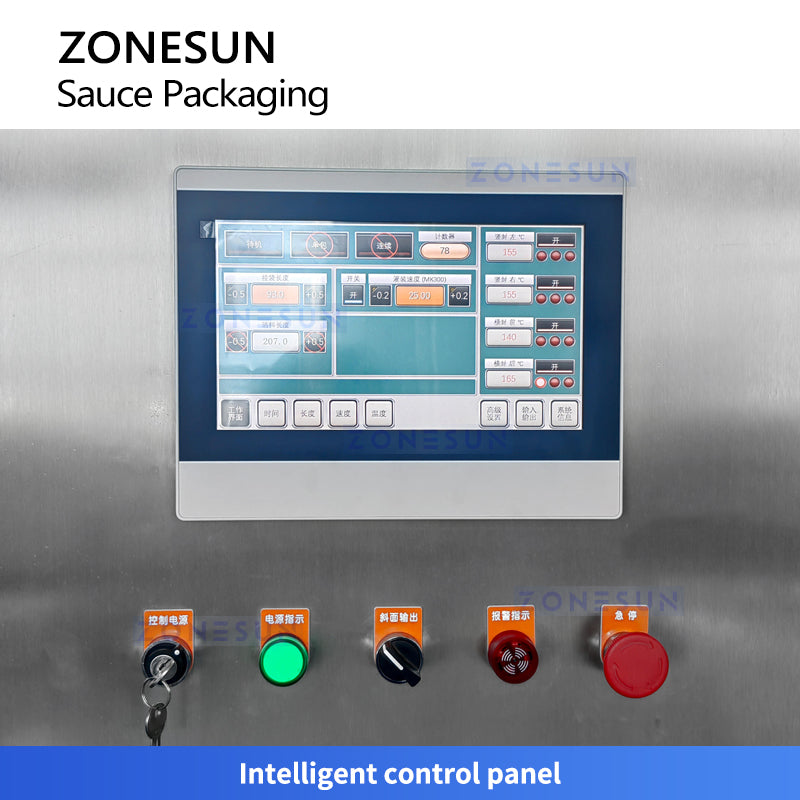

Automatic Sauce Filling MachineCONTROL PANEL
Intuitive and easy-to-use interface for precise machine operation, monitoring, and parameter adjustments.

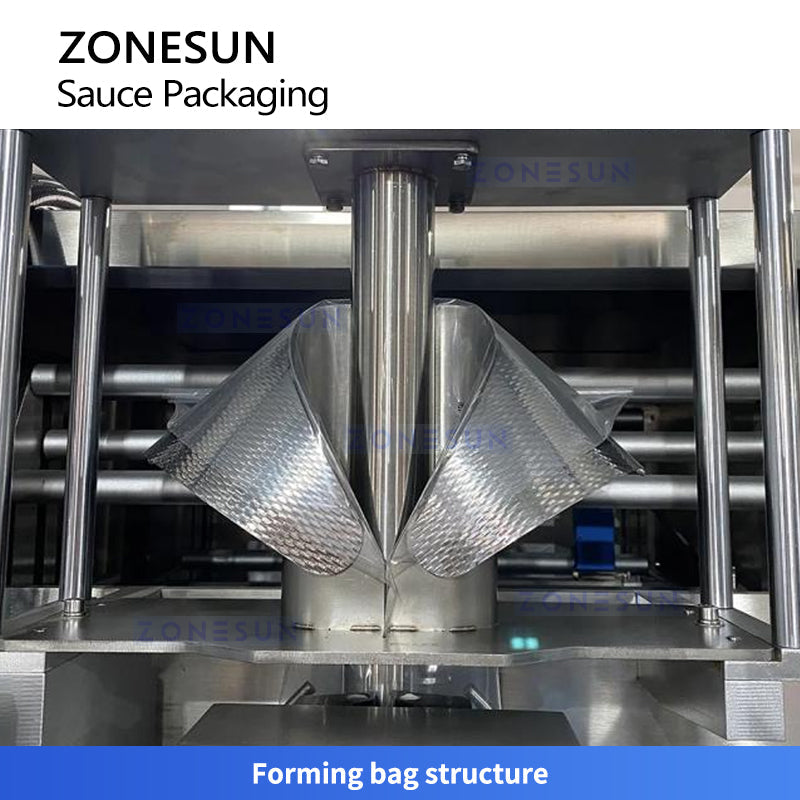

Automatic Sauce Filling MachineFORMING BAG
High-precision bag-forming structure ensures accurate shaping with neat, smooth sealing edges.

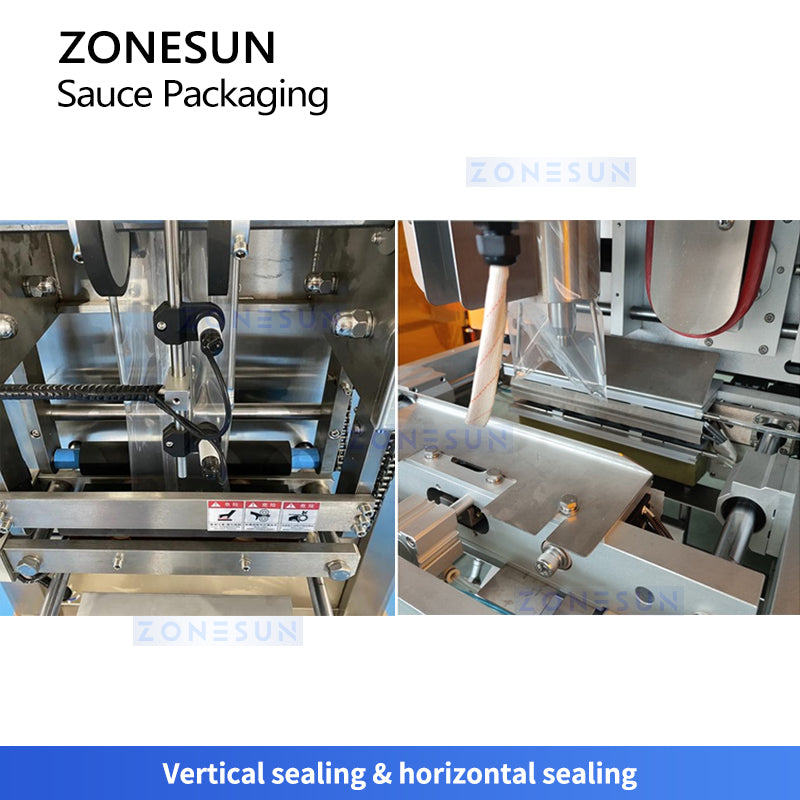

Automatic Sauce Filling MachineVERTICAL SEALING & HORIZONTAL SEALING
Dual temperature zones with independent controls; accuracy up to $\pm 2^\circ\text{C}$. Compatible with various heat-sealable composite films such as nylon+PE.

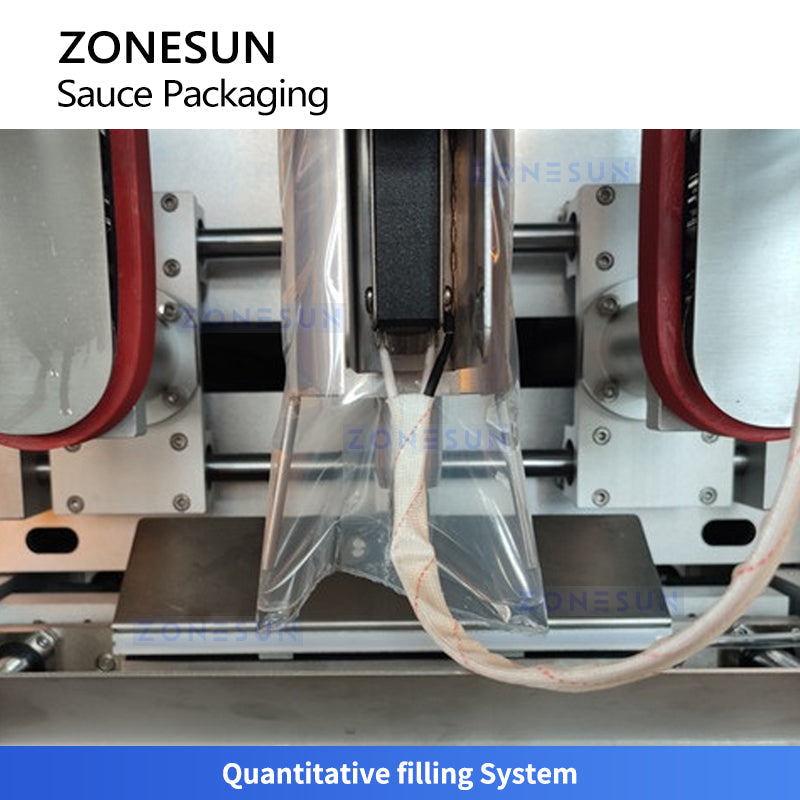

Automatic Sauce Filling MachineQUANTITATIVE FILLING
Ensures accurate, consistent filling volume for every cycle, minimizing waste and enhancing product uniformity.

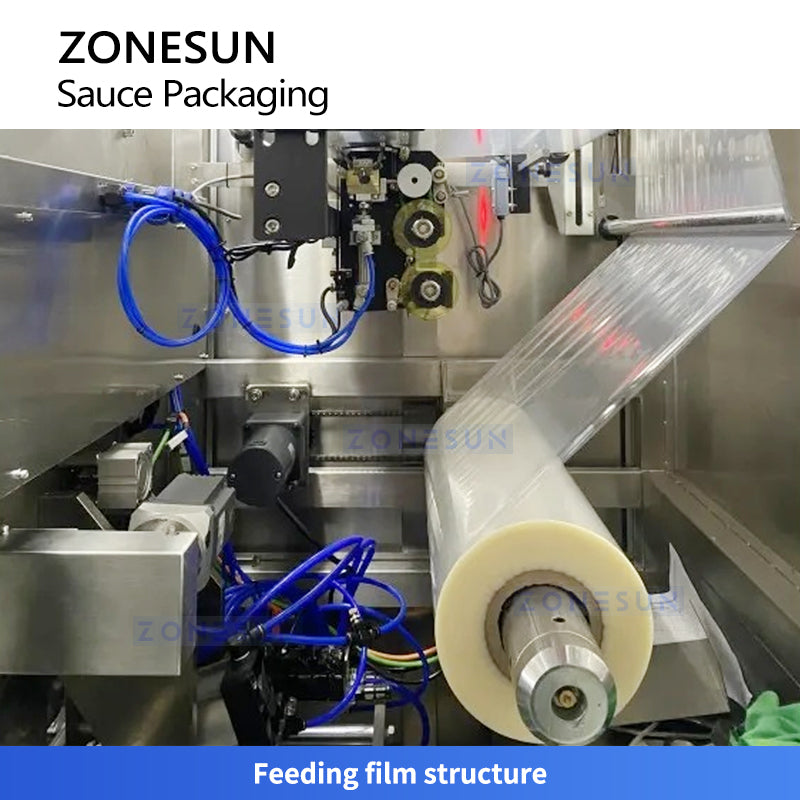

Automatic Sauce Filling MachineFILM FEEDING
Reliable film feeding structure guarantees smooth, consistent film transport during high-speed operation.
Automatic Sauce Filling Machine
