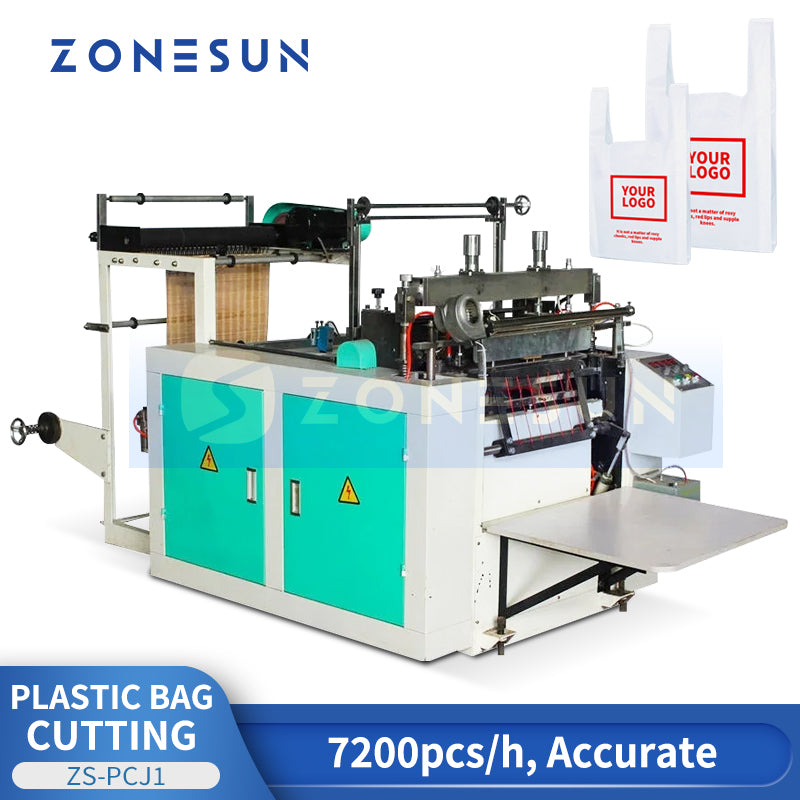

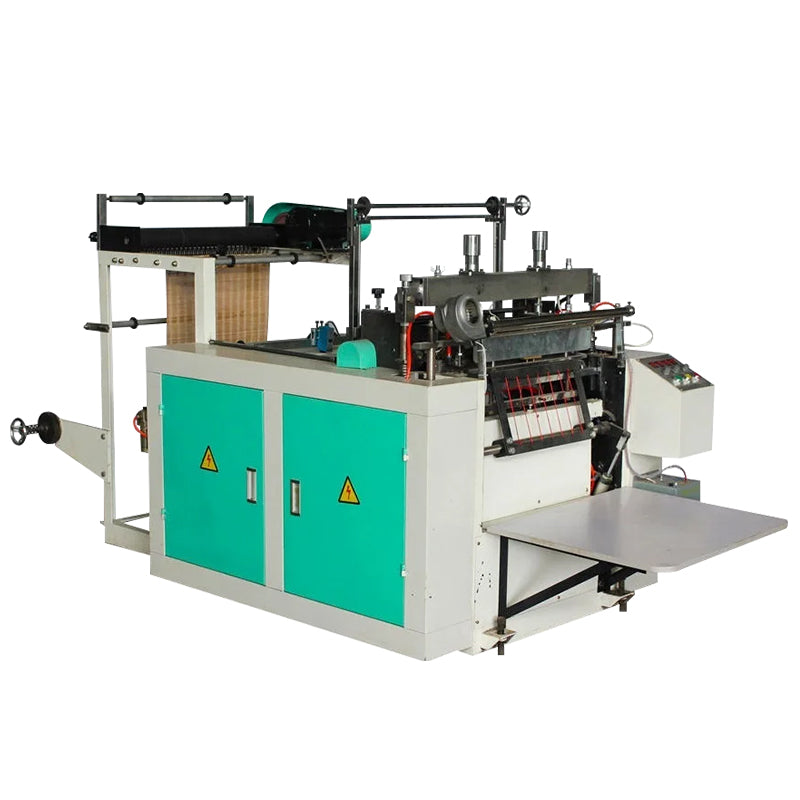

The ZONESUN ZS-PCJ1 is a high-efficiency plastic bag cutting machine engineered for the production of LDPE and HDPE vest-style bags. Featuring a 180° rotatable sealing device, it offers enhanced flexibility and stable performance for continuous operation. With a cutting speed of 50–120 pcs/min and support for bag sizes up to 1000mm in length and 500mm in width, this machine is ideal for manufacturing shopping bags and other plastic packaging. Its energy-saving design and robust construction make it a reliable solution for large-scale production environments.
TECHNICAL SPECIFICATIONS
- Model: ZS-PCJ1
- Voltage: 220V
- Main Motor: 1.5 kW
- Max Length of Bag: 100–1000 mm
- Max Width of Bag: 100–500 mm
- Speed: 50–120 pcs/min
- Weight: 750 kg
- Dimensions: 2500×1150×1200 mm

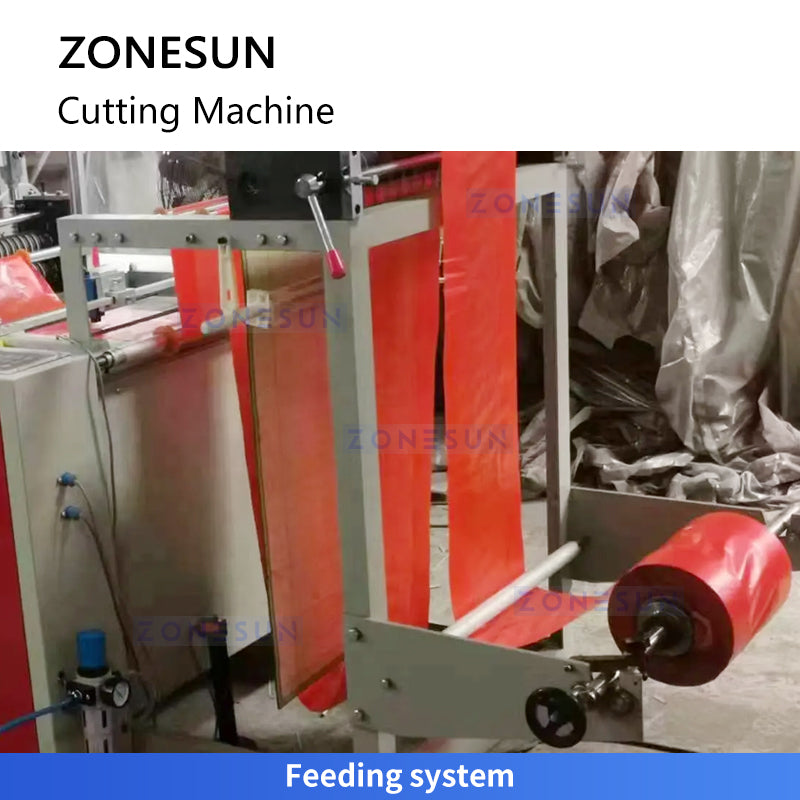

Feeding System
The photoelectric-controlled feeding system provides smooth, reliable material feeding for stable production.

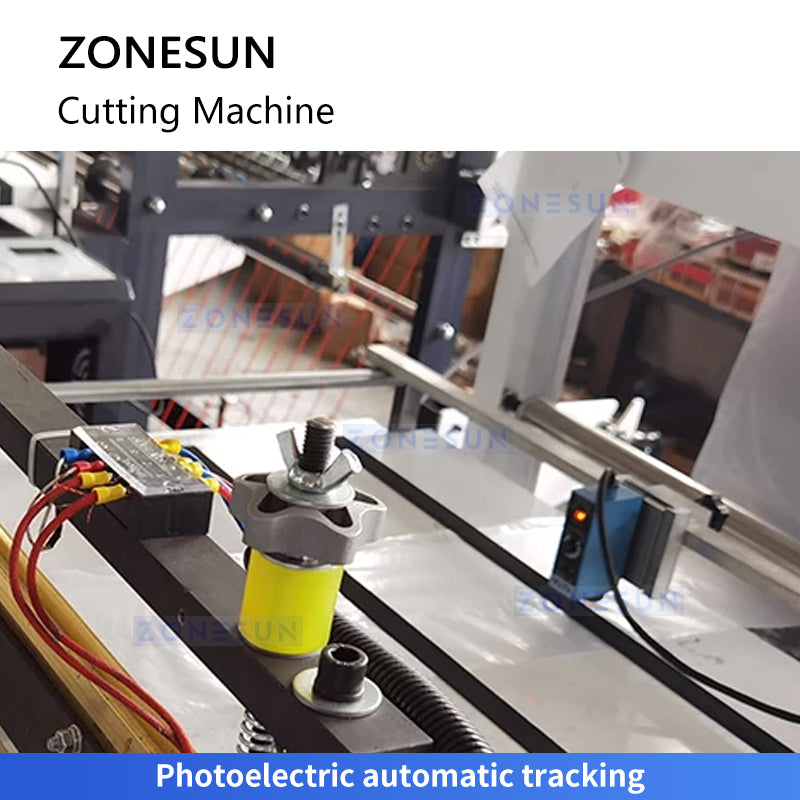

Photoelectric Eye
Accurately tracks the sealing and cutting length, helping reduce errors and improve overall production accuracy.

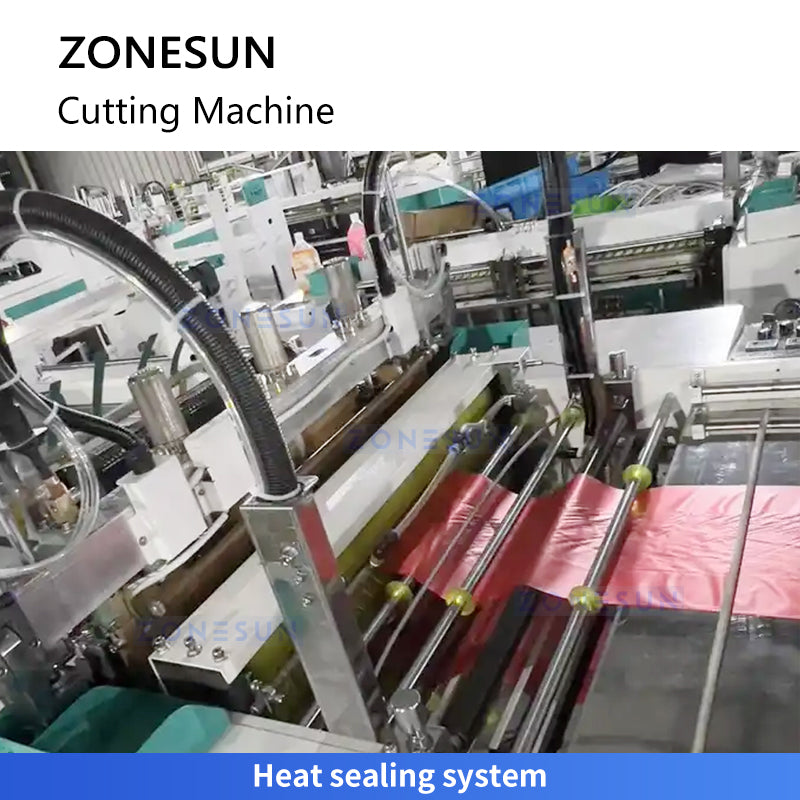

Heat Sealing
Driven by a stepper motor, the system supports accurate cutting sizes and stable sealing quality for reliable production.

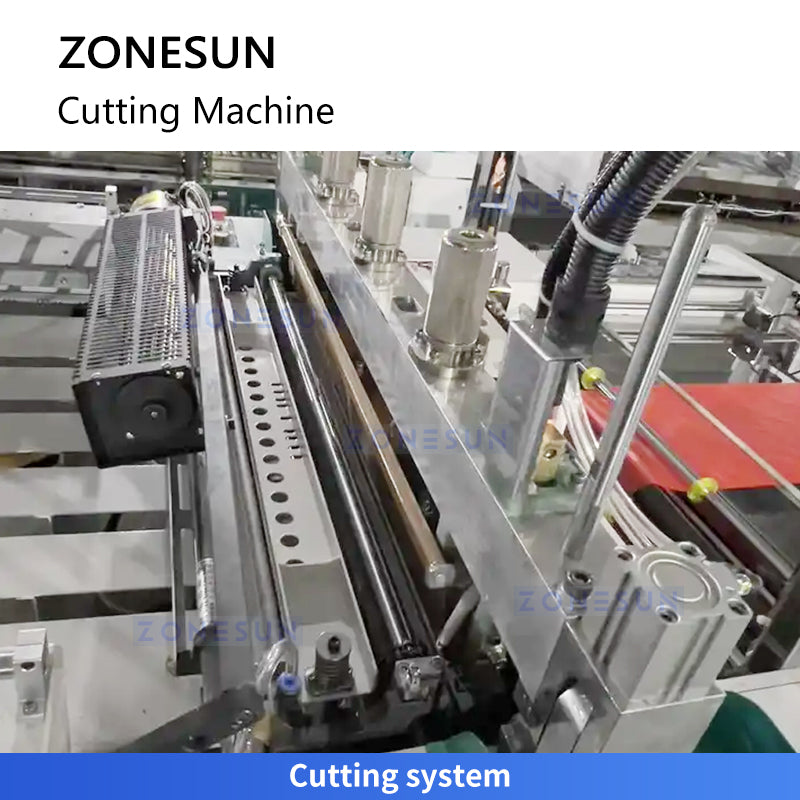

Cutting System
The sealing pressure can be adjusted for optimal performance. The device can rotate 180 degrees, making cleaning and maintenance easier.
