Description

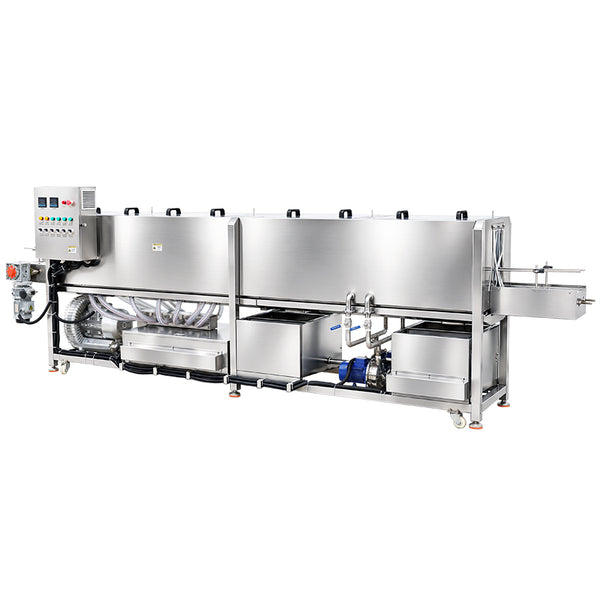

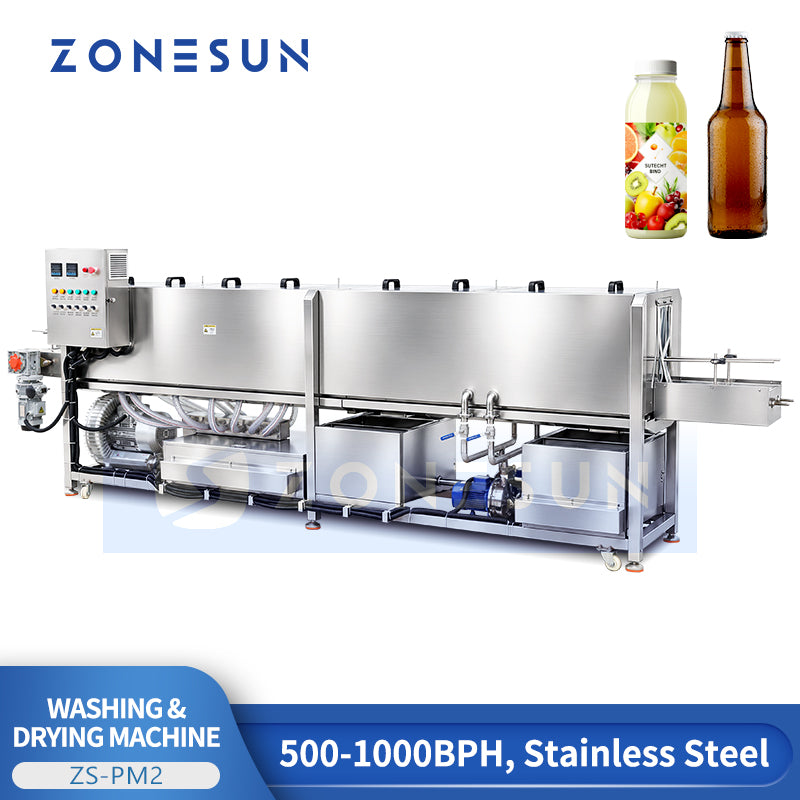

The ZONESUN ZS-PM2 is a tunnel-type Washing Dryer designed for bottles and cans. Running at 500–800 pieces per hour, it adopts spraying water zones with controlled temperatures (0–98℃) to achieve preheating, sterilization, heat preservation, and cooling. Built with stainless steel and equipped with integrated washing and drying functions, it ensures stable sterilization time and consistent product quality. Suitable for beer, juice, milk, coffee, and other hot-fill beverages, it provides reliable, efficient, and long-lasting performance for medium-scale production lines.
Technical Specifications
| Model | ZS-PM2 |
|---|---|
| Production Capacity | About 500–1000 bottles/hour |
| Motor Power | 0.55 kW |
| Power Supply | 380 V / 50 Hz |
| Water Pump Power | 0.75 kW × 2 |
| Air Pump / Blower Power | 5.5 kW × 1 |
| Water Tank Heating Power (Optional) | 12 kW |
| Electric Heating Box Power | 12 kW |
| Total Operating Power Range | 19.55–31.55 kW |
| Conveyor Chain | Stainless Steel Chain |
| Conveyor Drive | Reducer |
| Machine Dimensions (L × W × H) | 4500 × 850 × 1220 mm (Customizable) |
Applications
- Washing and drying compatible bottles before downstream processing.
- Container preparation for beverage, cosmetic and other packaging projects.
- Continuous rack-based container handling where material and geometry suit the configured washing and drying system.
Product Details

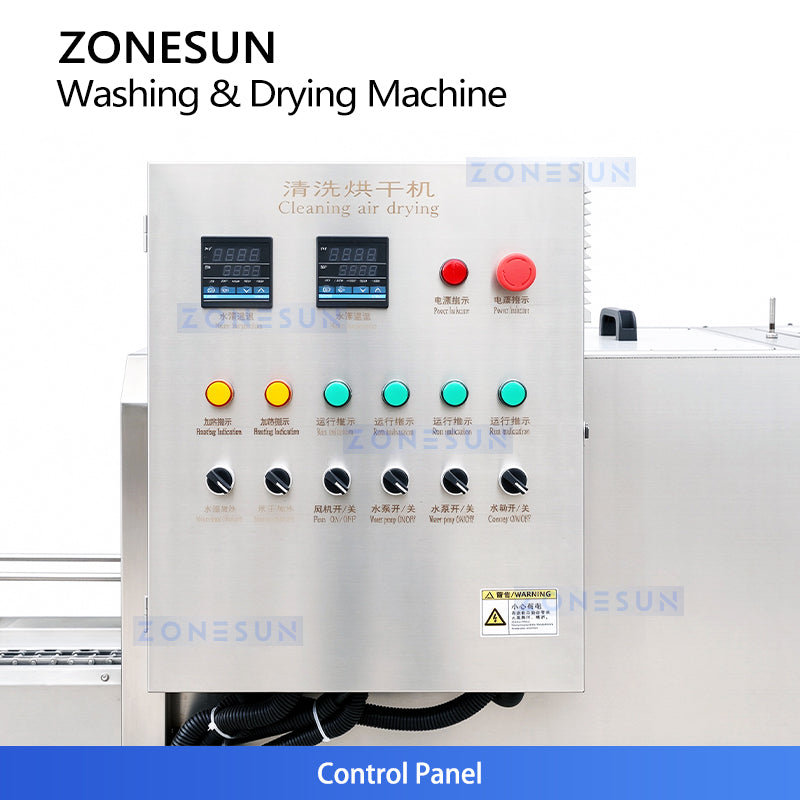

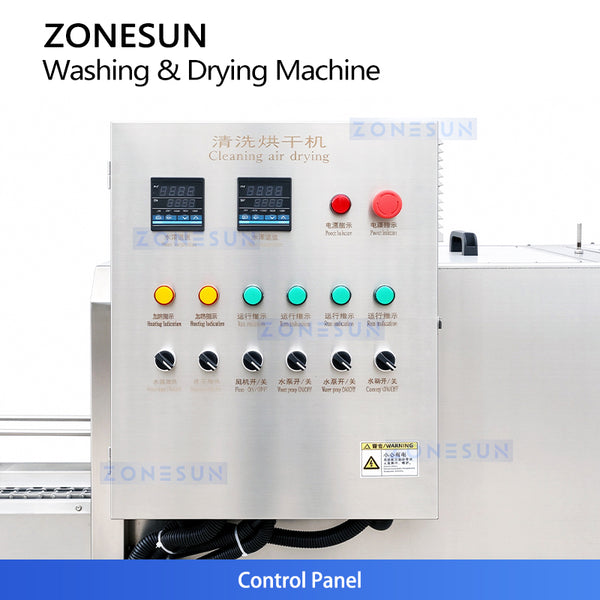

Control Panel
Set and monitor washing, drying and conveyor operating parameters.

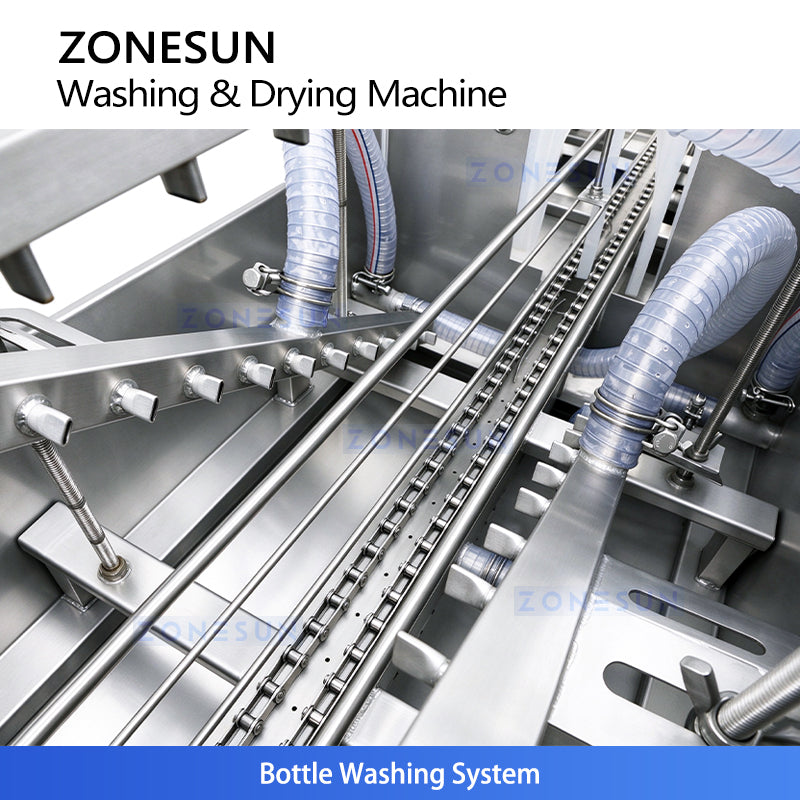

Washing Section
Uses water or hot water to rinse compatible bottles. Internal-rinsing coverage should be evaluated with the actual bottle and carrier arrangement.

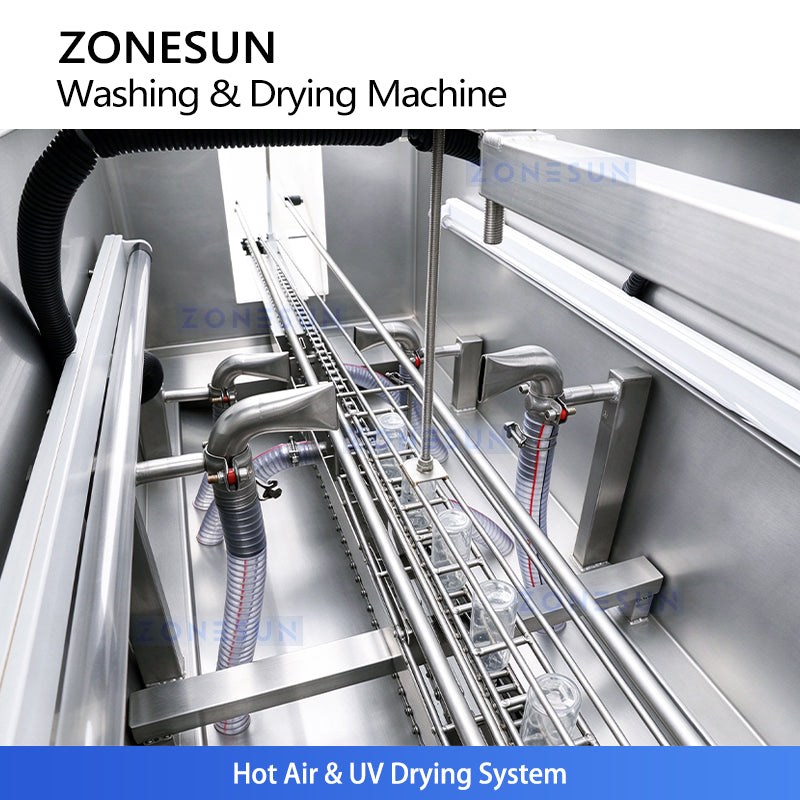

Heated-Air Drying Section
Heated airflow removes residual moisture. UV treatment is mentioned in the original configuration description; its inclusion and treatment specifications require confirmation.
Blower System
Supplies airflow to the drying section.

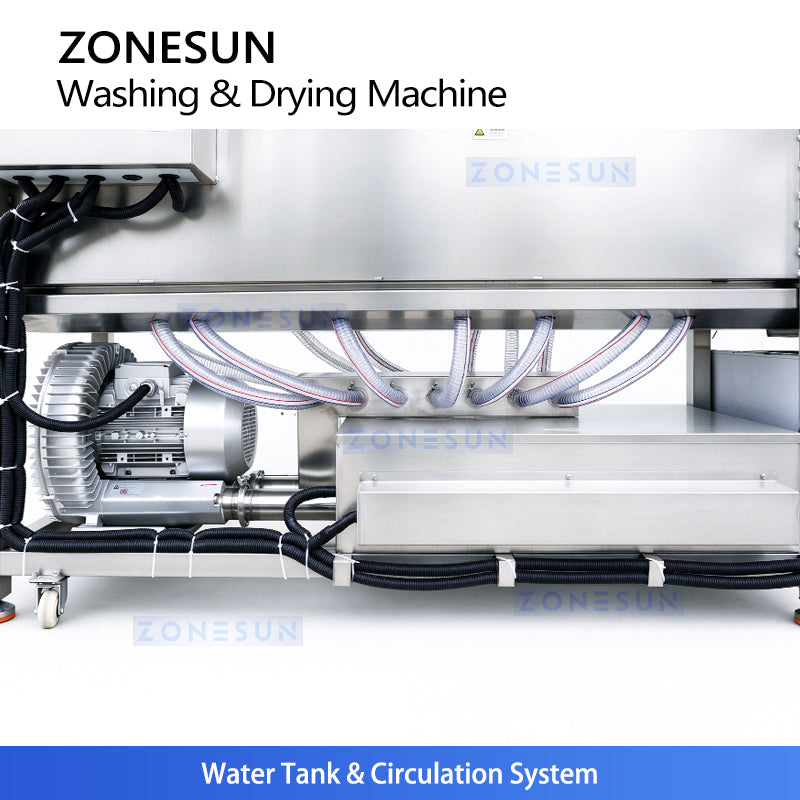

Water Circulation
Collects washing water and supplies the washing section through the pumps.
Bottle Carrier Rack
Holds multiple bottles for transport through the washing and drying sections.
Key Features
- Connected washing and drying: Moves compatible containers through successive processing sections.
- Rack transport: Carrier racks position bottles during conveyor travel.
- Water circulation: Pumps supply the washing section from the collection tank.
- Heated airflow: Blower and heating components support moisture removal.
- Stainless steel chain: Provides conveyor transport through the tunnel.
- Customizable layout: Machine dimensions can be evaluated for the production installation.
How It Works
- Load compatible containers into the matching carrier racks.
- Set the conveyor, washing and drying parameters.
- Transport the racks through the configured water-rinsing section.
- Use heated airflow to remove residual moisture.
- Discharge the containers and check cleanliness and dryness before downstream use.
Frequently Asked Questions
Does washing or UV treatment guarantee sterilization?
No. Cleaning and moisture removal do not establish sterilization. UV effectiveness requires defined exposure conditions and separate validation.
What throughput is listed?
The technical table lists approximately 500–1000 bottles per hour. Container layout, washing requirements and drying time determine practical output.
Is 0.55 kW the total machine power?
No. It is the motor power. Pumps, blower and heaters are listed separately; total operating power is stated as 19.55–31.55 kW, depending on configuration.
Can it process plastic bottles or cans?
Material heat tolerance, geometry and the carrier arrangement must be evaluated. Compatibility with every plastic bottle or can is not established.
Can it make milk or low-acid beverages shelf-stable?
The current specifications do not establish a shelf-stability process. Product preservation requires a separately defined and validated thermal process.
