Description

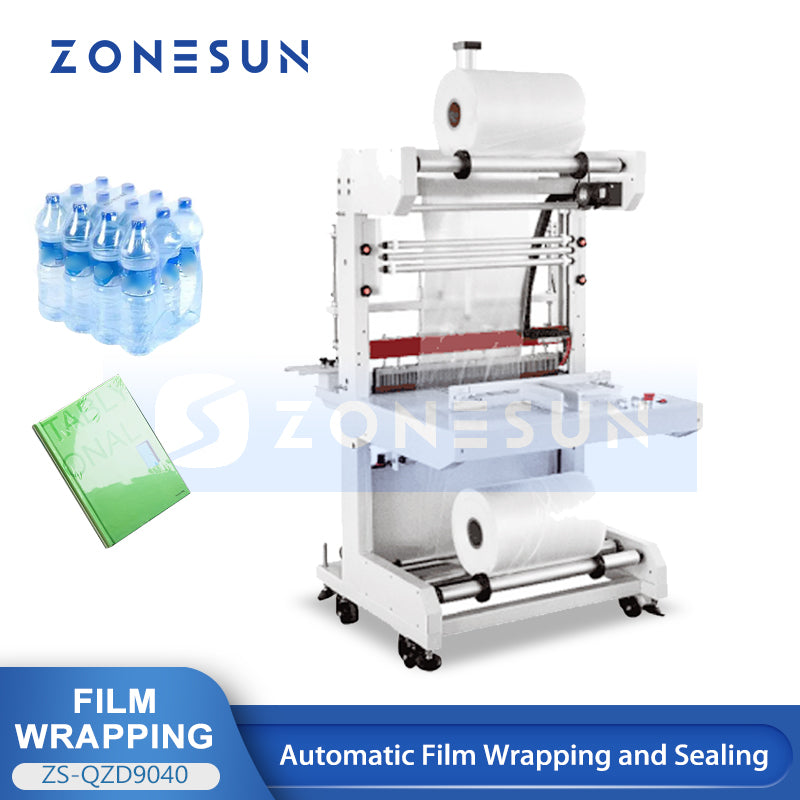

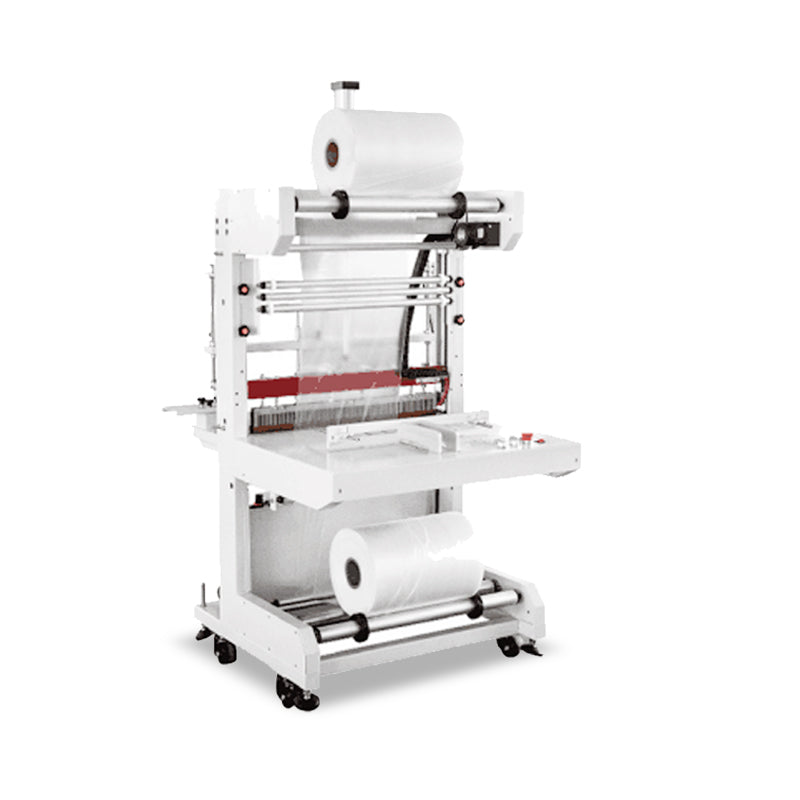

The ZONESUN ZS-QZD9040 is a fully automatic sleeve shrink wrapping and sealing machine designed for efficient film wrapping and sealing of a wide range of products, boxes, bundles, and consumer goods. The machine automatically wraps PE film around the product, heat-seals the film edges, and outputs finished wrapped packages ready for downstream shrink tunnel processing.
The ZS-QZD9040 accommodates package sizes from 120×120×100mm up to 750×330×350mm and operates at 2–8 packs/min. Compatible with PE film from 0.03 to 0.25mm thickness and a 370mm sealing knife width. With a pusher load capacity of 20kg (customizable) and compact 1100×1100mm footprint, it suits a range of production and packaging environments. Pairs with a downstream shrink tunnel (such as the ZS-BSPN7050) to complete the full shrink packaging process.
Technical Specifications
- Model: ZS-QZD9040
- Power Supply: 220–240V, 50–60Hz
- Power: 1.45 kW
- Packing Speed: 2–8 packs/min
- Pusher Load Capacity: 20 kg (customizable)
- Maximum Package Size: L750 × W330 × H350mm
- Minimum Package Size: L120 × W120 × H100mm
- Sealing Knife Width: 370mm
- Required Film Width: Product width + 100mm
- Film Thickness: 0.03–0.25mm (PE film)
- Machine Weight: 245 kg
- Machine Dimensions (L×W×H): 1100 × 1100 × 1560mm (1900mm with extended frame)
Why Choose the ZS-QZD9040?
✅ Wide Package Size Range — 120×120×100mm to 750×330×350mm: Accommodates a broad range of product and bundle sizes from small consumer items (120×120×100mm minimum) up to large multi-pack or bulk product bundles (750×330×350mm maximum), making the ZS-QZD9040 suitable for diverse packaging applications without requiring size-specific machine configurations
✅ Automatic Film Wrapping & Sealing — Continuous Package Output: Fully automatic sleeve film wrapping and heat sealing cycle delivers wrapped and sealed packages continuously at 2–8 packs/min without manual film placement or sealing operations, reducing labor requirements and improving packaging consistency compared to manual or semi-automatic film wrapping methods
✅ PE Film 0.03–0.25mm Compatibility — Flexible Film Selection: Compatible with PE shrink film thicknesses from 0.03mm to 0.25mm, providing flexibility to select film gauge based on product weight, required package rigidity, appearance requirements, and cost considerations for different packaging applications
✅ 20kg Pusher Load Capacity — Handles Heavier Multi-Pack Products: 20kg pusher load capacity (customizable) supports heavier products, multi-pack bundles, and stacked item configurations, making the ZS-QZD9040 practical for packaging heavier consumer goods, beverage bundles, hardware items, and industrial product groups requiring film sleeve wrapping
✅ 370mm Sealing Knife — Clean Consistent Film Cut & Seal: 370mm sealing knife width provides clean and consistent film cutting and heat sealing across the full package width range, supporting reliable sealed film edges for downstream shrink tunnel processing without film tail or sealing quality issues
✅ Compact 1100×1100mm Footprint — Space-Efficient Installation: Compact 1100×1100mm machine footprint and 245kg weight allow the ZS-QZD9040 to be installed in smaller production and packaging areas, with an optional extended frame raising clearance height to 1900mm for taller product configurations
✅ Shrink Tunnel Pairing — Complete Shrink Wrap Packaging Solution: Designed to pair with a downstream heat shrink tunnel (such as the ZS-BSPN7050) to complete the full automatic sleeve wrapping → heat shrink packaging process, enabling a complete film wrapping and shrink finishing line for food, beverage, consumer goods, and industrial product packaging
Ideal Applications
Consumer Goods & Retail Product Shrink Wrapping: Automatic PE film sleeve wrapping and sealing of retail consumer product boxes, packaged goods, household items, personal care products, and other standard rectangular consumer product packages requiring film wrap finishing before heat shrink tunnel processing at 2–8 packs/min
Food & Beverage Bundle Shrink Wrapping: Film sleeve wrapping of food product bundles, beverage multi-packs, packaged food boxes, bottled product groups, and other food and drink product configurations requiring automatic film wrapping and heat sealing before downstream shrink tunnel finishing for retail-ready shrink-wrapped presentation
Industrial & Hardware Product Film Packaging: Automatic sleeve film wrapping of industrial components, hardware product sets, tool packaging, spare parts bundles, and other industrial product configurations within the 120×120×100mm to 750×330×350mm package size range requiring film wrap protection and presentation packaging
Multi-Pack & Bundle Film Wrapping: Film sleeve wrapping of 2-pack, 4-pack, 6-pack, and other multi-unit product bundle configurations where the 20kg pusher load capacity and wide package size accommodation allow heavier and larger multi-unit product groups to be automatically film-wrapped and sealed for downstream shrink packaging
Complete Automatic Shrink Packaging Line — with ZS-BSPN7050 Tunnel: Combined with the ZS-BSPN7050 shrink tunnel, the ZS-QZD9040 forms a complete automatic sleeve film wrapping → heat shrink finishing packaging line for bottled water, consumer goods, food products, industrial items, and other compatible products requiring full shrink wrap packaging from film application through finished shrink output
