Description

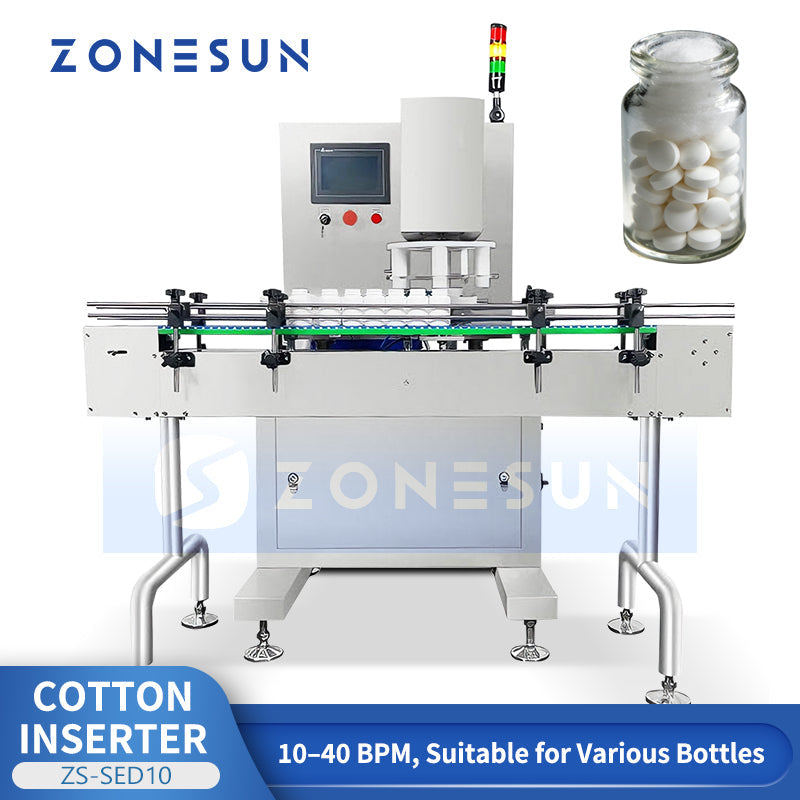

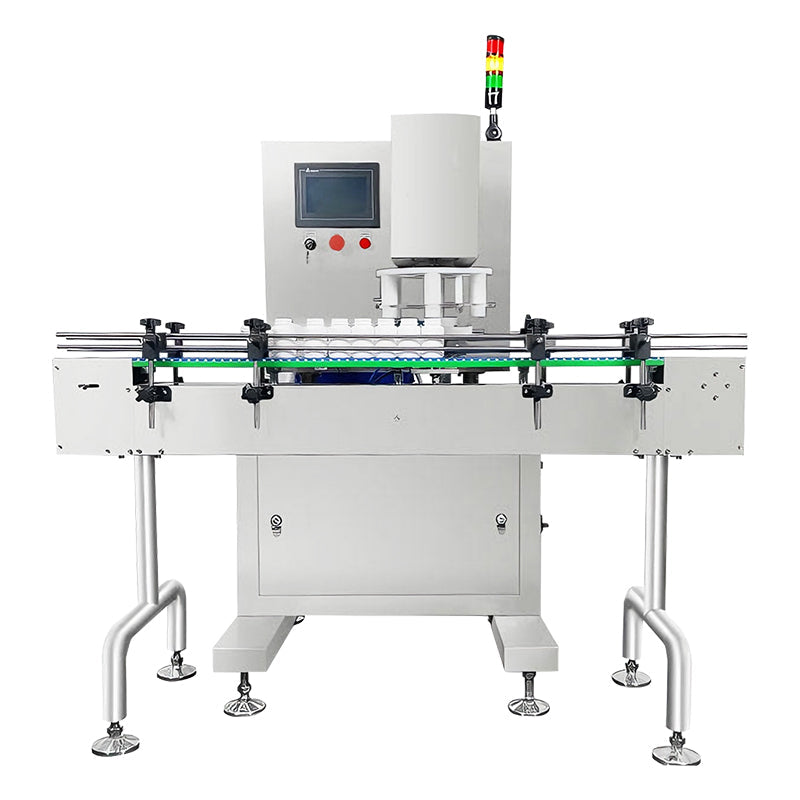

The ZONESUN ZS-SED10 is an automatic cotton desiccant inserting machine designed for round, square, oval, and flat bottles. Running at 10–40 bottles per minute, it integrates cotton feeding, bottle detection, pneumatic cutting, and conveyor transfer into one streamlined system. With its PLC touchscreen control, detection modules, and precision pneumatic unit, it ensures stable, efficient, and contamination-free operation. Compact design and customizable functions make it ideal for medium to large-scale production lines requiring reliable cotton or desiccant inserting solutions.
Parameter
- Model Name: ZS-SED10
-
Application: Suitable for round, square, oval, and flat bottles
- Bottle Diameter: 40–100 mm
- Bottle Height: 50–180 mm
- Cotton Swab Type: Round cotton swabs, diameter 25 mm (length 50–60 mm)
- Capacity: 10–40 bottles/min
- Voltage: AC 220 V, 50 Hz
- Power Consumption: 0.6 kW
- Air Supply Requirement: 0.6 MPa
- Machine Weight: 310 kg
- Overall Dimensions (L×W×H): 1360 × 1080 × 1410 mm

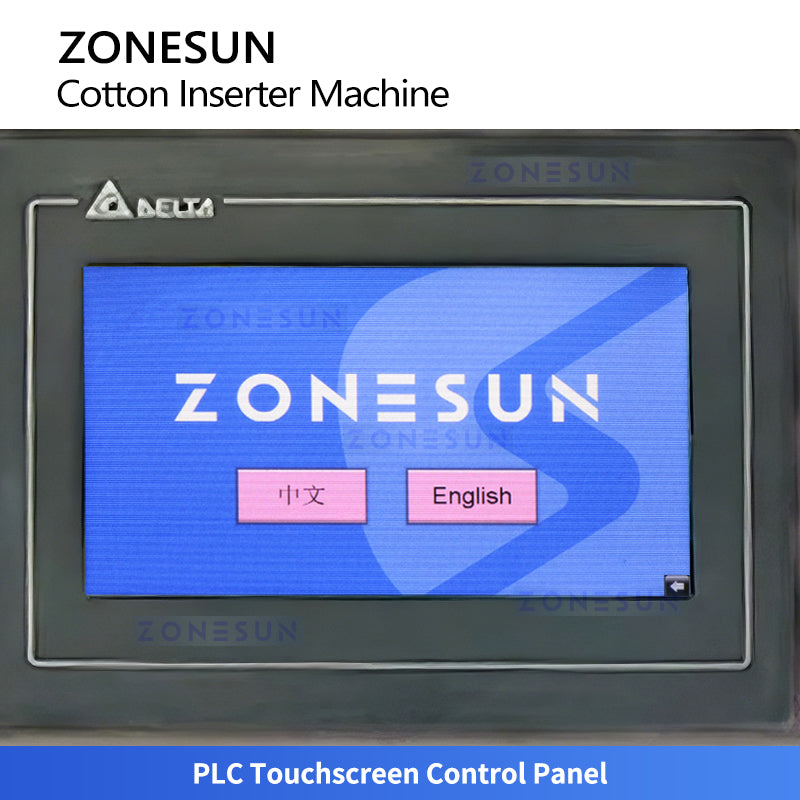

CONTROL PANEL
High-resolution touchscreen for setting operational parameters and monitoring machine status.

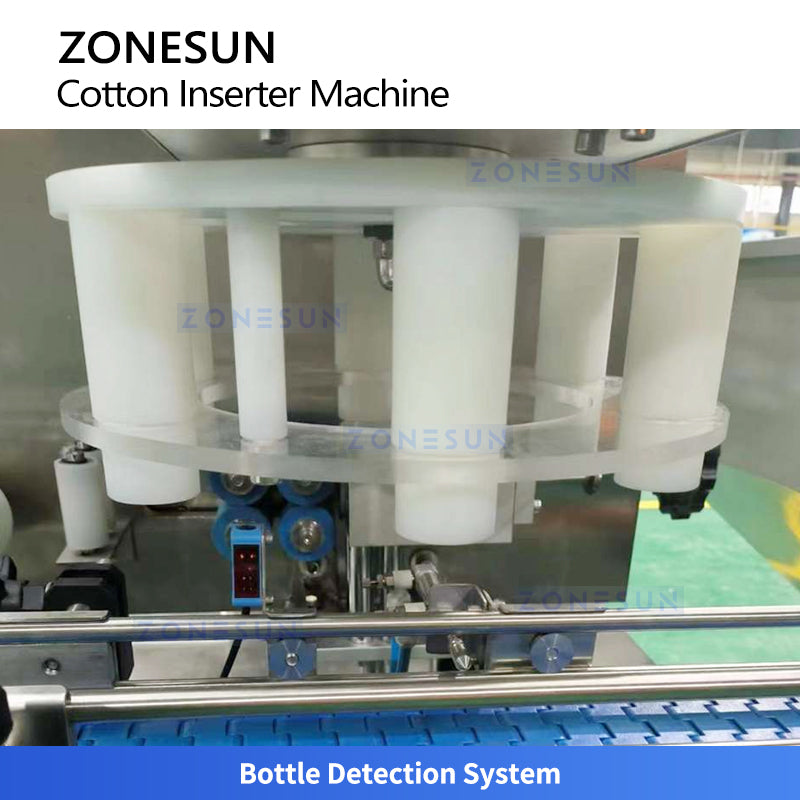

BOTTLE DETECTION
Automatically monitors bottle flow to prevent missing or leaking bottles during production.

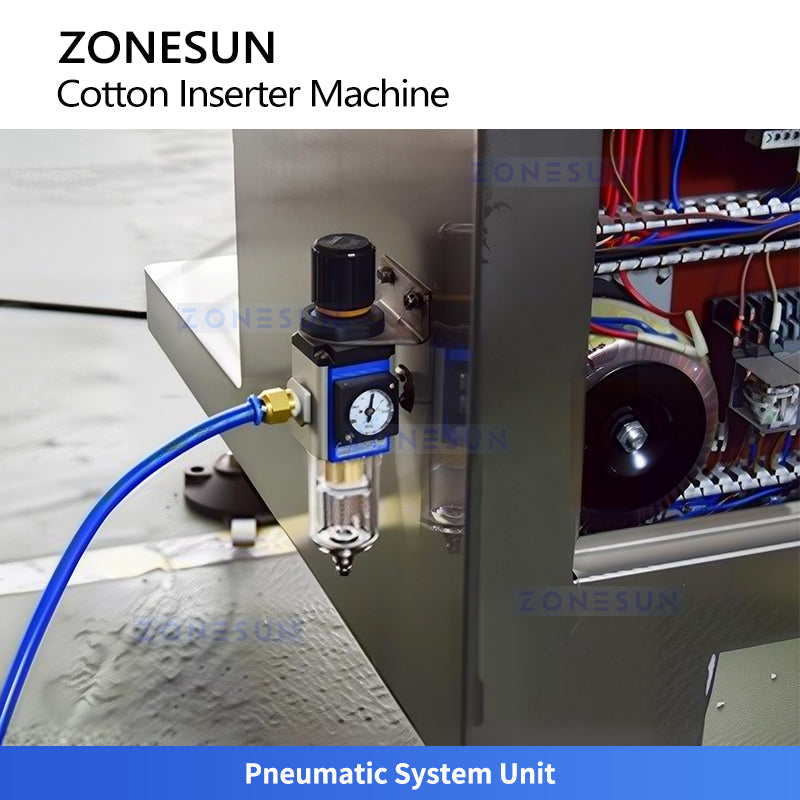

PNEUMATIC SYSTEM
Controls air pressure for stable operation; uses precision cutting to prevent material contamination.

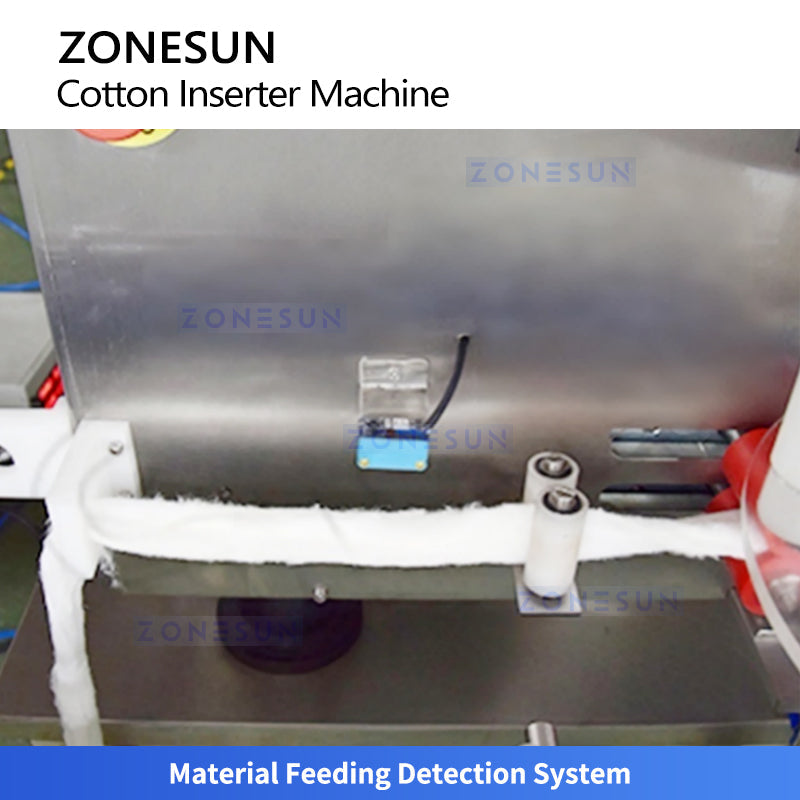

MATERIAL FEEDING
Automatically monitors material flow to ensure continuous, uninterrupted production.

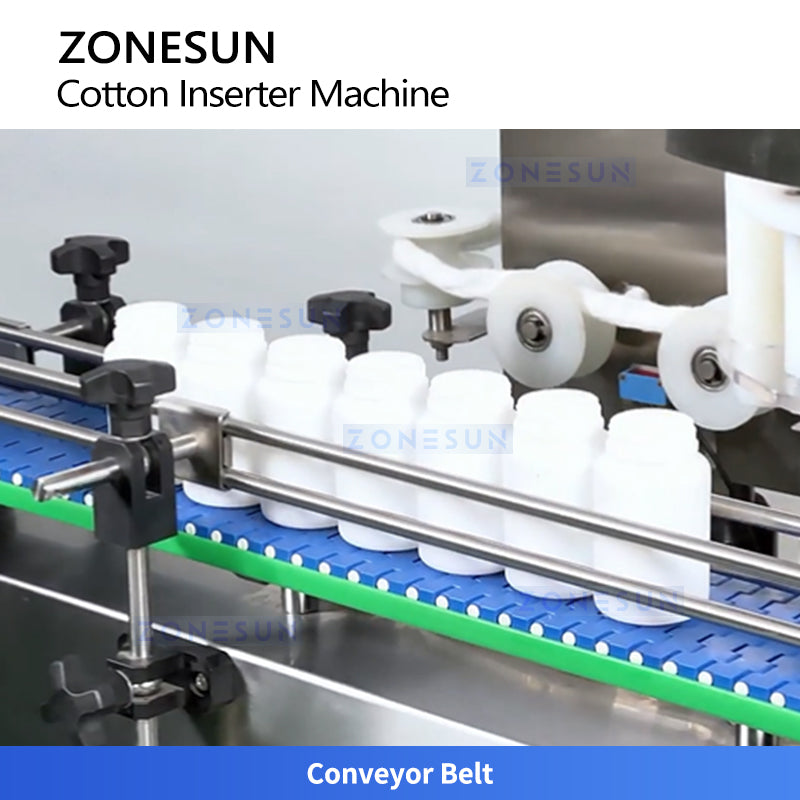

CONVEYOR BELT
Transports bottles smoothly through each processing stage, ensuring accurate positioning and continuous flow.
