Description

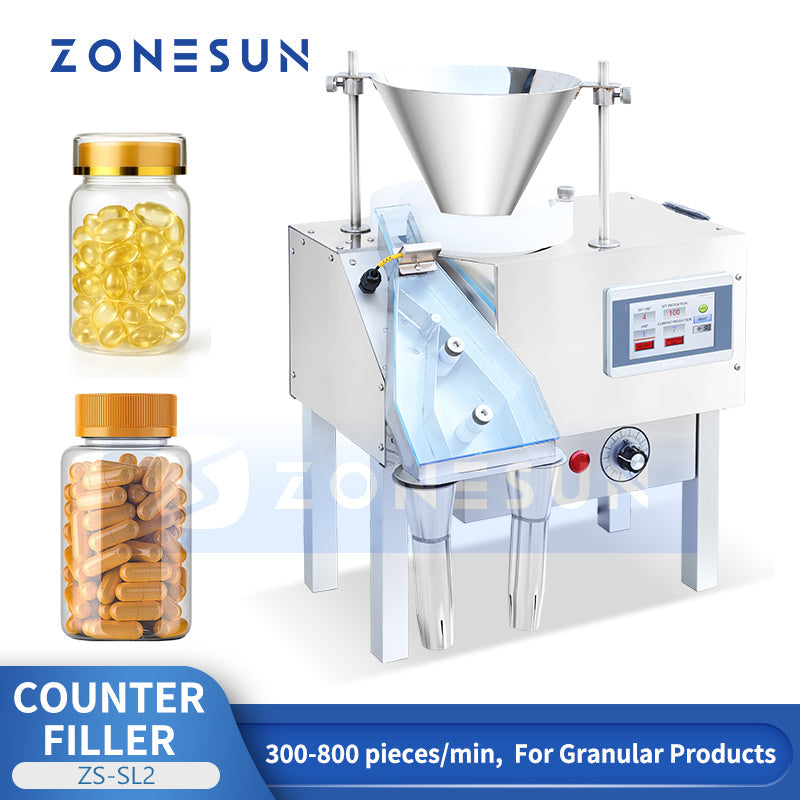

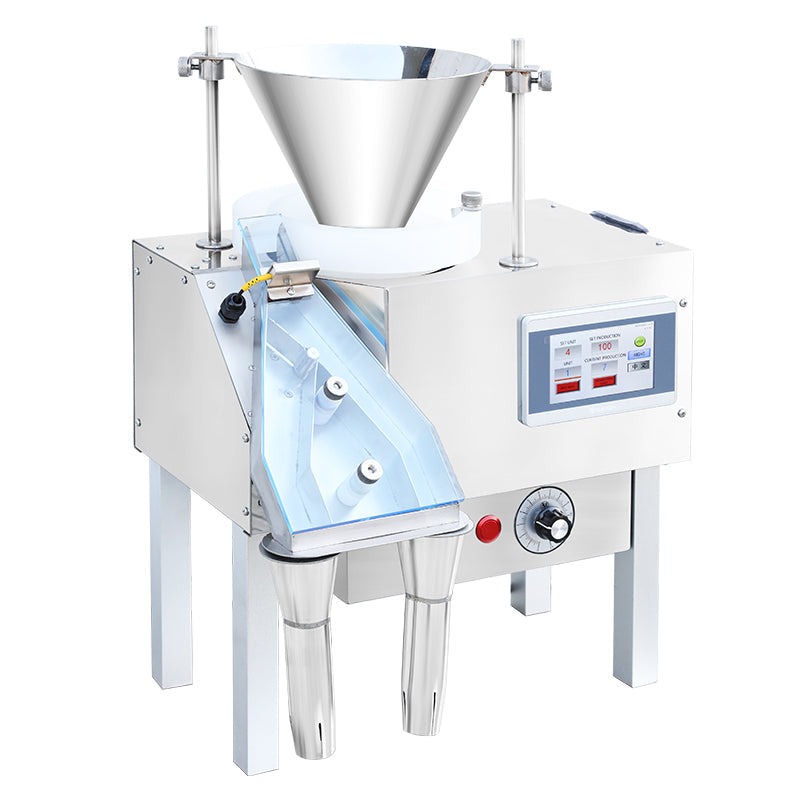

The ZONESUN ZS-SL2 is an automatic dual-head counting and filling machine designed for granular products such as capsules, tablets, pills, candies, and decorative beads. Operating at 200 pieces per minute, it uses a dust-resistant photoelectric counting system to ensure high accuracy and stable performance. Its dual-channel alternating discharge design improves efficiency, while the vibration-assisted hopper ensures smooth feeding. Compact, reliable, and easy to integrate into bottling or packaging lines, it is ideal for food, health products, and cosmetics industries.
Parameter
- Model: ZS‑SL2
- Voltage: 110–220 V, 50–60 Hz
- Power: 30 W
- Capacity: 200 pcs/min
- Machine Dimensions: 400 × 370 × 580 mm
- Net Weight: 20 kg
- Scope of Application: Capsules / Tablets / Granules 5–12 mm
DRYING & STERILIZING
Dries and sterilizes bottles after washing, then unloads and inspects them to ensure they meet cleanliness and quality requirements before entering downstream processes.

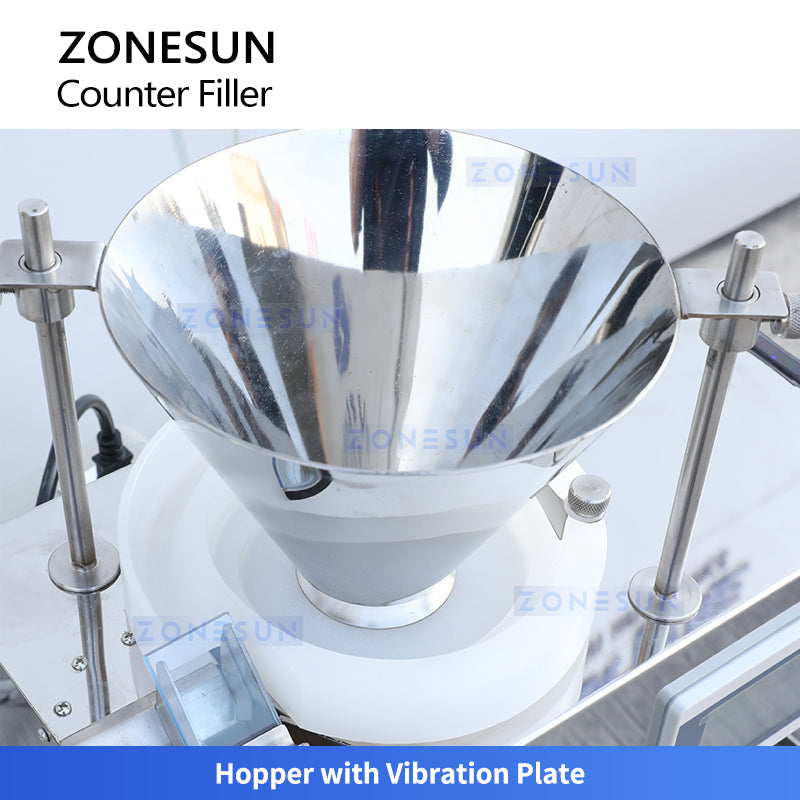

HOPPER
Provides stable feeding and uses the vibration plate to separate and deliver particles smoothly into the counting system for continuous, clog-free operation.

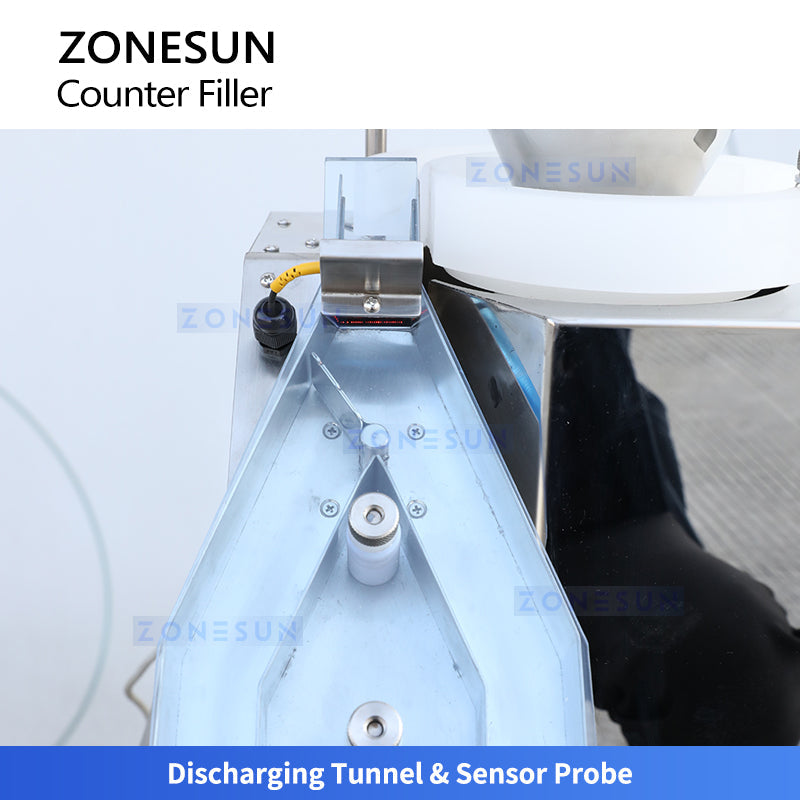

DISCHARGING TUNNEL
Guides particles through two alternating channels to the dual filling heads, while the sensor probe verifies each particle for accurate counting and smooth discharge.

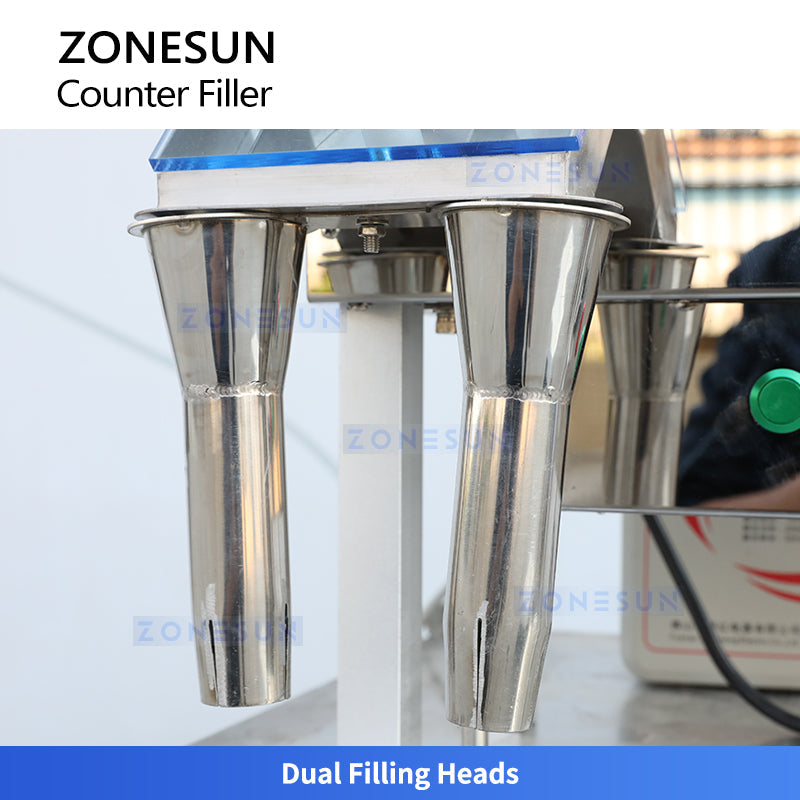

DUAL FILLING HEADS
Dispenses the counted particles from each channel into bottles with precise positioning and steady flow, ensuring efficient and consistent filling for both heads.

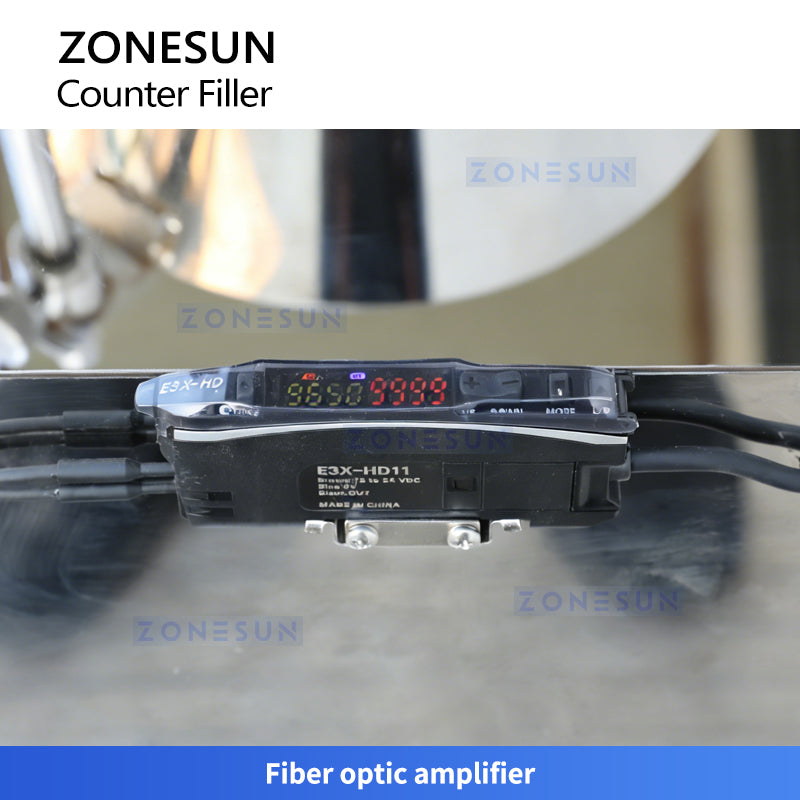

FIBER OPTIC AMPLIFIER
Boosts the sensor signal for fast, accurate particle detection and stable dual-channel counting.
