Description

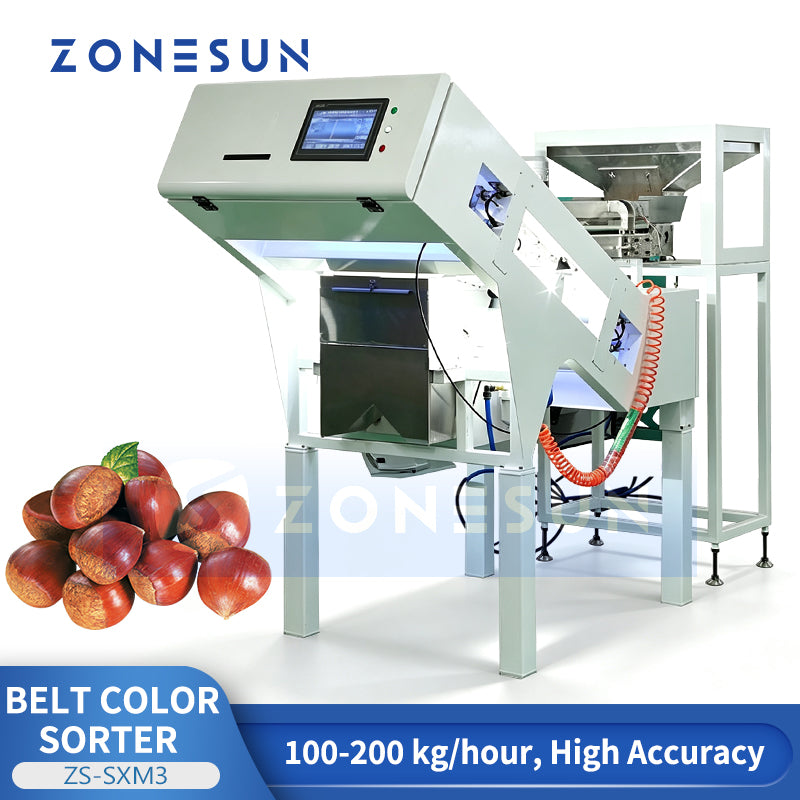

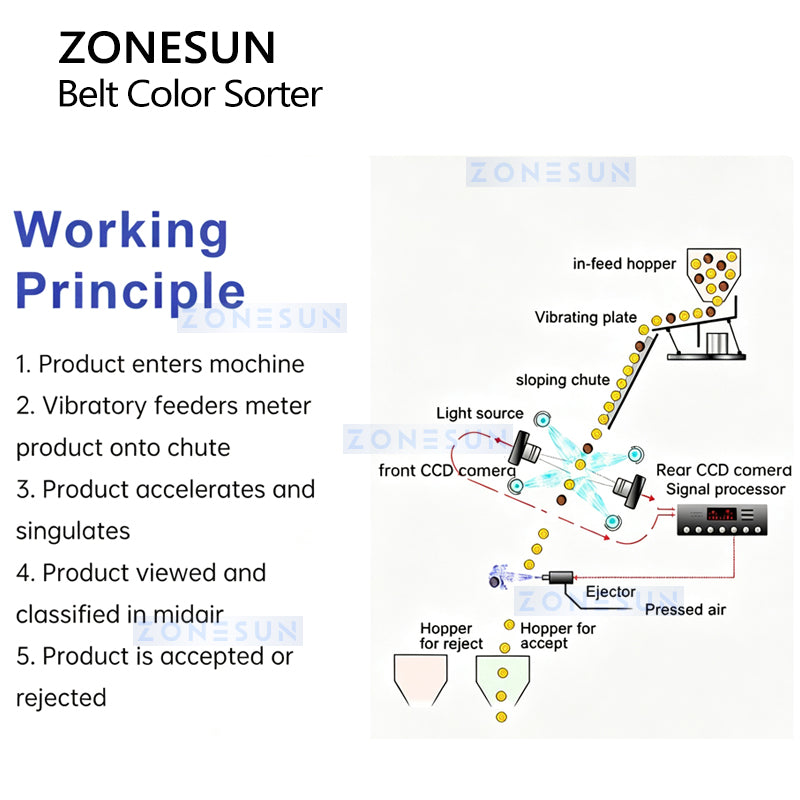

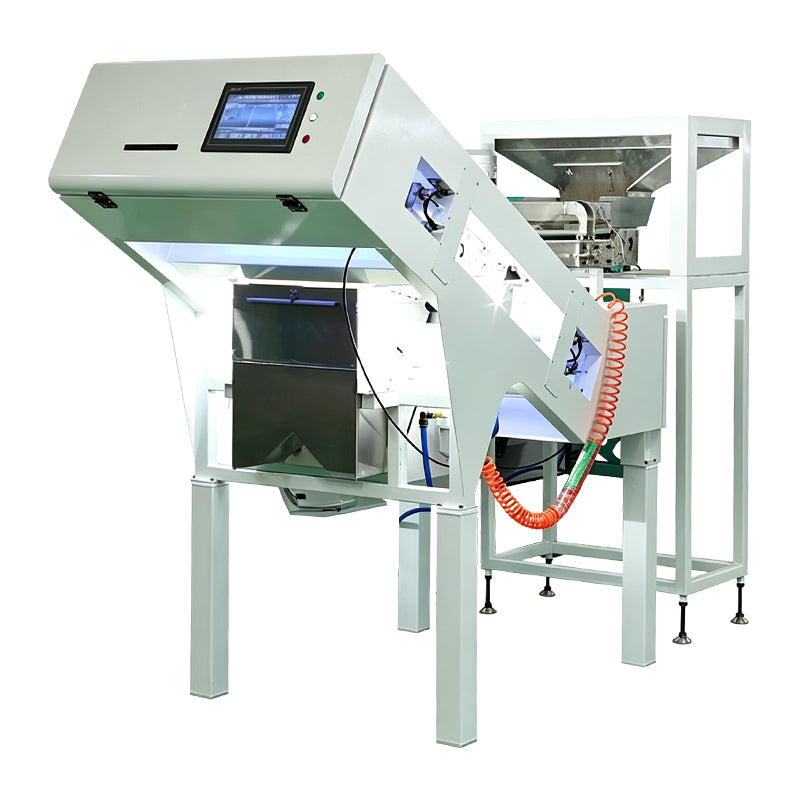

The ZONESUN ZS-SXM3 Mini Belt-Type CCD Optical Color Sorter is designed for optical sorting of compatible grains, seeds, coffee beans, nuts, dried agricultural products, plastics, minerals and other free-flowing materials. A high-resolution CCD imaging system and LED illumination inspect material on the conveyor, while the pneumatic rejection system removes detected off-color or visibly defective pieces according to the configured sorting criteria.
The belt-conveyor structure provides controlled material transport and can be useful for products that are fragile, irregularly shaped or less suitable for conventional gravity-chute handling. Actual sorting performance should be confirmed with the customer's material because color contrast, defect size, product overlap, feed uniformity and surface condition directly affect optical recognition and rejection.
Technical Specifications
| Model | ZS-SXM3 |
|---|---|
| Production Capacity | 100–200 kg/hour |
| Sorting Accuracy | ≥99.9% |
| Rejection Ratio | ≥30:1 |
| Voltage | 110V / 220V, 50/60Hz |
| Total Power | 0.7–1.1 kW |
| Air Pressure | 0.6–0.8 MPa |
| Air Consumption | 200–600 L/min |
| Machine Dimensions (L×W×H) | 1970 × 900 × 1180mm |
| Machine Weight | 195 kg |
| Packaging | Fumigation-free wooden case |
Performance note: The original parameter values above are retained unchanged. The listed capacity, sorting accuracy and rejection ratio are machine specifications and should not be interpreted as guaranteed results for every material. Actual performance depends on product type, defect contrast, defect size, feed rate, overlap, moisture, dust and sorting settings. Sample testing is recommended.

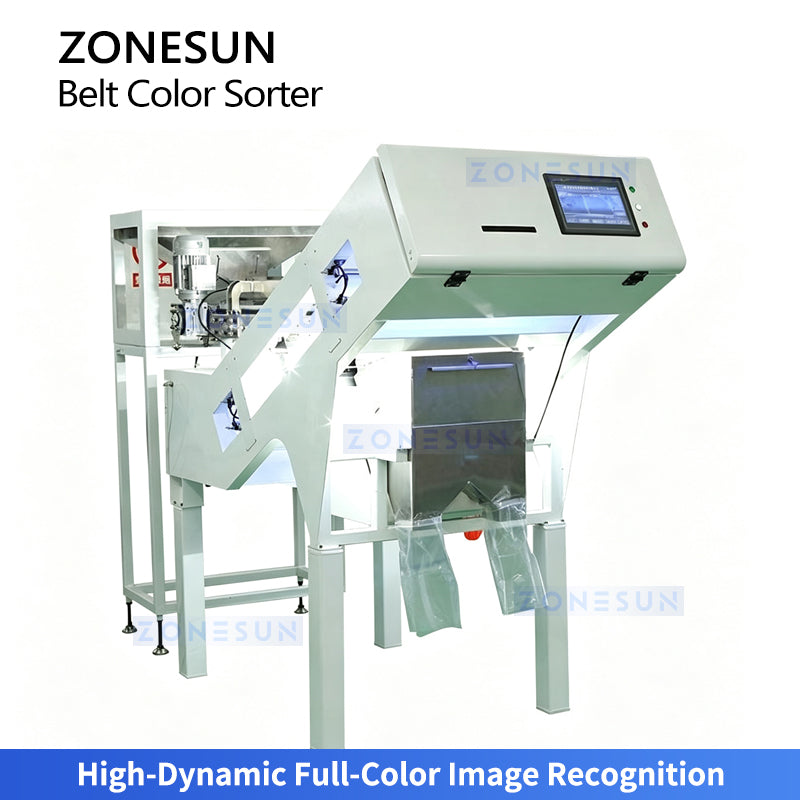

CCD Full-Color Image Recognition
The imaging system works with controlled illumination to identify visible color differences, spots, impurities and selected surface or shape defects when sufficient visual contrast is available.

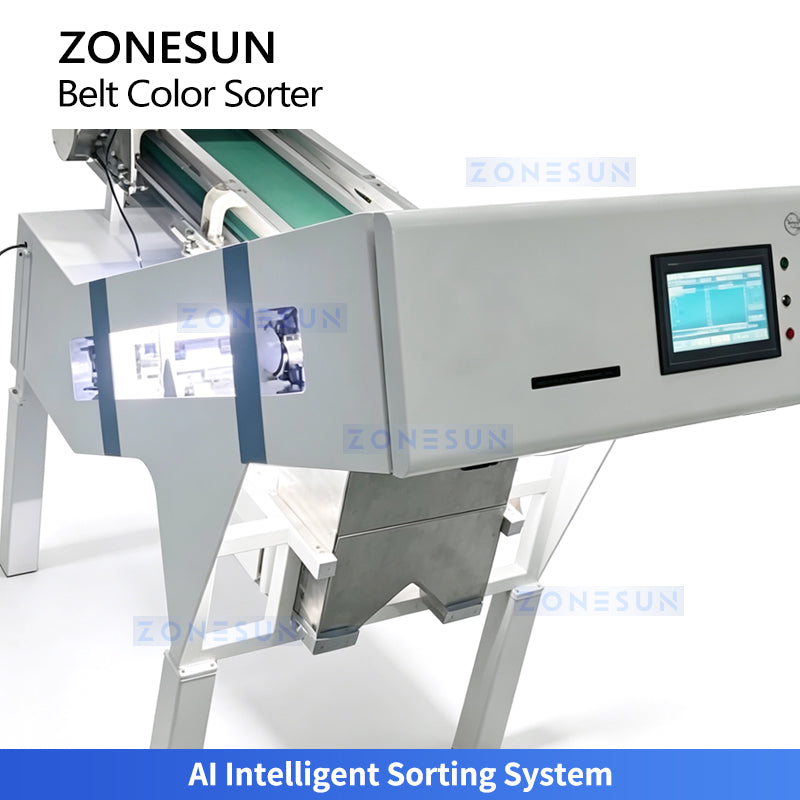

Intelligent Sorting Control
The image-processing system analyzes incoming material according to the configured recognition criteria. Operators can adjust sorting parameters through the control interface for different products and defect targets.

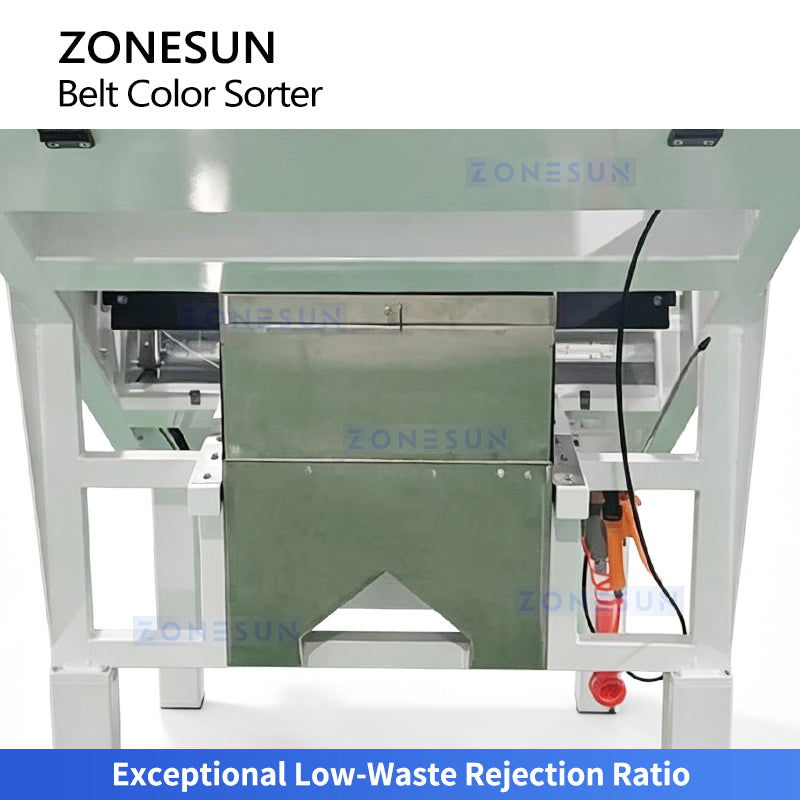

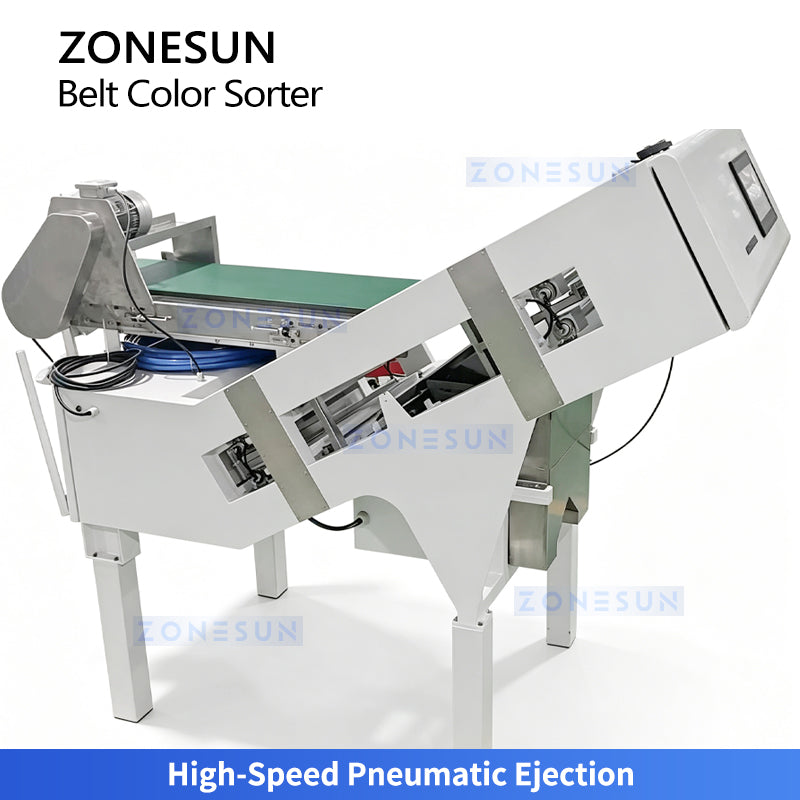

High-Speed Pneumatic Rejection
After an unwanted piece is detected, the pneumatic rejection system directs it toward the reject channel. Stable compressed air and correct timing are important for consistent ejection.
Compact Belt-Type Sorting Structure
The conveyor supports controlled product presentation through the inspection area. Material should be fed in a sufficiently separated layer so the camera can see the target surfaces and the ejector can act on individual unwanted pieces.
Best-Suited Materials
Potential applications include coffee beans, grains, seeds, nuts, dried vegetables, herbs, tea, plastic pieces and selected mineral or industrial materials where acceptable and defective pieces have visible differences that can be recognized optically.
Needs separate evaluation: highly dusty products, wet or strongly sticky materials, heavily overlapping pieces, transparent materials, products with very subtle internal defects, and defects that cannot be distinguished from the camera-visible surface.
Belt Color Sorter vs Chute Color Sorter
| Belt-Type Sorter | Provides supported conveyor transport and can be useful for fragile, irregular or relatively heavy materials that benefit from controlled presentation. |
|---|---|
| Chute-Type Sorter | Uses gravity-fed channels and is commonly selected for high-flow free-falling granular materials when the product is suitable for chute feeding. |
What Affects Sorting Performance?
- Color contrast between acceptable and rejected material
- Size and visibility of spots or defects
- Product overlap and feed-layer thickness
- Material moisture, dust and surface reflectivity
- Product size, shape and orientation
- Conveyor speed and feed rate
- Lighting, camera and recognition settings
- Compressed-air stability and ejector timing
Before Ordering
- Material name and clear photos
- Photos or samples of acceptable and rejected pieces
- Typical product dimensions
- Target defect or color difference to remove
- Required kg/hour
- Approximate defect percentage in the incoming material
- Whether the material is dusty, wet, fragile or sticky
- Required voltage
- Available compressed-air supply
- Whether sample sorting tests are required
Frequently Asked Questions
Can the ZS-SXM3 sort coffee beans?
Yes, coffee beans are a typical application when the unwanted beans or impurities have visible color or surface differences that the optical system can recognize.
Does ≥99.9% accuracy apply to every material?
No. It is the original machine specification. Actual sorting results depend on the material and how clearly the target defect can be distinguished.
Can it detect internal defects?
This is an optical color-sorting system, so it mainly evaluates camera-visible characteristics. Internal defects that do not create a visible difference generally require another inspection method.
Why choose a belt-type color sorter?
The belt provides supported transport and controlled presentation, which can be useful for fragile, irregular or relatively heavy products.
Does it require compressed air?
Yes. The pneumatic rejection system requires the specified air pressure and sufficient air capacity.
