DESCRIPTION

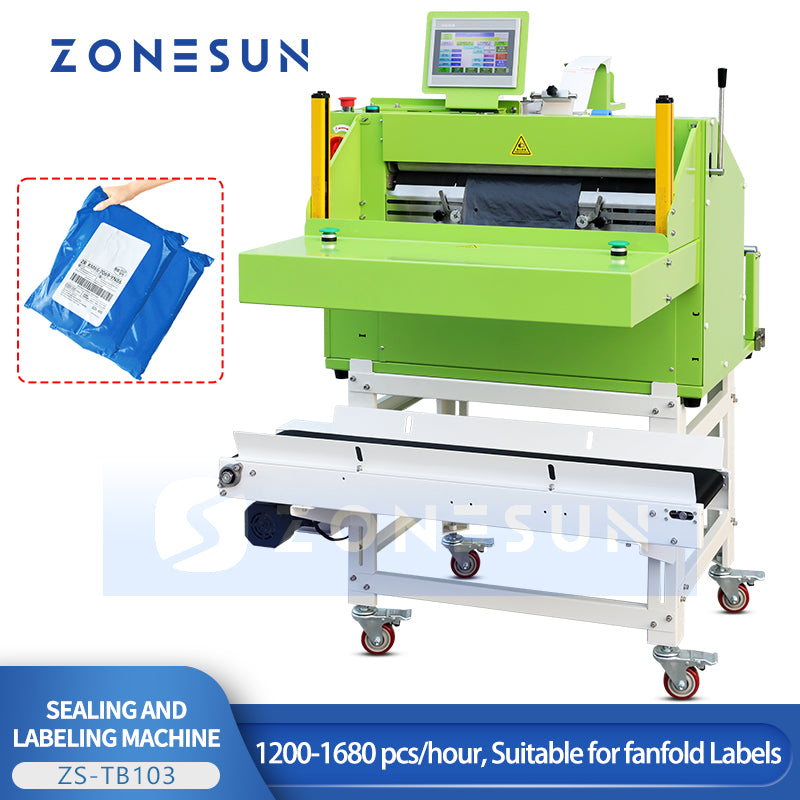

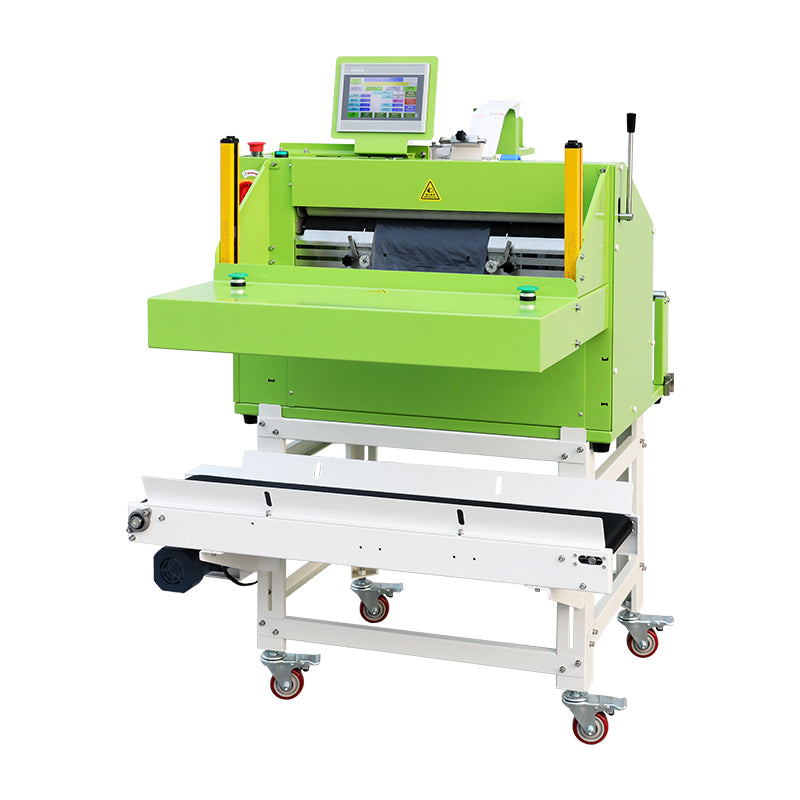

Introducing our revolutionary automatic bag sealing and labeling machine, the perfect solution for your packaging needs. It combines the power of sealing and labeling, allowing you to effortlessly apply labels after the bag is sealed. No more separate labeling processes or additional steps. Our machine streamlines your workflow, saving you time and effort while ensuring accurate and professional labeling.
Whatever your packaging needs are, you can rely on ZONESUN.
PARAMETER
Model： ZS-TB103
Power Supply： 220 V / 110 V, 50–60 Hz, 600 W
Working Speed： About 20–28 pcs/min (depending on bag and label size)
Bag Thickness： 0.03–0.08 mm
Labeling Accuracy： ±3 mm (excluding product and label error)
Label Feeding Speed： 40 m/min
Bag Size (Labeling Mode)： 15 × 20 cm – 50 × 90 cm
Bag Size (Sealing Only)： 10 × 15 cm – 50 × 90 cm
Machine Size： About 1050 × 850 × 850 mm
Package Size： About 1160 × 1060 × 1540 mm
Package Weight： About 189 kg

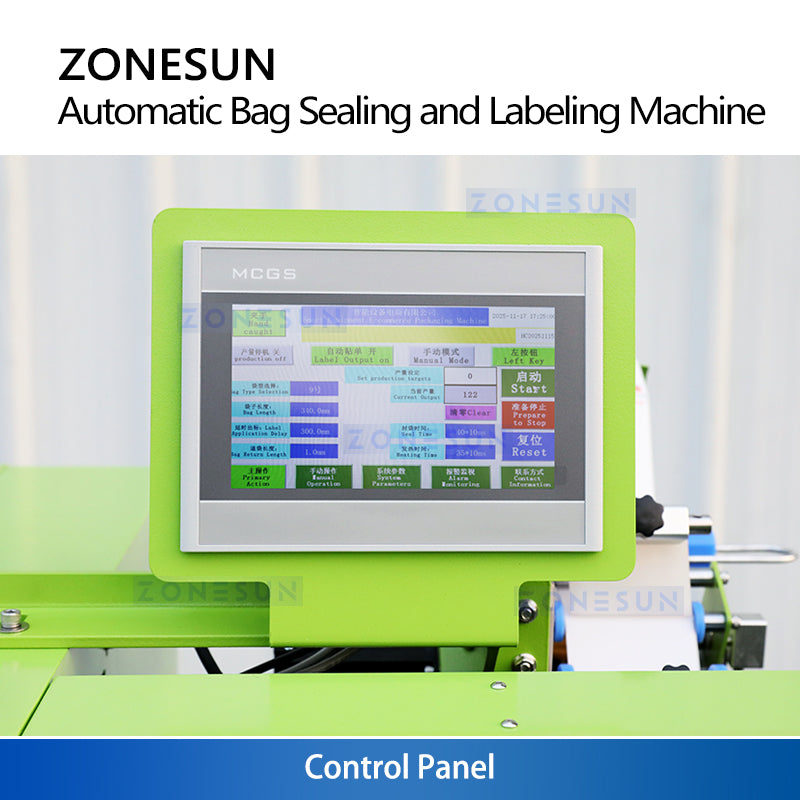

PLC Touchscreen Control
The PLC touchscreen provides real-time parameter monitoring and a multilingual interface for convenient operation.

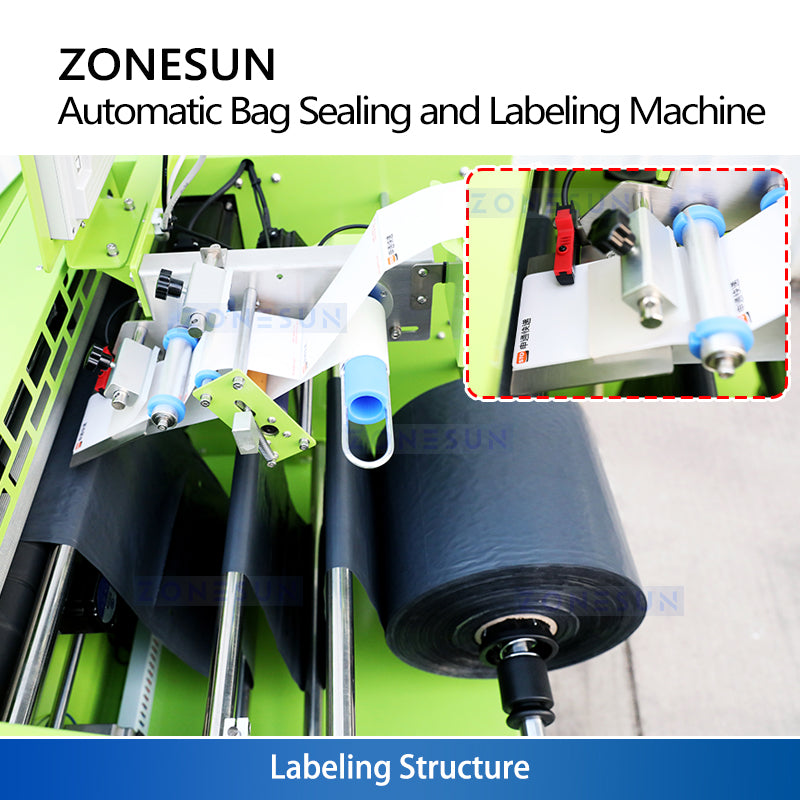

Automatic Label Application
The labeling structure applies fanfold labels to bags with accurate positioning, while the electric-eye sensor helps maintain consistent label placement.

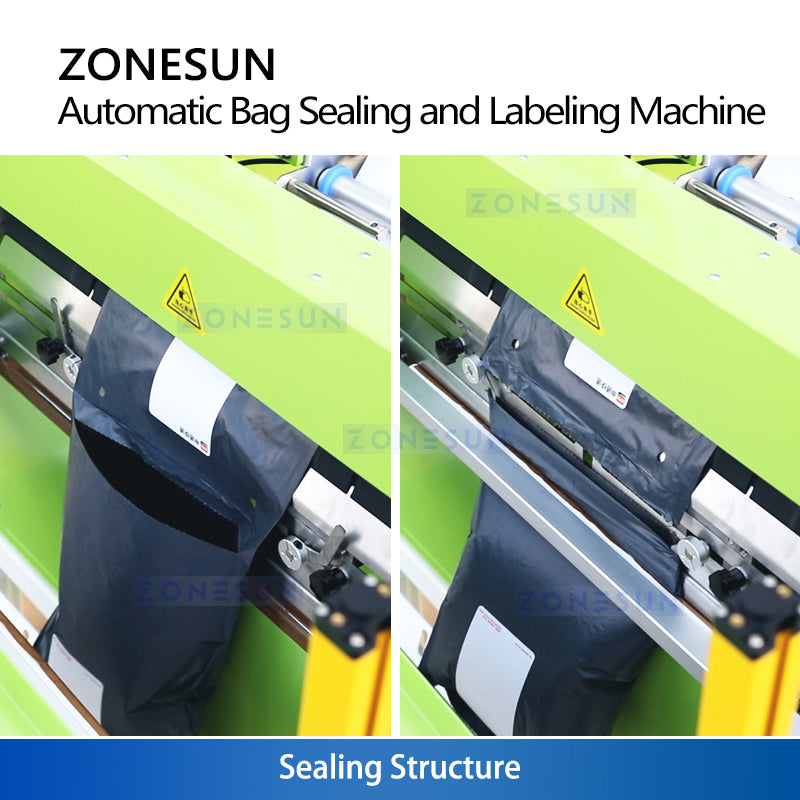

Bag Opening and Heat Sealing
The sealing structure uses air blowing to open each bag for loading, then applies adjustable-temperature heat sealing to close it securely.

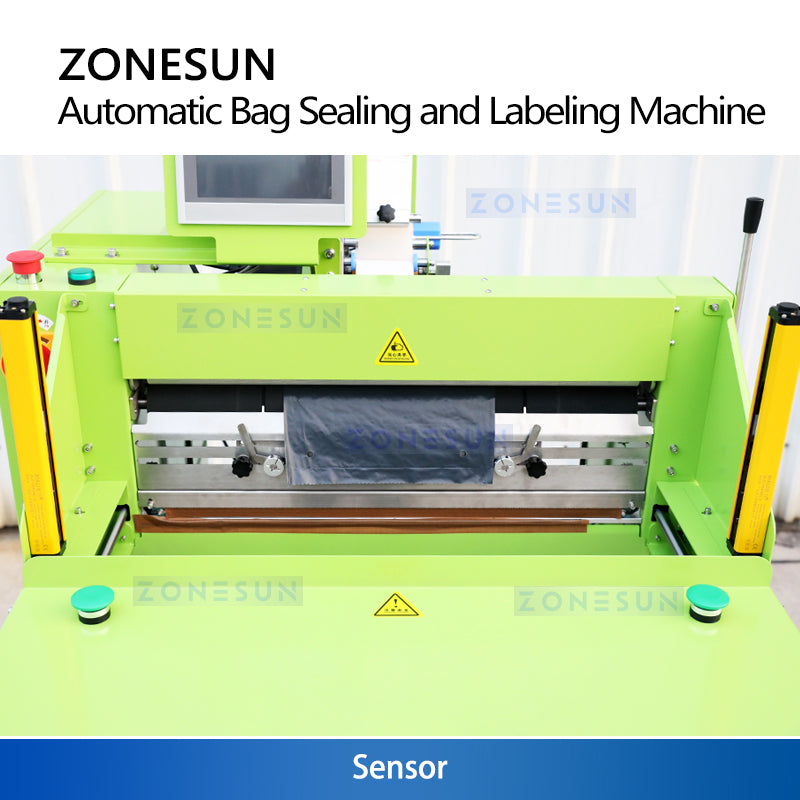

Automatic Product Detection
The sensor detects when a product has been placed in the bag and triggers the sealing cycle for stable operation.

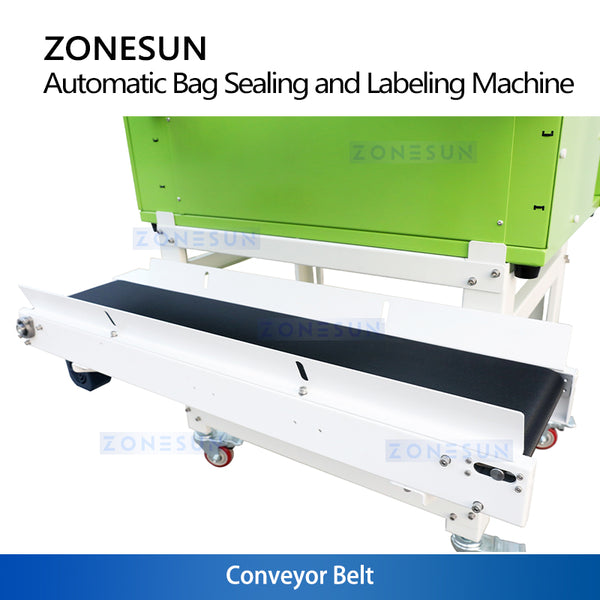

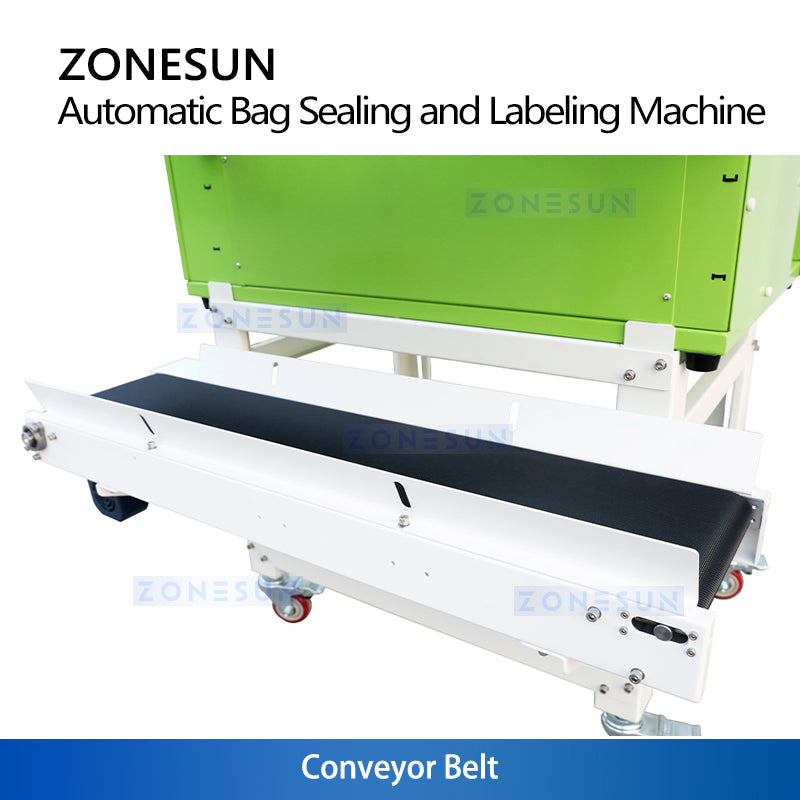

Smooth Conveyor Transfer
The conveyor transfers sealed bags to the next process for smooth connection with downstream packaging.
