Parameter

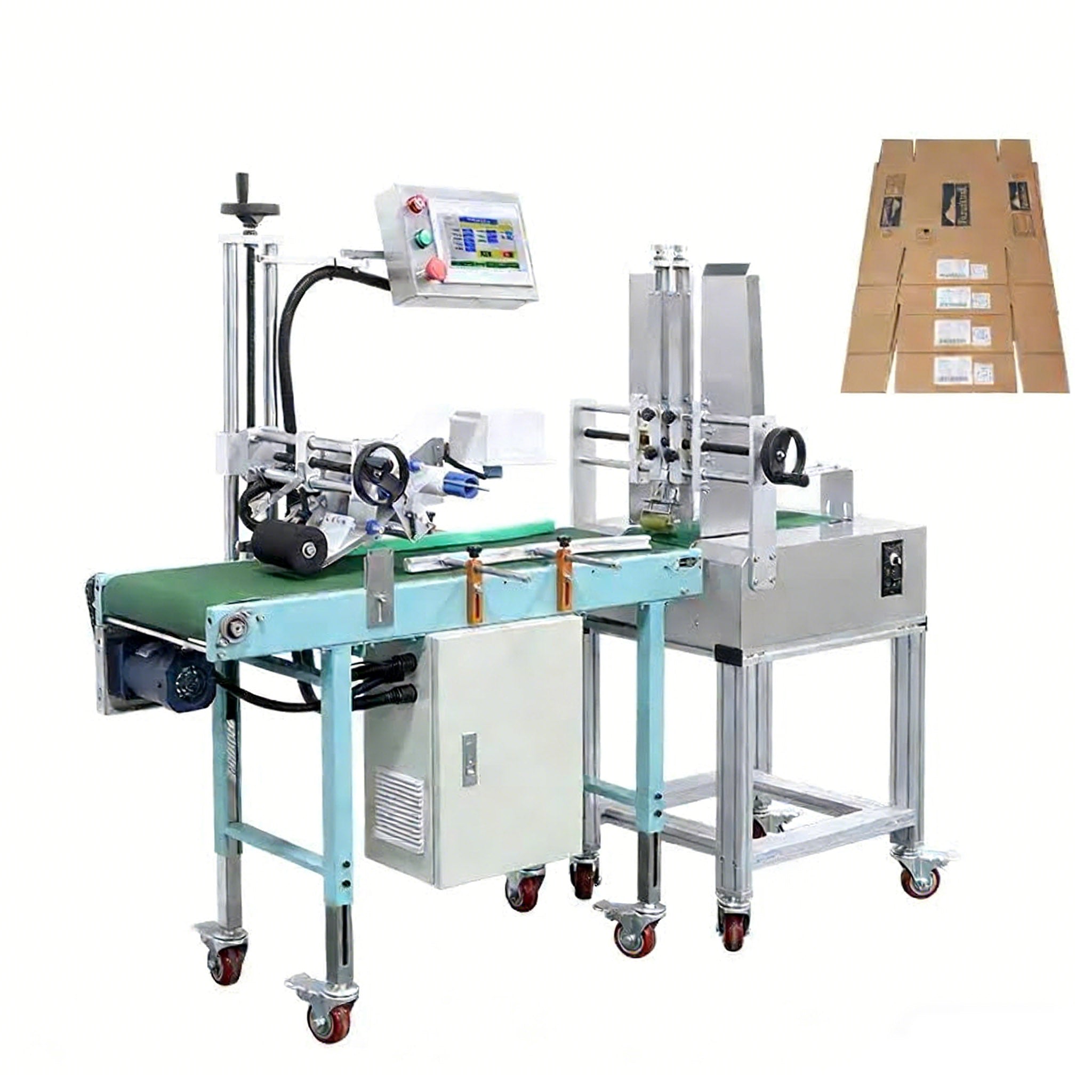

- Machine Model:ZS-TB160P
- Voltage:220V/110V 50-60Hz
- Power:About 300W
- Labeling Speed:About 50-100pcs/min(depending on product size)
- Labeling Accuracy:±3mm
- Height of Worktable:600-850mm
- Cardboard Size:160-420mm(L)*160-420mm(W)*2-20mm(Thickness)
- Conveying Speed:31m/min
- Machine Size:About 1530*500*1220mm(L*W*H)
- Machine Weight:About 120kg





Touchscreen Control
The touchscreen panel makes labeling settings easy to view and adjust.
With PLC control panel, it is easier to set and adjust working parameters. The language of panel can be customized as your need.

Automatic Card Feeding
The paging mechanism separates flat cartons and feeds them into the labeling area.

Adjustable Labeling Assembly
The labeling structure can be adjusted to suit different carton sizes and label positions.

Photoelectric Detection
The sensor detects passing products and helps control accurate label application.

Electrical Control System
Organized electrical components support stable machine operation.
