Description

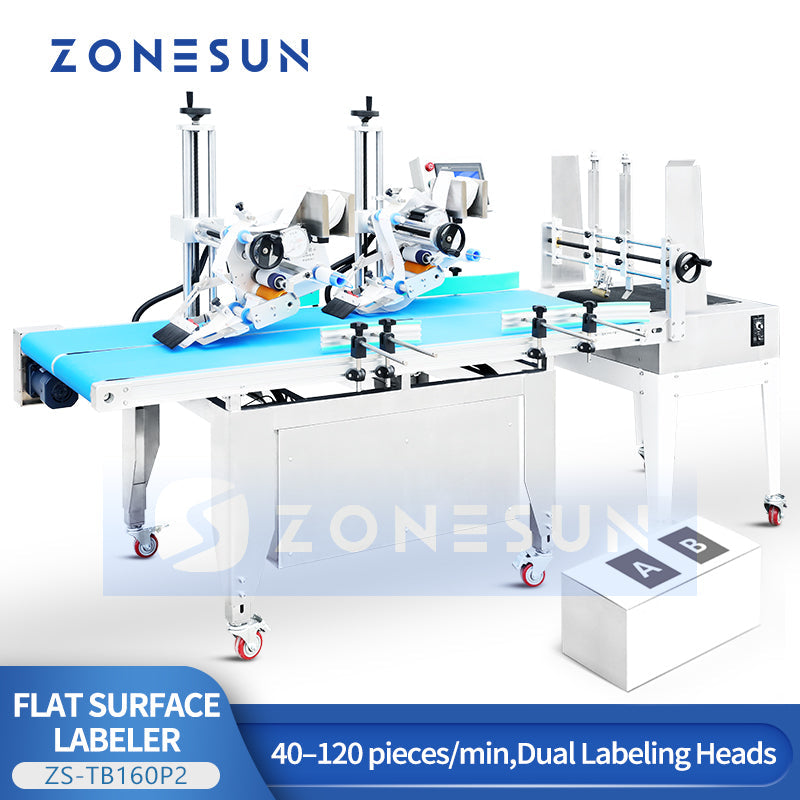

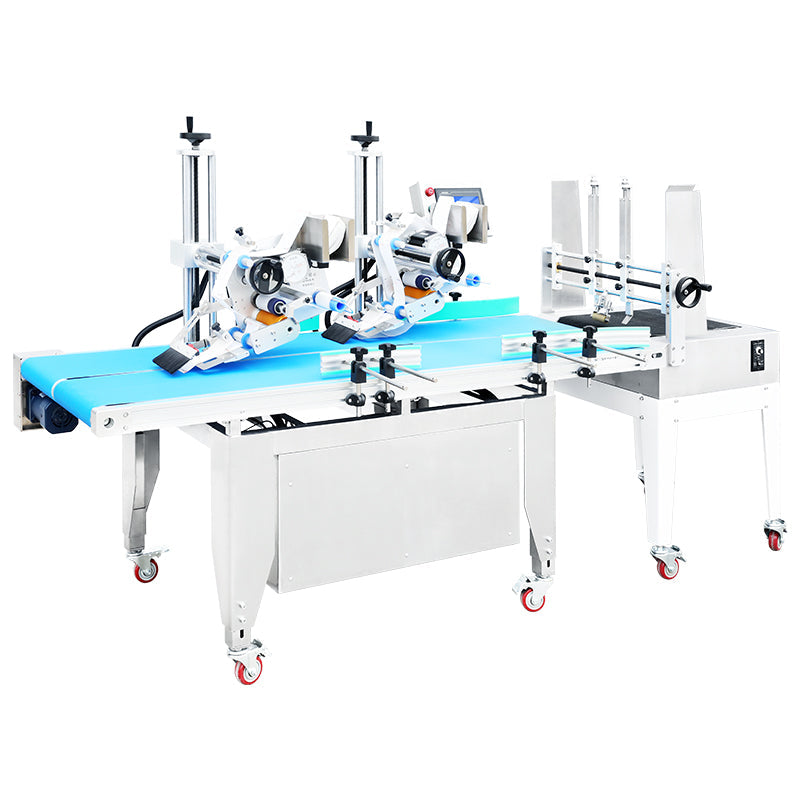

The ZONESUN ZS-TB160P2 is an automatic flat surface labeling machine designed for high-speed and precise labeling of cardboard sheets and similar flat products. Operating at 40–120 pieces per minute, it features dual labeling heads, a paging feeder, and PLC touchscreen control for efficient and reliable performance. With adjustable conveyor speed, stable transmission, and accurate sensor-based positioning, it ensures smooth feeding, precise label application, and consistent output. Compact yet powerful, it is ideal for medium to large-scale packaging lines requiring fast and accurate labeling.
Parameter
- Model: ZS-TB160P2
- Labeling Mechanisms: Dual mechanisms for folded labels
- Voltage: 110V, 60Hz
- Power Consumption: About 500 W
- Labeling Speed: Approx. 50–100 pcs/min (depends on product size)
- Labeling Accuracy: ±3 mm
- Applicable Label Sizes: 80 × 55 mm & 76 × 126 mm
- Worktable Height: Adjustable from 600 to 850 mm
- Cardboard Size Range:
- Length: 160–420 mm,Width: 160–600 mm,Thickness: 5–10 mm
- Conveying Speed: 31 m/min
- Machine Dimensions (L×W×H): About 1800 × 850 × 1400 mm
- Machine Weight: About 168 kg

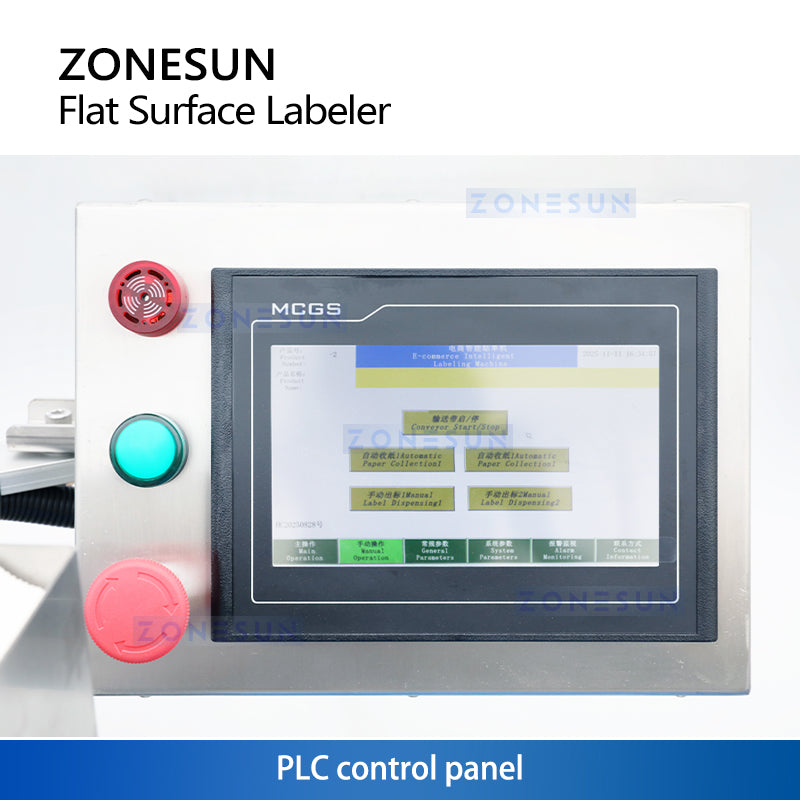

PLC CONTROL PANEL
Provides centralized labeling control with easy parameter setup, real-time monitoring, and customizable interface.

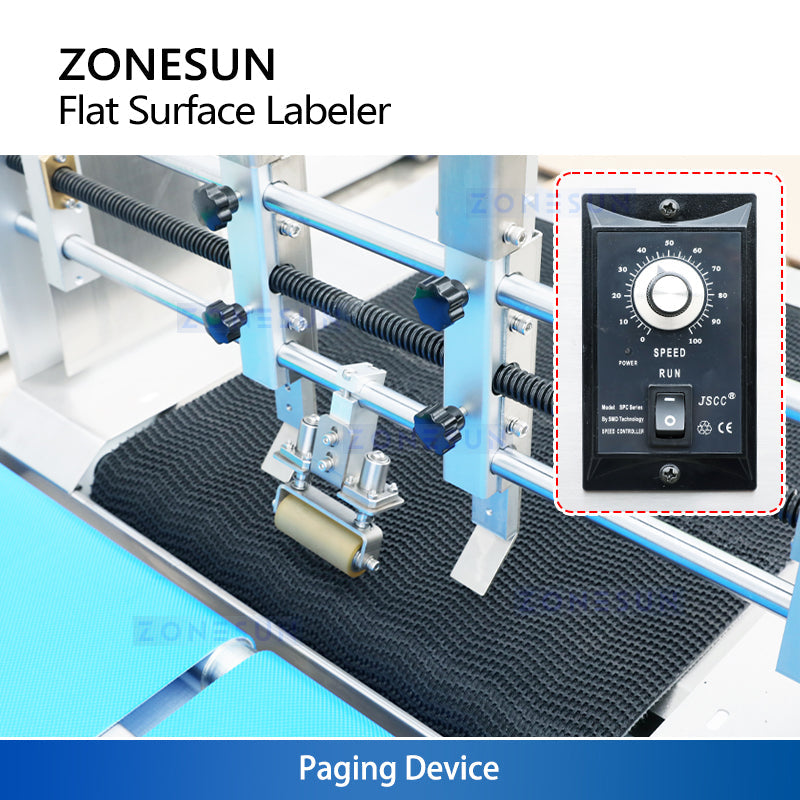

PAGING DEVICE
Separates stacked cardboard sheets and feeds them one by one for precise labeling, with adjustable roller position and paging speed

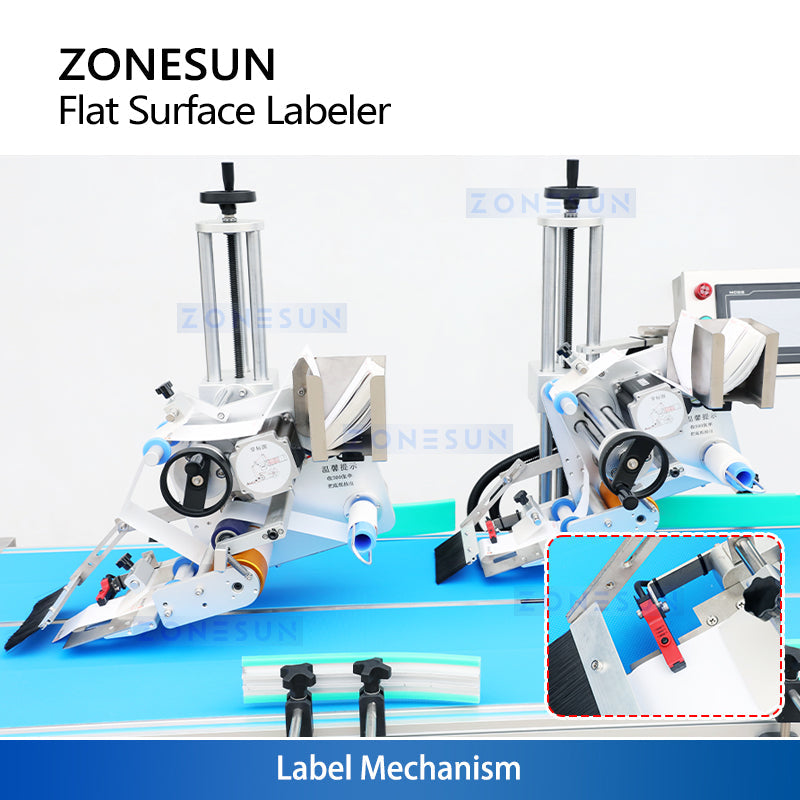

LABEL MECHANISM
Dual labeling heads allow simultaneous or sequential application, enhancing efficiency with sensor-based positioning.

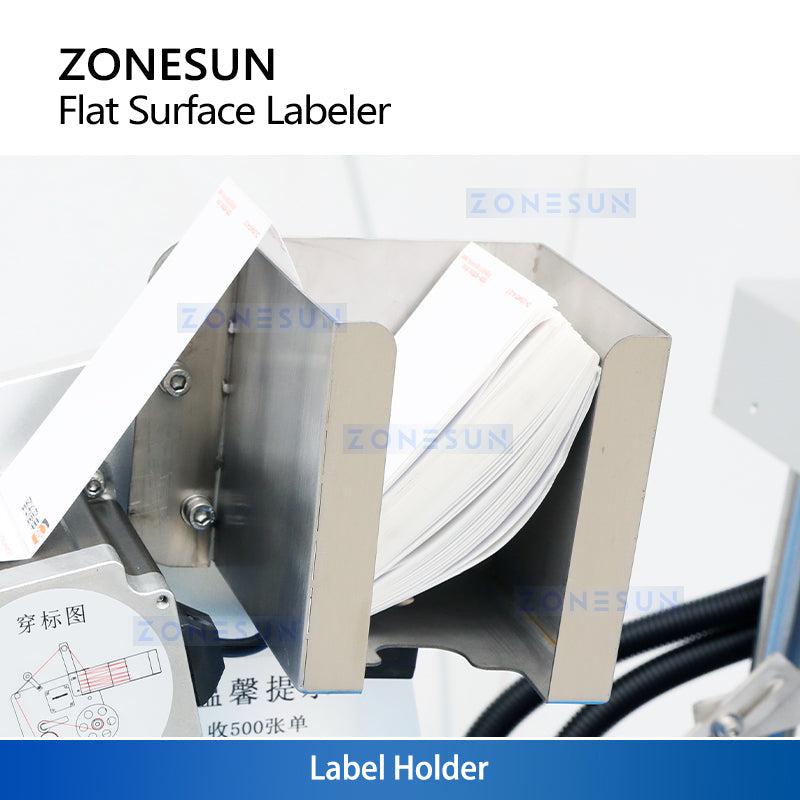

LABEL HOLDER
Securely stores label and ensures smooth feeding into the labeling mechanism for continuous operation.

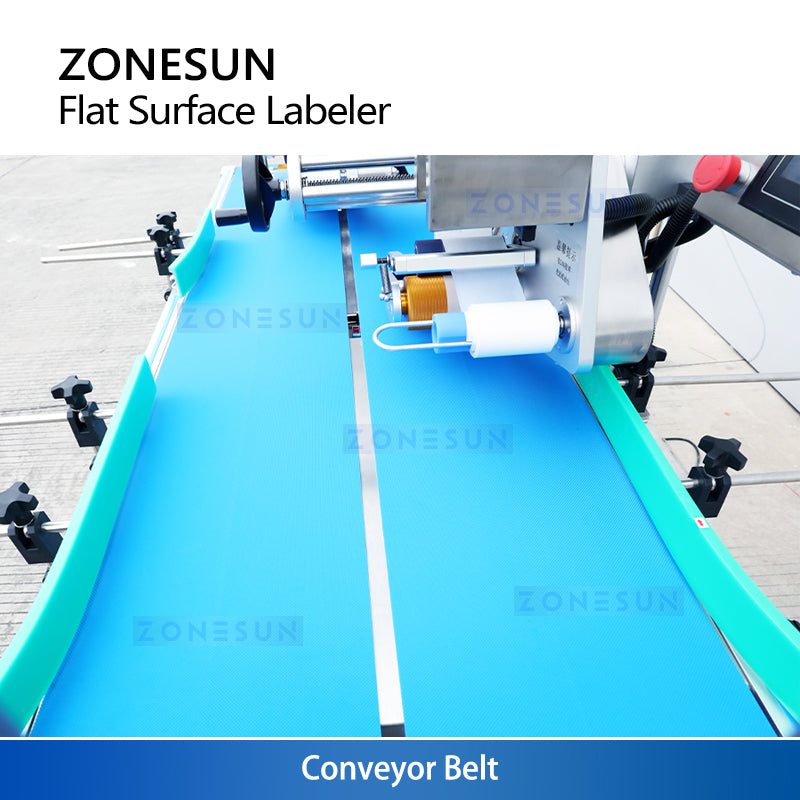

CONVEYOR BELT
Transports cardboard sheets smoothly into the labeling position, ensuring stable movement and precise labeling.
