Description

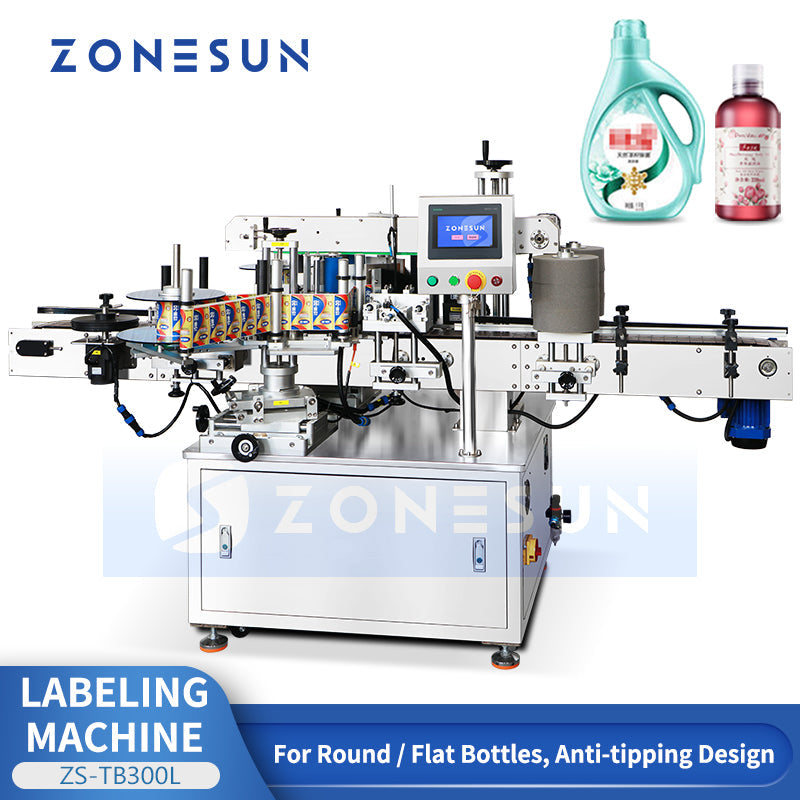

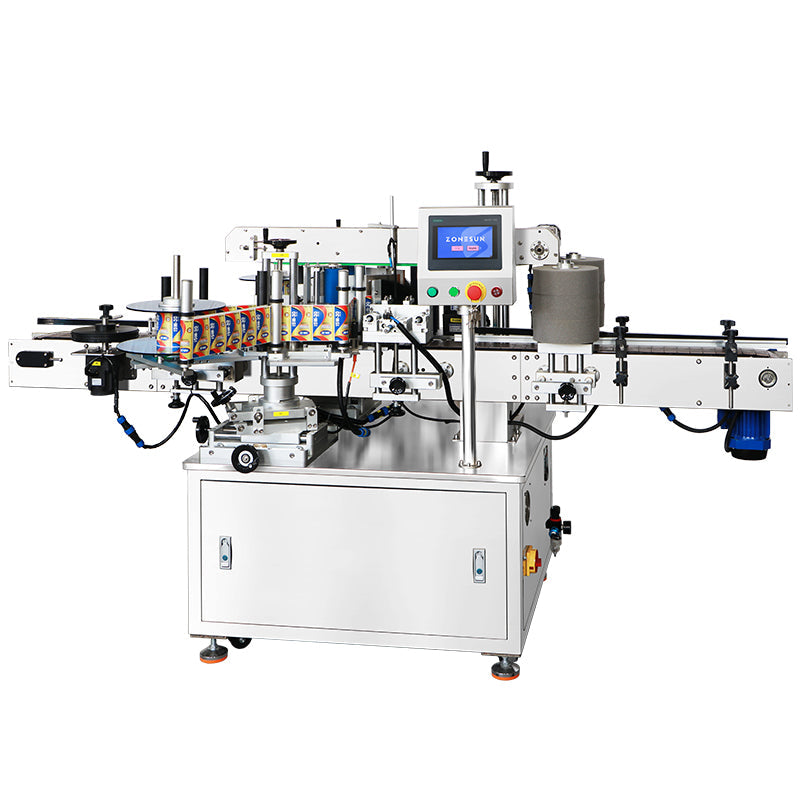

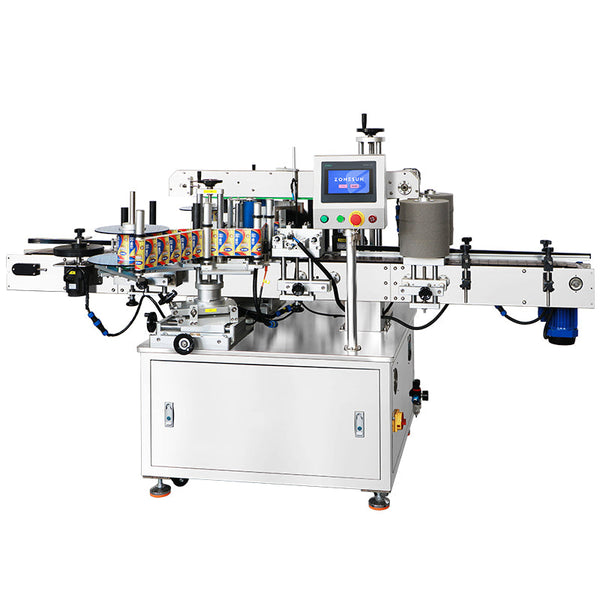

The ZONESUN ZS-TB300L is an automatic labeling machine designed for both round and flat bottles. Featuring an anti-tipping top pressure system and adjustable hand wheel, it ensures precise label placement and stable bottle transport. With a working speed of 30–100 bottles/min and labeling accuracy of ±2 mm, it is ideal for daily chemical, food, and beverage industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZS-TB300L |
| Voltage | 110V, 60Hz / 220V, 50Hz |
| Power | 2 kW |
| Working Speed | 30–100 bottles/min |
| Labeling Accuracy | ±2 mm |
| Suitable Labeling Size | ≤150 mm (W, customizable) |
| Roll Inside Diameter | Φ75 mm |
| Roll Outside Diameter | Φ320 mm |
| Suitable Bottle Size | Diameter ≤100 mm, Height ≤350 mm |
| Conveyor Size (L×W) | Approx. 2500 × 100 mm |
| Machine Dimensions (L×W×H) | Approx. 2000 × 1300 × 1350 mm |

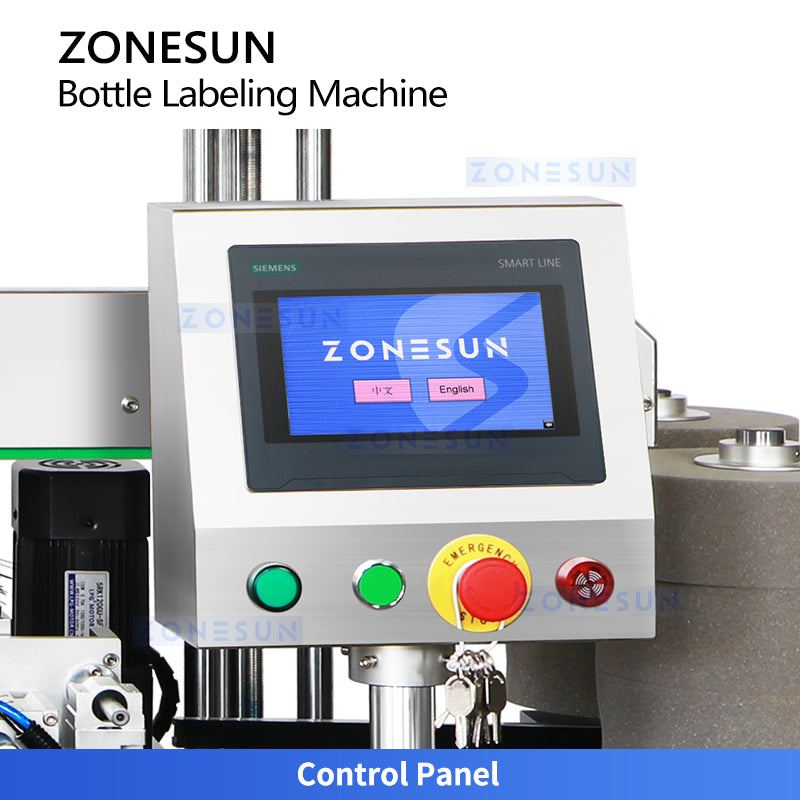

CONTROL PANEL
The intuitive control panel makes machine operation simple and efficient, allowing easy adjustment of labeling parameters.

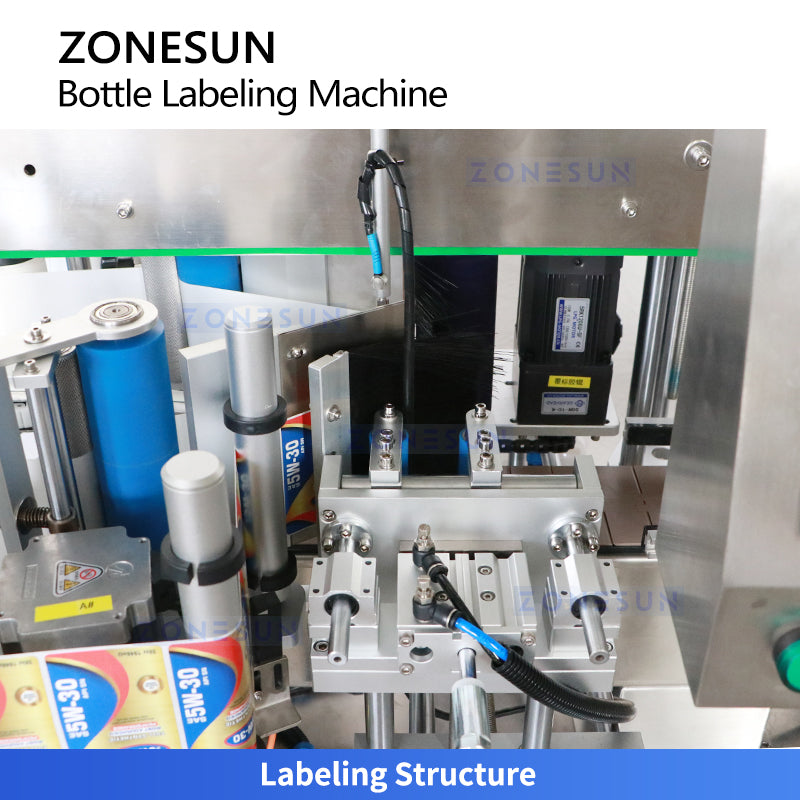

LABELING STRUCTURE
Equipped with a precise label structure, it ensures smooth label dispensing and accurate placement on round and flat bottles.

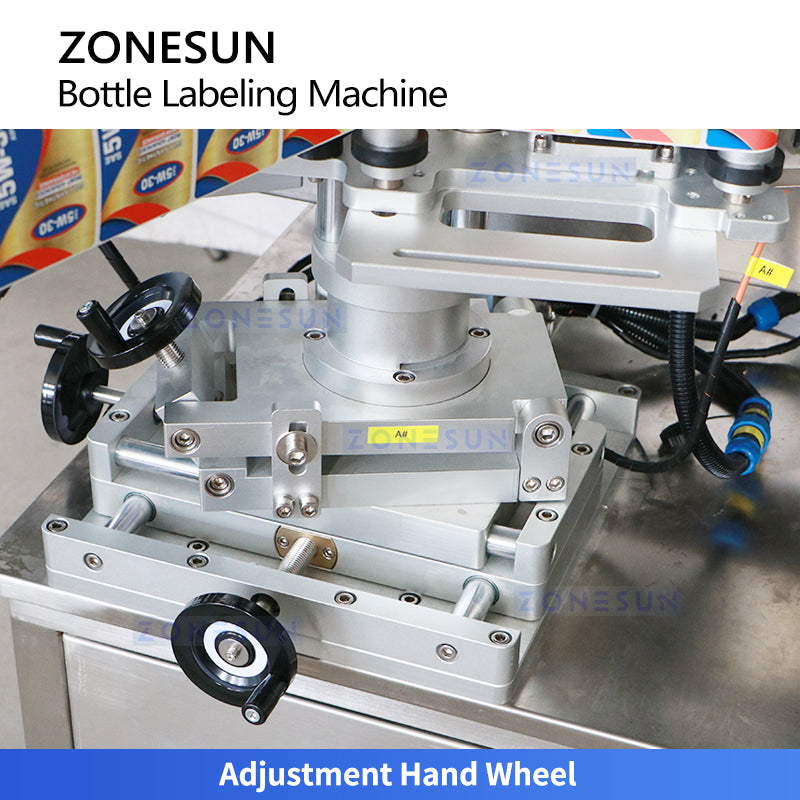

ADJUSTMENT HAND WHEEL
The hand wheel allows fine-tuning of label dispensing positions, ensuring consistent accuracy.

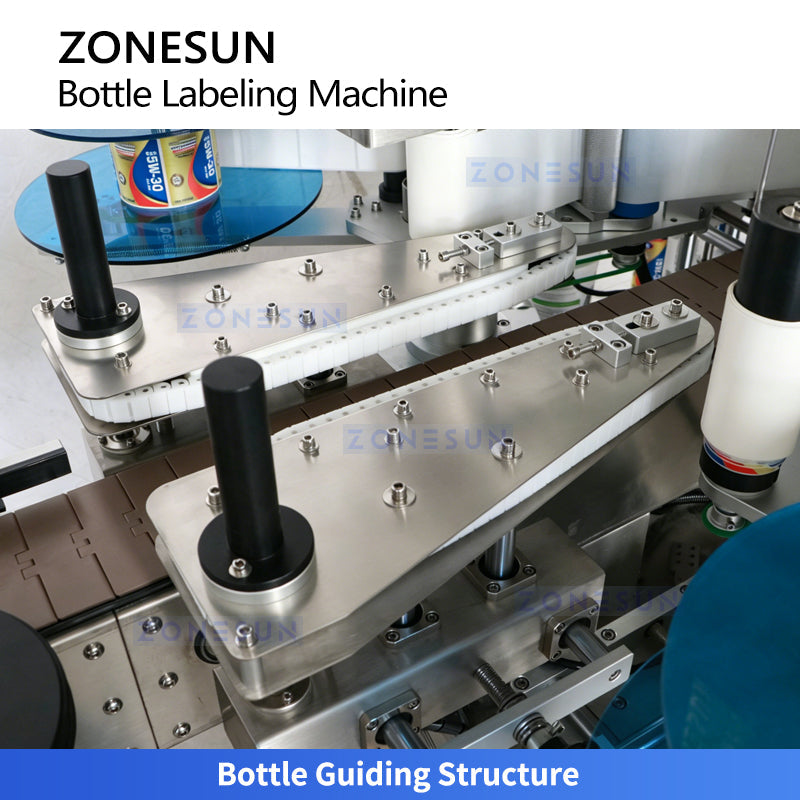

BOTTLE GUIDING
This is adjustable according to bottle diameter, it can clamp and transport bottles, ensure smooth conveying.

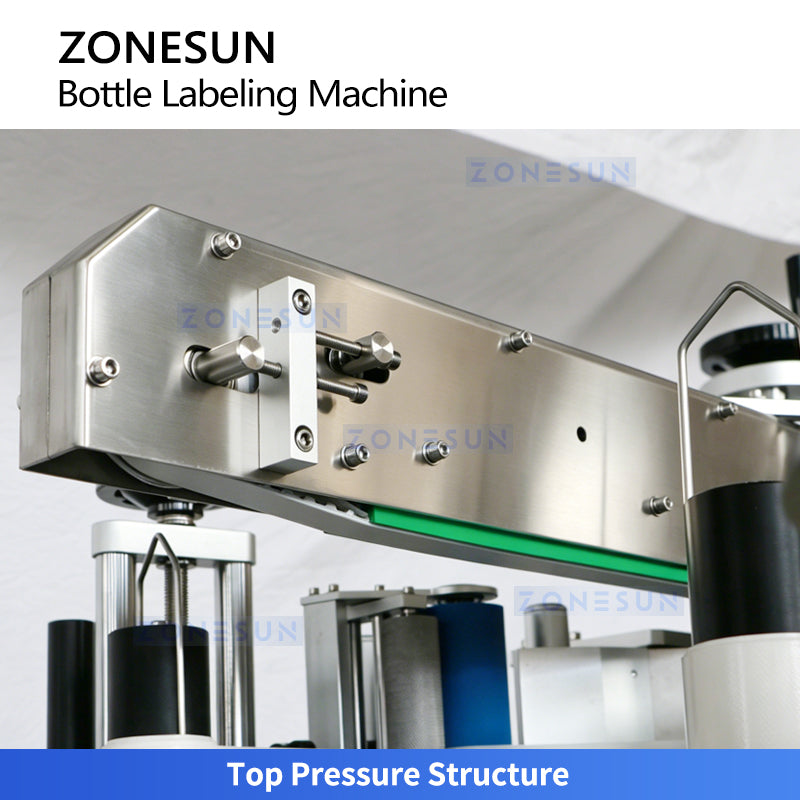

TOP PRESSURE
Applies downward pressure to stabilize bottles during labeling and conveying, effectively preventing them from tipping or falling.
CHAIN PLATE CONVEYOR
The durable conveyor system ensures stable bottle transport, length and width of conveyor are adjustable.
Key Features
- High Labeling Accuracy — ±2 mm precision for consistent, professional label placement
- Fast Production Speed — 30–100 bottles/min, suitable for small to large batch production
- Round & Flat Bottle Compatible — Handles both bottle types on a single machine
- Anti-Tipping Top Pressure System — Stabilizes bottles during transport for consistent results
- Adjustable Hand Wheel — Quick size changeover without tools
- Wide Industry Application — Food, beverage, daily chemical, cosmetic, and pharmaceutical packaging lines
Suitable Products & Applications
Food & Beverage
Juice, sauce, water, condiment bottles
Daily Chemical
Detergent, cleaning liquid, disinfectant
Cosmetics
Lotion, serum, toner, cream bottles
Pharmaceuticals
Medicine bottles, health supplement jars
Round Bottles
Full-wrap or single-side labeling
Flat Bottles
Double-side label application
