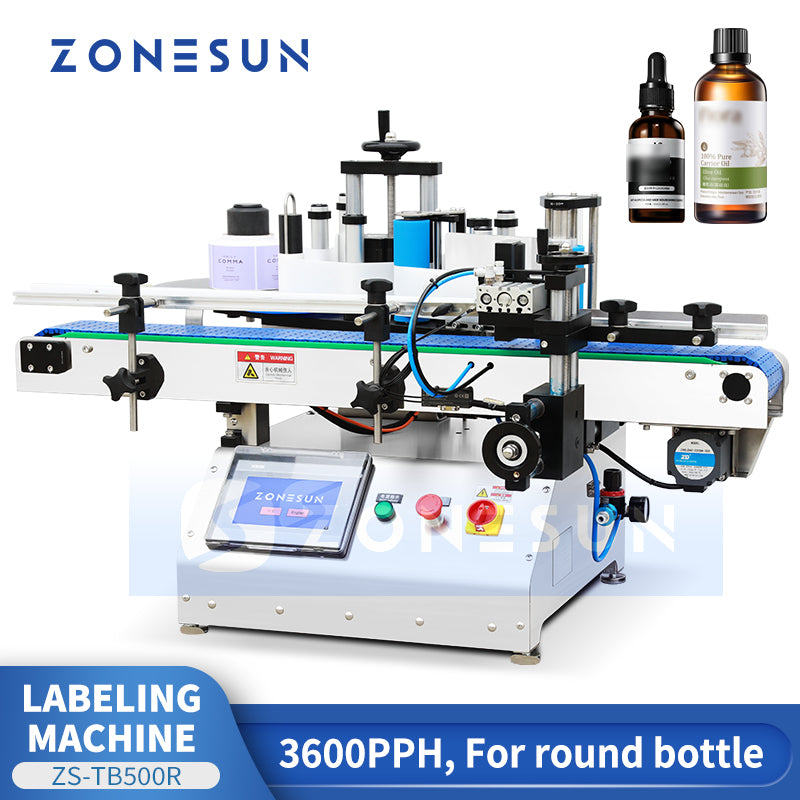

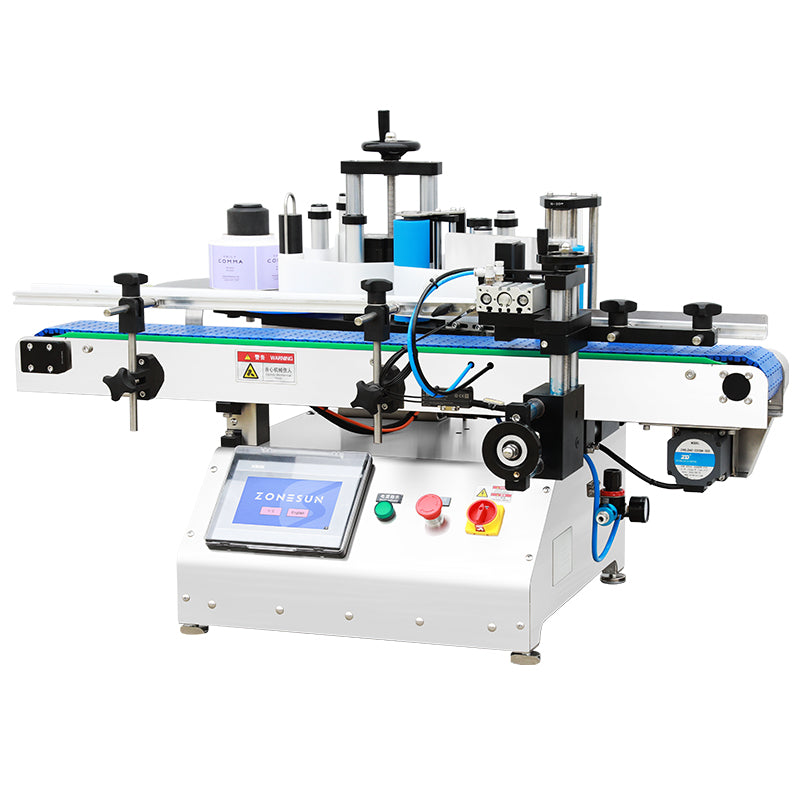

The ZONESUN ZS-TB500R is a compact desktop labeling machine engineered for round bottle applications in cosmetics, pharmaceuticals, and food packaging. Featuring a roller-based label applicator and PLC-controlled synchronous tracking, it ensures smooth, accurate labeling at speeds of 25–60 bottles per minute. The label dispensing speed is precisely matched to bottle rotation, minimizing misalignment. Compatible with bottles ranging from Φ20mm to Φ110mm in diameter, it supports label rolls up to 300mm in length and 130mm in width. Ideal for small production lines, this machine offers high precision and easy operation in a space-saving design.
Parameter
- Model: ZS-TB500R
- Voltage: 220V±2% 50/60Hz (single phase)
- Power: 500W
- Labeling speed: 25–60 Pcs/Min
- Round bottle diameter: Φ20mm–Φ110mm
- Label length: 300mm
- Label width: 130mm
- Inner diameter: 76mm
- Label roll outer diameter: 300mm
- Labeling accuracy: ±1.0mm (up/down), ±1.0mm (left/right)
- Machine size: 1150×435×800mm
- Net weight: 100kg

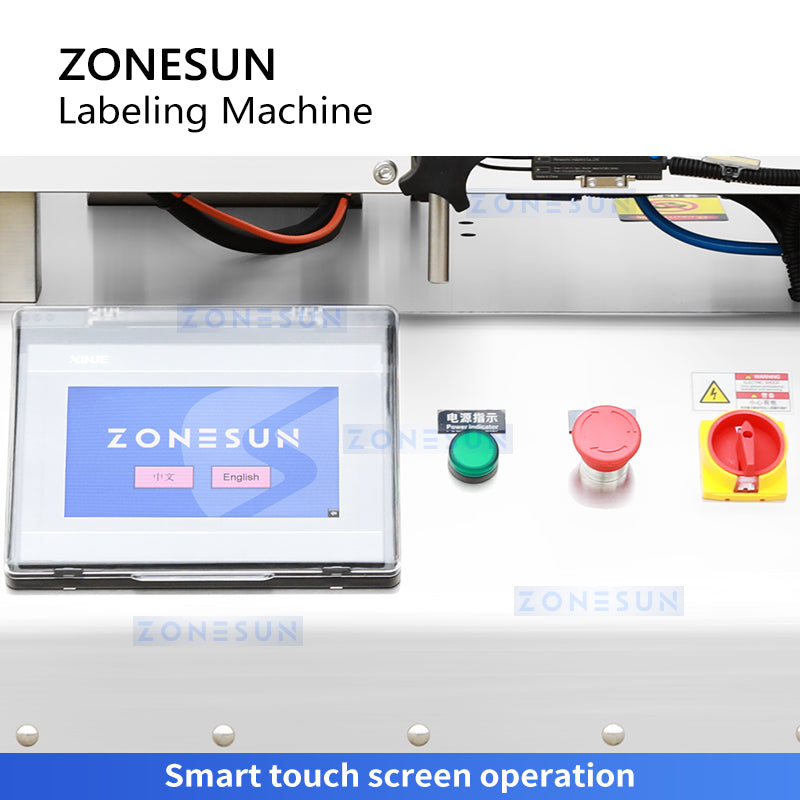

Touchscreen
Provides machine control and convenient operating settings.

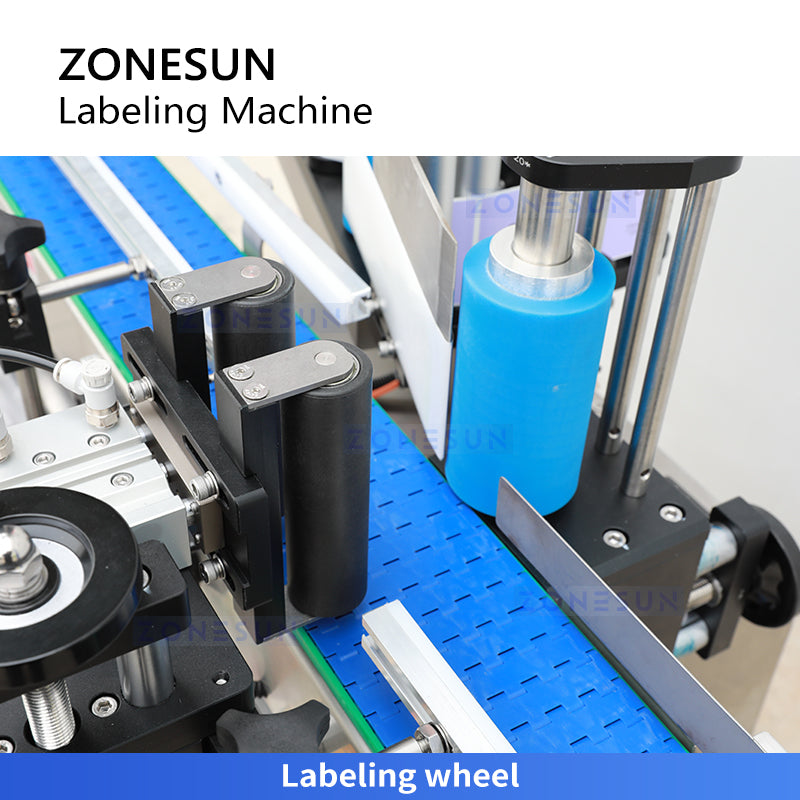

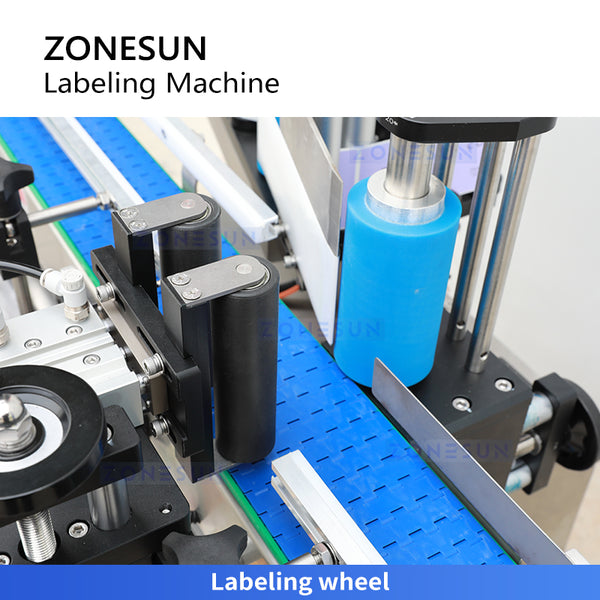

Labeling Wheel
Rotates bottles and applies labels around the container surface.

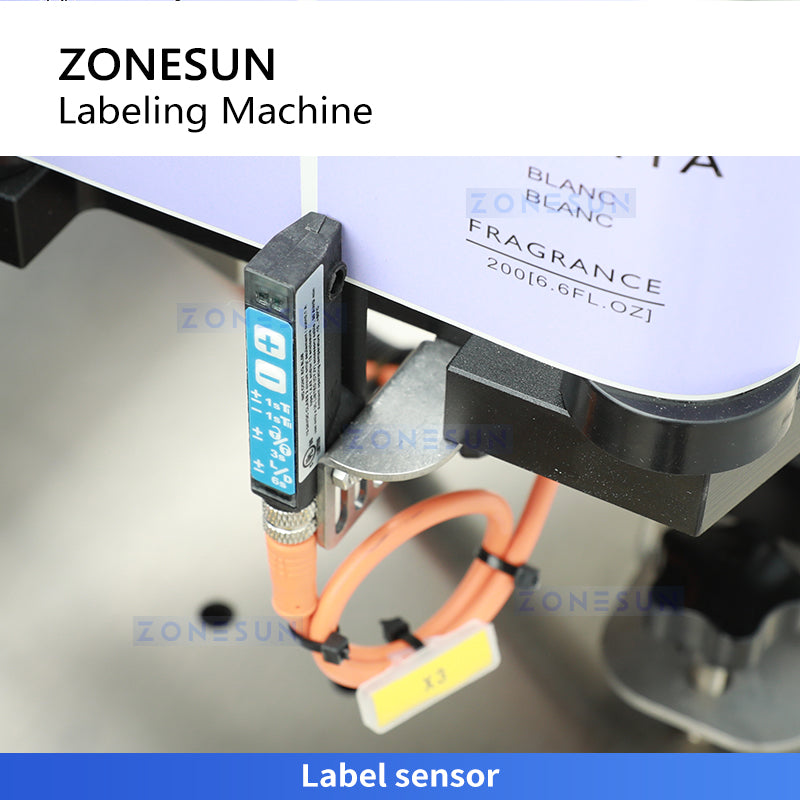

Label Sensor
Detects label gaps for accurate, consistent dispensing.
Rotary Knobs
Allow label and bottle-position settings to be adjusted.

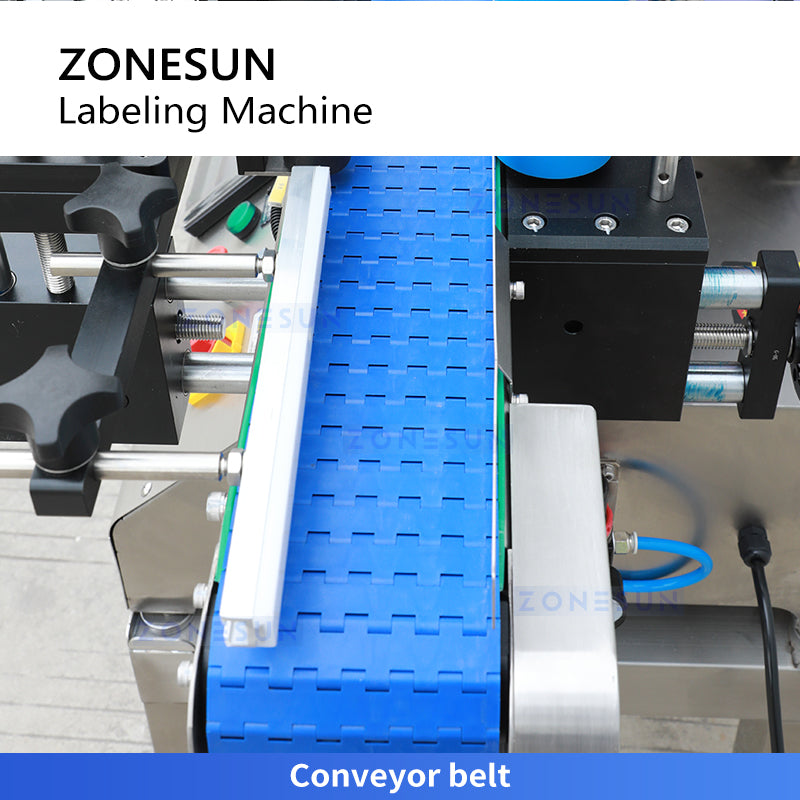

Conveyor Belt
Transfers bottles smoothly through the labeling process.
