Description

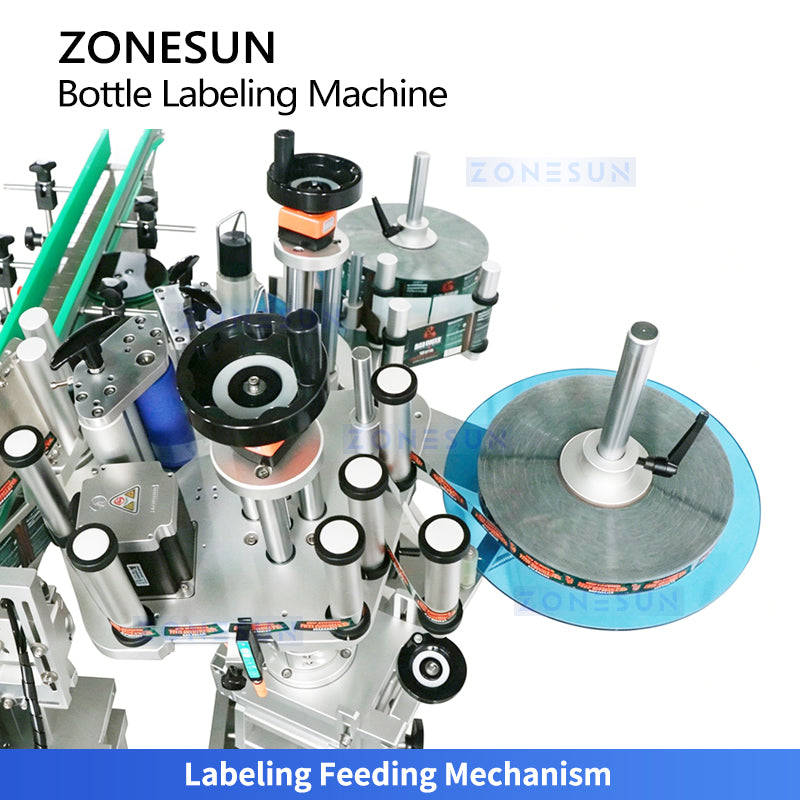

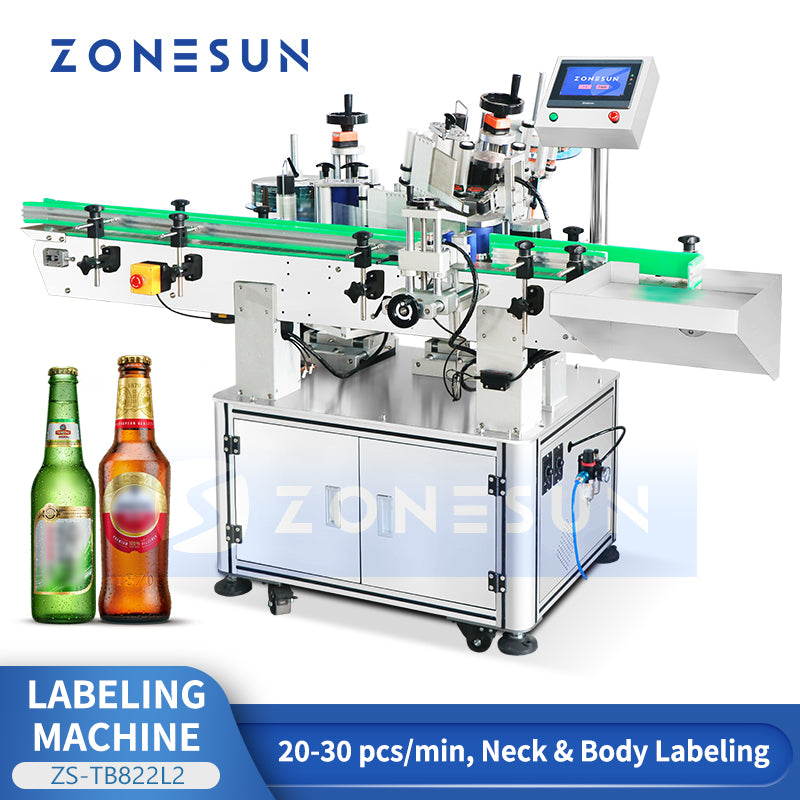

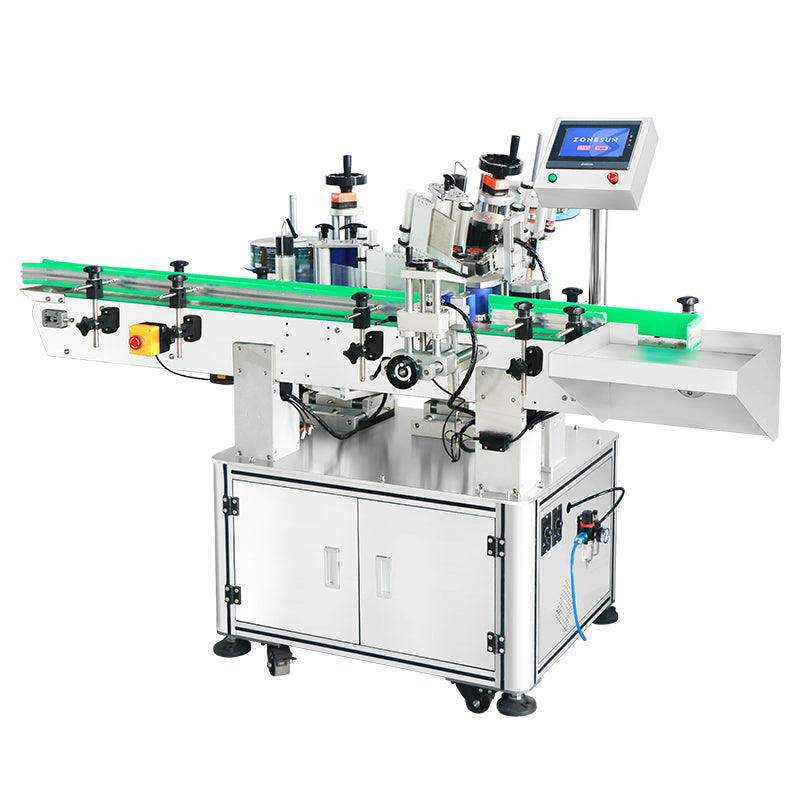

The ZONESUN ZS-TB822L2 is an automatic labeling machine designed to apply neck and body labels simultaneously onto round bottles. Operating at 20–30 pcs/min, it supports bottle diameters from Φ25–Φ100mm and label lengths up to 290mm. Equipped with a touchscreen control panel, sensor-assisted labeling station, stable conveyor system, and orderly collection platform, it ensures precise positioning, smooth bottle flow, and consistent labeling quality. Ideal for cosmetics, beverages, beer, wine, personal care products, and other round bottles requiring dual-position labeling.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZS-TB822L2 |
| Labeling Accuracy | ±1mm (excl. product & label tolerance) |
| Labeling Speed | 20–30 pcs/min (depends on product & label size) |
| Applicable Bottle Diameter | Φ25–Φ100mm (round bottles) |
| Applicable Bottle Height | 25–300mm (customizable) |
| Applicable Label Size | Length 20–290mm; Width 20–160mm (backing paper) |
| Power Supply | 220V, 50Hz |
| Machine Dimensions (L×W×H) | Approx. 2,100 × 1,200 × 1,530 mm |
| Machine Weight | Approx. 185 kg |
Key Features
- Dual-Position Labeling — Applies body and neck labels simultaneously in one pass
- High Labeling Accuracy — ±1mm precision (excluding product & label tolerance)
- Wide Bottle Compatibility — Handles Φ25–100mm diameter round bottles
- Adjustable Height Range — 25–300mm bottle height, customizable
- Flexible Label Size — Length 20–290mm, width 20–160mm (backing paper)

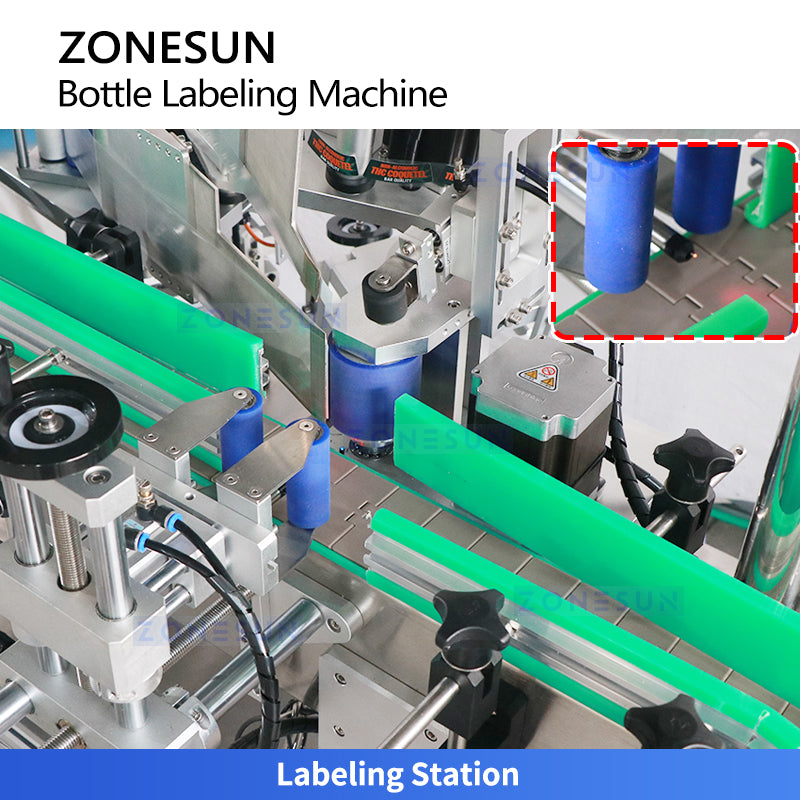

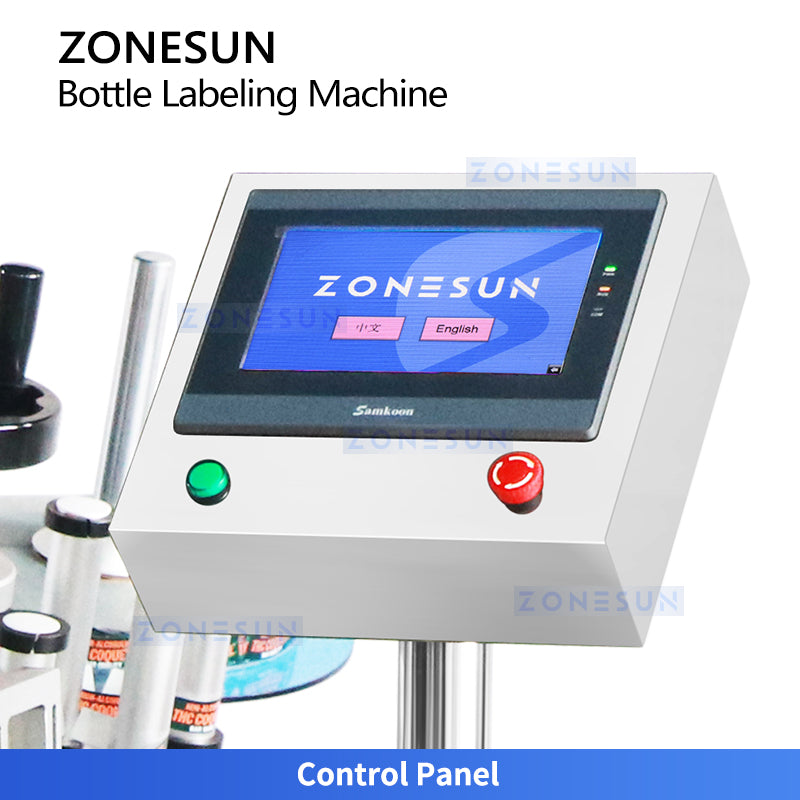

- Touchscreen Control Panel — Intuitive operation with sensor-assisted positioning

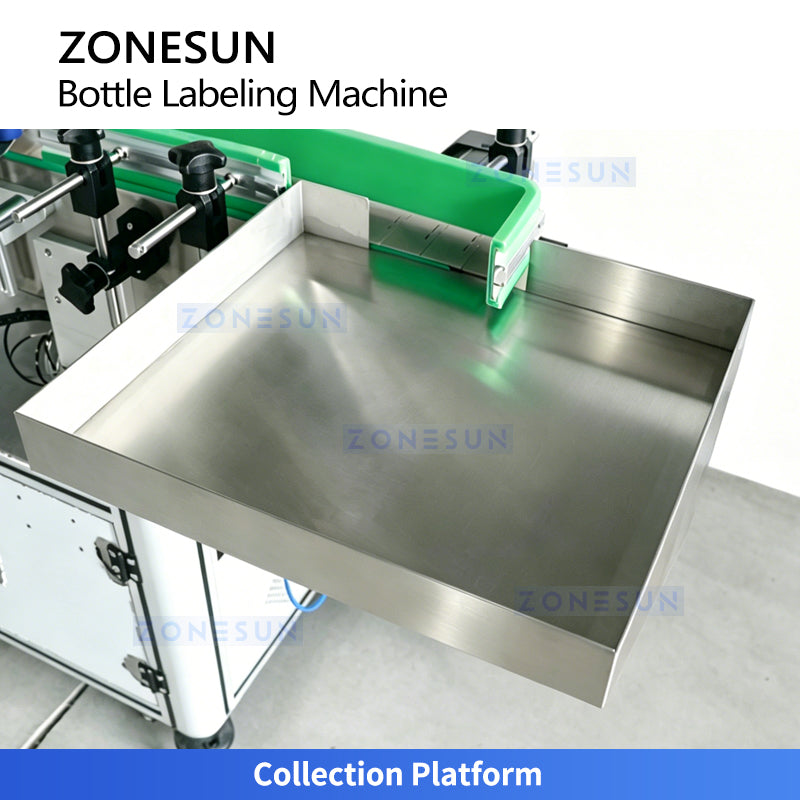

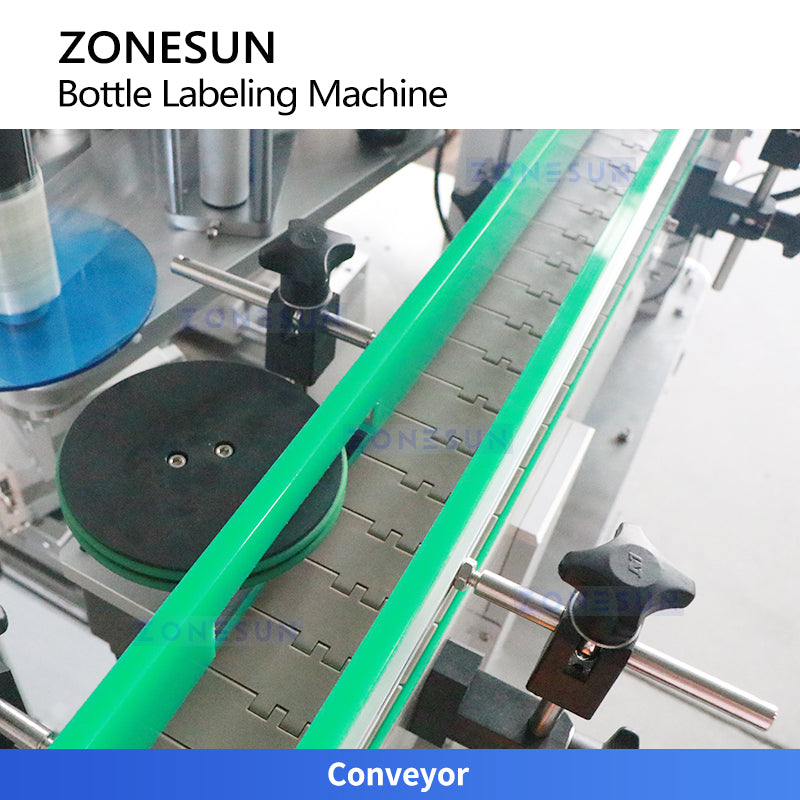

- Stable Conveyor & Collection Platform — Smooth bottle flow and orderly output
Suitable Products & Applications
Beer Bottles
Standard, craft, and specialty beer bottles
Wine Bottles
Red, white, rosé, and sparkling wine
Spirits & Liquor
Whisky, vodka, gin, baijiu bottles
Beverage Bottles
Juice, tea, kombucha, soft drinks
Sauce & Condiment Bottles
Hot sauce, vinegar, soy sauce bottles
Cosmetic & Pharma Bottles
Round bottles requiring dual-position labels
