DESCRIPTION

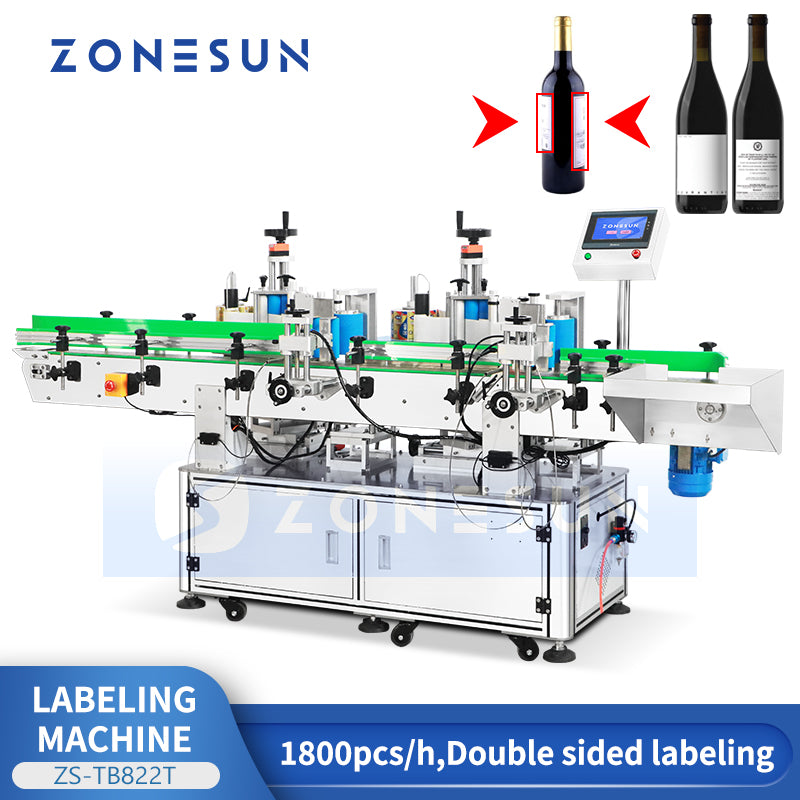

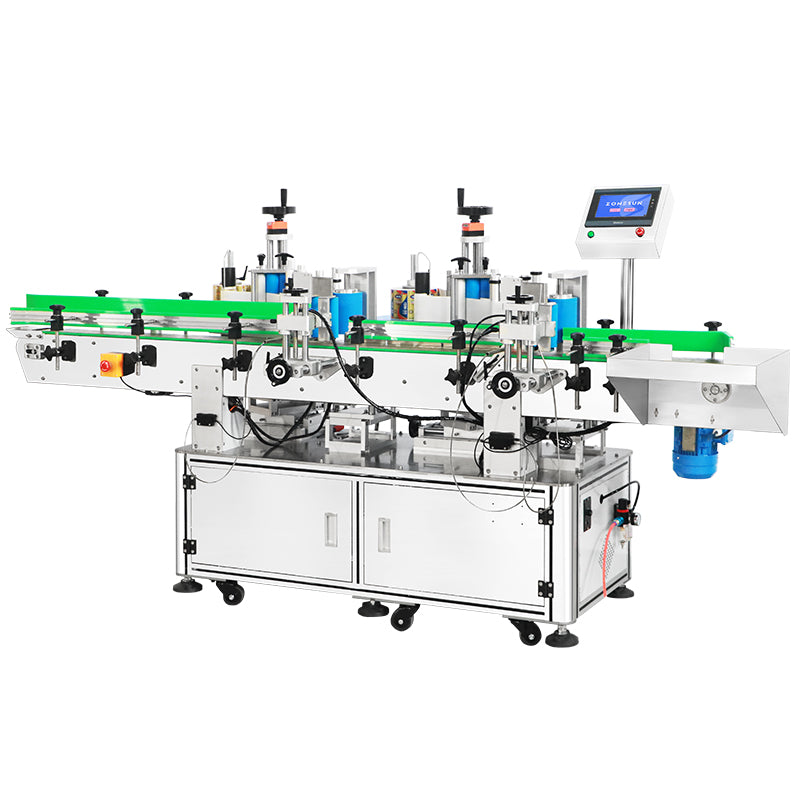

Introducing our advanced Front and Back Labeling Machine, engineered for unparalleled accuracy and efficiency. Featuring dual labeling stations, this machine ensures perfect alignment every time. After the first label is applied, a full-spectrum electric eye precisely detects its position, guaranteeing consistent spacing when the second label is applied. Achieve an impressive output of up to 1200 bottles per hour (BPH), maximizing your production capacity.
Parameter
- Machine Model: ZS-TB822T
- Voltage: 220V/110V 50-60HZ
- Power: 4500 W
- Labeling Speed: About 20-30 pcs/min (depending on product and label size)
- Labeling Accuracy: ±1 mm
- Suitable Bottle Size: Diameter: φ25-φ100 mm * Height: 25-300 mm
- Label Size: Width (20-290 mm) * Height (20-160 mm)
- Label Roll Inner Diameter: φ76 mm
- Label Roll Outer Diameter: ≤300 mm
- Machine Size: About 2844*987*1400 mm / About 112*38.9*55.1 inch
- Package Size: About 2750*1180*1630 mm
- Package Weight: About 550 kg

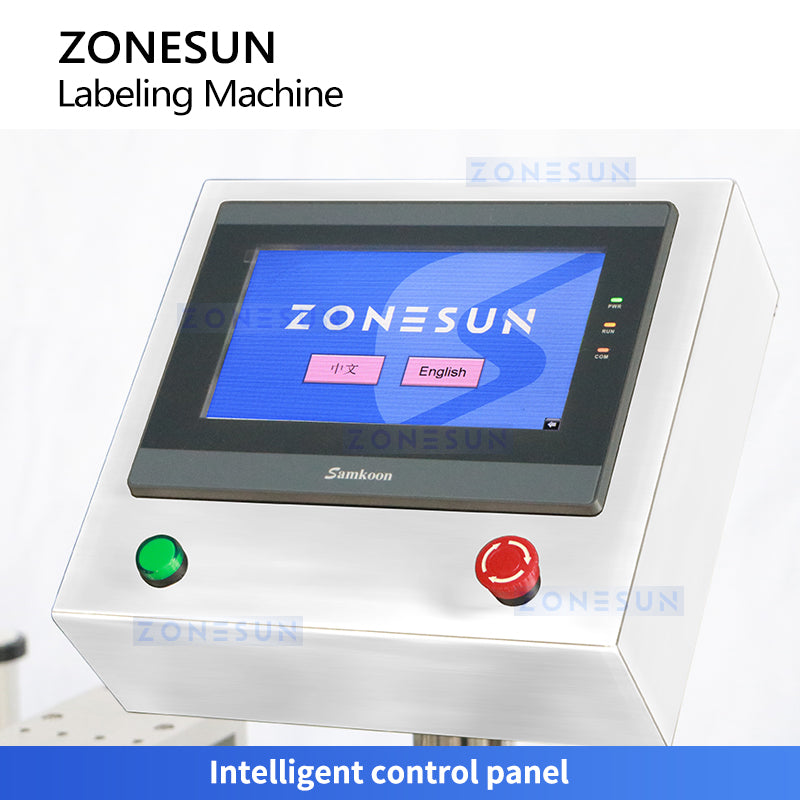

CONTROL PANEL
The touchscreen makes technical parameters easier to set, and the interface language can be customized.

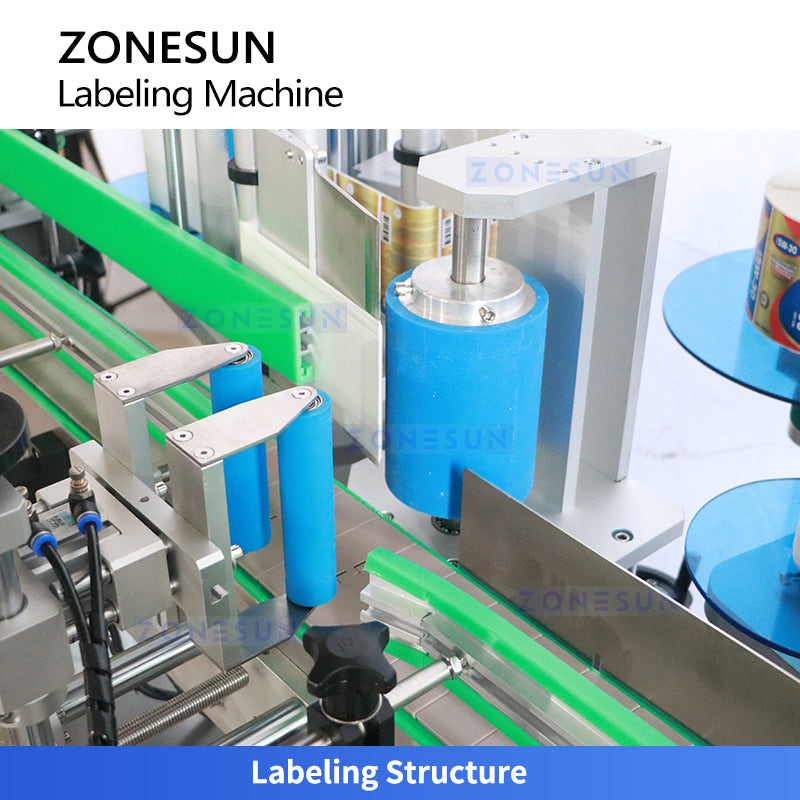

LABELING STRUCTURE
The labeling structure is suitable for single-sided, double-sided, or wraparound labeling on round bottles.

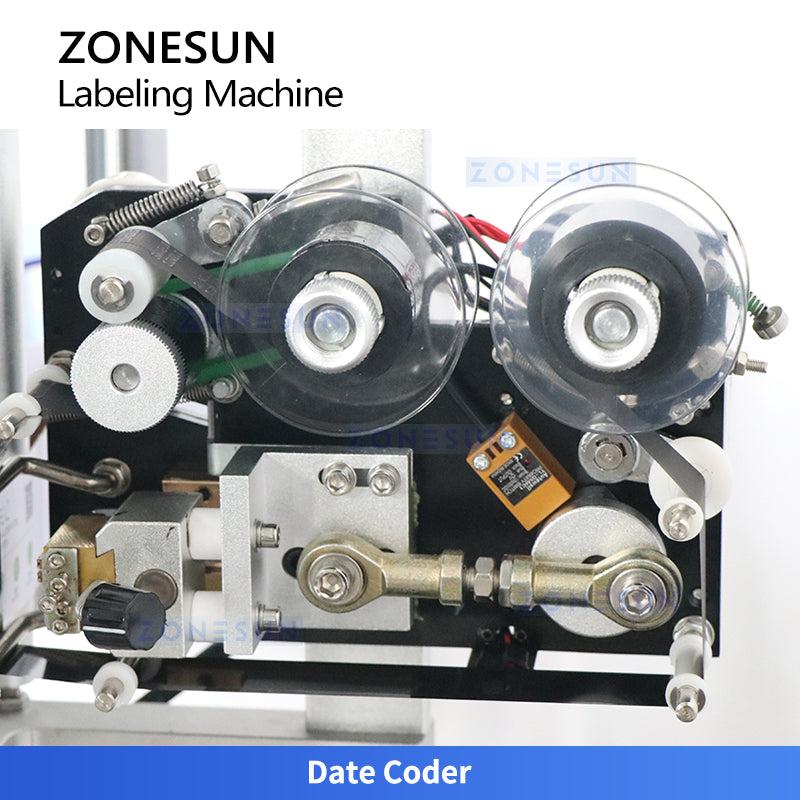

DATE CODER
The machine can be equipped with an optional date coder for printing dates or batch information.

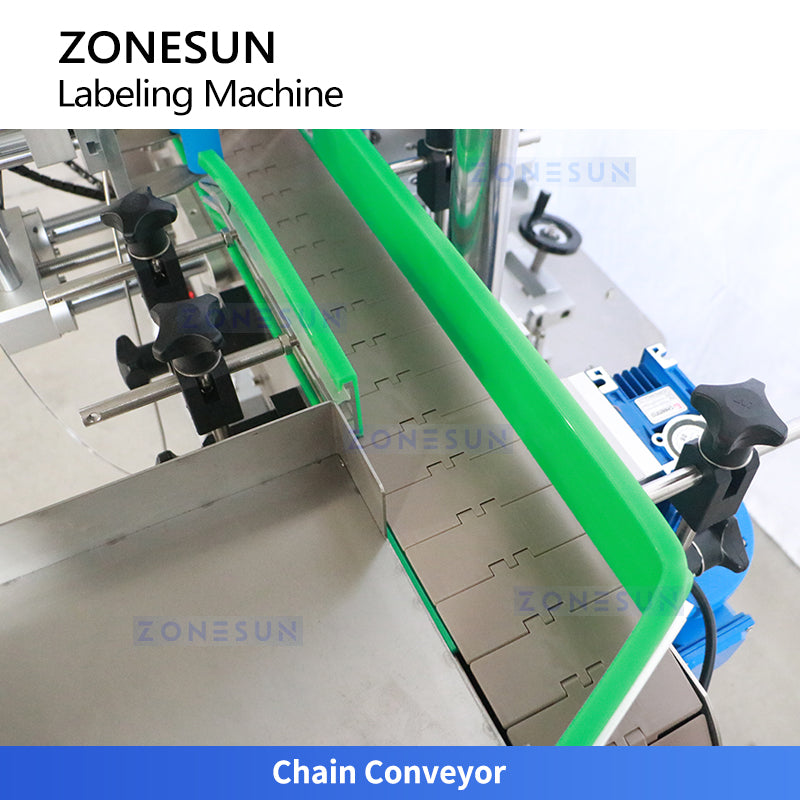

CHAIN CONVEYOR
The conveyor length and width can be customized to suit production requirements.

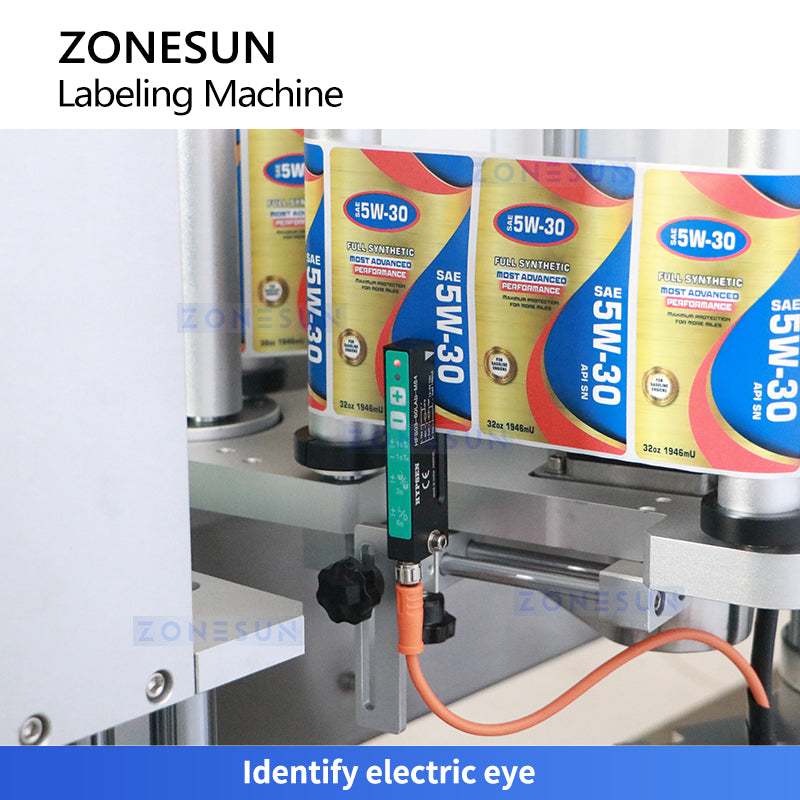

LABEL SENSOR
The label sensor detects labels and controls label output accurately. It can also be customized for transparent labels.
Quick Setup Instruction Video
