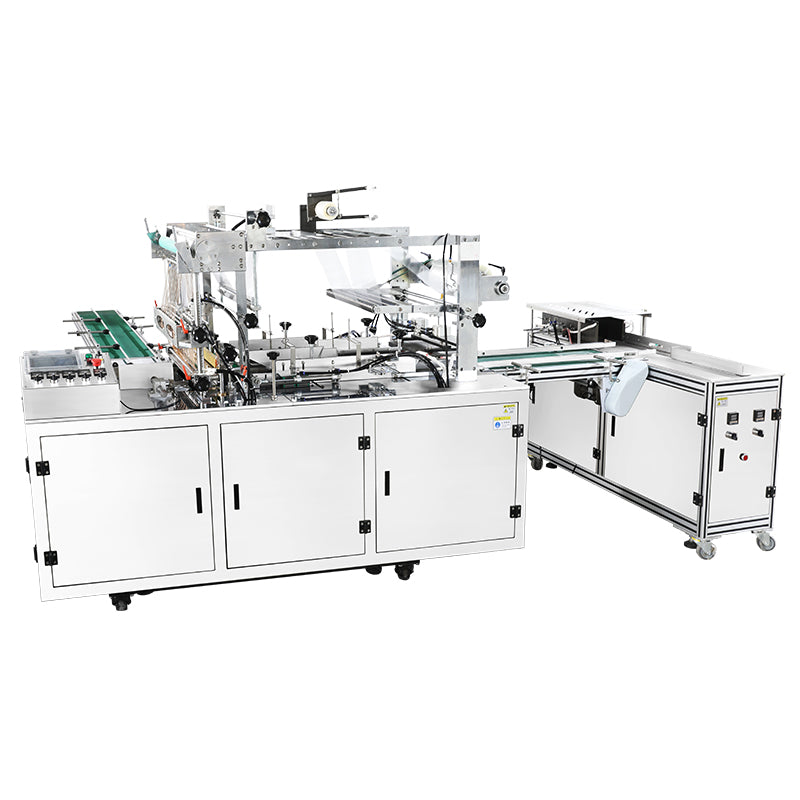

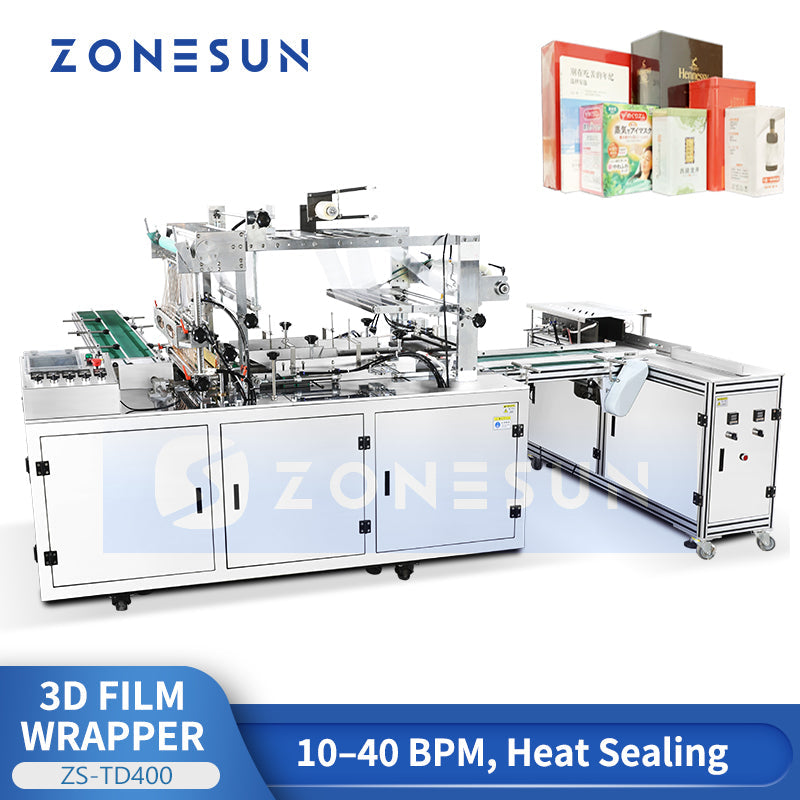

ZONESUN ZS-TD400 Automatic 3D Cellophane Wrapping Machine for Cosmetic & Pharmaceutical Boxes

Price
$19,000

Please click "Buy It Now". Shipping will be calculated at checkout.

Voltage:110V
Shipping Information

Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.

For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.

Depending on the selected shipping method, import duties, customs clearance fees, local taxes, and other destination charges may apply. These charges are determined by the relevant authorities and service providers at the destination.

About Us

ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.

ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.

DESCRIPTION

The ZONESUN ZS-TD400 is a high-speed push-type 3D wrapping machine designed for precise and efficient packaging of boxed products. Operating at 10–40 packs per minute, it uses heat sealing to wrap items in BOPP film with clean edges and tight finishes. The system integrates product pushing, film feeding, cutting, sealing, and pressure shaping into one streamlined process. Ideal for cosmetics, pharmaceuticals, and daily goods, it supports various pack sizes and materials, delivering professional-grade wrapping with minimal manual intervention.

PARAMETER

  • Model: ZS-TD400
  • Voltage: 220V, 50 Hz
  • Power Consumption: 4 kW
  • Air Pressure Requirement: 0.6 MPa
  • Working Capacity: 10–40 boxes/min
  • Applicable Packing Size:
    • Length: 100–300 mm
    • Width: 50–200 mm
    • Height: 30–100 mm
  • Packaging Material:
    • BOPP cigarette film
    • BOPP heat-sealable film
    • Tear tape
    • Film thickness: 0.02–0.03 mm
  • Film Roll Dimensions:
    • Inner Diameter: 76 mm
    • Outer Diameter: 300 mm
  • Net Weight: Approx. 750 kg
ZONESUN ZS-TD400 High-Speed Cellophane Wrapping Machine for Cosmetic, Pharmaceutical, and Gift Boxes
ZONESUN ZS-TD400 High-Speed Cellophane Wrapping Machine for Cosmetic, Pharmaceutical, and Gift Boxes
ZONESUN ZS-TD400 High-Speed Cellophane Wrapping Machine for Cosmetic, Pharmaceutical, and Gift Boxes
ZONESUN ZS-TD400 High-Speed Cellophane Wrapping Machine for Cosmetic, Pharmaceutical, and Gift Boxes

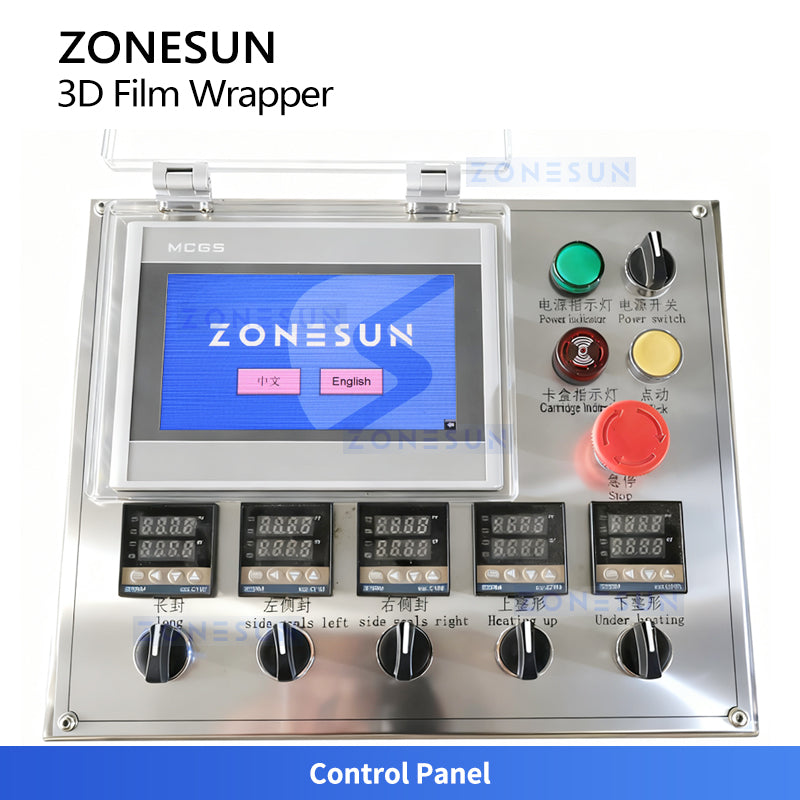

ZONESUN ZS-TD400 High-Speed Cellophane Wrapping Machine for Cosmetic, Pharmaceutical, and Gift BoxesCONTROL PANEL
Controls sealing parameters with real-time feedback. Offers precise adjustment via counters and knobs, plus power and emergency stop for safety.

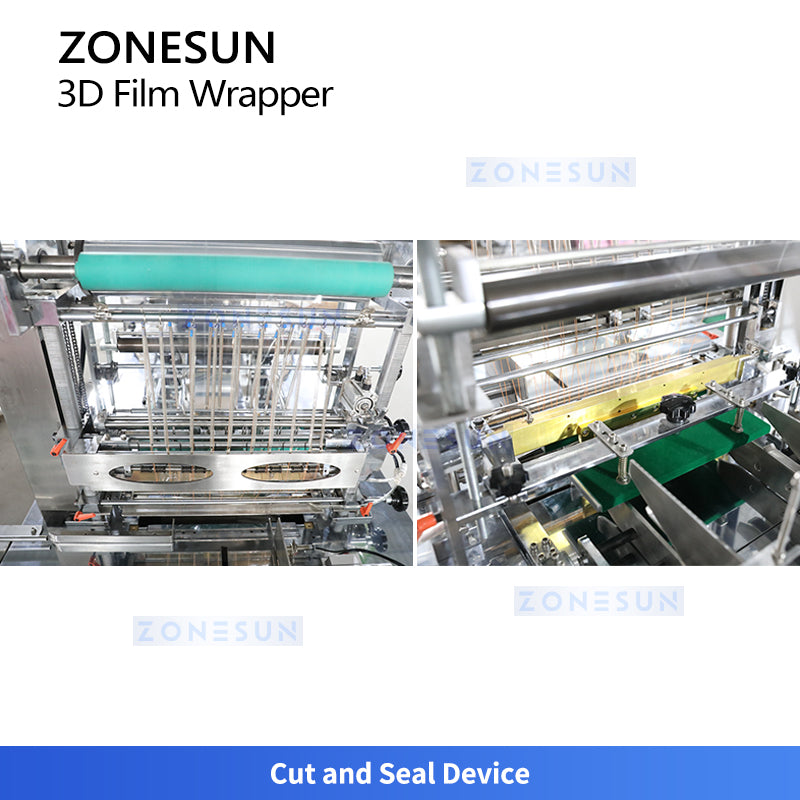

ZONESUN ZS-TD400 High-Speed Cellophane Wrapping Machine for Cosmetic, Pharmaceutical, and Gift BoxesCUTTING & SEALING
Controls sealing parameters with real-time feedback. Offers precise adjustment via counters and knobs, plus power and emergency stop for safety.

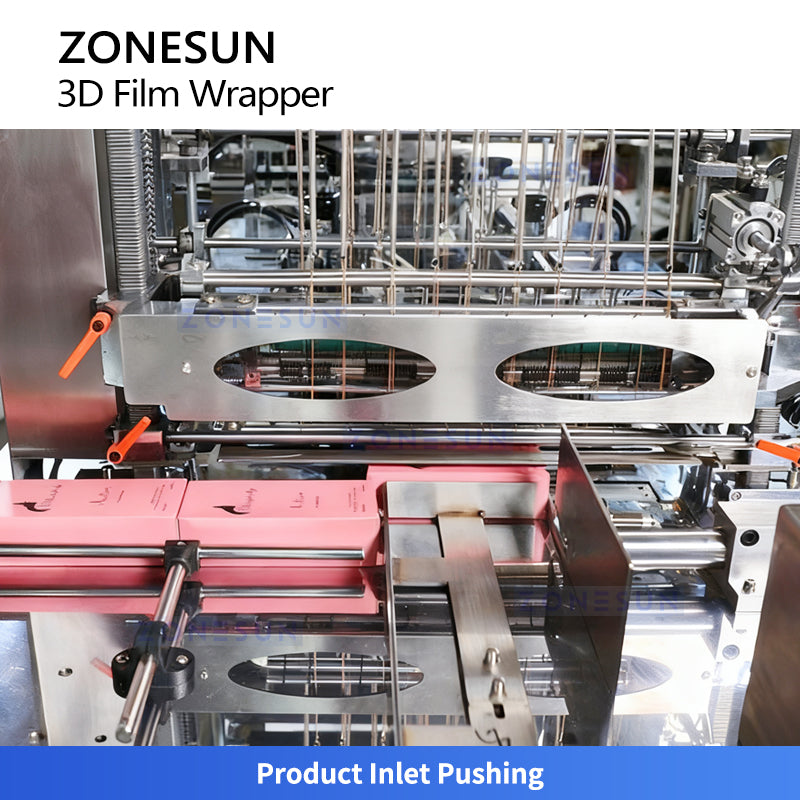

ZONESUN ZS-TD400 High-Speed Cellophane Wrapping Machine for Cosmetic, Pharmaceutical, and Gift BoxesINLET PUSHING
Pushes products into the film channel with precise alignment for smooth entry and clean sealing.

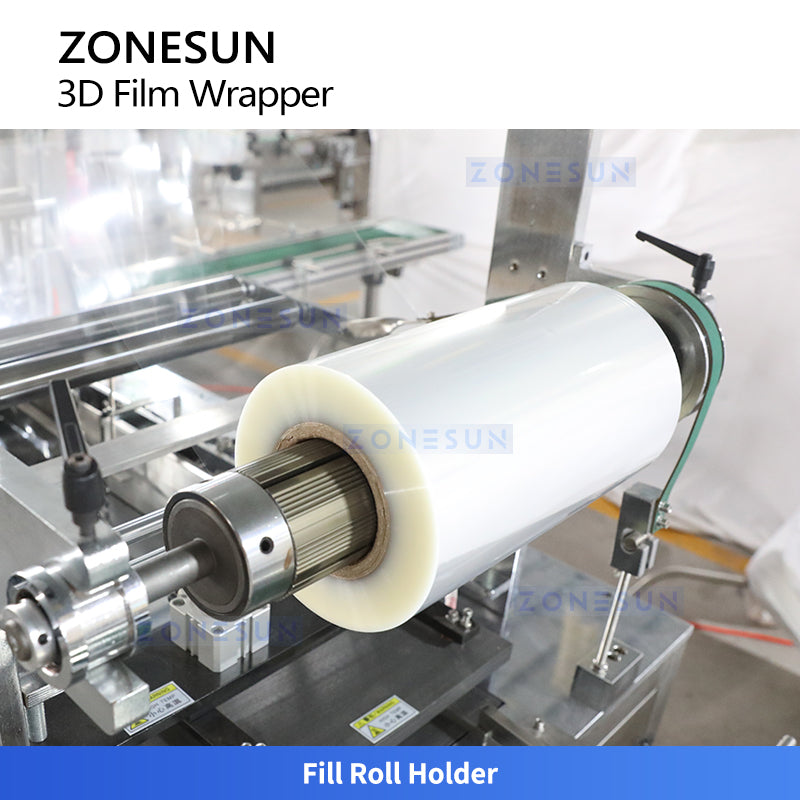

ZONESUN ZS-TD400 High-Speed Cellophane Wrapping Machine for Cosmetic, Pharmaceutical, and Gift BoxesFILL ROLL HOLDER
Holds and dispenses wrapping film roll smoothly into the packaging system. Ensures stable film tension and alignment for accurate wrapping.

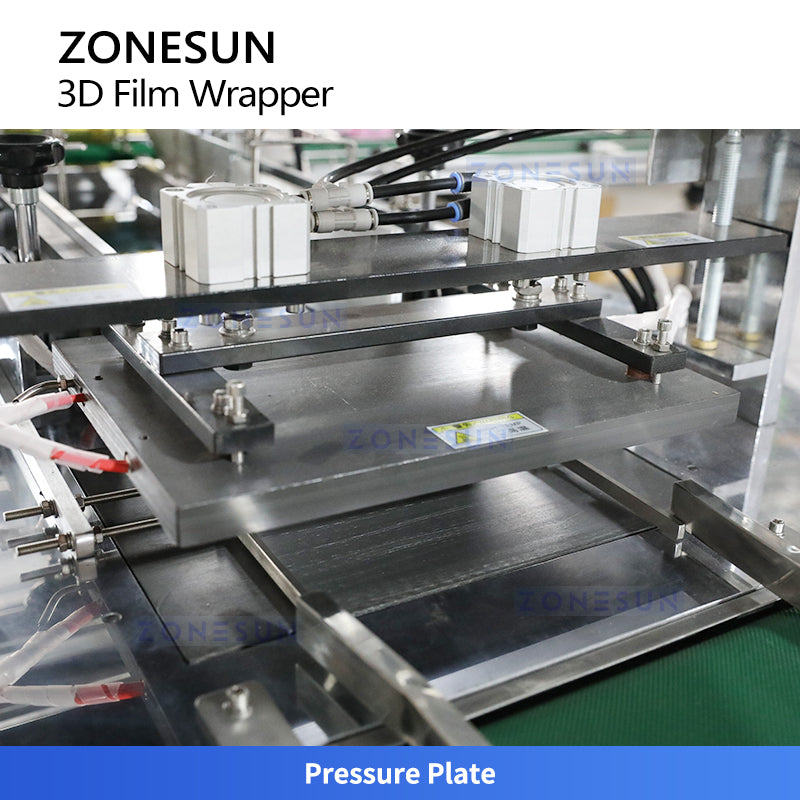

ZONESUN ZS-TD400 High-Speed Cellophane Wrapping Machine for Cosmetic, Pharmaceutical, and Gift BoxesPRESSURE PLATE
Applies final pressure to shape and flatten the wrapped product after sealing. Enhances package appearance and ensures tight, uniform finish.
PRODUCT OUTLET
Transfers finished packages out of the sealing zone smoothly and in alignment. Prepares products for downstream processes like boxing or labeling.
ZONESUN ZS-TD400 High-Speed Cellophane Wrapping Machine for Cosmetic, Pharmaceutical, and Gift Boxes
ZONESUN ZS-TD400 High-Speed Cellophane Wrapping Machine for Cosmetic, Pharmaceutical, and Gift Boxes
