Description

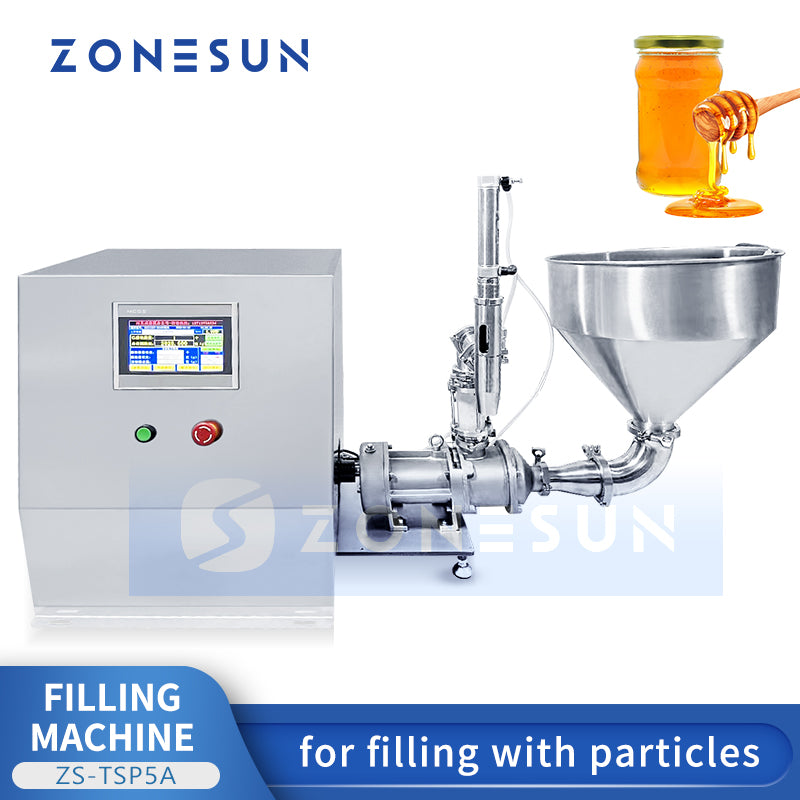

The ZONESUN ZS-TSP5A Screw Pump Thick Paste Filling Machine dispenses compatible liquids and high-viscosity pastes, including formulations containing particles. Its twin-screw pump supports stable material flow, making it a practical option for sauces, syrups, cosmetic pastes and other products that require a suitable pump for thicker materials.
A touchscreen control panel, large material hopper and wide filling nozzle bring material loading and filling adjustments into one workstation. Choose No Mixing Hopper or With Mixing Hopper according to your formulation, with 110V and 220V options available. Confirm the required dispensing amount, particle characteristics and hopper configuration using your actual material before ordering.
Technical Parameters
| Model | ZS-TSP5A |
|---|---|
| Power | 2.6kW |
| Capacity | 720 bottles/hour |
| Solid-Liquid Ratio | ≤70% |
| Filling Volume | 1g–500kg |
| Filling Accuracy | ≤0.3% |
| Inlet/Outlet Diameter | DN51 |
| Allowable Particle Diameter | 0–18mm |
| Viscosity Working Range | 0–50000cst |
| Machine Weight | 100kg |
Selection note: The specifications above are the stated machine parameters. Confirm achievable output, minimum dispensing amount and accuracy for your material and selected configuration. Particle handling also depends on particle shape, hardness and concentration, not diameter alone.

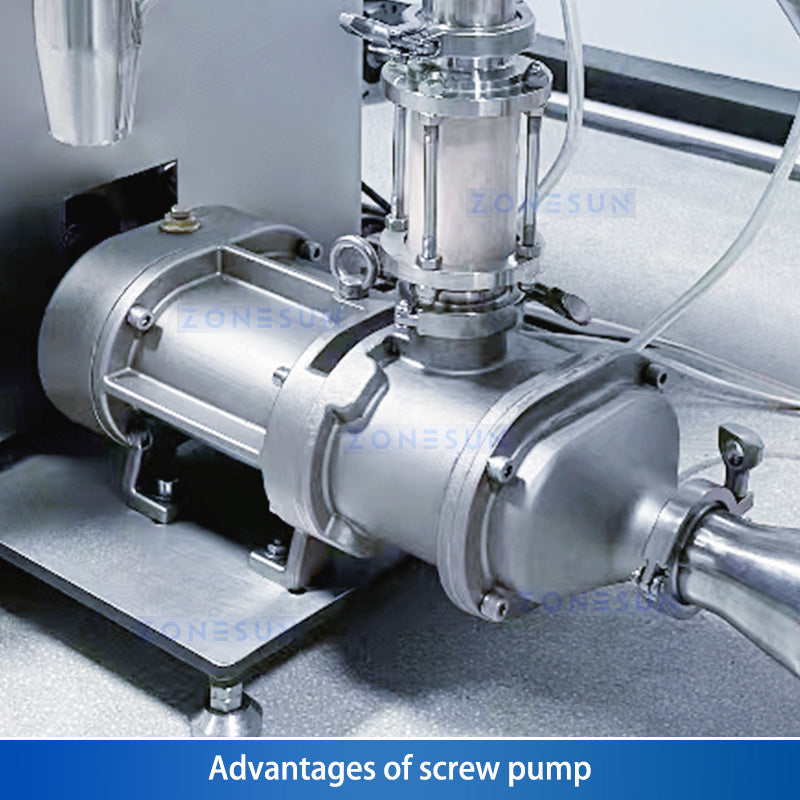

Twin-Screw Pump
The screw-pump design provides strong suction and stable flow for compatible liquid and high-viscosity materials, including products containing small solid particles.

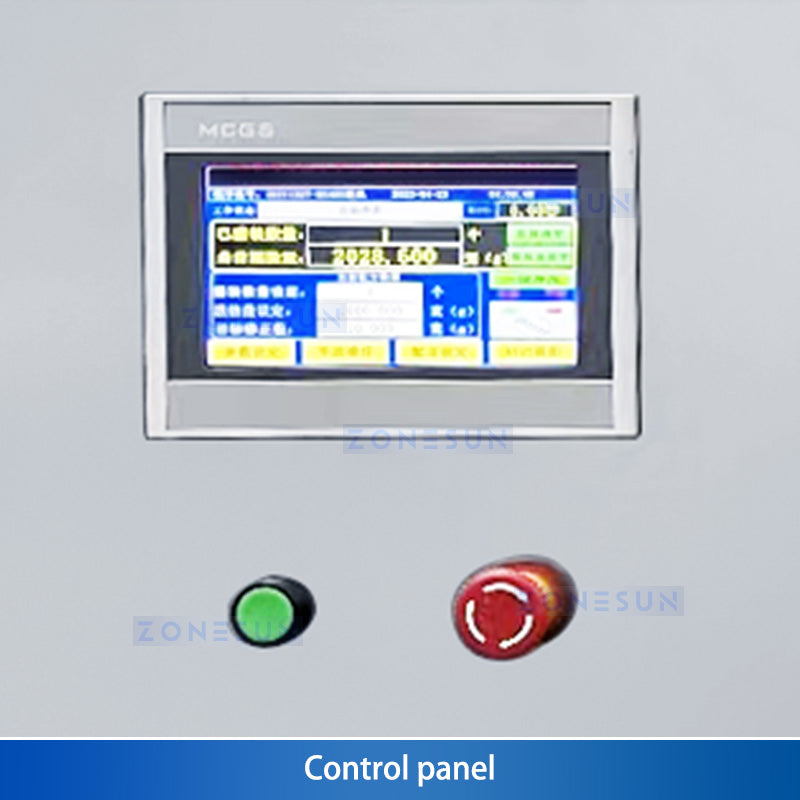

Touchscreen Control
The touchscreen control panel provides convenient access to operating parameters and filling settings.

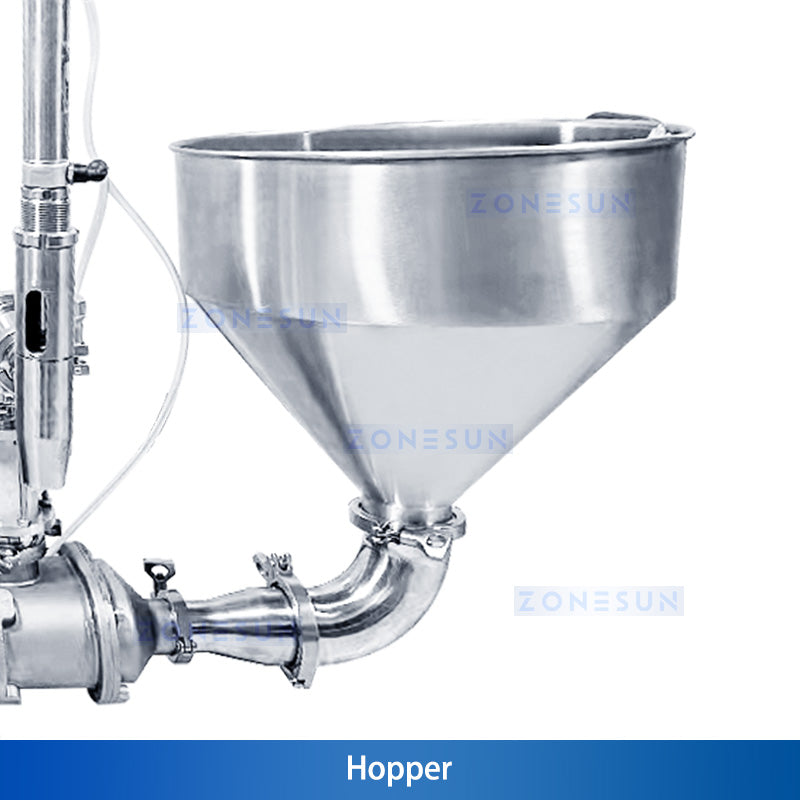

Large Material Hopper
The large stainless-steel hopper makes material loading convenient and supports continuous feeding to the screw pump.

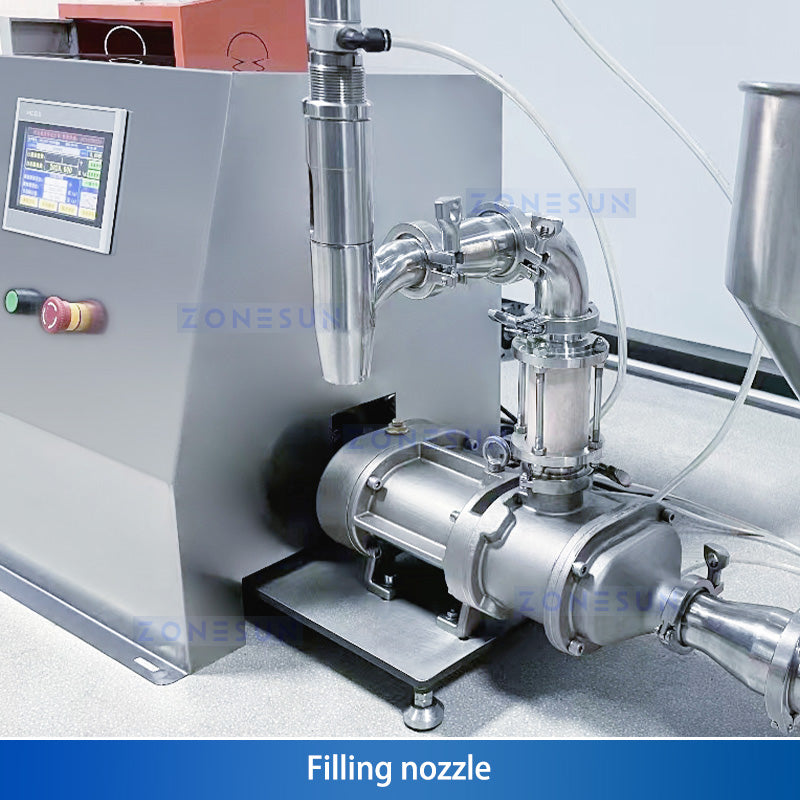

Wide Filling Nozzle
The stainless-steel filling nozzle has a wide outlet designed for compatible thick materials and liquids containing particles.
Choose Your Hopper Configuration
No Mixing Hopper: Select this option when your material does not require hopper agitation during filling.
With Mixing Hopper: Select the mixing-hopper option when your process requires agitation. Confirm suitability for your formulation and particles before ordering.
Before Ordering
- Provide the material name, viscosity and filling temperature.
- For particle-containing products, specify particle dimensions, hardness and solid-liquid ratio.
- Share your target fill weight, container dimensions and required output.
- Confirm the hopper option, 110V or 220V supply and weighing-module configuration.
- Request sample testing to confirm material flow, particle condition and dispensing performance.
Machine Setup & Operation Videos
To help you get started smoothly, we provide a detailed video guide for the installation and testing of our machine.
If you have any questions during setup or operation, our technical support team is ready to assist you.
We’re here to ensure you feel confident using your machine and get the best performance from it.
Thank you for choosing ZONESUN — we’re with you every step of the way.
Why Choose the ZS-TSP5A?
- Versatile material handling: A twin-screw pump dispenses compatible liquids and thick pastes, including selected particle-containing products.
- Accessible filling settings: Touchscreen controls simplify parameter adjustment for different filling tasks.
- Convenient material loading: The large hopper feeds material directly to the pump.
- Hopper options: Choose a configuration with or without mixing to suit your process.
Ideal Applications
Suitable projects include sauces, honey, syrups, cosmetic creams, lotions and other compatible viscous products. Particle-containing foods and industrial formulations require material-specific evaluation. Confirm pump, nozzle and product-contact material compatibility rather than selecting by viscosity or particle size alone.
Send us your material details, target fill weight, particle information and required output to evaluate the appropriate hopper and filling setup.
