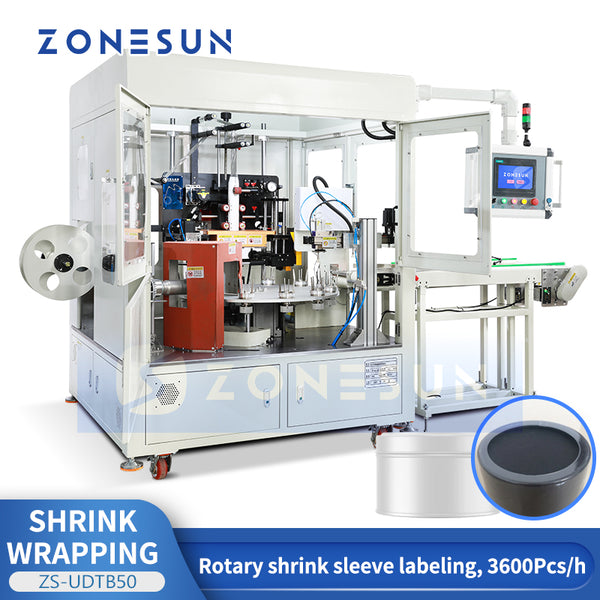

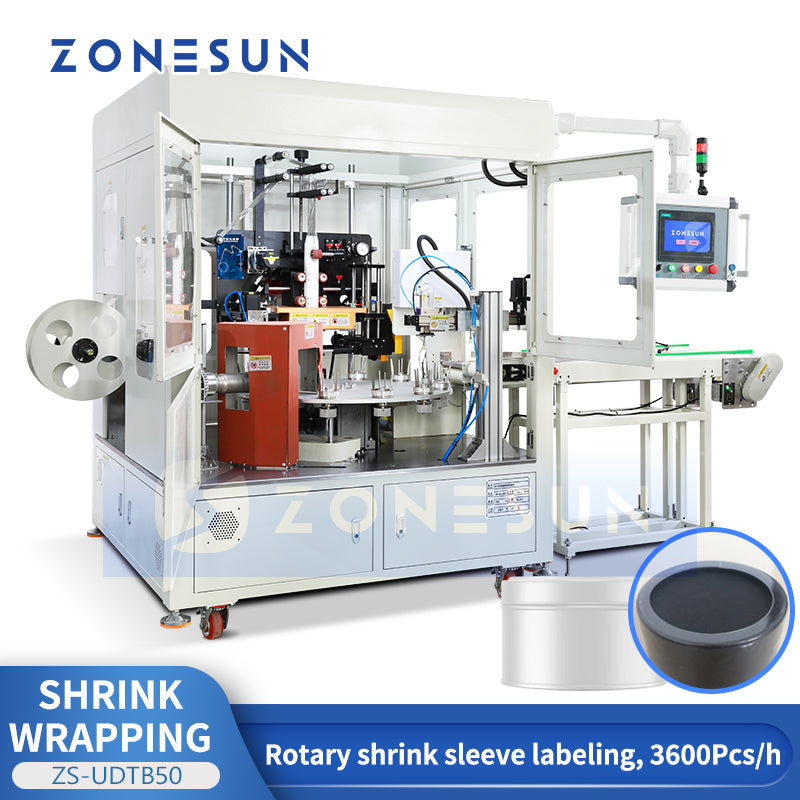

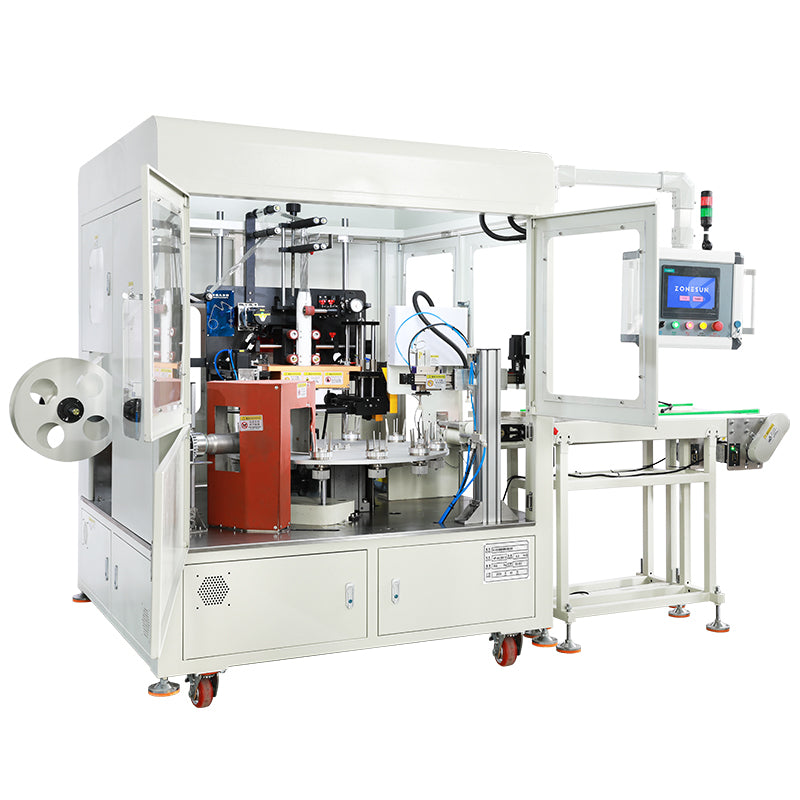

Engineered for precision and speed, the ZS-UDTB50 is ideal for applying shrink sleeve labels to cosmetic bottles, personal care containers, and cylindrical packaging. Its rotary star wheel system ensures smooth product handling, while multi-stage shrinking delivers a flawless, secure label finish. Perfect for beauty, pharmaceutical, and hygiene product manufacturers seeking high-efficiency labeling.
Parameter
- Model: ZS-UDTB50
- Voltage: AC380V-4P
- Total power: 6kW/h
- Air pressure: 0.5Mpa
- Packaging speed: 45–60 pcs/minute
- Packaging width: 15–50mm
- Packaging diameter: 90–130mm (can be customized)
- Packaging thickness: 0.04–0.045mm (shrinkage rate 50%)
- Size (L×W×H): 1600×1600×2200mm
- Weight: 1000kg

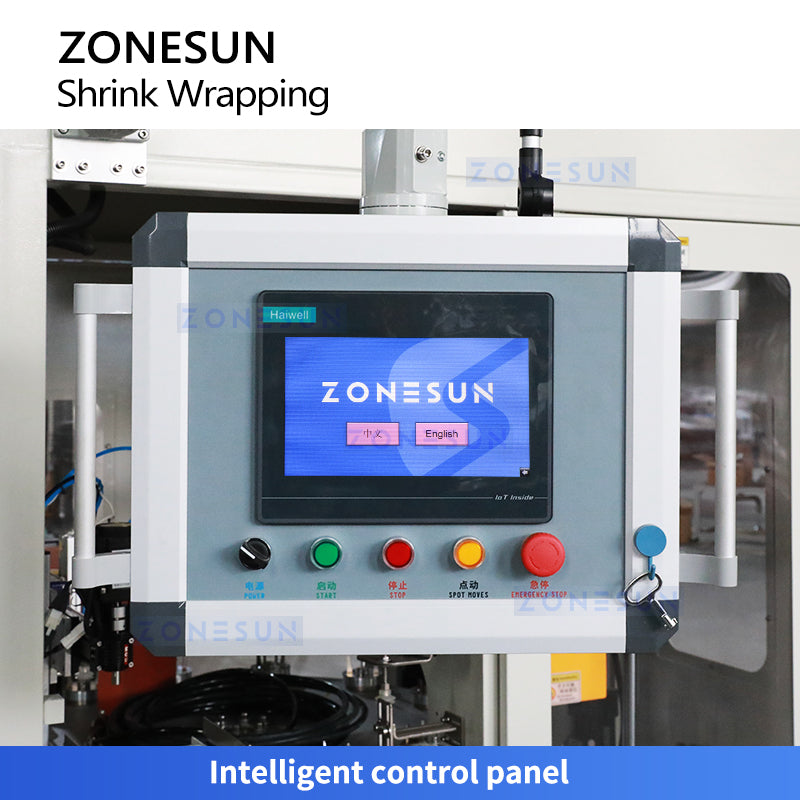

Control Panel
The PLC touchscreen provides clear control of machine parameters and operating settings.

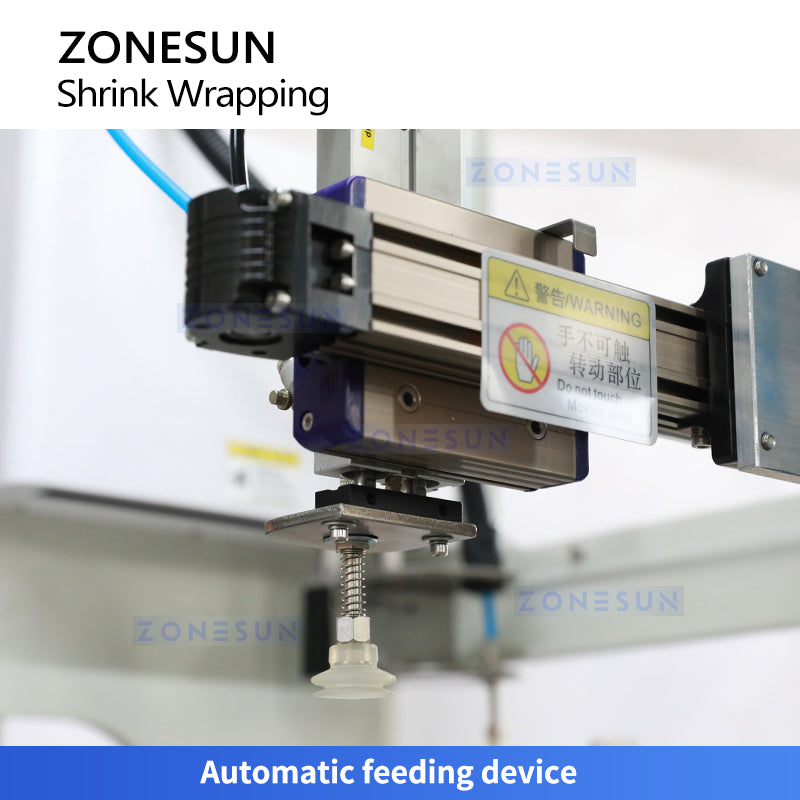

Bottle Feeding Device
The feeding mechanism grips each bottle precisely and transfers it smoothly into the customized positioning slot.

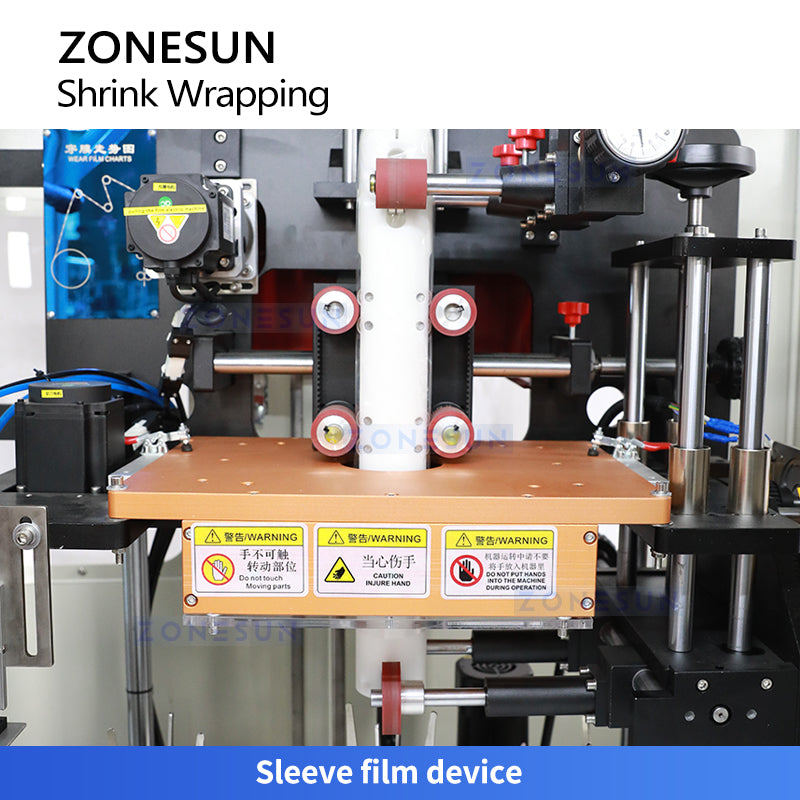

Sleeve Film Device
After detecting the bottle, the machine positions the sleeve film around it and cuts the film to the required length.

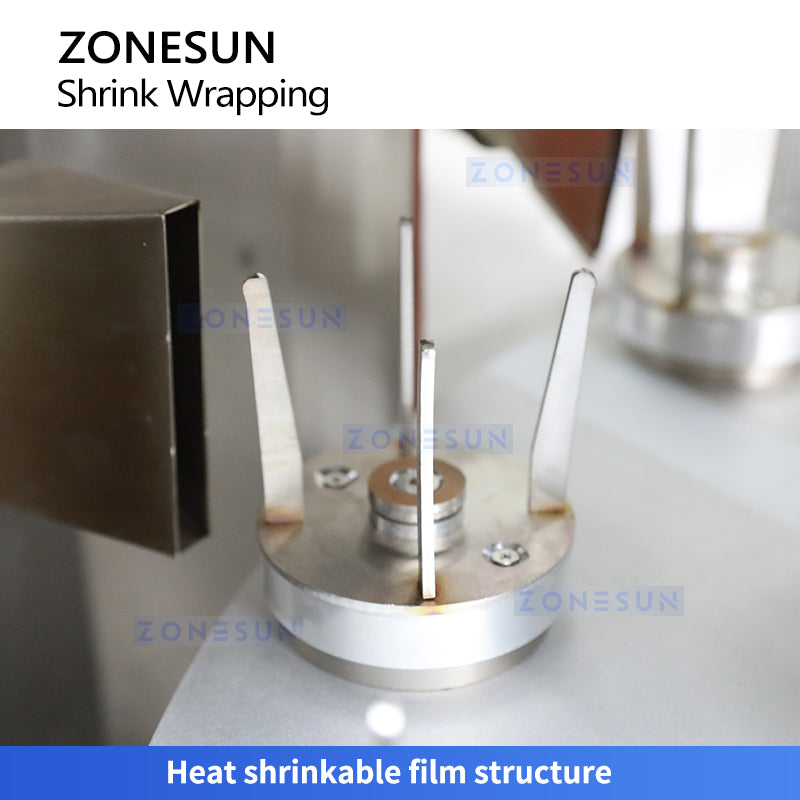

Heat Shrinking
Hot air shrinks the sleeve closely around the bottle for a smooth, secure finish.
