Description

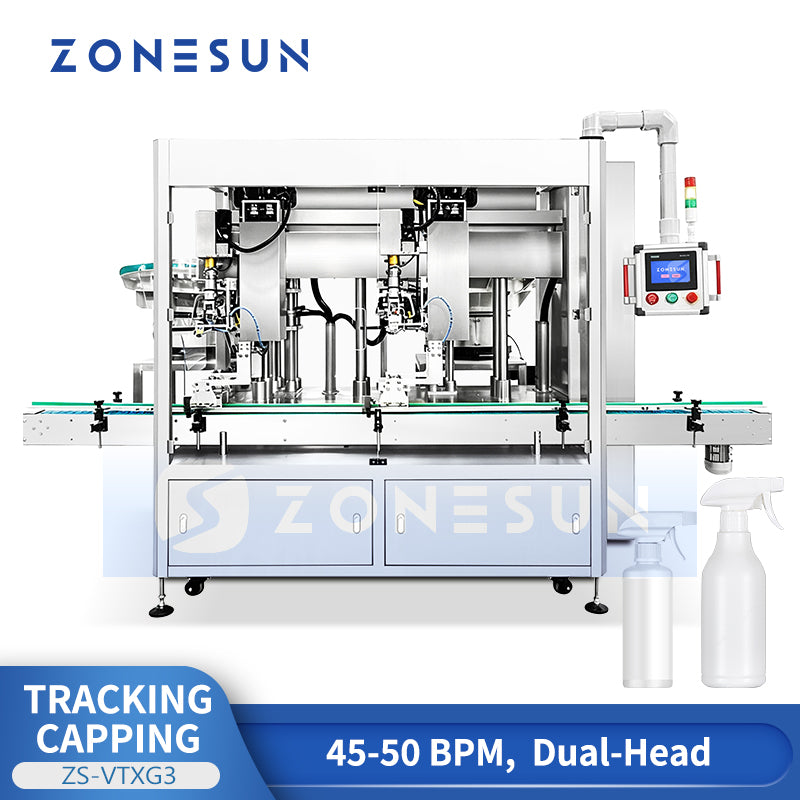

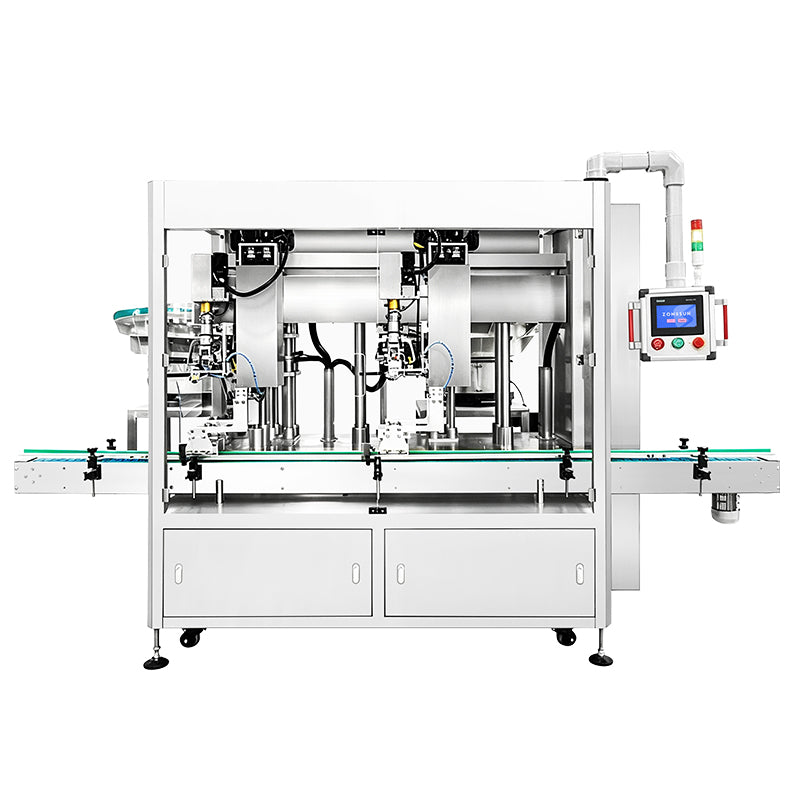

The ZONESUN ZS-VTXG3 is a high-performance dual-head tracking capping machine specially designed for pump heads, spray caps, and similar special closures. With two independent synchronized capping heads, it achieves 45–50 bottles per minute.
It features elevator + vibratory bowl cap feeding, precise dip tube orientation, and pneumatic gripping for accurate and gentle capping. Ideal for lotion, serum, disinfectant, and other liquid packaging lines requiring reliable pump head application.
Technical Specifications
- Model: ZS-VTXG3
- Cap Sorting Method: Elevator cap feeding + vibratory bowl cap sorting
- Program Control: PLC + touch screen
- Working Speed: 45–50 bottles/min
- Suitable Bottle Type: Customized based on customer samples (note: different caps require replacing the vibratory bowl, cap dropping track, and upper cap plate)
- Pump / Cap Placement Method: Gripped by finger air cylinder, straightening the dip tube and inserting into the bottle
- Power: Approx. 6 kW
- Voltage: AC 220V, 50/60Hz
- Conveyor Belt: 82.6mm wide POM chain plate belt; speed 0–15 m/min

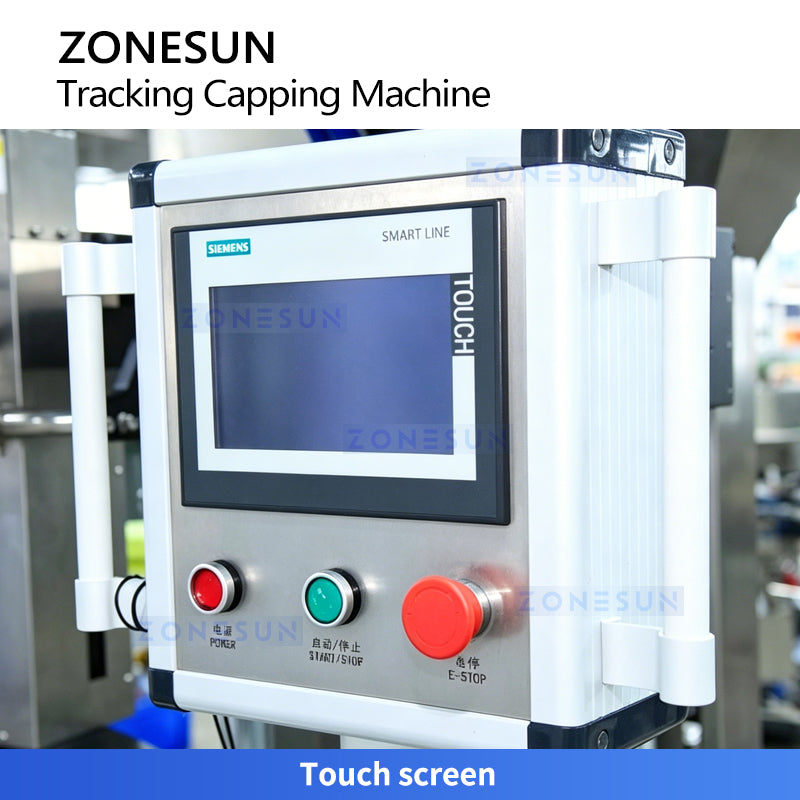

TOUCH SCREEN
Controls the production line via a touchscreen for clear data display and easy adjustment, featuring emergency buttons to protect personnel and machinery.

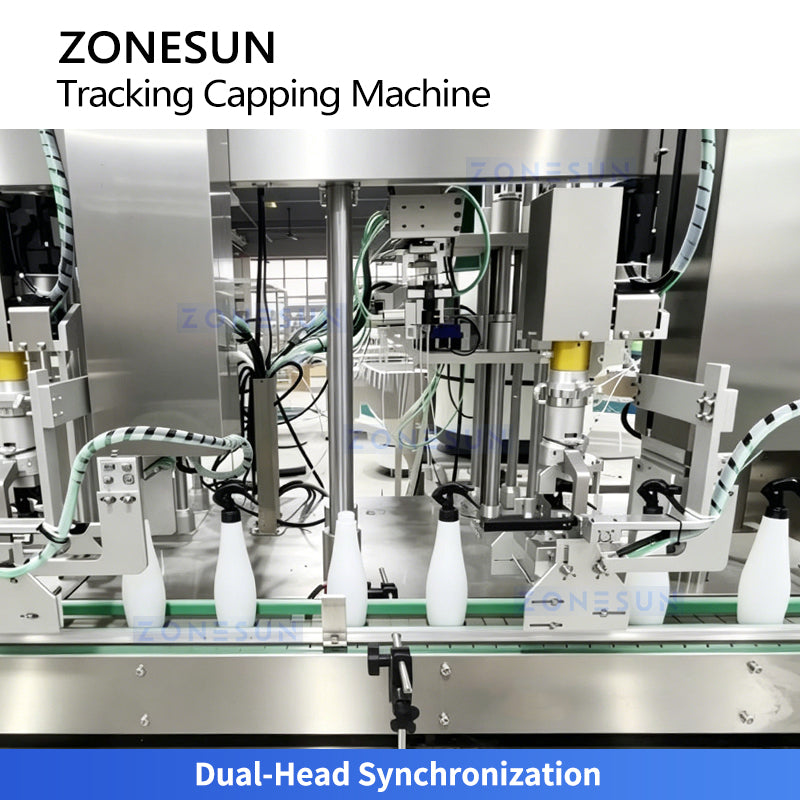

DUAL-HEAD
Processes two bottles simultaneously via two independent capping heads to reach a production capacity of 1,500–1,800 bottles per hour (Depending on bottle types).

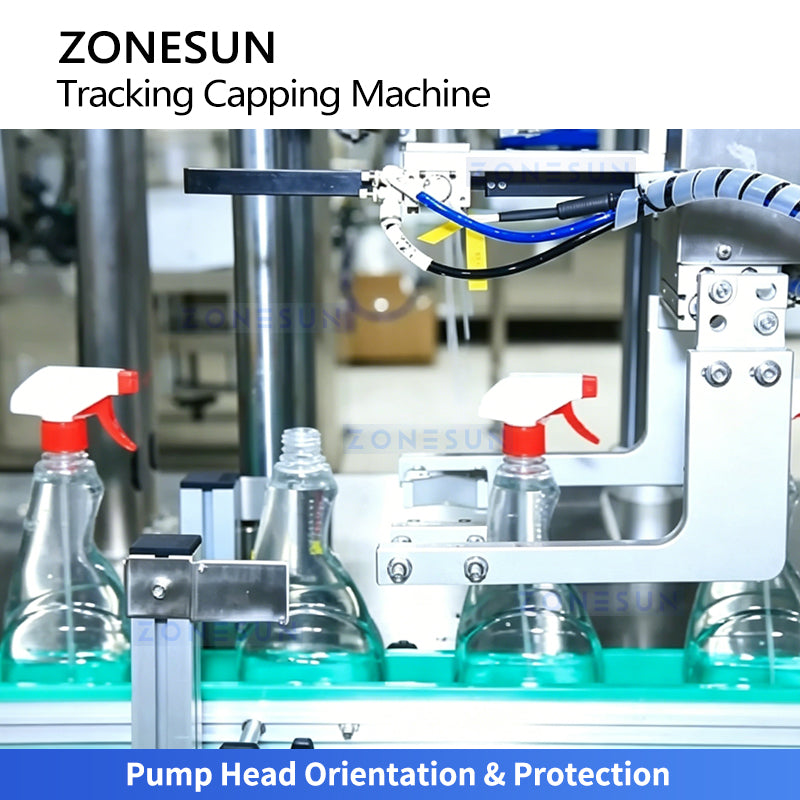

ORIENTATION & PROTECTION
Ensures accurate insertion of dip tubes via precision positioning for pump caps, utilizing a flexible handling process to prevent damage to caps or bottles.

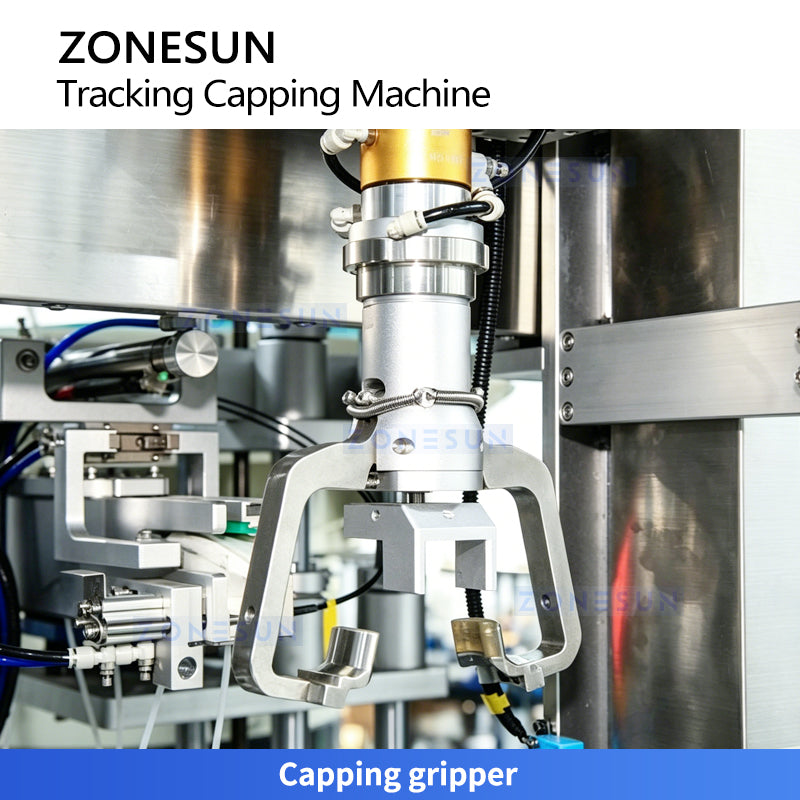

CAPPING GRIPPER
Secures caps stably via a pneumatic chuck to prevent misalignment, supporting flexible configurations of separate pressing/capping heads or dual capping heads.

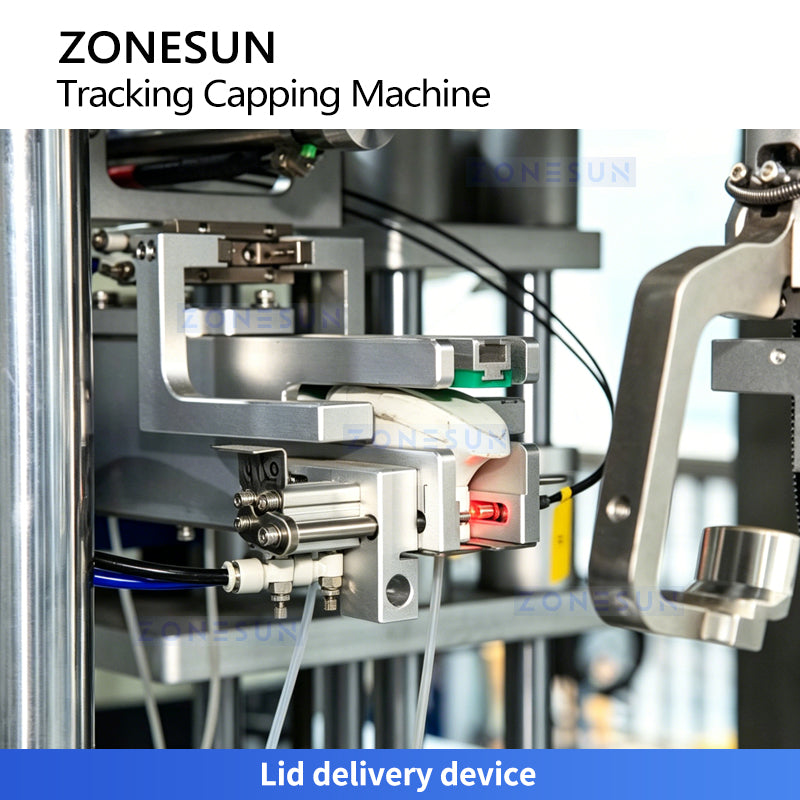

LID DELIVERY DEVICE
Transfers caps precisely to the capping head via a pneumatic sliding mechanism, utilizing integrated sensors to ensure accurate, jam-free cap positioning.
Why Choose the ZS-VTXG3?
- ✅ Dual-Head Tracking System at 45–50 BPM: Two synchronized capping heads track bottles in motion for continuous, high-speed pump cap application without stopping the conveyor
- ✅ Precise Dip Tube Orientation: Pneumatic finger air cylinder grips and straightens the dip tube before insertion — ensures correct pump alignment and prevents tube kinking
- ✅ Elevator + Vibratory Bowl Cap Feeding: Automated cap sorting and feeding system eliminates manual cap placement and maintains continuous production flow
- ✅ PLC + Touch Screen Control: Intuitive operator interface for easy parameter adjustment, speed control, and production monitoring
- ✅ Handles Pump Heads & Spray Caps: Specifically engineered for special closures that standard screw cappers cannot handle — pump dispensers, trigger sprayers, lotion pumps
- ✅ POM Chain Plate Conveyor: Gentle, stable bottle transport at 0–15 m/min minimizes bottle tipping and surface scratching during capping
- ✅ Customizable for Different Caps & Bottles: Vibratory bowl, cap track, and upper cap plate are interchangeable to accommodate different pump head formats
Ideal Applications
- Cosmetics & Skincare: Lotion pump bottles, serum dispensers, facial cleanser pumps, body wash pump caps, foundation pump packaging
- Personal Care & Hair Care: Shampoo pump bottles, conditioner dispensers, hair treatment pump caps, hand soap pump packaging
- Household & Disinfectant: Hand sanitizer pump bottles, disinfectant spray caps, surface cleaner trigger sprayers, liquid soap dispensers
- Pharmaceutical & Healthcare: Nasal spray pump caps, topical medication pump dispensers, oral spray pump packaging
- Industrial & Chemical: Lubricant pump dispensers, specialty chemical pump cap application, industrial liquid pump bottle packaging
