Description

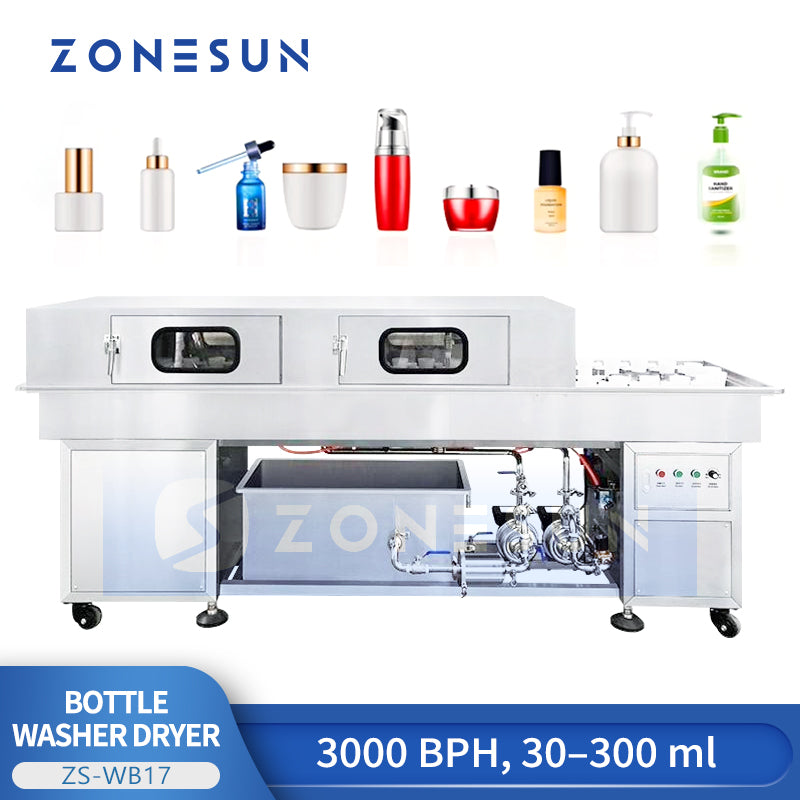

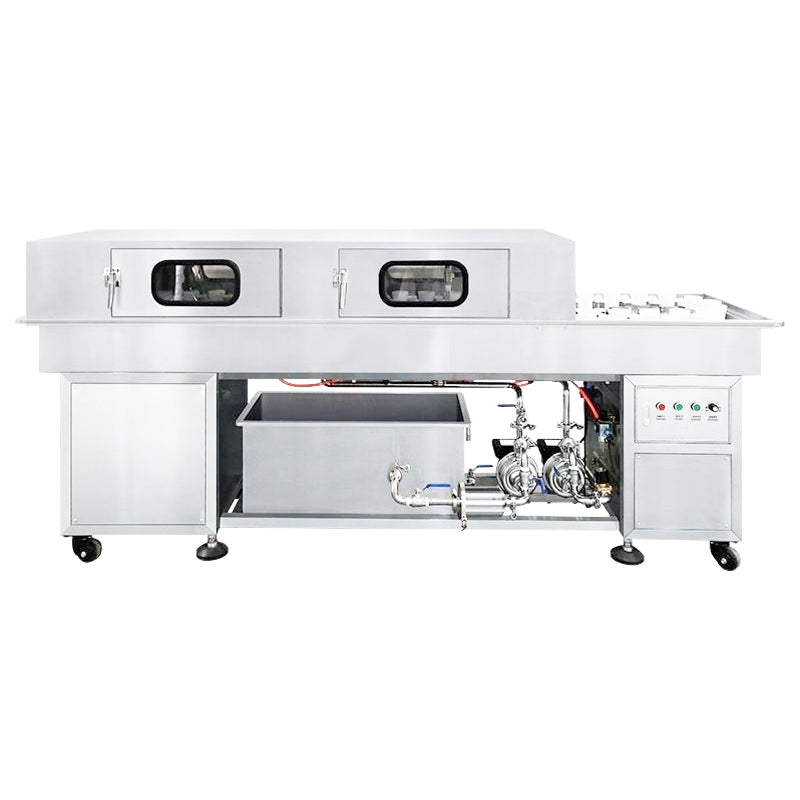

The ZONESUN ZS-WB17 is an automatic bottle washing and drying machine designed for cleaning new and recycled bottles of various materials. With a capacity of up to 3000 bottles per hour, it supports bottle sizes from 30–300 ml and uses a 48-head rinsing system for efficient internal and external cleaning. Equipped with a PLC touchscreen control panel, water tank, pump with filter, and interchangeable molds, the machine ensures hygienic, stable, and high-quality washing performance. Its stainless steel structure provides durability, corrosion resistance, and easy maintenance, making it ideal for small to medium-scale production lines.
Parameter
- Model: ZS‑WB17
- Washing Heads: 48 pcs
- Applicable Bottle Volume: 30–300 ml
- Capacity: 3000 bottles/hour
- Power: 1.5 kW / 220 V
- Applicable Bottle Height: 100–350 mm
- Applicable Bottle Diameter: 20–90 mm
- Water Consumption: 1.5 m³/hour
- Working Pressure: 0.2–0.4 MPa
- Machine Dimensions: 2700 × 670 × 1180 mm
- Machine Weight: 300 kg

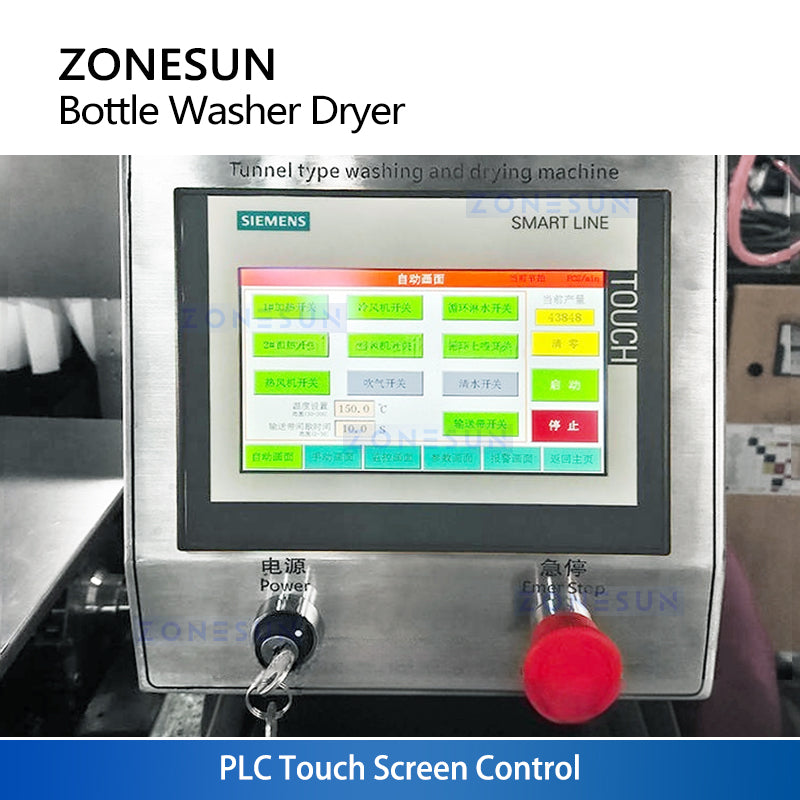

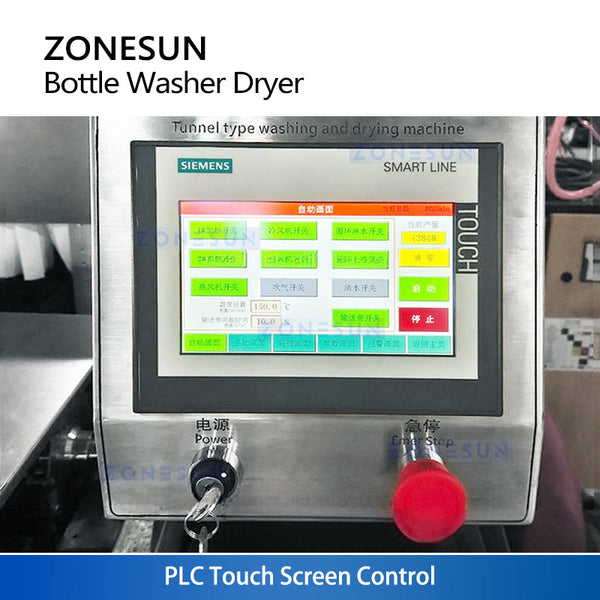

PLC TOUCH SCREEN CONTROL
Provides an intuitive interface for setting parameters, monitoring machine status, adjusting cleaning and drying cycles, and managing alarms and system diagnostics.

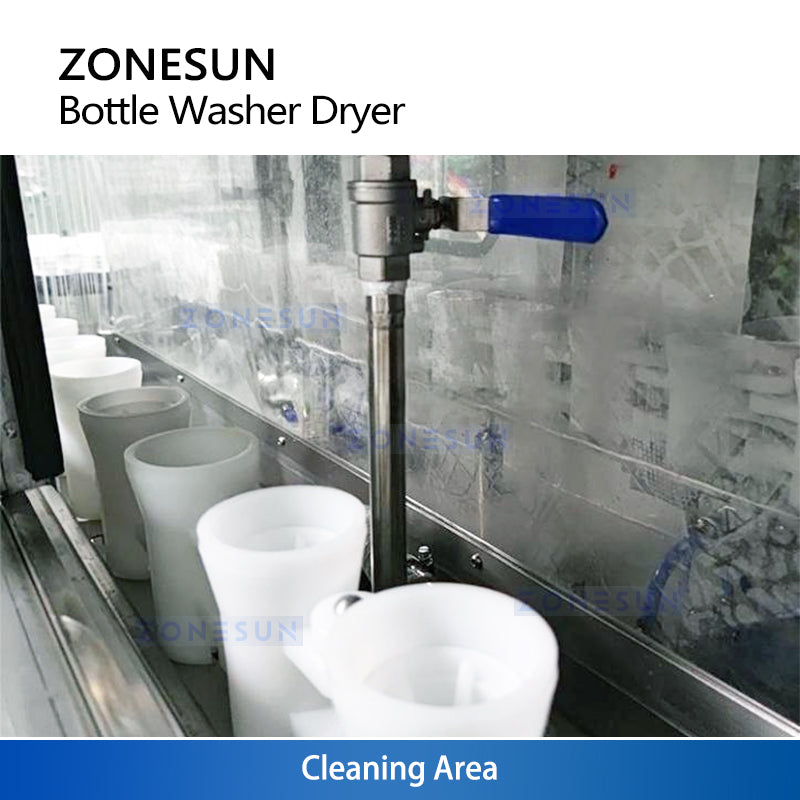

CLEANING AREA
Inverts and positions bottles for intermittent high-pressure rinsing, ensuring precise water injection for thorough internal and external cleaning.

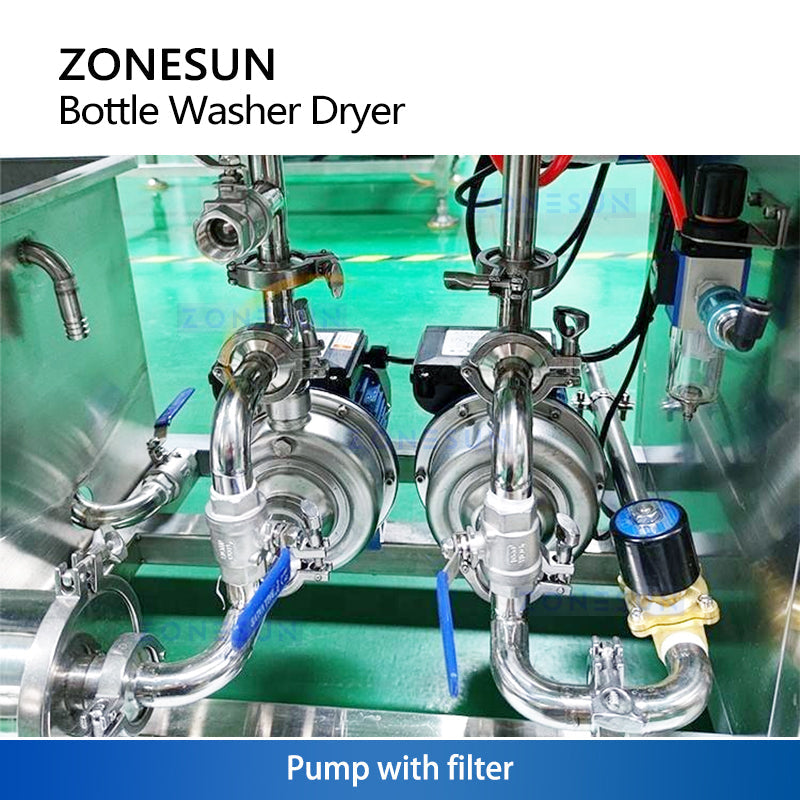

PUMP WITH FILTER
Circulates cleaning liquid while filtering impurities to ensure clean, particle-free water for stable, high-quality washing.

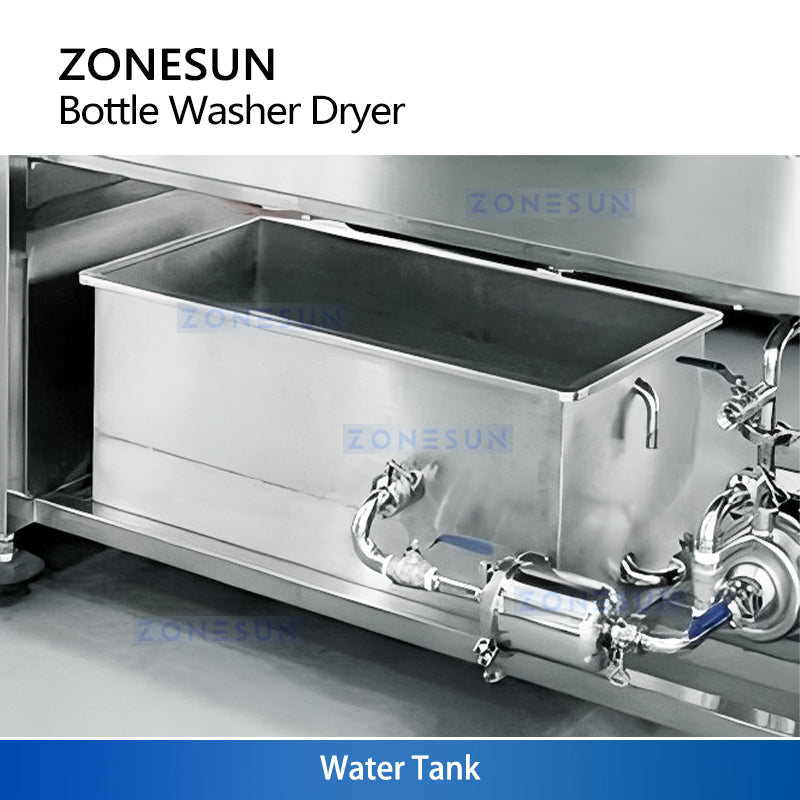

WATER TANK
Stores cleaning liquid and provides a stable supply to the washing system to ensure effective rinsing and reliable cleaning performance.

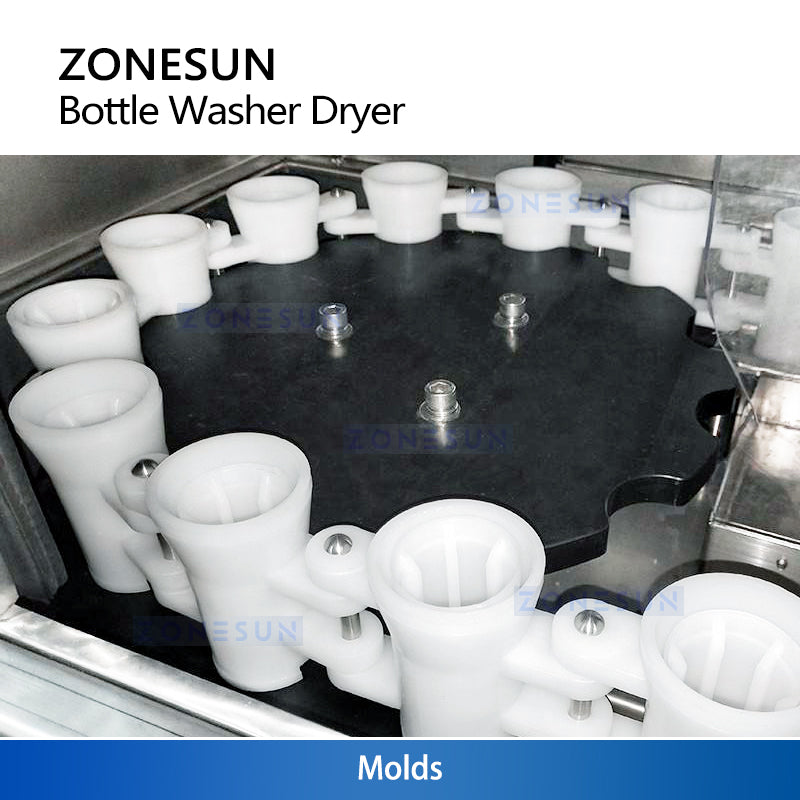

MOLDS
Hold bottles securely for proper alignment and stable cleaning and drying, with interchangeable molds to fit different bottle types.
