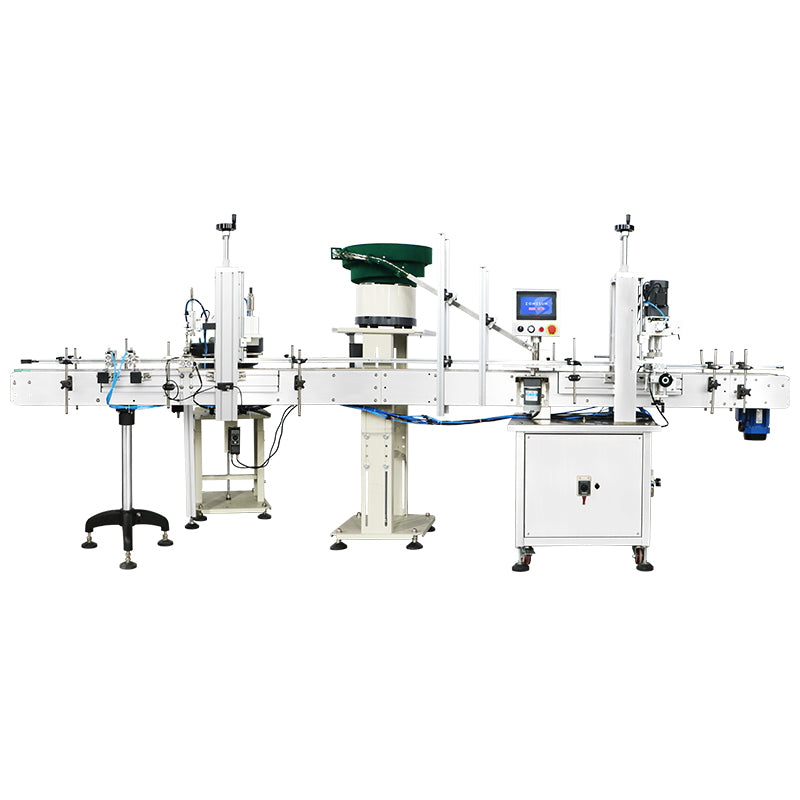

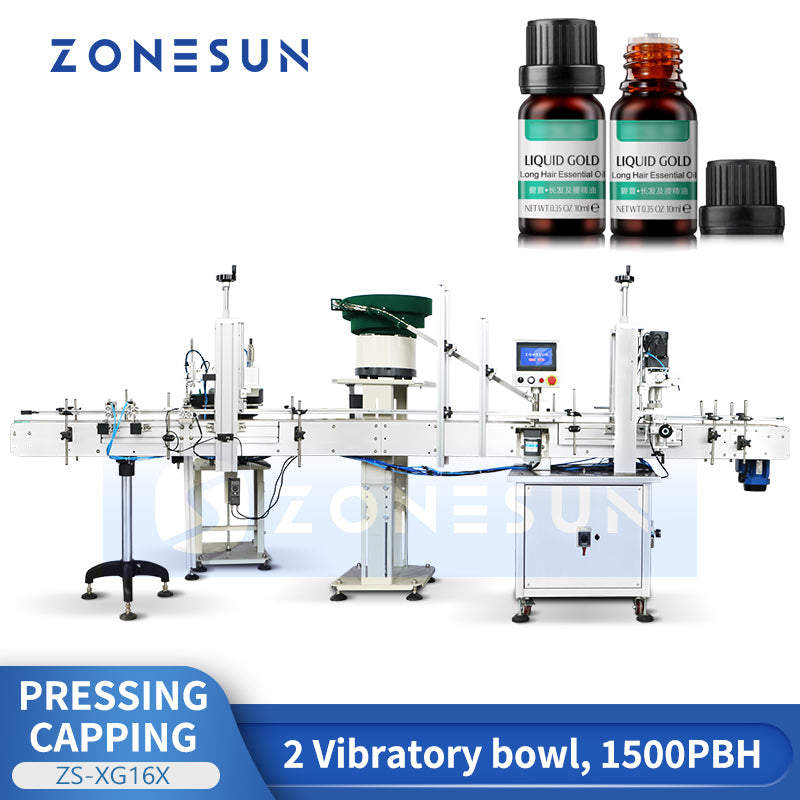

ZONESUN ZS-XG16X Automatic Capping Machine Lid with Inner Plugs Capper

DESCRIPTION

The Zonesun ZS-XG16X Automatic Capping Machine for Bottles with Inner Plugs is a versatile and efficient solution for sealing bottles with inner plugs. This high-quality machine ensures reliable and precise capping, saving time and effort in bottle packaging processes.

Parameter

• Machine model: ZS-XG16X
• Working voltage: 220V/110V 50-60Hz
• Bottle height: 30-300mm
• Cap diameter: 18-70mm
• Bottle diameter: 18-70mm
• Working speed: 10-25 bottles/min (depending on cap size and shape)
• Working pressure: 0.4-0.6MPa
• Size of air compressor connector: OD 8mm
• Package size:
• About 1970 × 510 × 990mm (Stopper Pressing Machine)
• About 2020 × 770 × 1750mm (Screw Capper)
• Gross weight:
• About 104kg (Stopper Pressing Machine)
• About 303kg (Screw Capper)

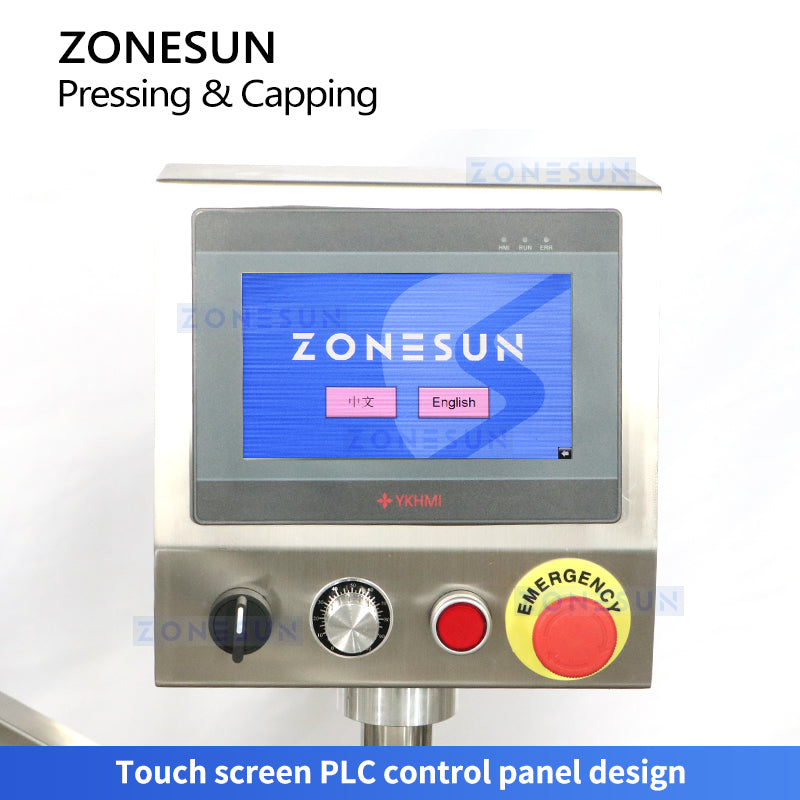

PLC Control

The touchscreen panel provides convenient adjustment of pressing and capping settings.

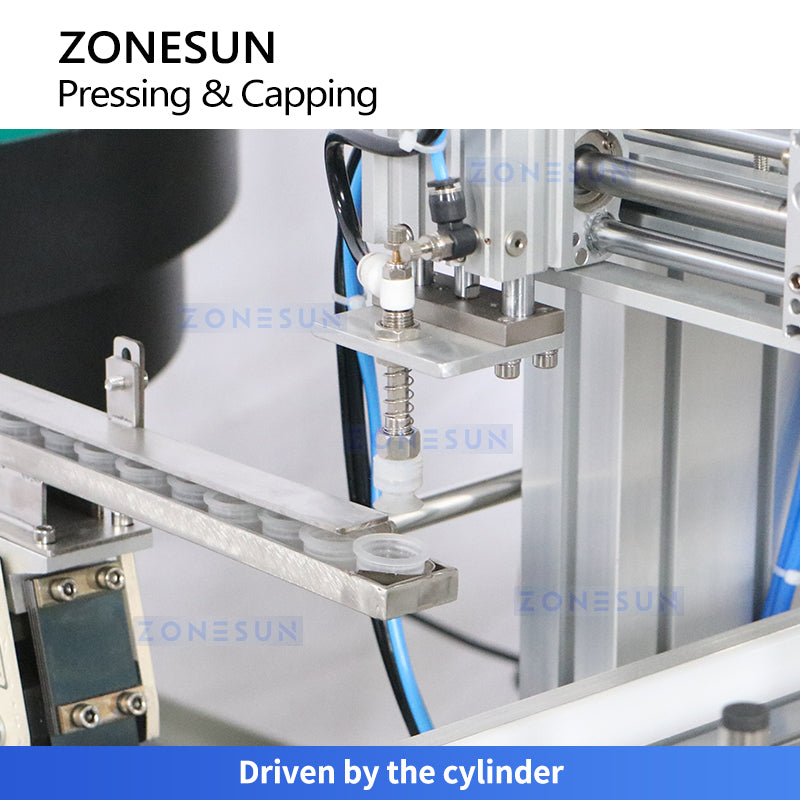

Inner Plug Placement

The pneumatic nozzle positions inner plugs accurately before capping.

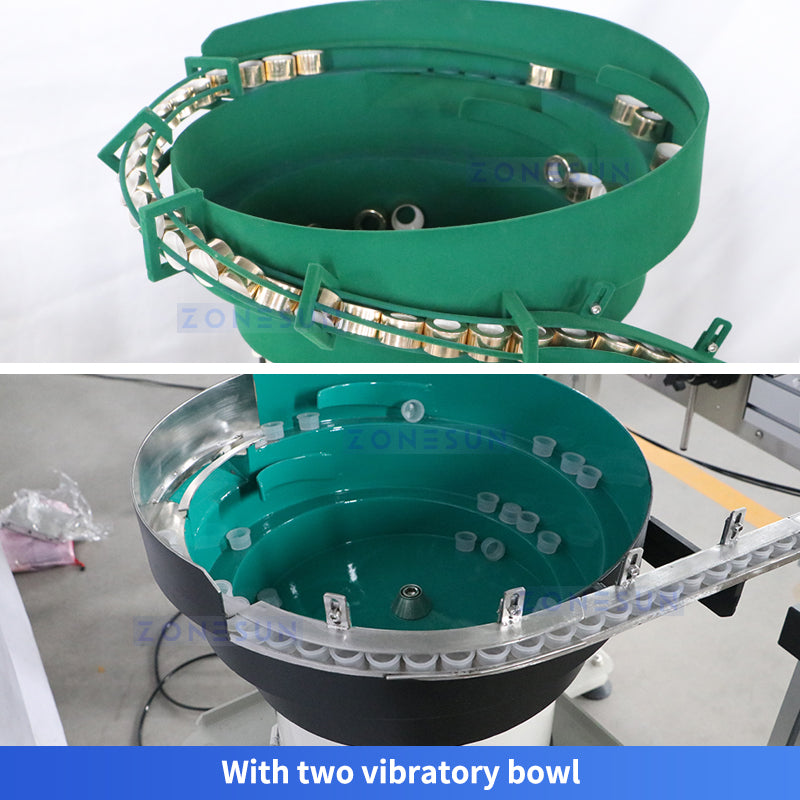

Vibratory Bowl Feeding

The vibratory bowl sorts and feeds compatible plugs or caps automatically.

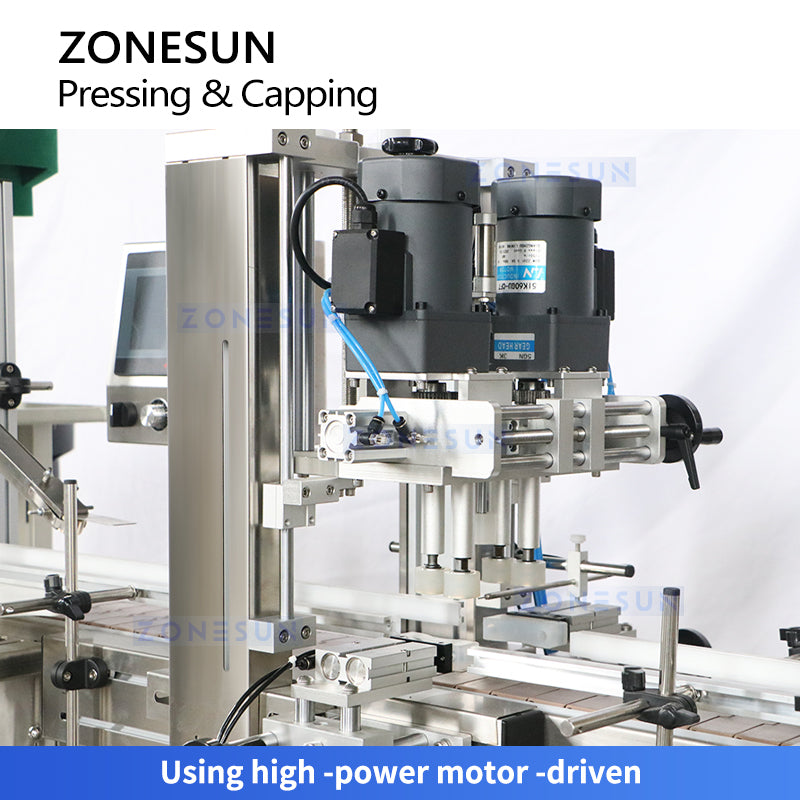

Adjustable Capping Structure

The capping head can be adjusted for compatible bottle heights and cap sizes.

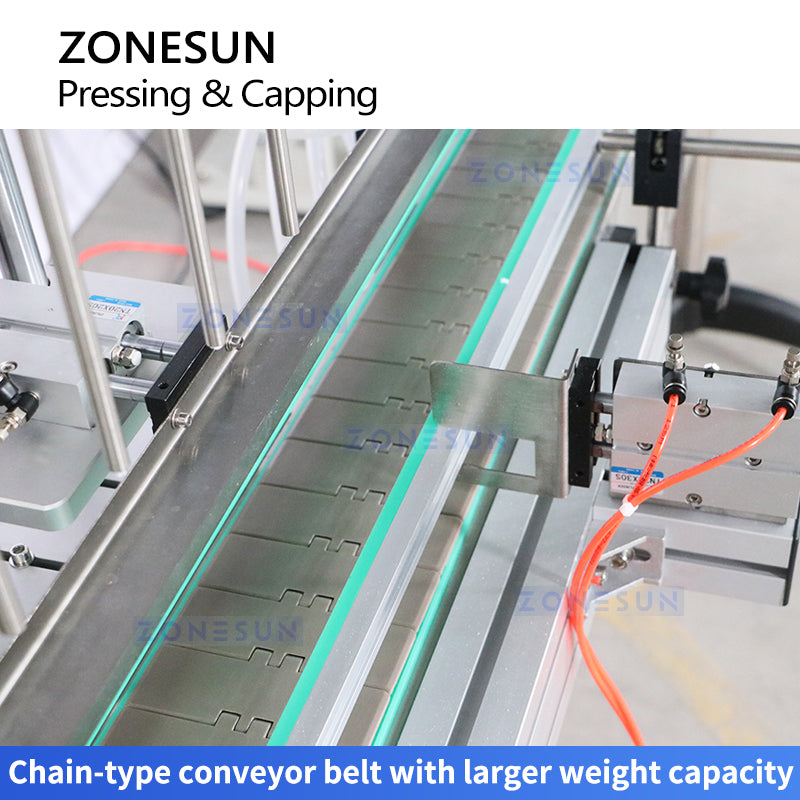

Chain Conveyor

The conveyor transfers bottles steadily through the pressing and capping stations.
