Description

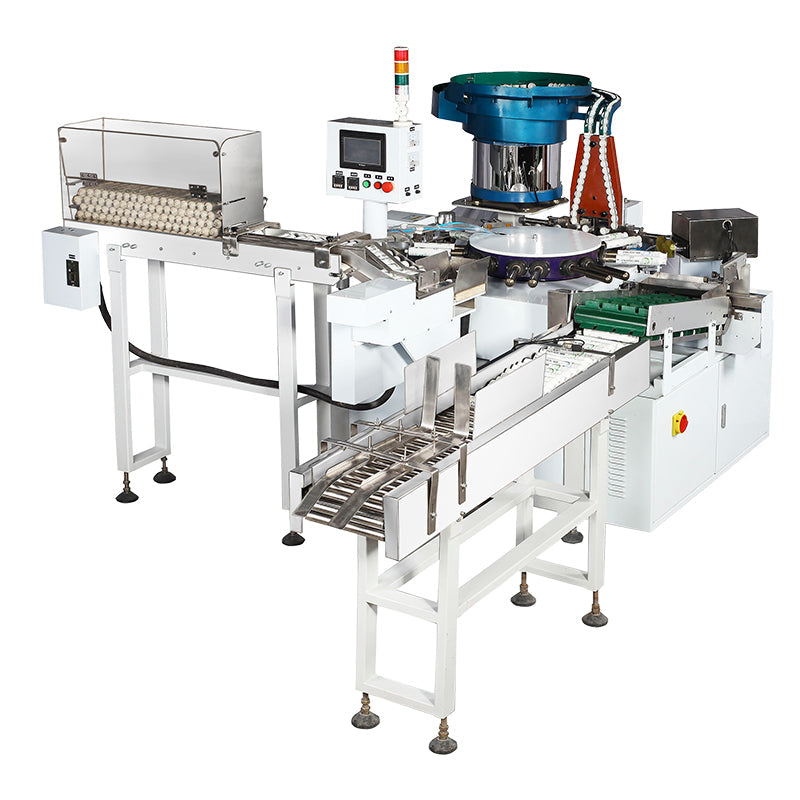

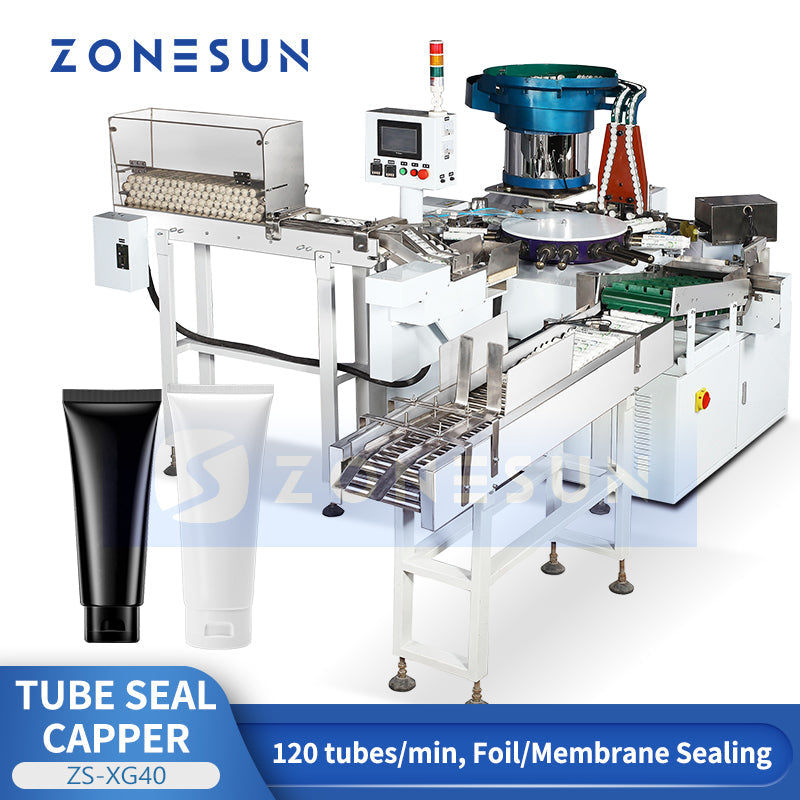

The ZONESUN ZS‑XG40 is a high‑speed automatic rotary tube sealing and capping machine that integrates tube loading, detection, foil/membrane sealing, cap sorting, constant‑torque tightening, and orderly discharge into one compact system, delivering up to 120 tubes per minute. Its precision indexing turret, intelligent “No Tube-No Work” logic, and stable torque control ensure consistent sealing quality across diverse applications, including cosmetic products such as hand creams, facial cleansers, lip gloss, and mascara; pharmaceutical and laboratory items like sampling tubes, centrifuge tubes, reagent vials, and ointment tubes; as well as personal care and small‑volume chemical packaging. The machine supports multiple cap types, making it ideal for multi‑SKU production environments.
Parameter
- Model: ZS‑XG40
- Working Voltage: 380 V, 50–60 Hz (customizable)
- Power: 3.5 kW
- Working Air Pressure: 0.5–0.8 MPa
- Air Consumption: 15 L/min
- Tube Diameter: 16–40 mm
- Max. Speed: 120 tubes/min
- Cutting Types: Fez, flip top, pedestal stand up, fez with puncture top, octagon cap, etc.
- Machine Dimensions: 2650 × 2200 × 1650 mm
- Machine Weight: Around 1200 kg
- Package: Wooden case
CONTROL INTERFACE

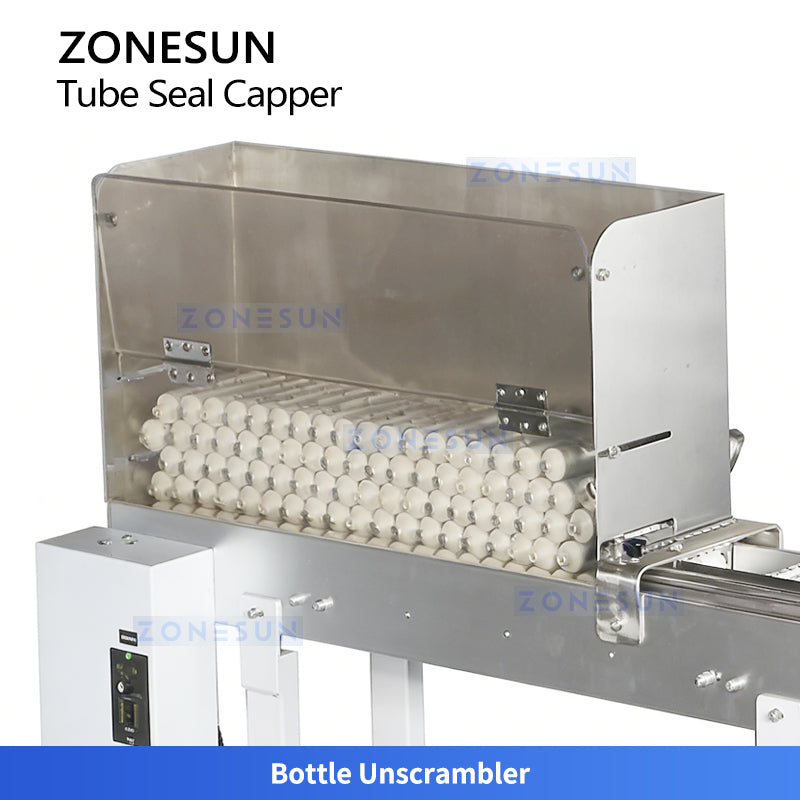

BOTTLE UNSCRAMBLER

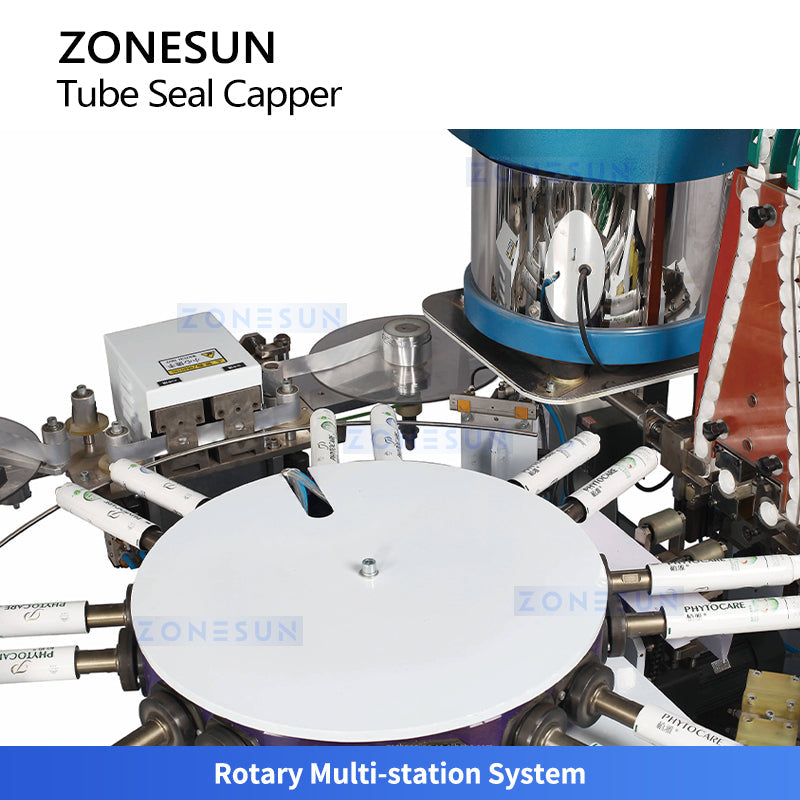

ROTARY MULTI-STATION

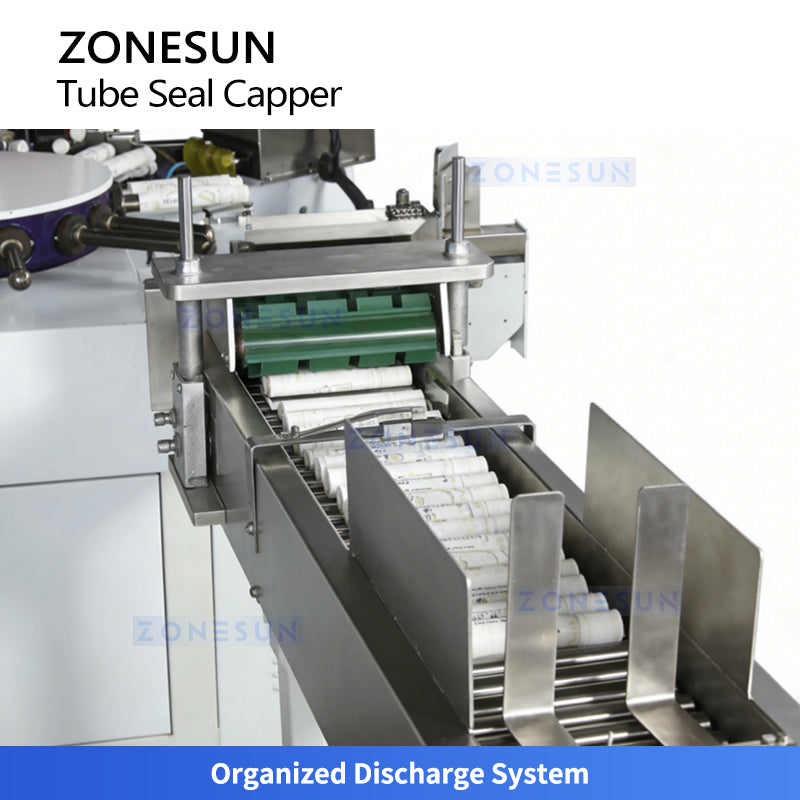

ORGANIZED DISCHARGE
