DESCRIPTION

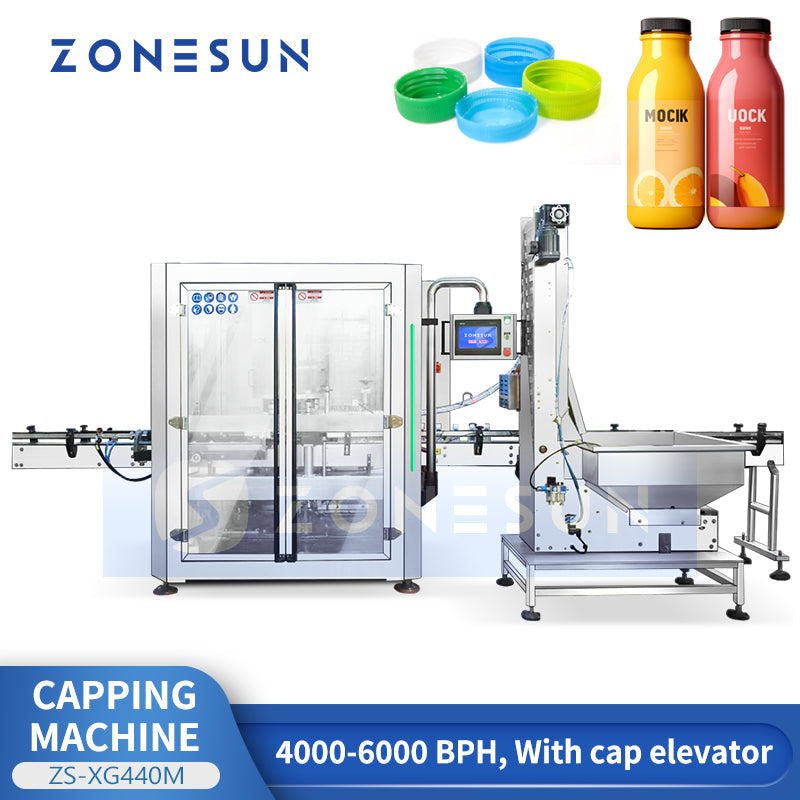

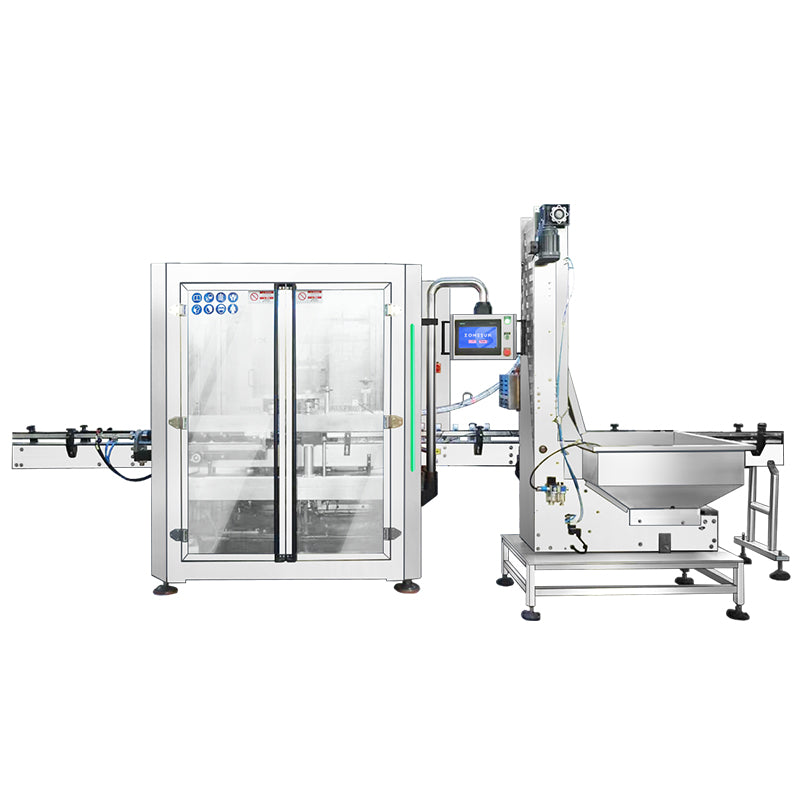

The ZONESUN ZS-XG440M is a fully automatic 8-head screw capping machine designed for high-speed and reliable capping of plastic bottles used in soft drinks, cosmetics, and daily chemical products. It features an automatic cap elevator for continuous cap feeding, adjustable torque control for secure sealing, and a user-friendly interface for simple operation. Built for efficiency, consistency, and easy integration into existing filling lines, this machine ensures smooth performance even during long production runs.
PARAMETER
- Machine Model: ZS-XG440M
- Voltage: 220V/110V 50-60Hz
- Power: 2500W
- Working Speed: About 4000-6000 BPH(depending on bottle and cap size)
- Capping Heads: 8 Heads
- Bottle Height: 30-320 mm
- Bottle Cap Diameter: φ12-16 mm
- Machine Size: About 3000*900*2000 mm/ About 118.1*35.4*78.7 inch
- Machine Weight: About 300 kg

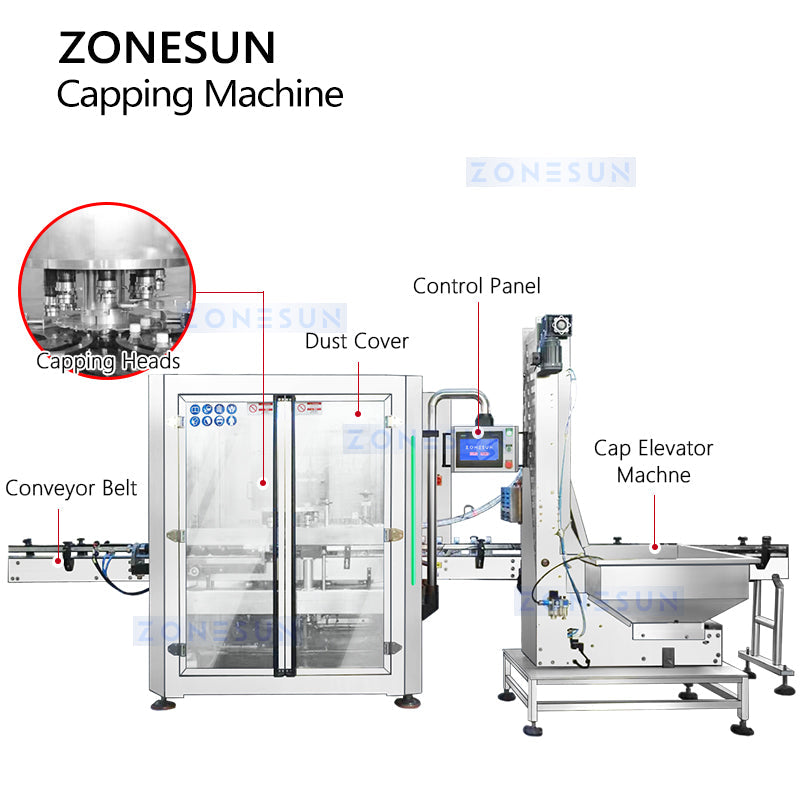

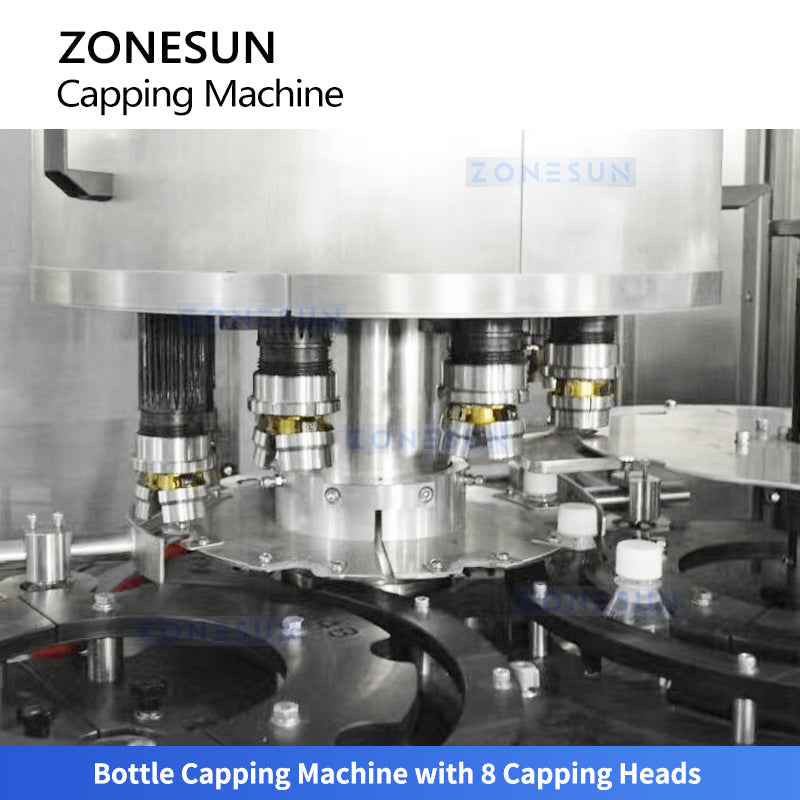

8 CAPPING HEADS
Automatically picks up caps, places them onto bottles, and screws them on. High capping speed, it can cap 4000-6000 BPH.

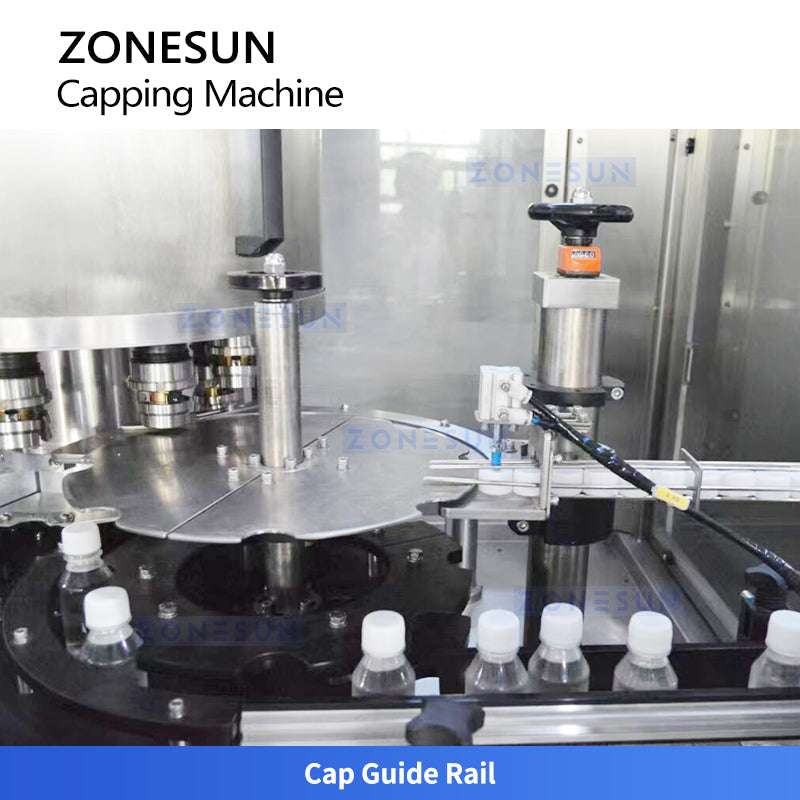

CAP GUIDE RAIL
It can transport caps to capping area automatically. The size of guide rail can be customized.

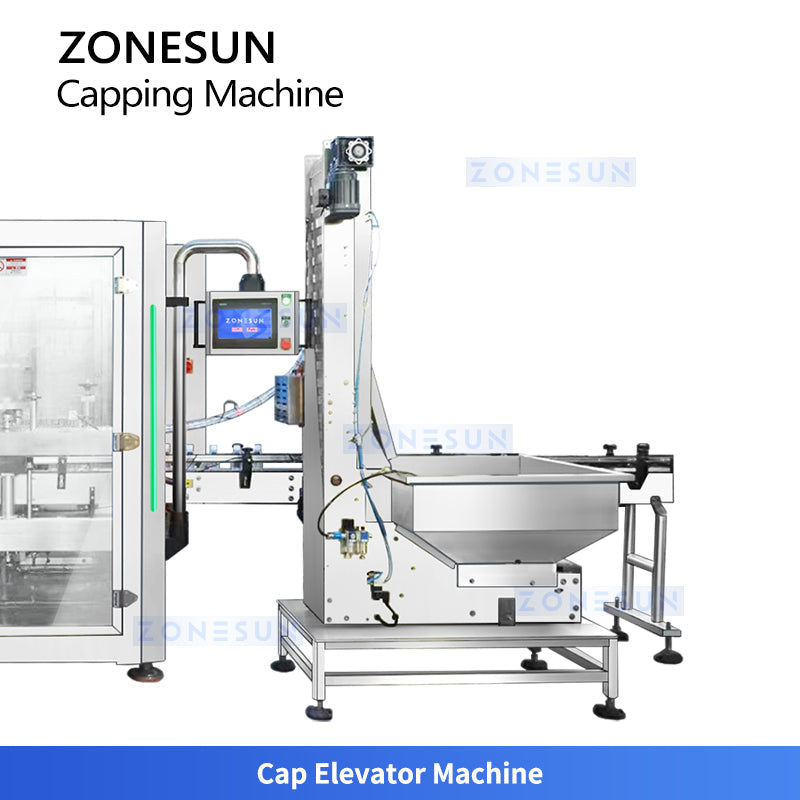

CAP ELEVATOR MACHINE
It can convey caps to guide rail automatically, saving labor. The machine can be customized as your cap size.

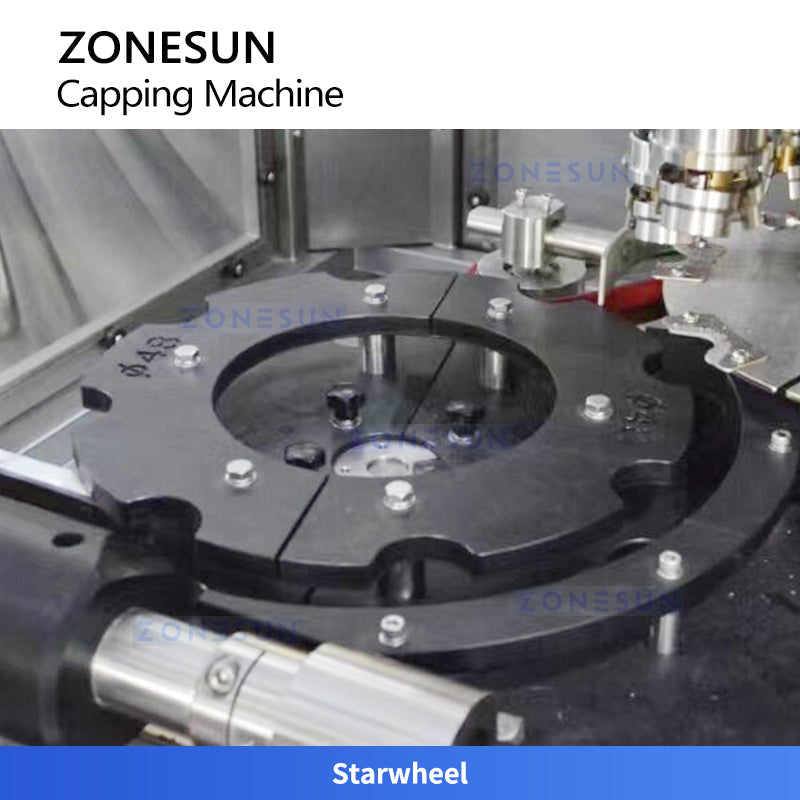

STARWHEEL
It can be customized according to your bottle size.
