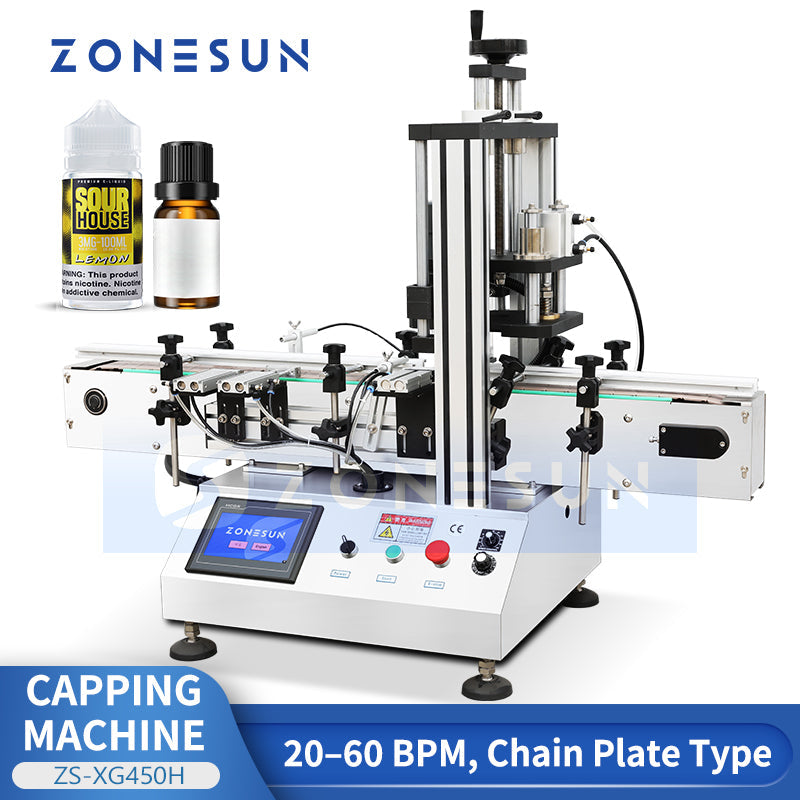

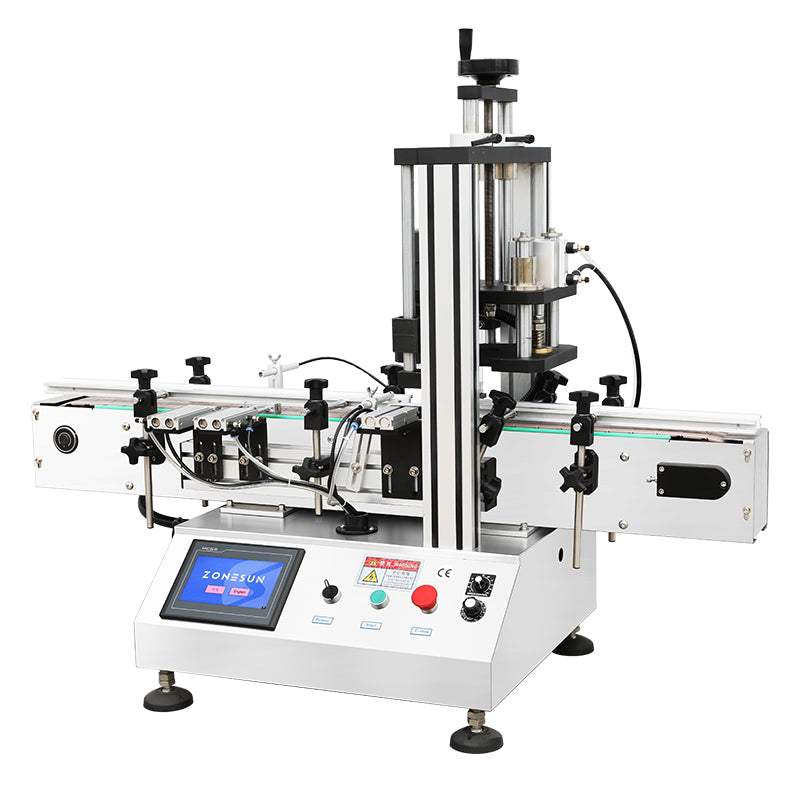

ZONESUN ZS-XG450H Desktop Capping Machine Essential Oil & Dropper Bottle Capper

Description

The ZONESUN ZS-XG450H is a full-automatic desktop capping machine designed with a chain plate conveyor system. Running at 20–60 BPM, it provides stable torque for secure sealing and prevents leakage. With adjustable components such as height knob and bottle slitting cylinders, it adapts to different bottle sizes and ensures smooth workflow. Compact in design yet powerful, it is suitable for pharmaceutical, cosmetic, and beverage industries, and can work individually or be integrated into a complete production line to save labor and improve efficiency.

Parameter

• Model: ZS-XG450H
• Voltage: 110–220 V / 50–60 Hz
• Power Consumption: 500 W
• Conveyor Belt Linear Speed: 0–0.7 m/min
• Production Speed: 20–60 bottles/min
• Capping Torque: 3–8 N·m
• Suitable Bottle Height: 50–190 mm
• Suitable Bottle Diameter: 30–100 mm (customizable)
• Machine Dimensions (L×W×H): 1300 × 620 × 950 mm

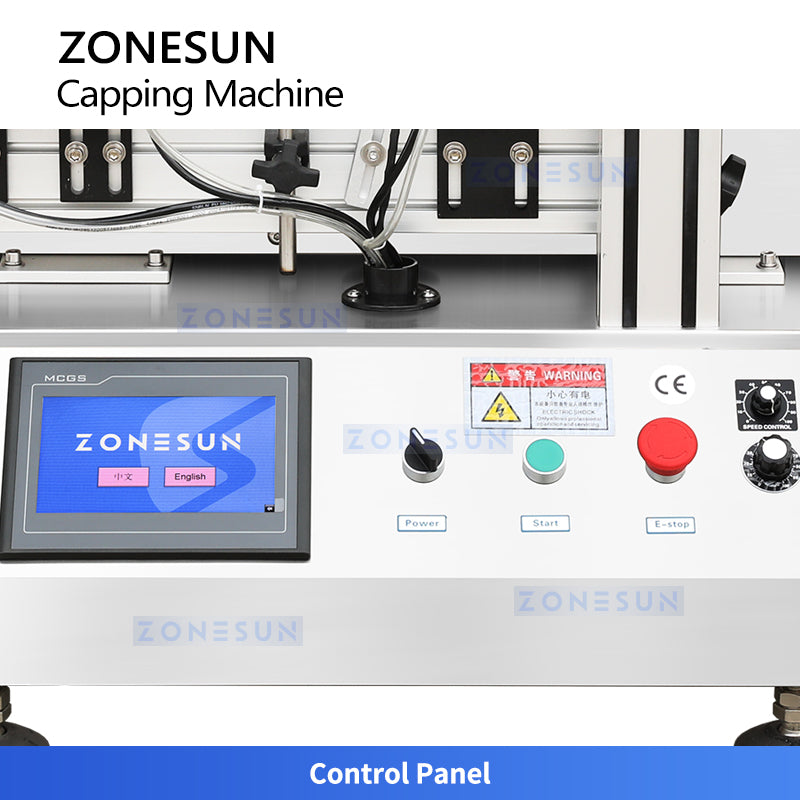

CONTROL PANEL

Sets and adjusts working parameters for automated operation, providing easy interface for monitoring and control.

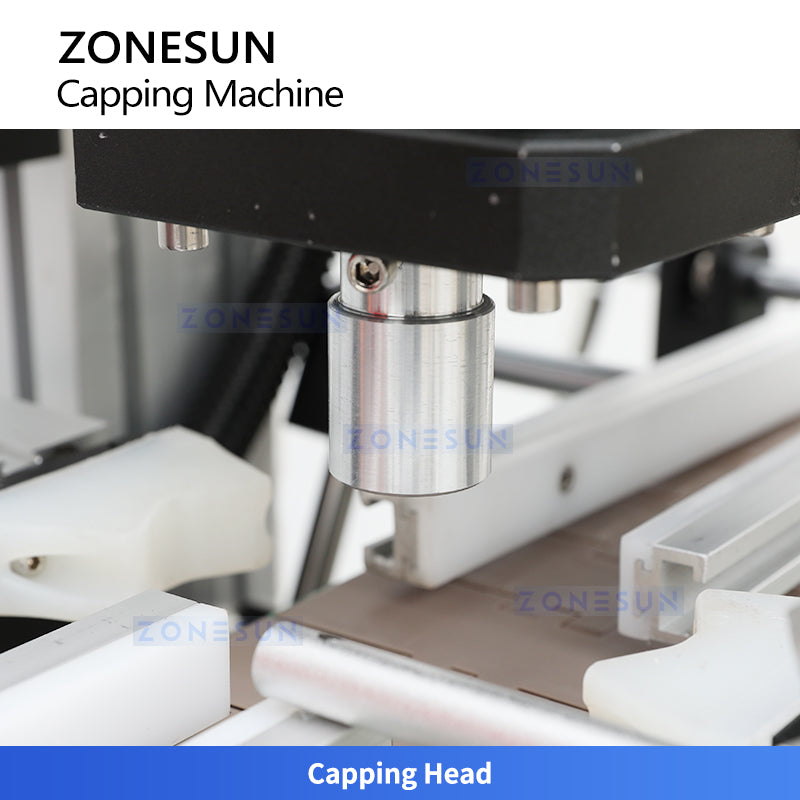

CAPPING HEAD

Tightens caps securely for proper sealing, providing stable torque to avoid leakage.

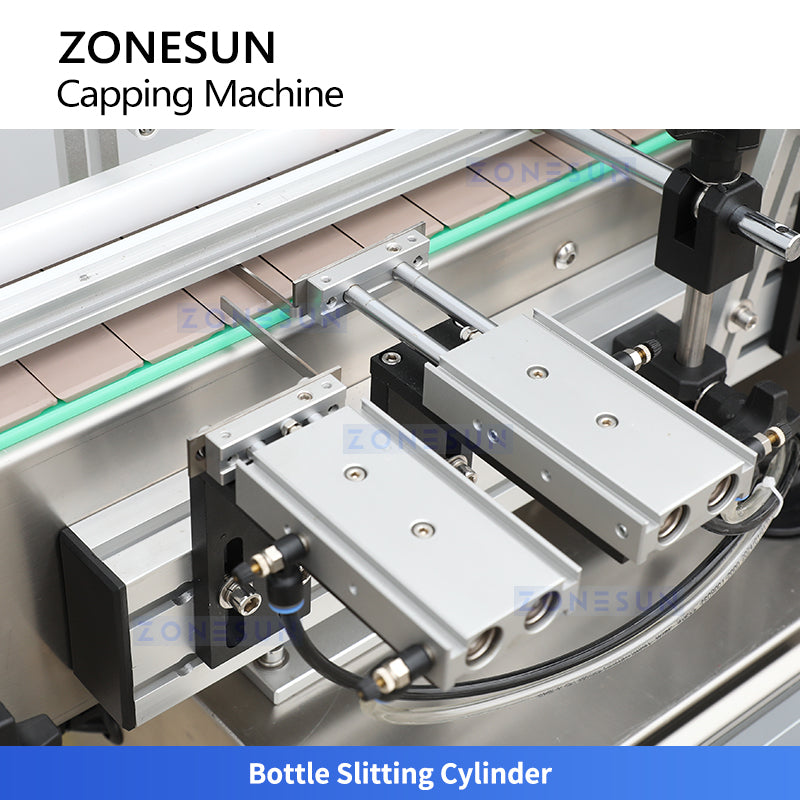

SLITTING CYLINDER

Separates bottles for single entry into capping station, with adjustable spacing between separators according to bottle size.

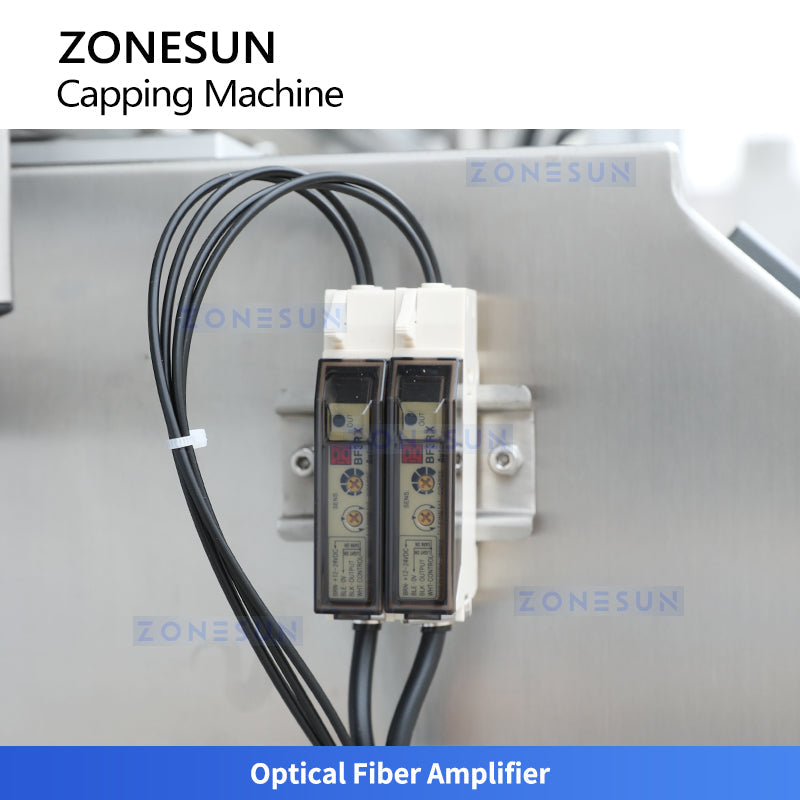

OPTICAL FIBER

Amplifies fiber signal to improve detection sensitivity, enhancing reliability of sensor performance.

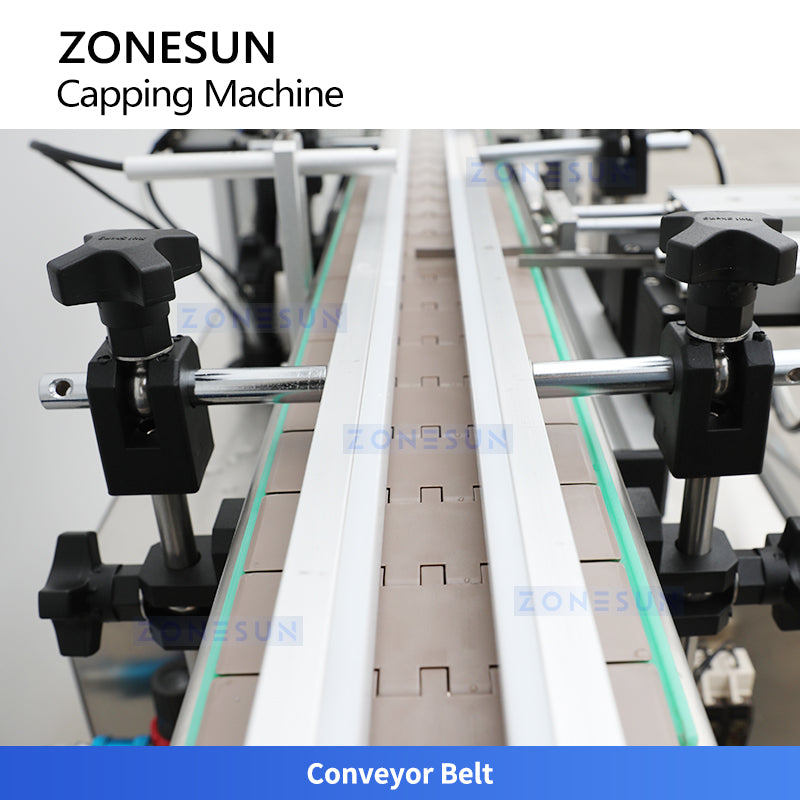

CONVEYOR BELT

Transfers bottles to capping station for continuous production, maintaining steady flow and efficiency.

SENSOR

Detects bottle position for precise capping, guaranteeing accuracy and reducing error rate.

ADJUSTMENT KNOB

Adjusts capping head height to fit different bottle sizes, ensuring compatibility with various containers.
