Description

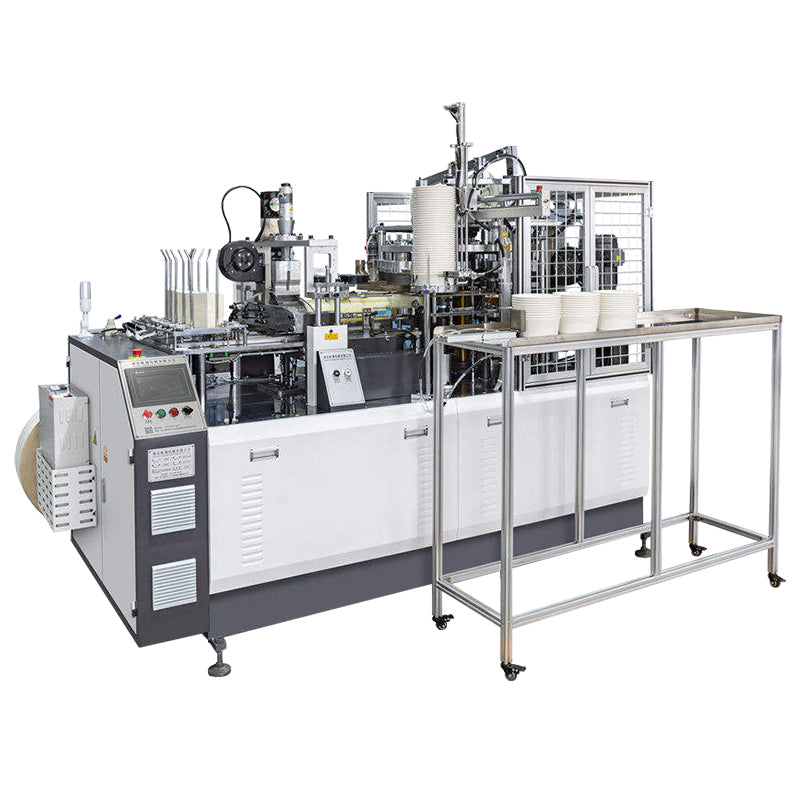

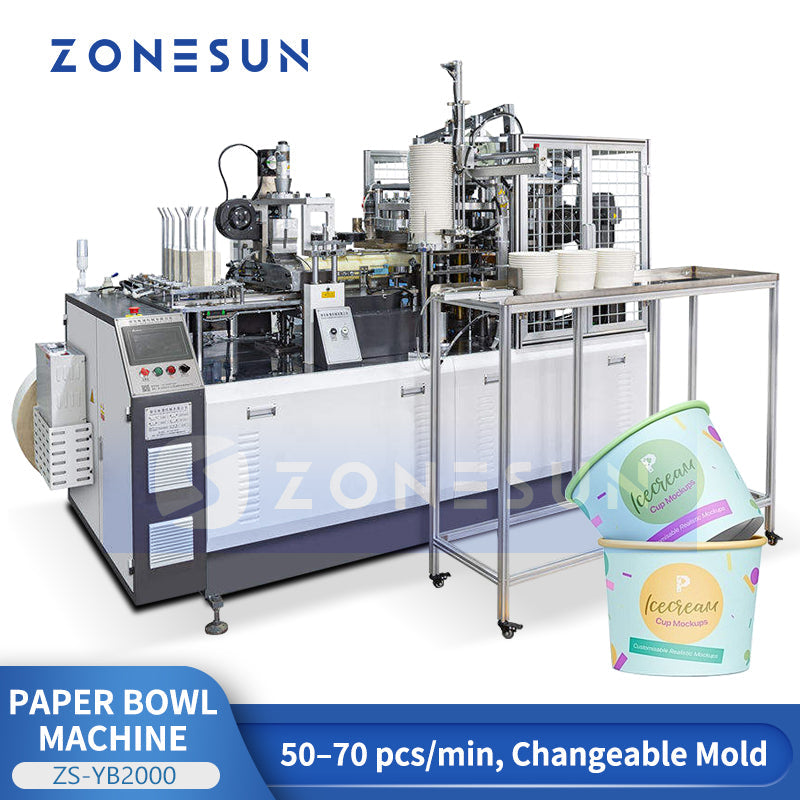

The ZONESUN ZS-YB2000 Automatic Paper Bowl Box Forming Machine runs at 50–70 pcs per minute with changeable molds for 10–100 oz bowls. It is widely used in fast food chains for noodles, rice, and soups, supermarkets for instant meals and snacks, catering services for salads and desserts, and take-out businesses for eco-friendly packaging. Hotels and restaurants use it for hygienic serving, while events and parties benefit from themed disposable bowls. It also supports custom printing for FMCG packaging such as yogurt, popcorn, and instant noodles, ensuring stable performance and low failure rate.
Parameter
- Model: ZS-YB2000
- Paper Bowl Range: 10 oz – 100 oz (300–3000 ml), mold changeable
-
Bowl Specifications:
- Top Diameter: 150–185 mm
- Height: 45–110 mm
- Bottom Diameter: 130–165 mm
- Paper Material Specification: 150–350 GSM single/double PE coated paper
- Production Capacity: 50–70 pcs/min
- Voltage: 220V / 380V, 50Hz, 3-phase
- Average Power Consumption: 12 kW
-
Air Supply Requirement:
- Air Pressure: 0.4 MPa
- Air Output: 0.6 m³/min (air compressor required)
- Total Weight: 3000 kg
- Machine Dimensions (L×W×H): 2550 × 1700 × 2130 mm

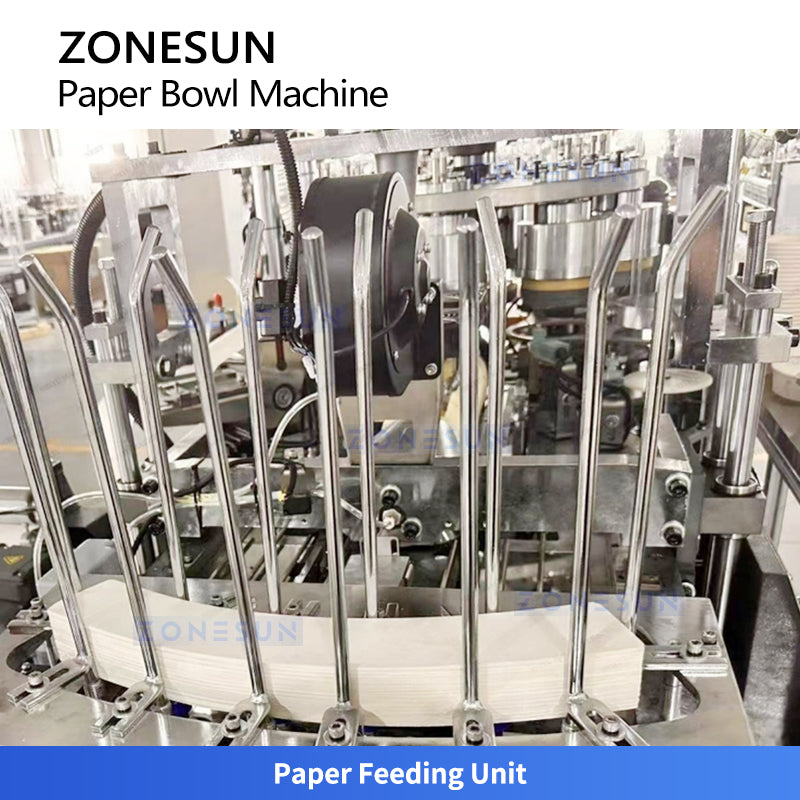

PAPER FEEDING
Feeds stacked paper blanks, aligns precisely, and transfers smoothly into forming zone for stable production.

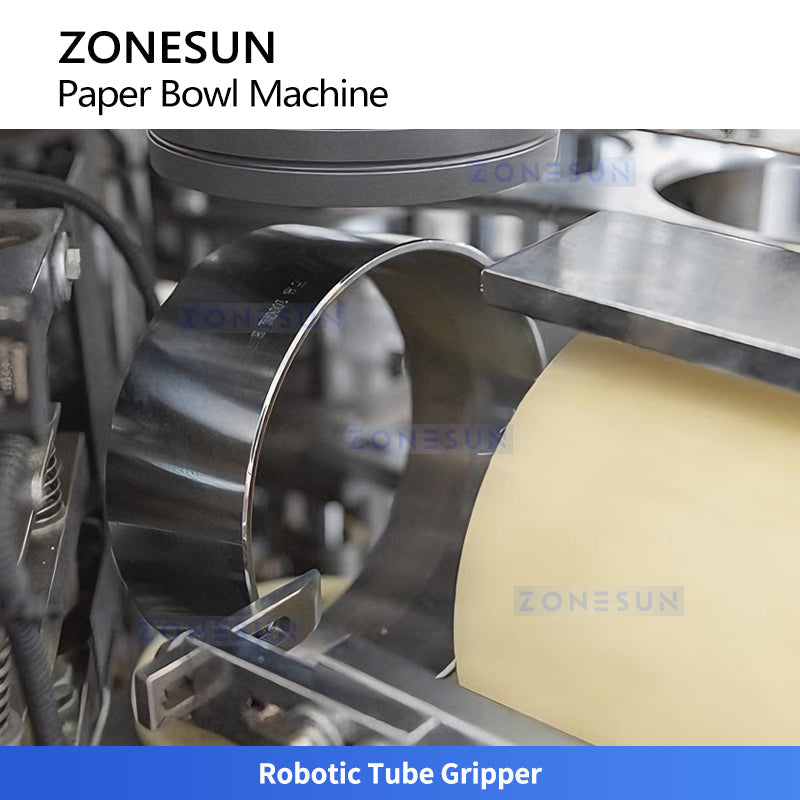

ROBOTIC TUBE GRIPPER
Grips and transfers paper bowls between stations, ensuring accurate positioning and smooth handling during forming.

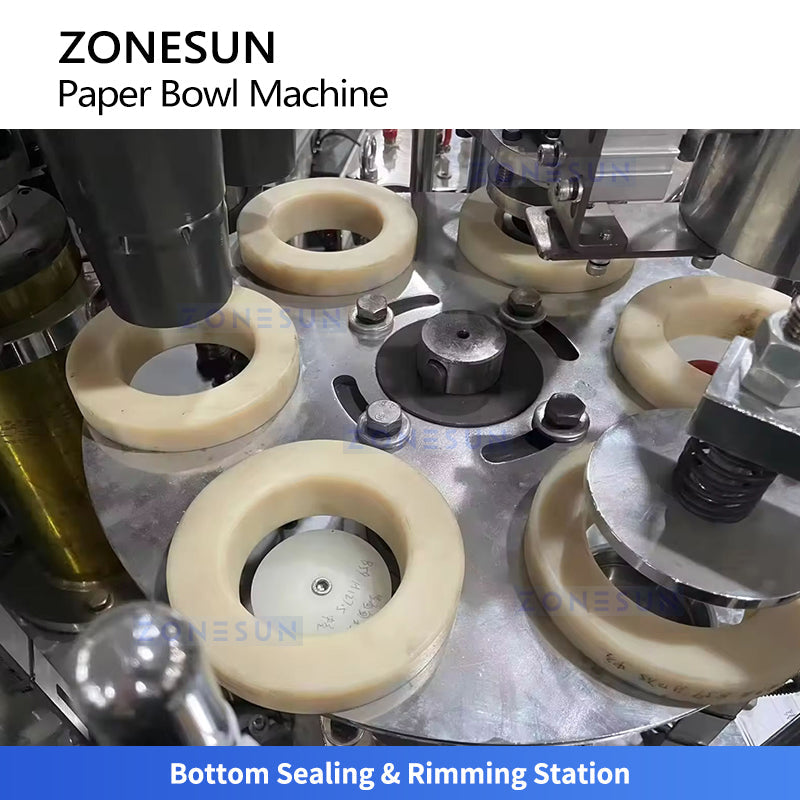

SEALING & RIMMING
Supplies bottom blanks to formed bowls, seals them tightly, and curls the rim for strength and smooth edges.

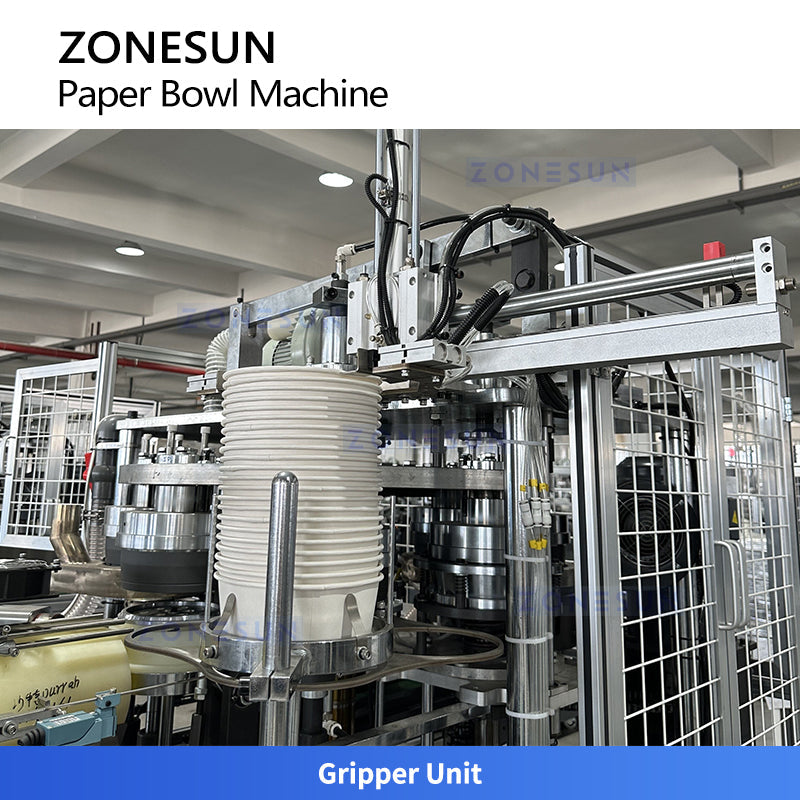

GRIPPER UNIT
Grips finished paper bowls with mechanical clamps and transfers them out of forming station for collection.

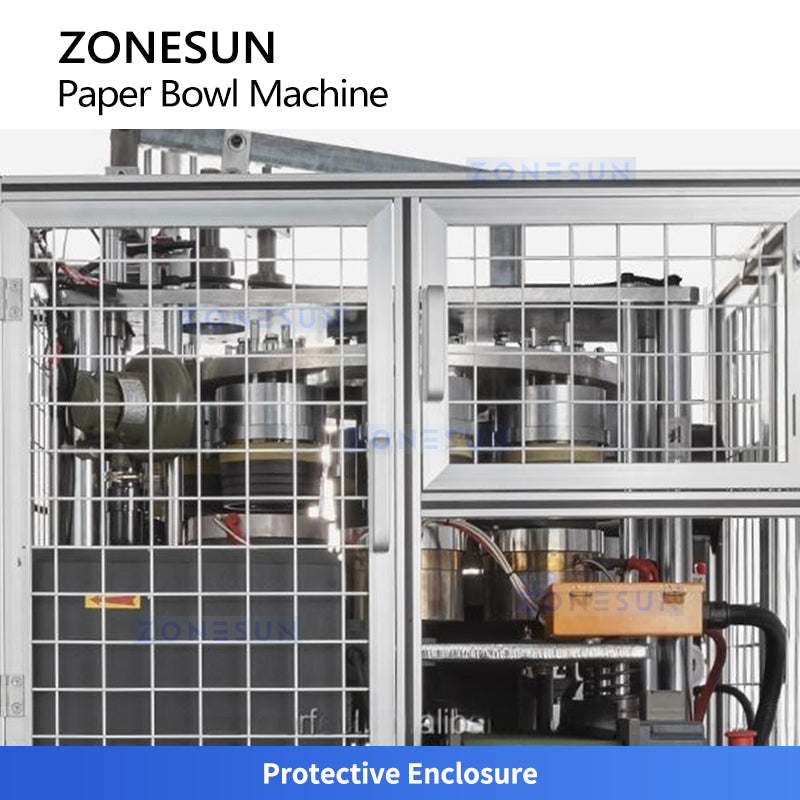

PROTECTIVE ENCLOSURE
Isolates high-speed moving parts to prevent pinching injuries and accidental contact.
LUBRICATION PUMP
Supplies lubricant to moving components through manual activation, reducing friction, wear, and mechanical failure.
CONVEYOR BELT
Transports waste paper scraps and defective bowls from forming stations to designated collection area for disposal.
