DESCRIPTION

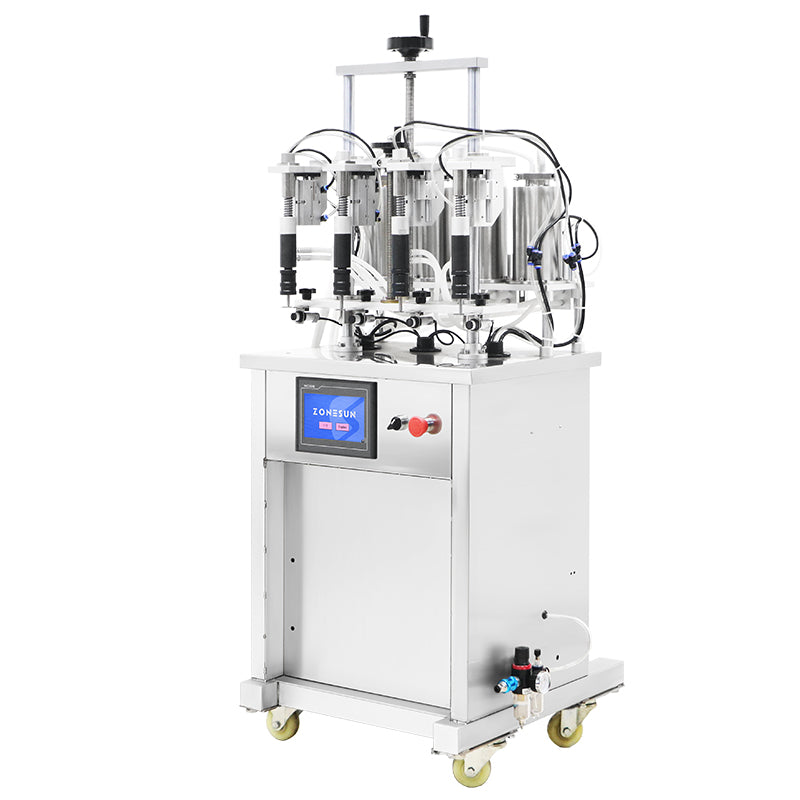

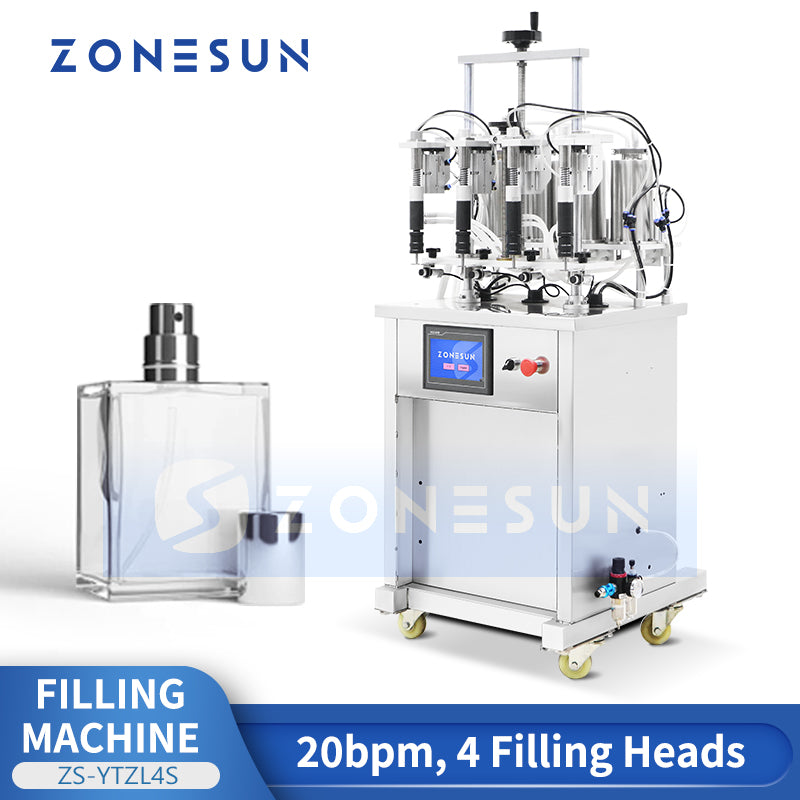

Elevate your perfume bottling process with our advanced semi-automatic vacuum filling machine. Designed for precision and efficiency, this vertical machine ensures spill-free filling of glass bottles using a vacuum backflow system. Reduce waste, minimize mess, and maintain the highest quality standards. Perfect for both small-batch production and scaling up your business, this machine offers a balance of automation and hands-on control. Its user-friendly design makes operation simple, while its robust construction guarantees long-lasting performance. Increase your throughput and maintain consistent fill levels, ensuring a professional finish for every bottle.
TECHNICAL SPECIFICATIONS
- Model: ZS-YTZL4S
- Voltage: 4/N AC220V
- Power: 0.75kW
- Working Capacity: 10–20 BPM
- Adjustable Liquid Level (from bottle mouth): <27mm
- Bottle Height: Unlimited (customizable)
- Bottle Diameter: Unlimited (customizable)
- Bottle Opening Diameter: <24mm
- Filling Volume: 5–500ml
- Machine Size:
- Metric: Approx. 750 × 610 × 1560mm
- Imperial: Approx. 29.5 × 24 × 61.4in

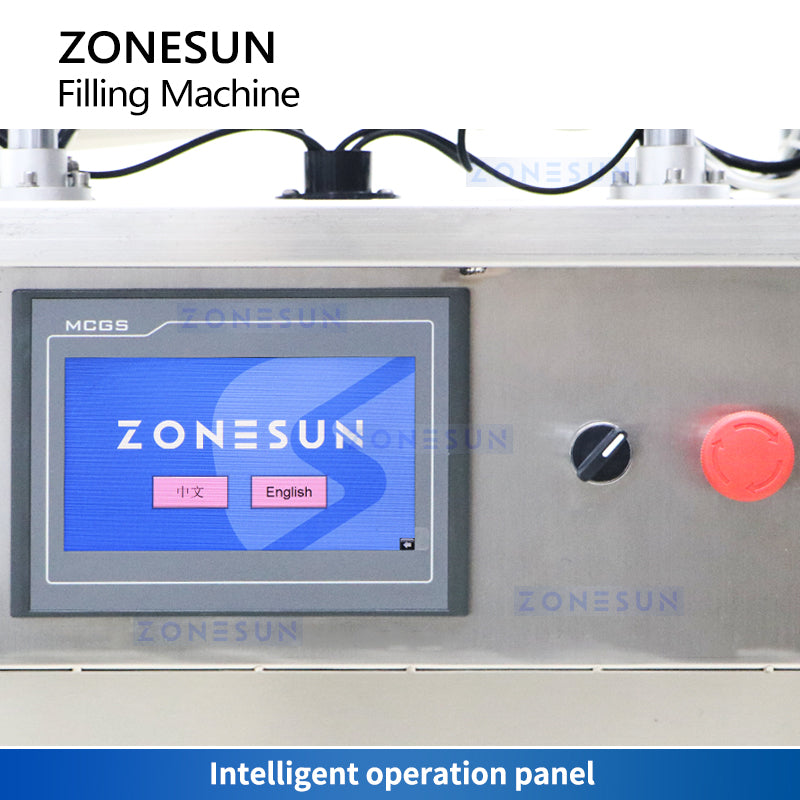

Control Buttons
Simple controls make machine operation and filling-volume adjustment convenient.

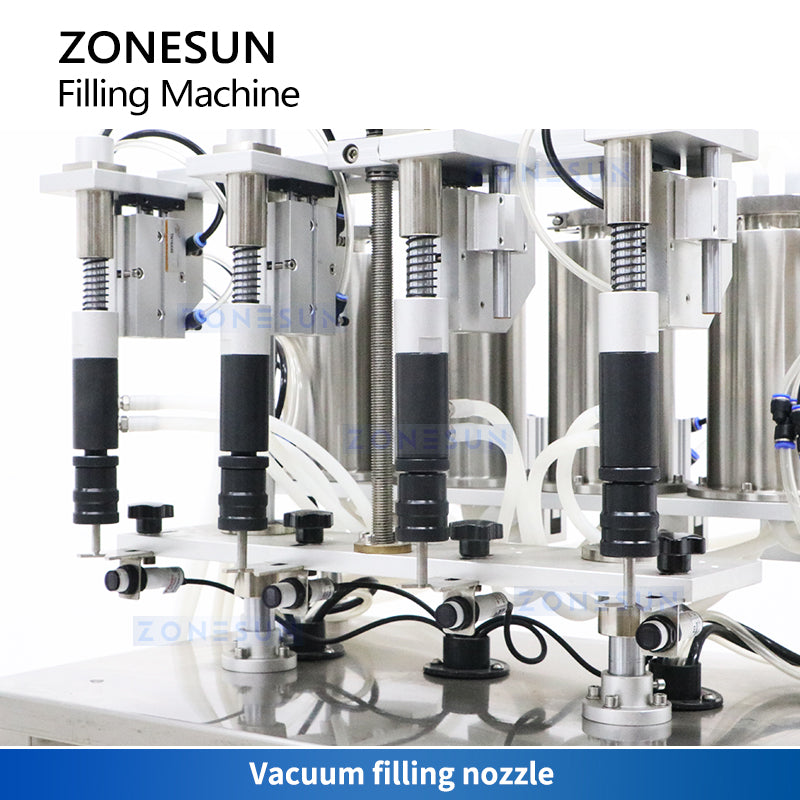

Vacuum Filling
The filling nozzles allow excess liquid to overflow back, helping maintain consistent filling levels.

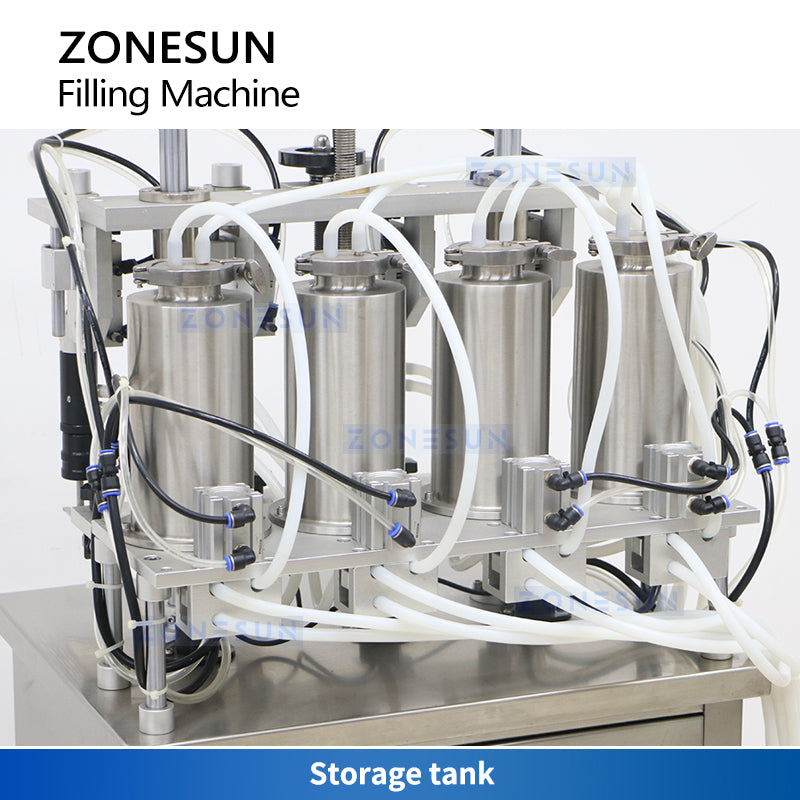

Storage Tank
Collects returned liquid to support consistent filling accuracy.

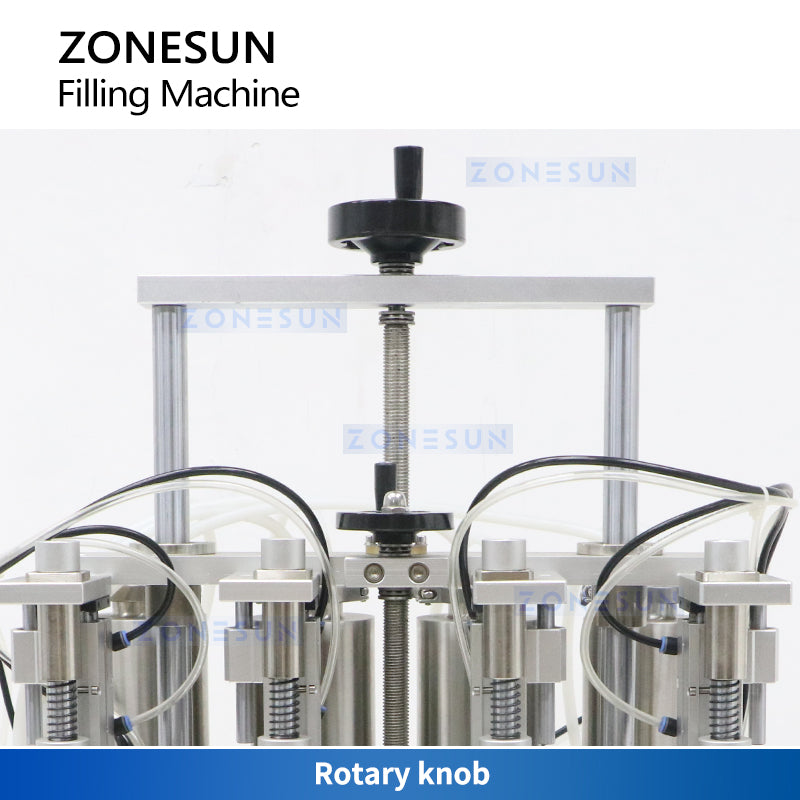

Rotary Knob
Allows the working height to be adjusted for different bottle sizes.

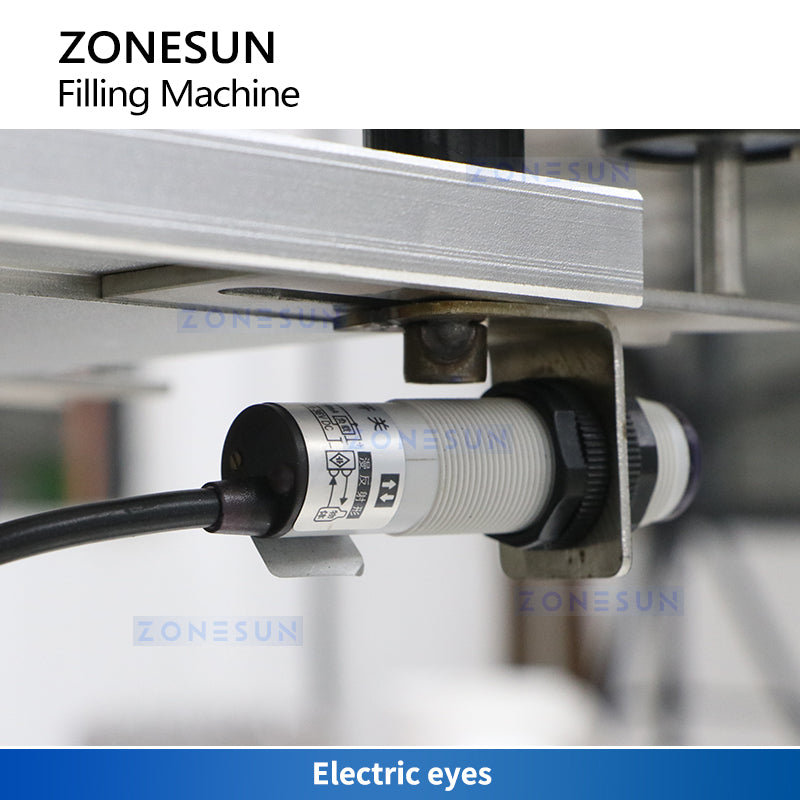

Electric Eye
Starts the filling process automatically after detecting a bottle.
Electric Box
The electrical circuits are arranged neatly to support reliable automation and convenient maintenance.
