Description

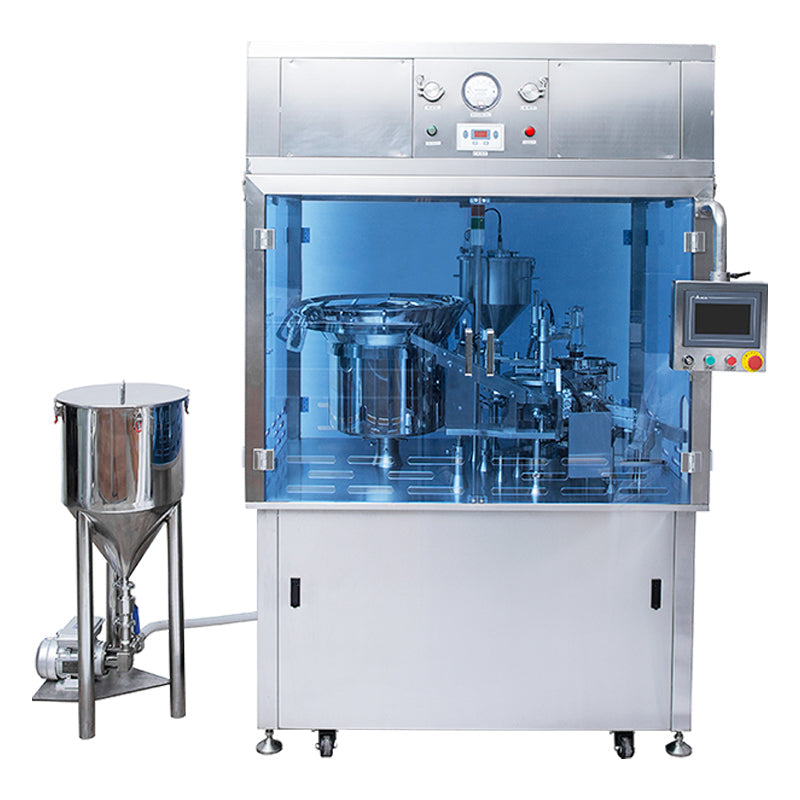

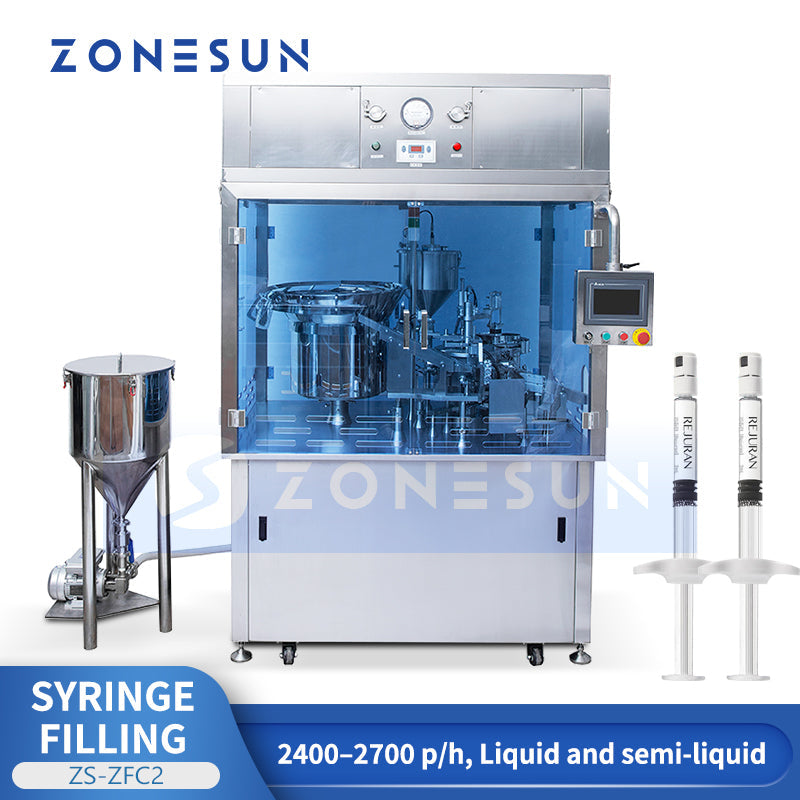

The ZONESUN ZS-ZFC2 Automatic Syringe Filling and Capping Machine is specially designed for the sterile filling and sealing of plastic syringes. Operating at 2400–2700 pieces per hour, it handles liquid and semi-liquid materials with high precision and efficiency. The system integrates syringe sorting, accurate top-down filling, secure capping, and clean output in one streamlined process. Built for stable performance and easy operation, it features intelligent detection devices that ensure a high degree of automation, reliable productivity, and convenient maintenance, making it an ideal solution for modern pharmaceutical packaging lines.
Parameter
- Model: ZS-ZFC2
- Applicable Materials: Liquid and semi-liquid
- Applicable Filling Volume: 0.5–80 ml
- Filling Accuracy: ≤ ±1–2%
- Number of Filling Nozzles: 1 nozzle
- Production Capacity: 2400–2700 pieces/hour
- Total Power: 3 kW
- Voltage: 380V / 220V, 50–60 Hz
- Compressed Air Requirement: 0.55–0.75 MPa, 15 L/s
- Machine Dimensions (L×W×H): 1230 × 850 × 1800 mm
- Equipment Weight: 500 kg

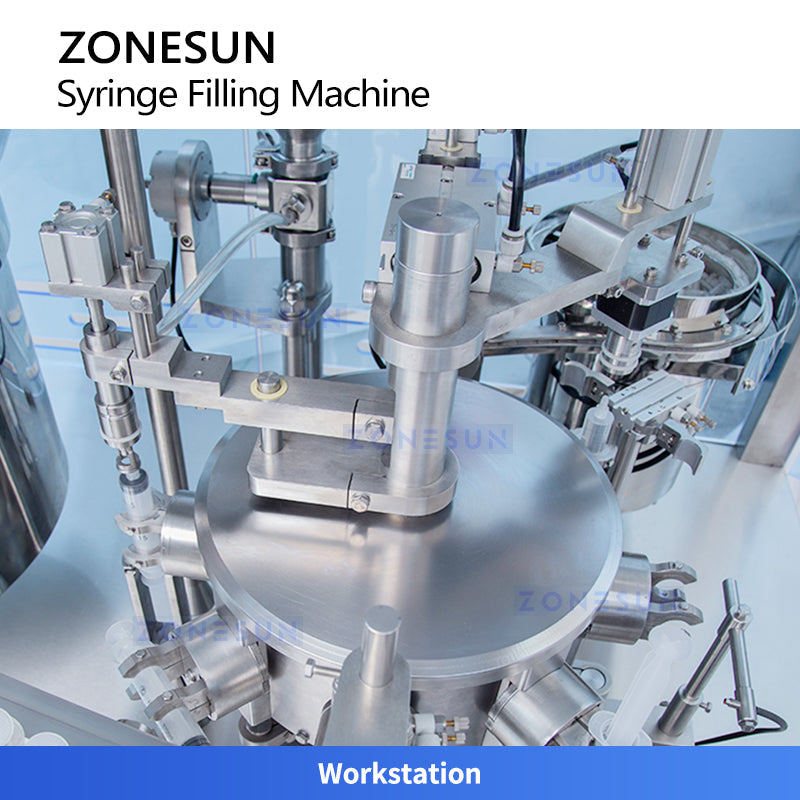

WORKSTATION
Performs syringe loading, precise liquid filling, secure capping, and guided output for automated pharmaceutical packaging.

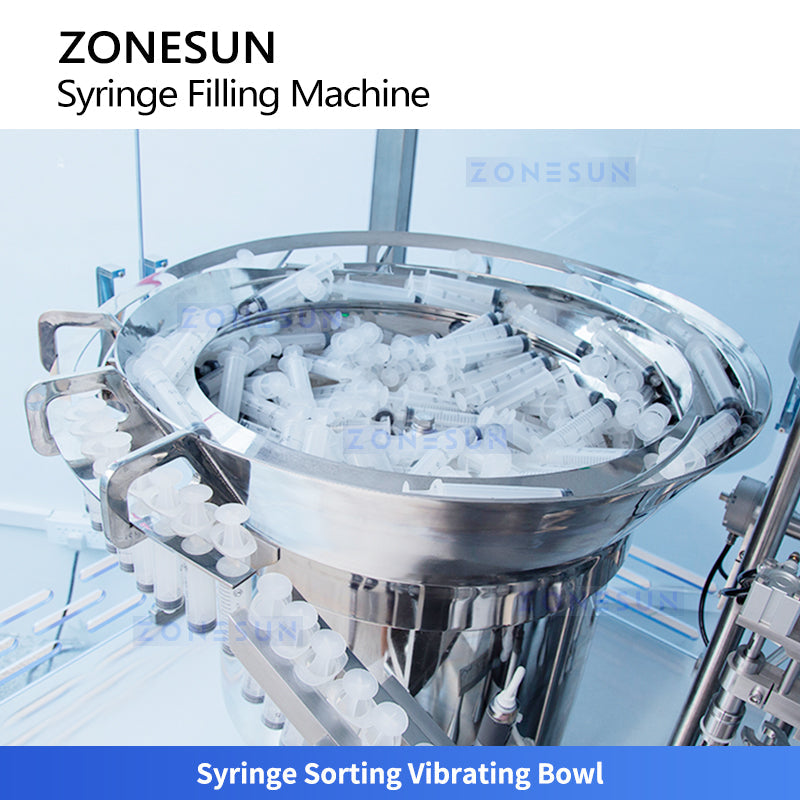

SYRINGE VIBRATING BOWL
Sorts and aligns scattered syringes via vibration and guided tracks, then feeds them individually to the workstation.

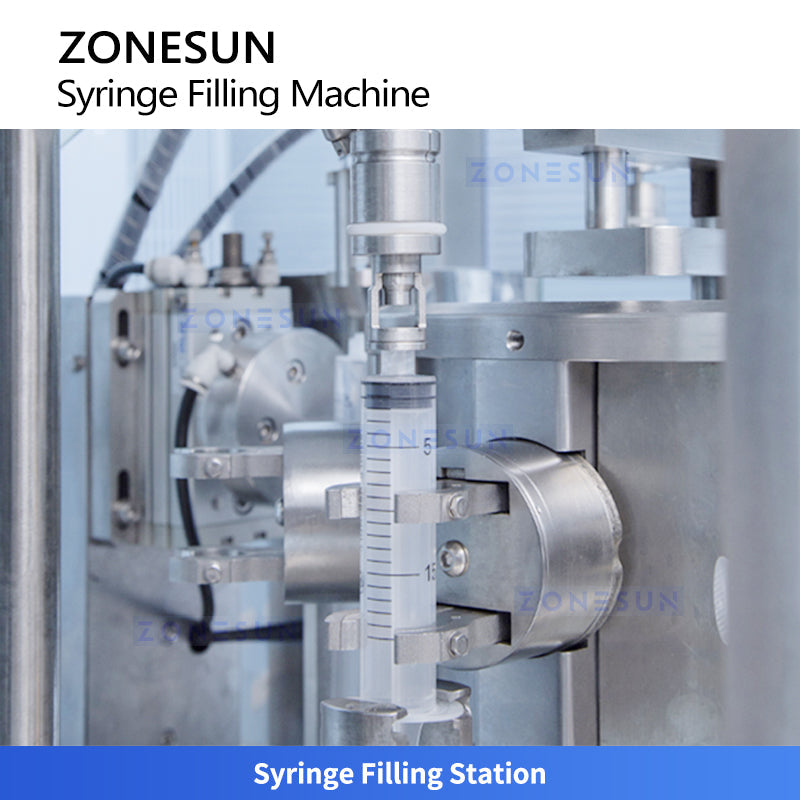

SYRINGE FILLING
Automatically fills syringes from top to bottom with precise dosage control and hygienic operation.

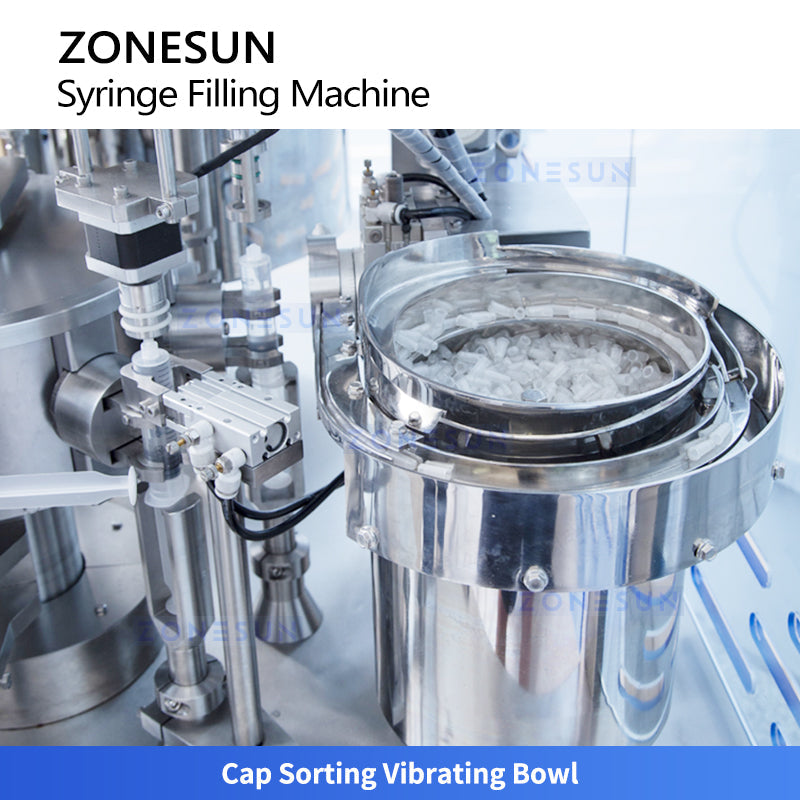

CAP SORTING VIBRATING
Automatically sorts and feeds syringe caps via vibration and guided tracks, customizable for different syringe sizes.

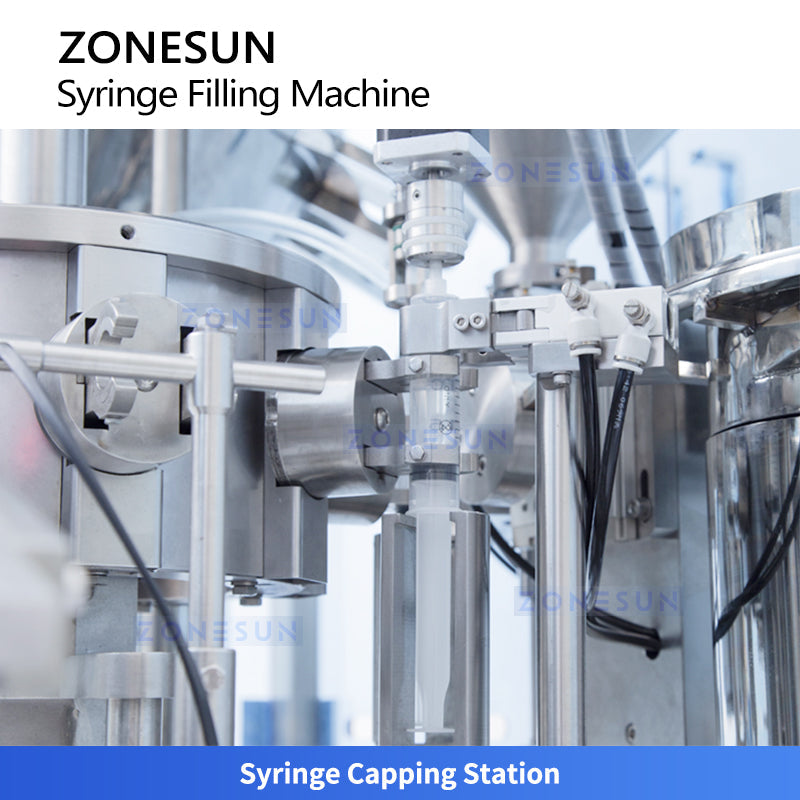

SYRINGE CAPPING
Automatically places and secures caps onto filled syringes, ensuring tight sealing and hygienic packaging.
OUTPUT STATION
Automatically transfers filled and sealed syringes to the collection area, ensuring clean and orderly output.
