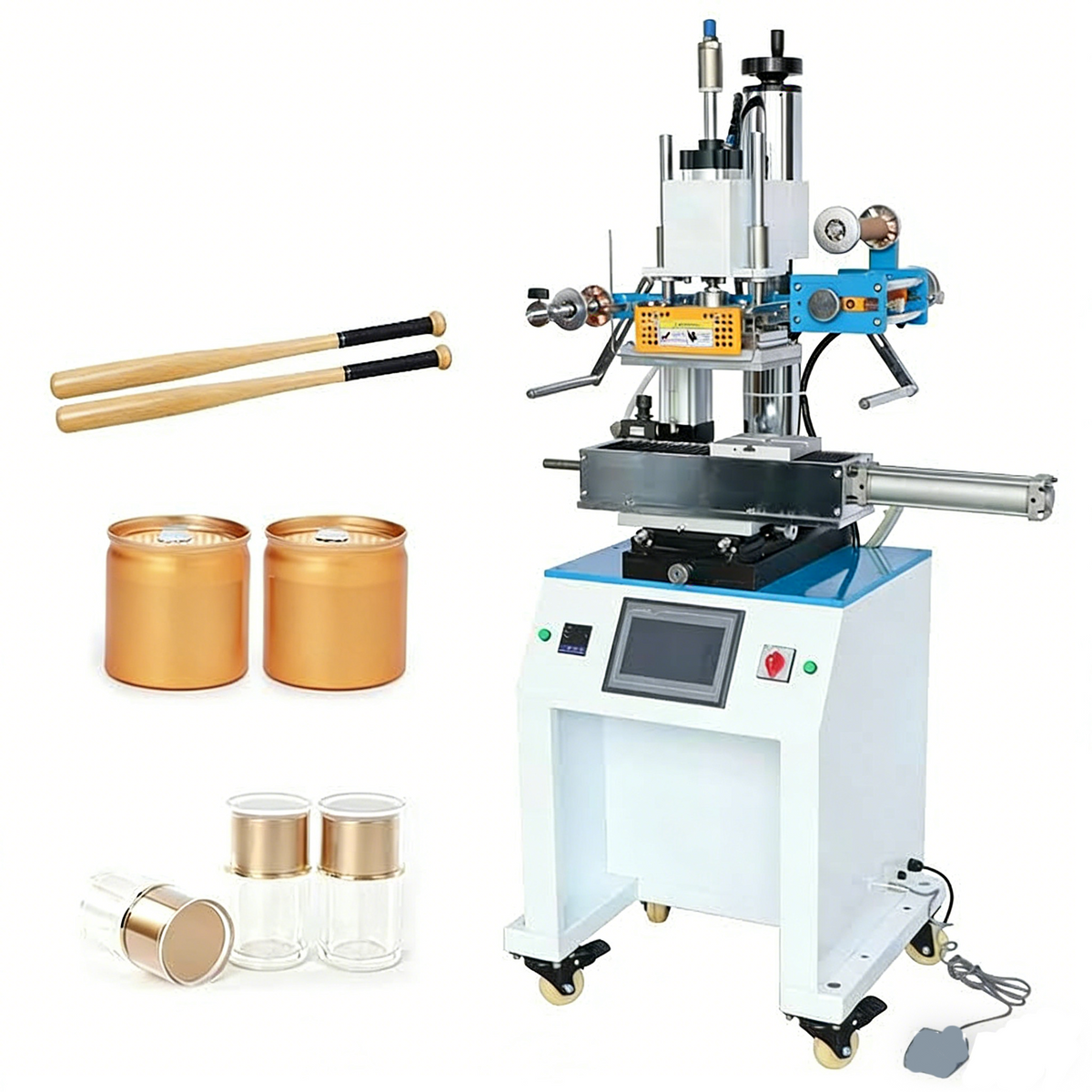

ZONESUN ZS-819R Pneumatic Hot Stamping Machine for Flat & Curved Surfaces

Price
$2,230

Please click "Buy It Now". Shipping will be calculated at checkout.


Voltage:220V
Shipping Information

Shipping methods and costs vary depending on the machine model, package size, destination, and delivery method. ZONESUN offers multiple shipping options, including express delivery, air freight, sea freight, and other available logistics services. Large machines and production lines are typically packed in export-standard wooden cases for safer transportation.

To check available shipping options and estimated shipping costs, add the product to your cart and enter your delivery address during checkout. The available shipping methods for your destination will be displayed automatically.

DDP (Delivered Duty Paid) shipping options may also be available for selected destinations. Where DDP is available and selected, the applicable duties, taxes, customs clearance, and delivery arrangements will be handled according to the terms of the quoted DDP shipping service. Please contact us if you would like to confirm DDP availability for your destination before ordering.

For large machines, customized equipment, or complete production lines, we recommend contacting us before placing an order so our team can confirm the most suitable shipping method, packaging requirements, estimated freight cost, and delivery schedule.

For non-DDP shipping methods, import duties, customs clearance fees, local taxes, and other destination charges may apply and are generally determined by local customs authorities.

About Us

ZONESUN specializes in automated packaging machinery and integrated production line solutions, including filling, capping, labeling and sealing equipment. We provide standalone machines and customized packaging lines for different products, containers and production requirements.

ZONESUN is operated by Guangdong Shanghang Technology Limited, with engineering, manufacturing and technical support capabilities for global customers.

The ZONESUN ZS-819R Simulator Curved Surface Pneumatic Stamping Machine is designed for precision hot stamping and indentation on both flat and curved surfaces. Suitable for materials such as leather, plastic, rubber, wood, and paper products, it delivers high-quality finishes for branding, decorative patterns, and steel seal processing. Powered by pneumatic automation, it features a mechanical automatic take-up system for foil feeding, adjustable paper tape length, and consistent high-pressure performance. With a maximum temperature of 300°C, high precision, and a working area up to 220×170mm (flat) or 125×125mm (curved), it is ideal for industrial production, packaging, and custom product marking.

Parameter Specification
Power Supply 220V / 50Hz, 1000W
Operating Speed 10–50 times per minute
Max Temperature 300°C
Printing Center Distance 160mm
Working Area Flat Surface: 220×170mm<br>Curved Surface: 125×125mm
Printing Area 150×200mm
Working Surface Size 300mm
Net Weight 138kg
Gross Weight 150kg
External Dimensions 850×550×1530mm
Package Dimensions 1700×1000×600mm

ZONESUN ZY-819R Simulator Cursived Surface Pneumatic Stamping Machine

Pneumatic Hot Stamping Machine

The pneumatic machine performs hot stamping on flat or curved surfaces and supports adjustable foil feeding.

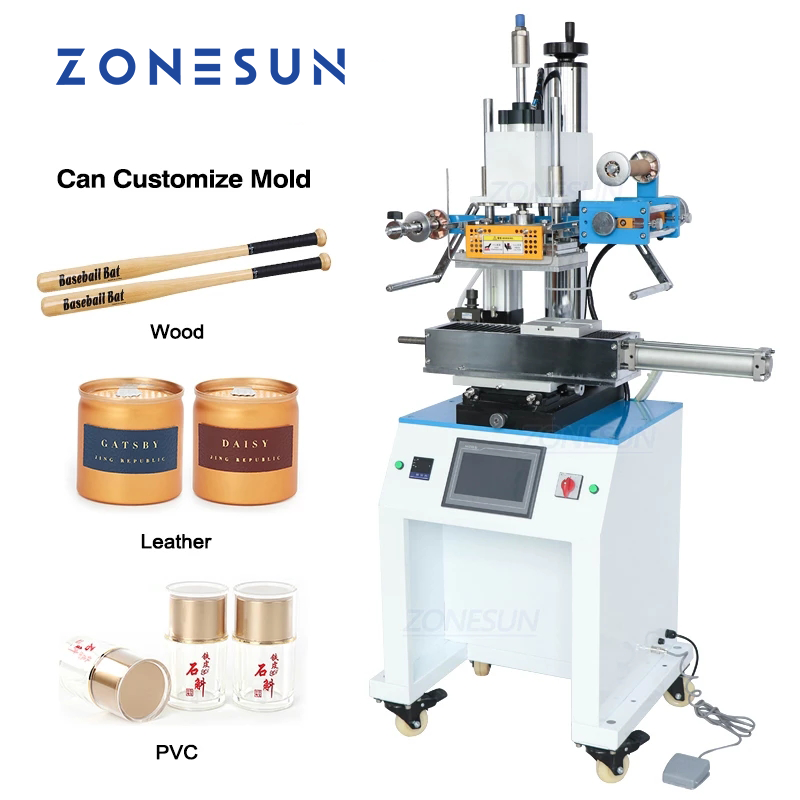

Product Applications

Suitable for stamping the caps, containers, leather goods, wooden products, and similar items shown in the image.

ZONESUN ZY-819R Simulator Cursived Surface Pneumatic Stamping Machine
ZONESUN ZY-819R Simulator Cursived Surface Pneumatic Stamping Machine

Adjustable Worktable and Controls

The worktable can be adjusted for different products, while the pneumatic cylinder and control panel coordinate stamping operation.

ZONESUN ZY-819R Simulator Cursived Surface Pneumatic Stamping Machine

Adjustable Components

The worktable, pressing assembly, air-pressure regulator, and machine feet can be adjusted for stable operation.

ZONESUN ZY-819R Simulator Cursived Surface Pneumatic Stamping Machine
ZONESUN ZY-819R Simulator Cursived Surface Pneumatic Stamping Machine
ZONESUN ZY-819R Simulator Cursived Surface Pneumatic Stamping Machine
