Description

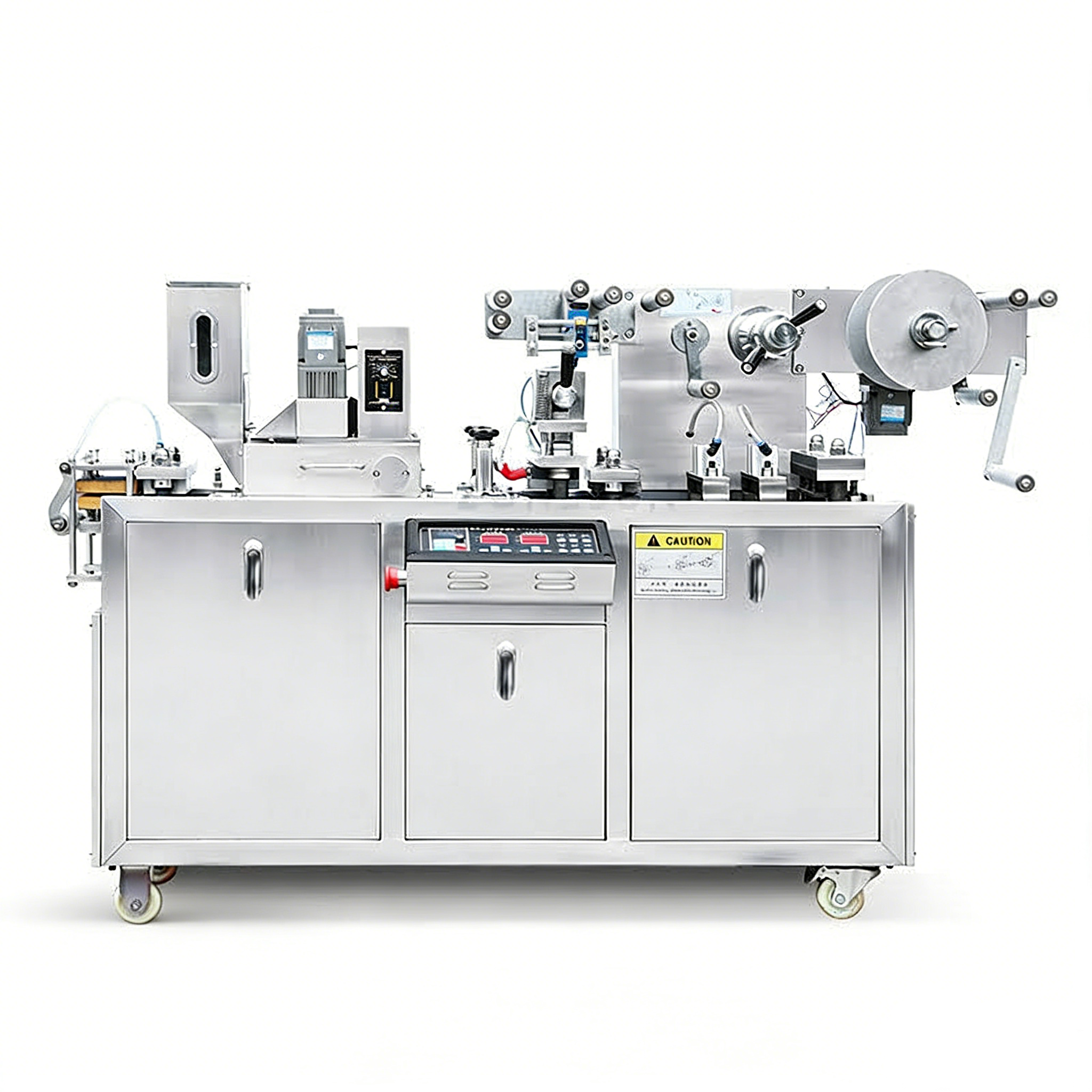

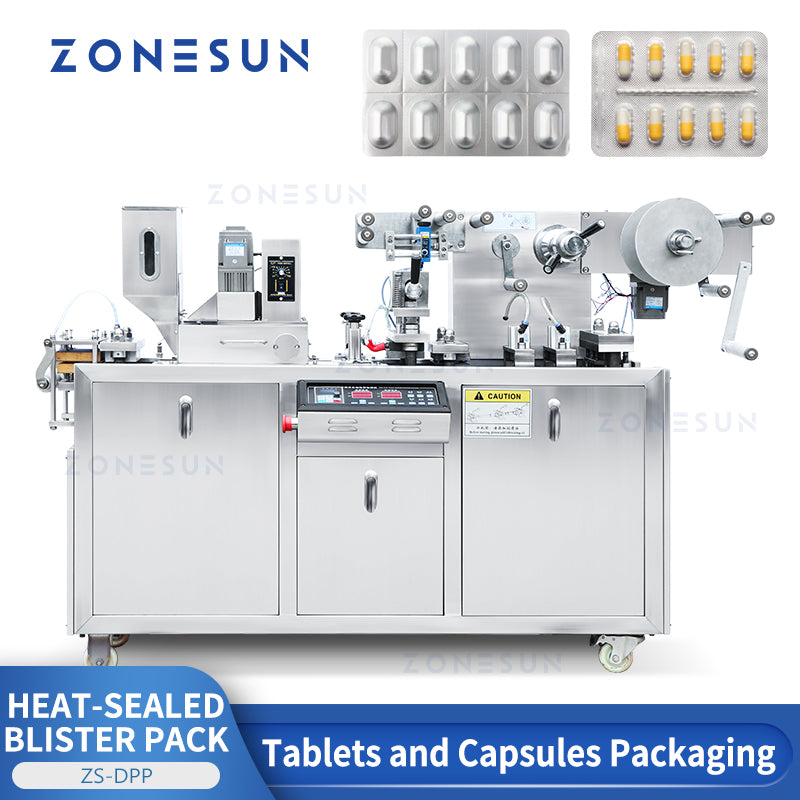

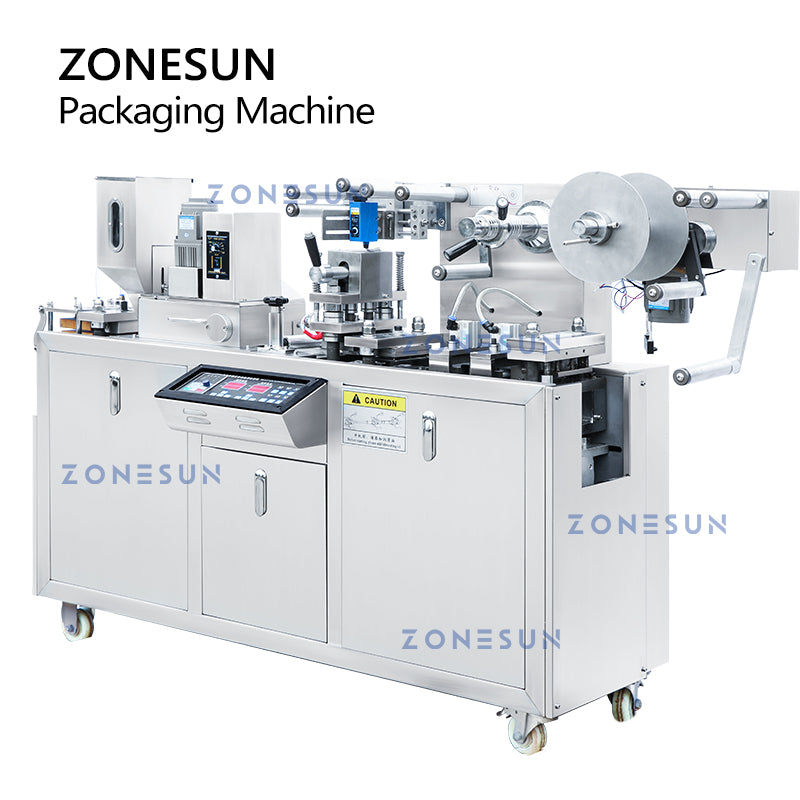

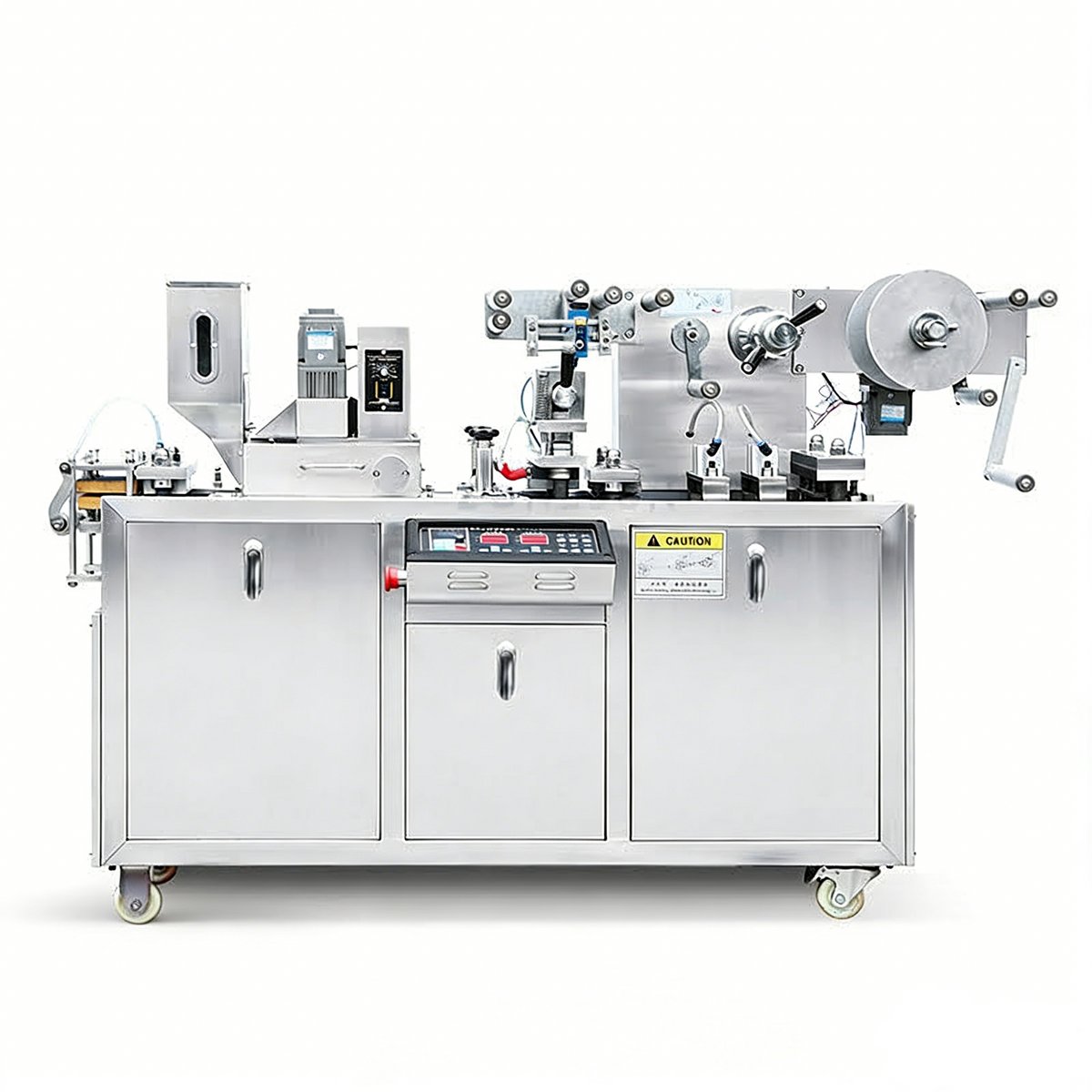

The ZONESUN ZS-DPPA Automatic Blister Sealing Machine is a compact, high-efficiency solution for packaging liquids, pastes, and irregular materials. It integrates aluminum/plastic molding, thermoforming, material filling, and heat sealing into one streamlined process. With a high degree of automation, it significantly reduces labor and packaging costs while maintaining a clean, low-noise working environment. This machine supports a wide range of candies formats including gummies, candy, chewing gum blister packs and shaped products. Ideal for pharmaceutical, nutraceutical, and health product manufacturers.
Technical Specifications
- Model: ZS-DPPA
- Punching Frequency: 10–40 cycles/min
- Production Capacity: 2,400 plates/hour
- Max. Forming Area & Depth: 80 × 110 × 26 mm
- Standard Stroke Range: 20–70 mm (customizable)
- Standard Plate Size: 80 × 57 mm (customizable)
- Air Pressure: 0.6–0.8 MPa
- Power Supply: 380V / 220V, 50Hz, 3.2 kW
- Main Motor Power: 0.75 kW

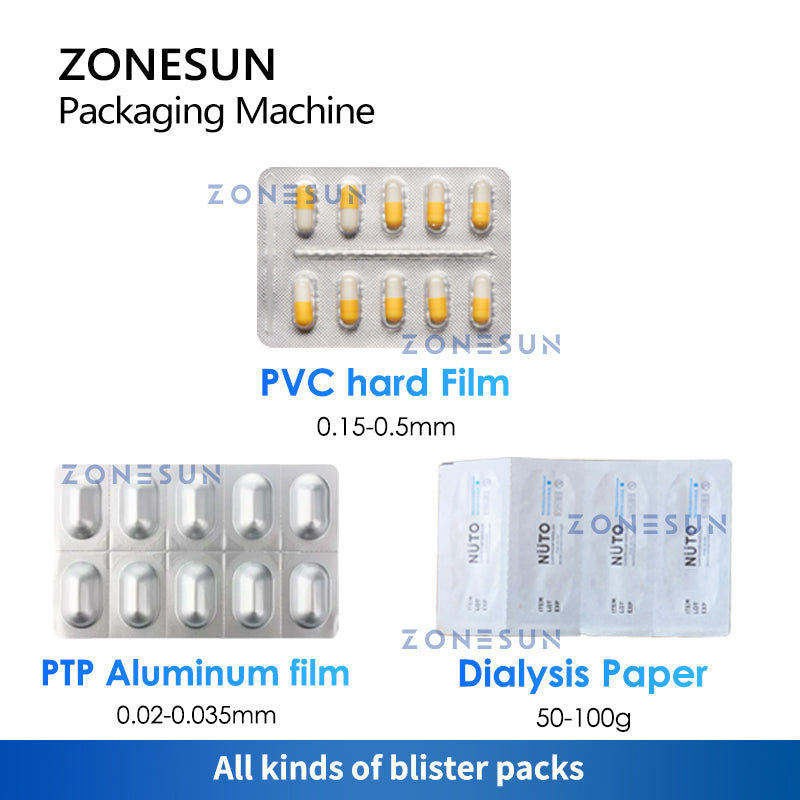

- PVC Sheet: 0.15–0.5 × 80 mm
- PTP Aluminum Foil: 0.02–0.035 × 80 mm
- Dialysis Paper: 50–100 g × 80 mm
- Mold Cooling: Tap water or circulating water
- Overall Dimensions: 1600 × 600 × 1100 mm
- Weight: 450 kg
- Noise Level: < 75 dBA

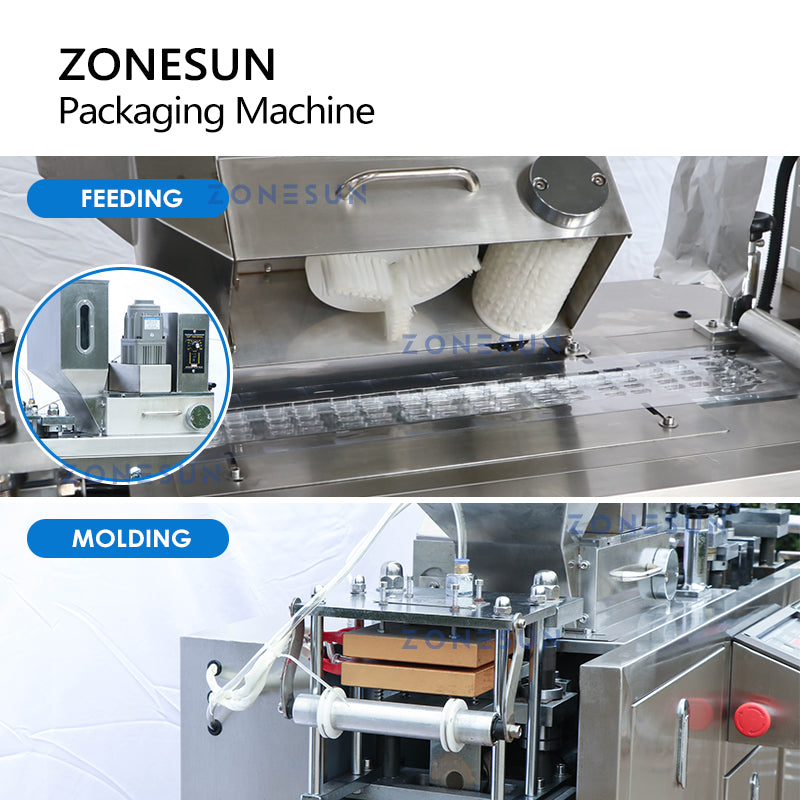

Blister Molding
The molding station heats and forms the packaging material at a typical temperature of 150°C.
Flexible Material Feeding
The feeding system handles capsules and tablets. Optional feeding configurations can be customized for irregular materials, liquids, and pastes.

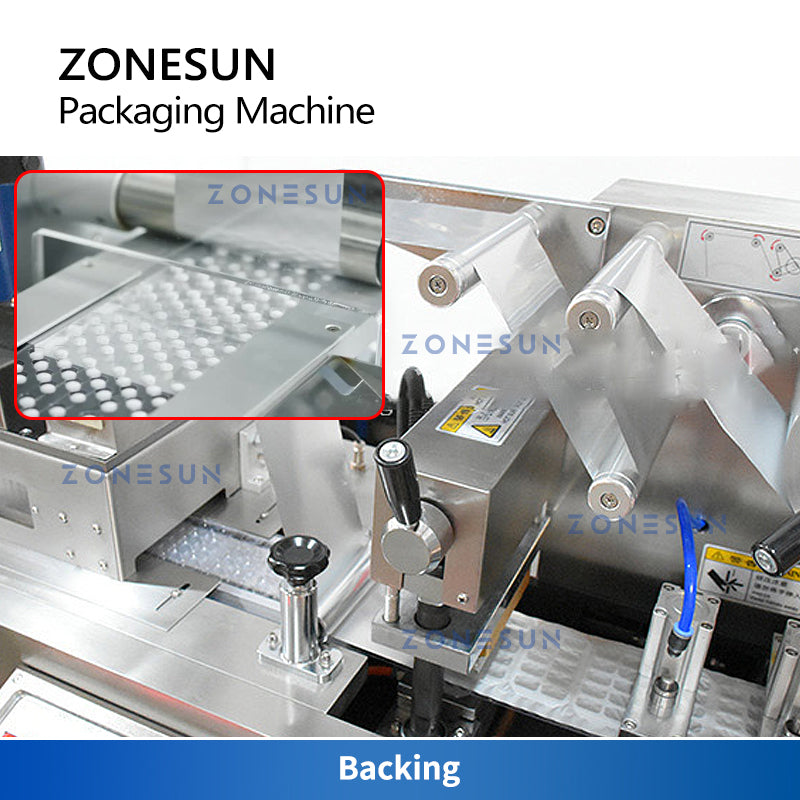

Film Guiding System
The guiding bars support smooth transport of aluminum foil or plastic through the machine.

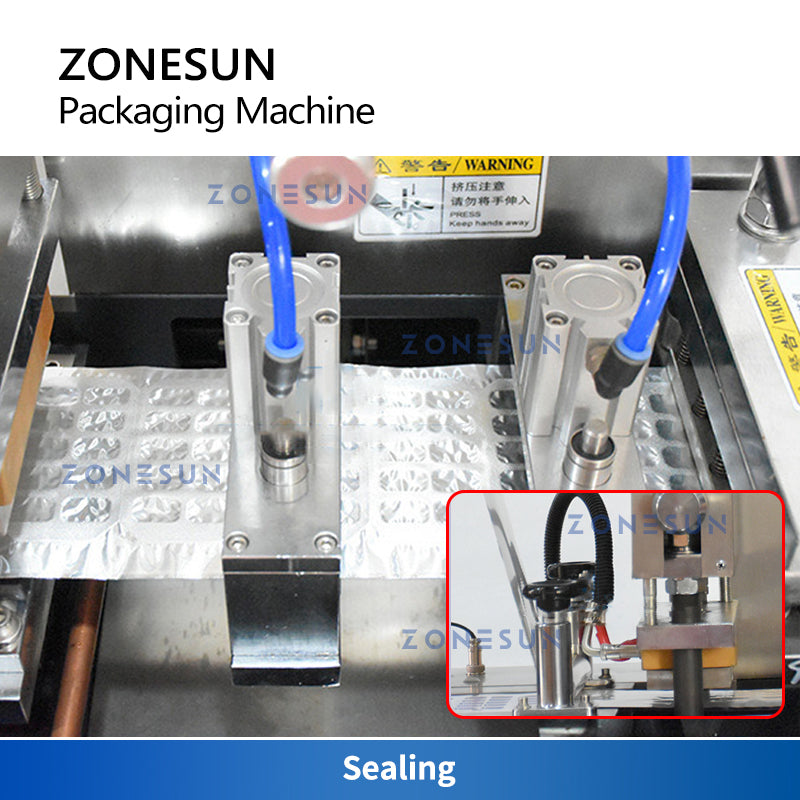

High-Temperature Sealing
The sealing section uses high-temperature sealing and double-cylinder traction for accurate positioning.
Adjustable Cutting Station
The custom cutter has an adjustable position for cutting the formed blister packs.
Finished Product and Waste Separation
Optional dual collection paths separate finished products from waste material.
Key Features
- All-in-One Process — Molding, thermoforming, filling, and heat sealing in a single machine
- High Automation — Reduces labor costs and minimizes human error
- Two Model Options — DPP-A for 600–3,000 pcs/hr; DPP-B for 3,000–14,000 pcs/hr
- Wide Product Compatibility — Gummies, candy, chewing gum blister packs
- Adjustable Loading Range — 2–9,999 pieces per blister (programmable)
- Clean & Low-Noise Operation — Suitable for GMP pharmaceutical environments
- Dual Voltage — 220V / 380V, 50Hz available
Suitable Products & Application
Food & Confectionery
Gummies, candy, chewing gum blister packs
