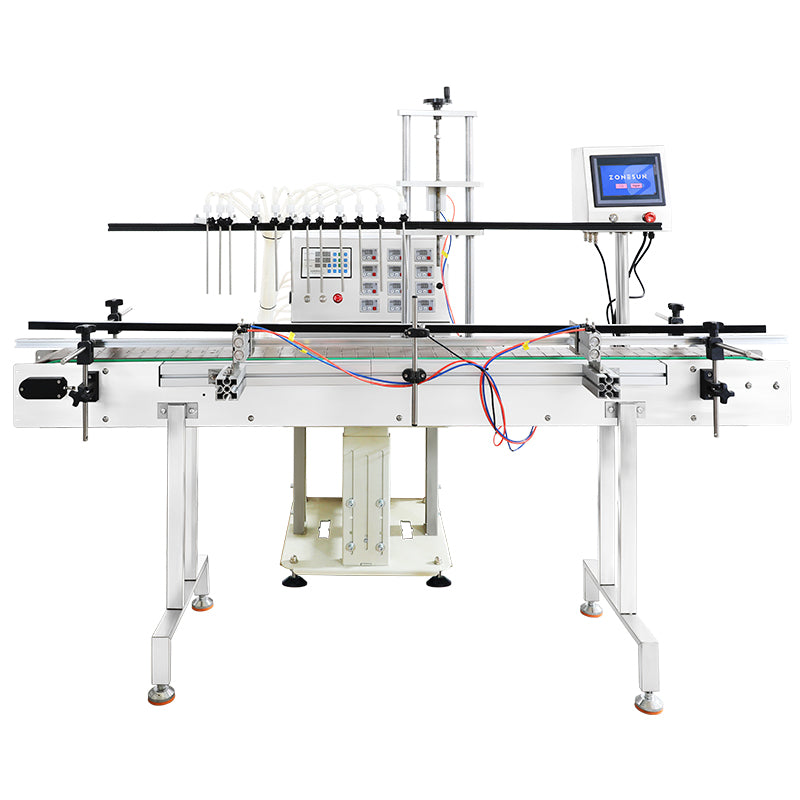

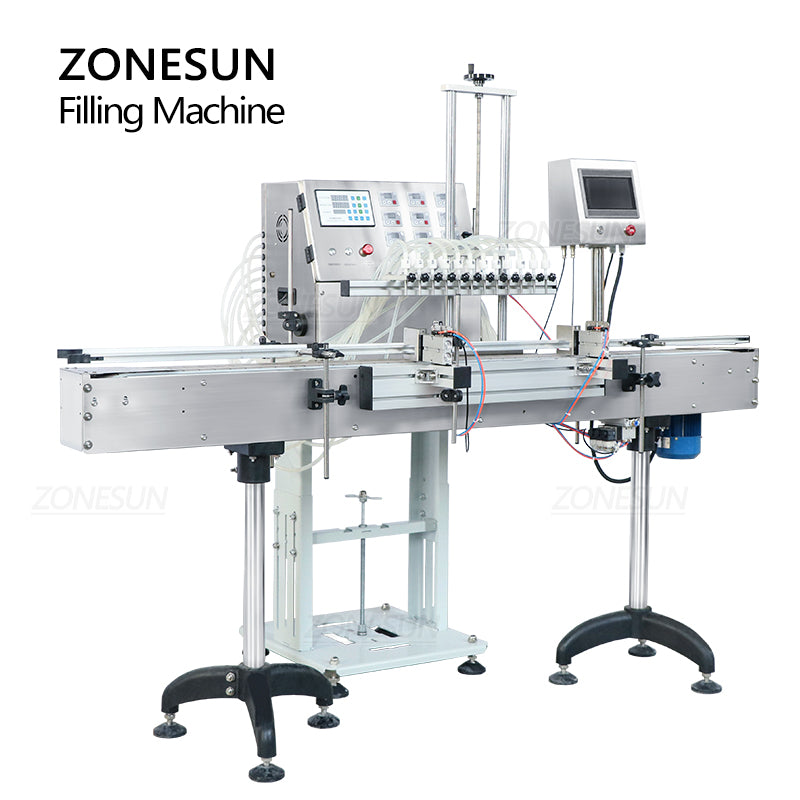

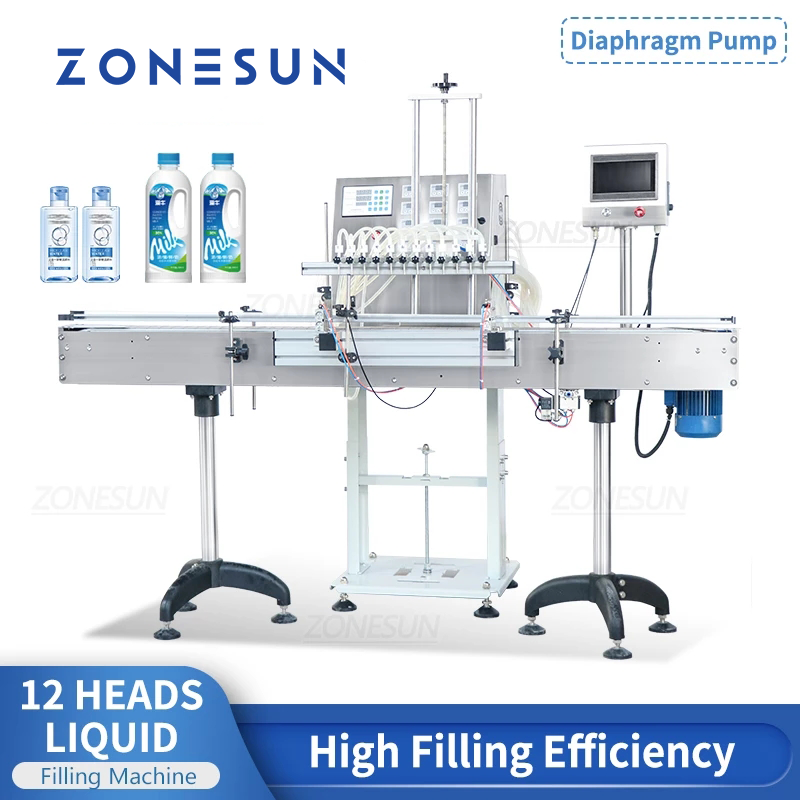

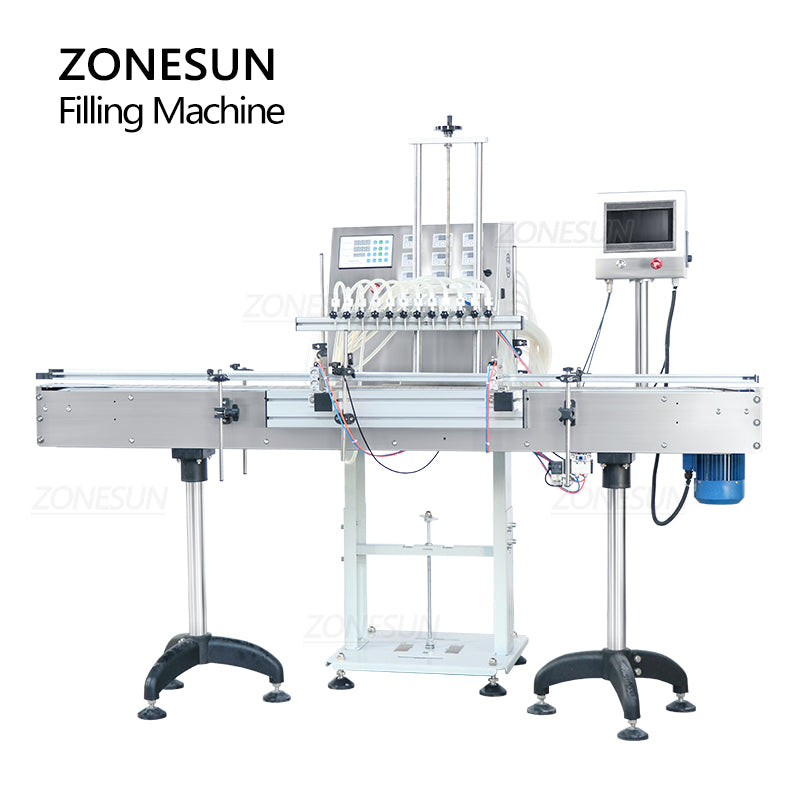

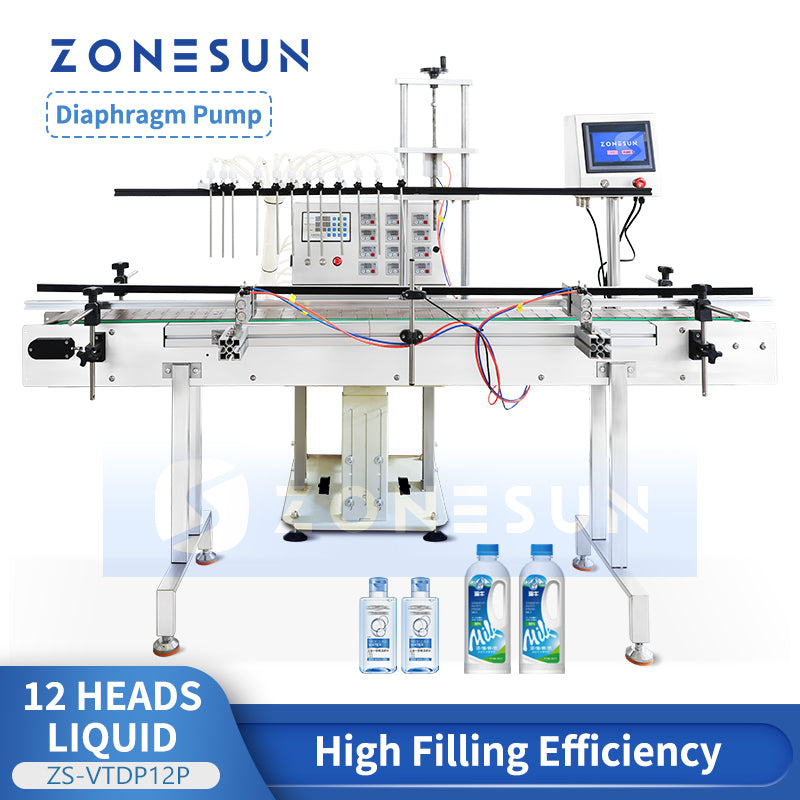

The ZONESUN ZS‑VTDP12P Diaphragm Pump Liquid Filling Machine delivers high‑capacity, precise filling with 12 independent pumps, each capable of dispensing 30–4000 ml at up to 4 L/min (based on water). Controlled by a micro‑computer, it ensures smooth, accurate liquid flow through adjustable pump timing and motor speed. The stainless steel body meets GMP standards, featuring an LCD display, anti‑drip design, and optimized interface for ease of use. Two operation modes — pedal and automatic — allow flexible workflow control. Ideal for low‑viscosity liquids such as juice, soybean milk, and other beverages, it’s widely applied in food, cosmetics, and pharmaceutical industries.
ZS‑VTDP12P — Specifications
Parameter Details
Machine Model ZS‑VTDP12P
Voltage 220 V / 110 V, 50‑60 Hz
Rated Power 700 W
Machine Pump Diaphragm (each pump) × 12
Filling Range 30 – 4000 ml (each pump) × 12
Working Speed Approx. 10 – 40 bottles/min (based on bottle size & liquid)
Maximum Suction Distance 1.5 m
Maximum Flow Rate 4 L/min (each pump) × 12
Filling Accuracy ± 1 % (depending on liquid)
OD of Filling Nozzle OD 6 mm
Conveyor Size (W × L) Approx. 114 × 1900 mm
Machine Weight Approx. 131 kg
Machine Size — Filling Machine Approx. 500 × 250 × 580 mm
Machine Size — Conveyor (900 mm) Approx. 300 × 380 × 1600 mm
Machine Size — Bracket for Filling Machine Approx. 520 × 520 × 770 mm

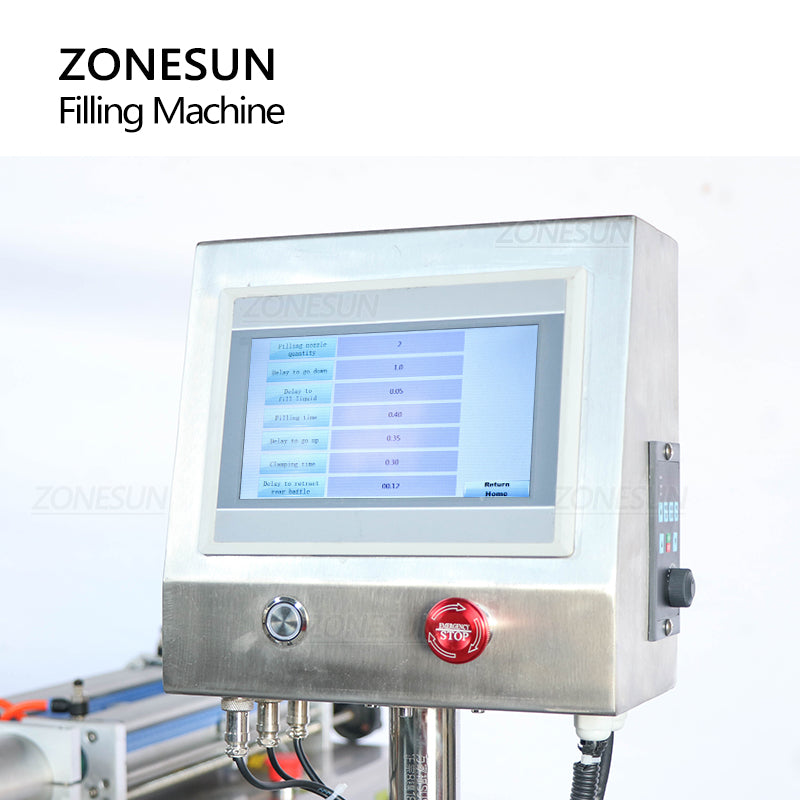

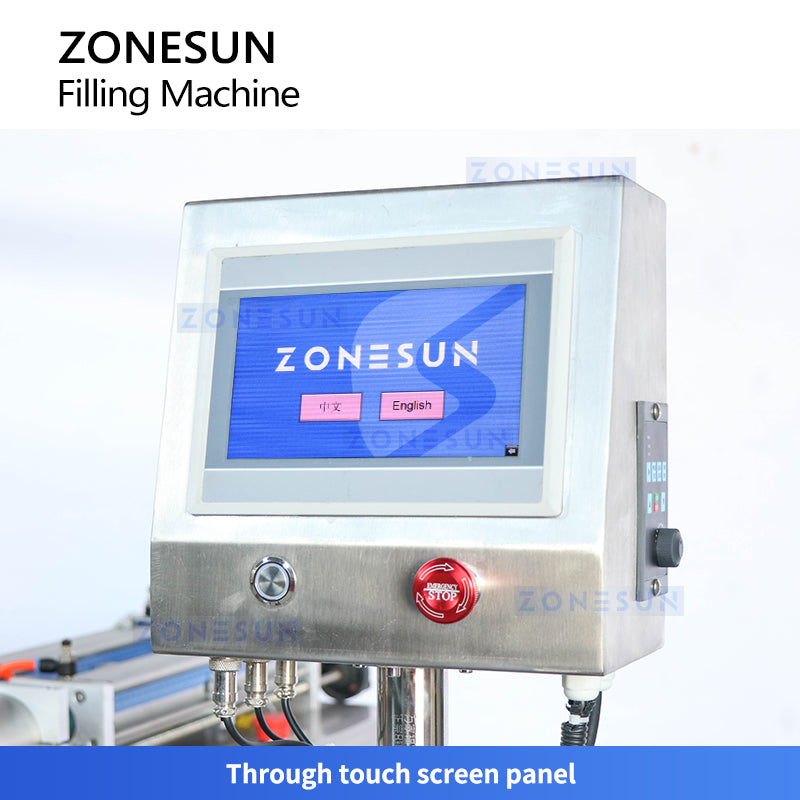

Control Panel
Through touch screen panel, it is easy to adjust parameters and control the machine. The language of it can be customized according to customers' need.

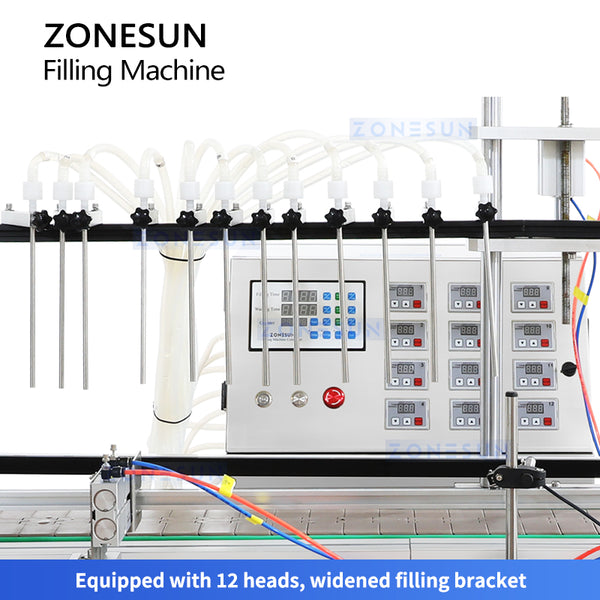

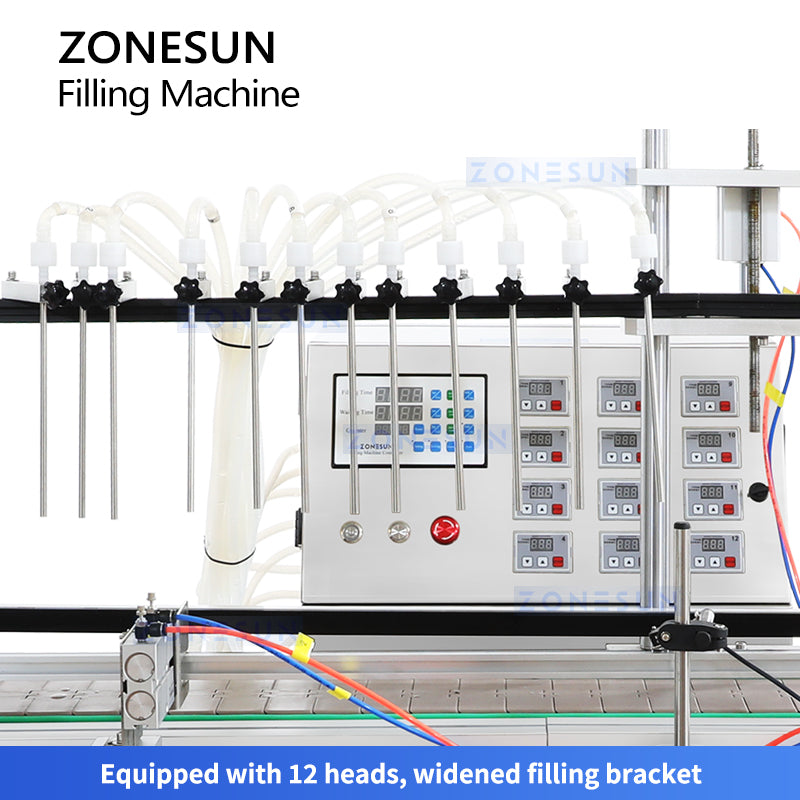

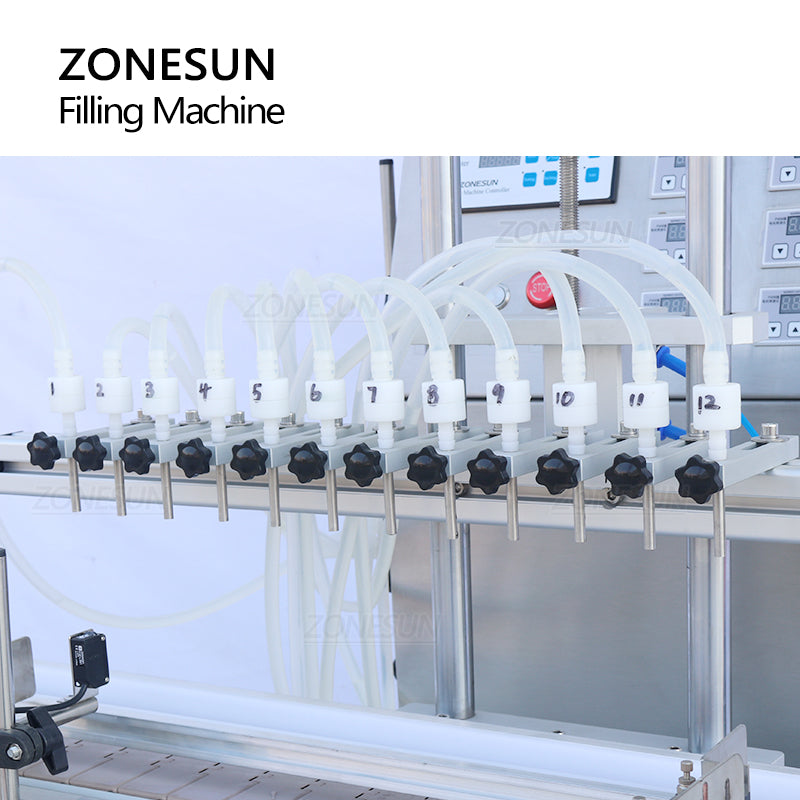

Filling
Equipped with 12 heads, widened filling bracket, and baffle space. The filling range is 30-4000ml, suitable for precise filling with high flow rate.

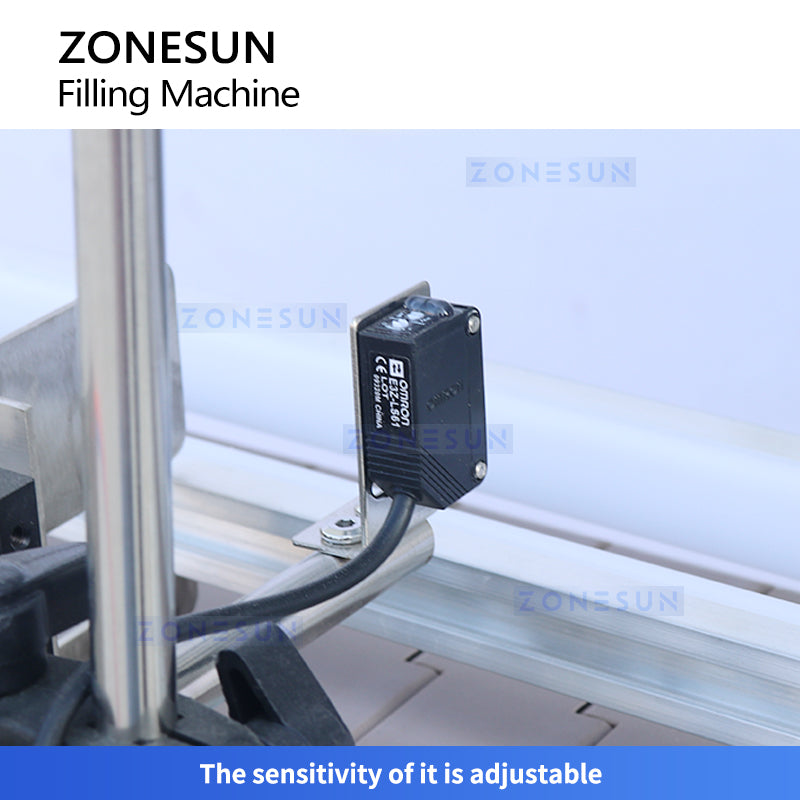

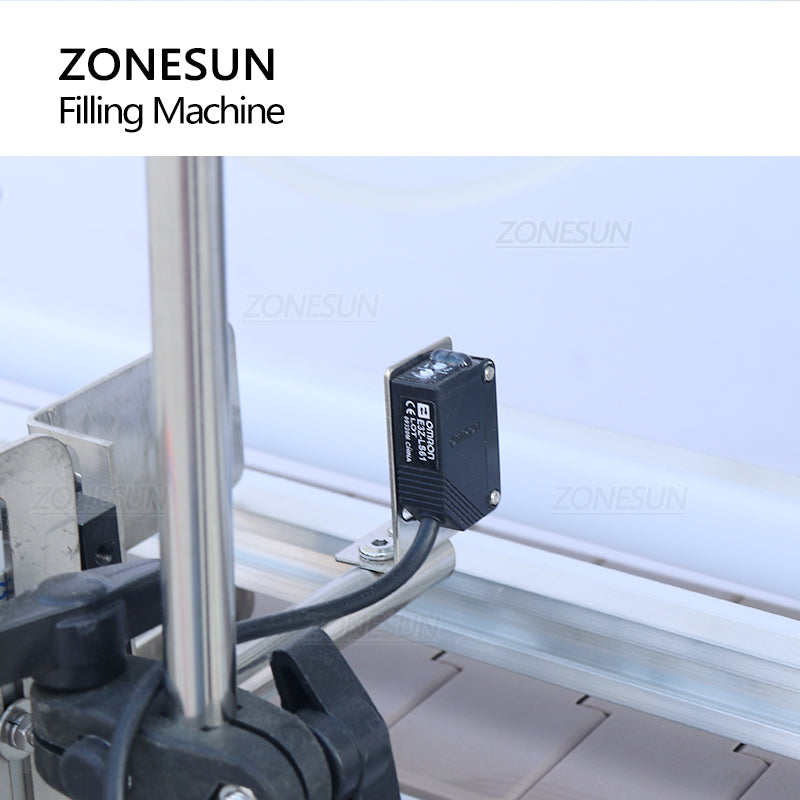

Electric Eye
It is designed for detecting bottles and controlling the machine to work automatically. Intelligent and efficient. The sensitivity of it is adjustable.

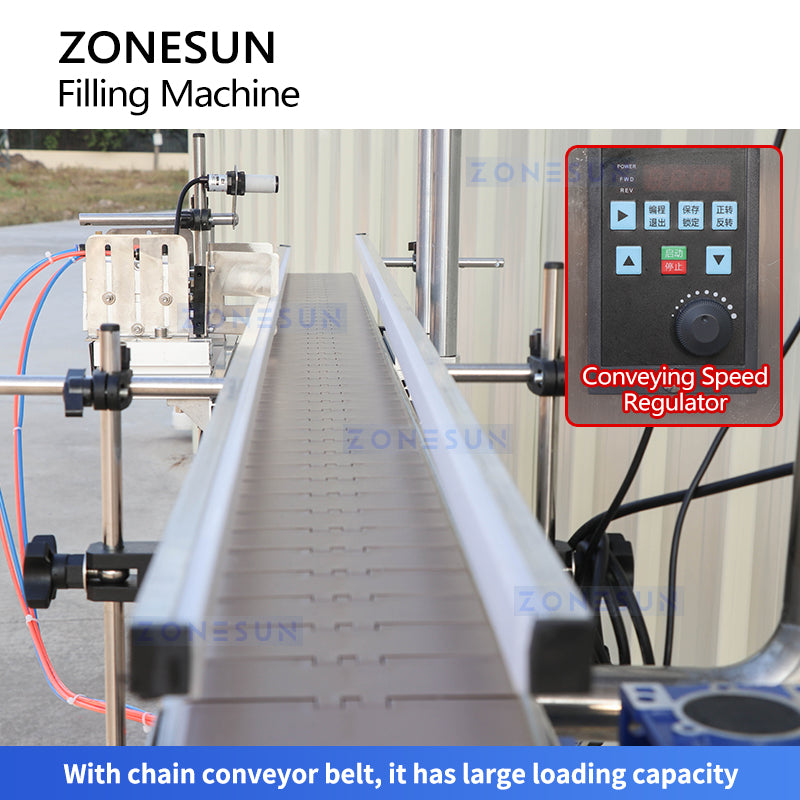

Chain Conveyor Belt
With chain conveyor belt, it has large loading capacity, which can transport bottles stably. The width and conveying speed of it can be adjusted as needed.

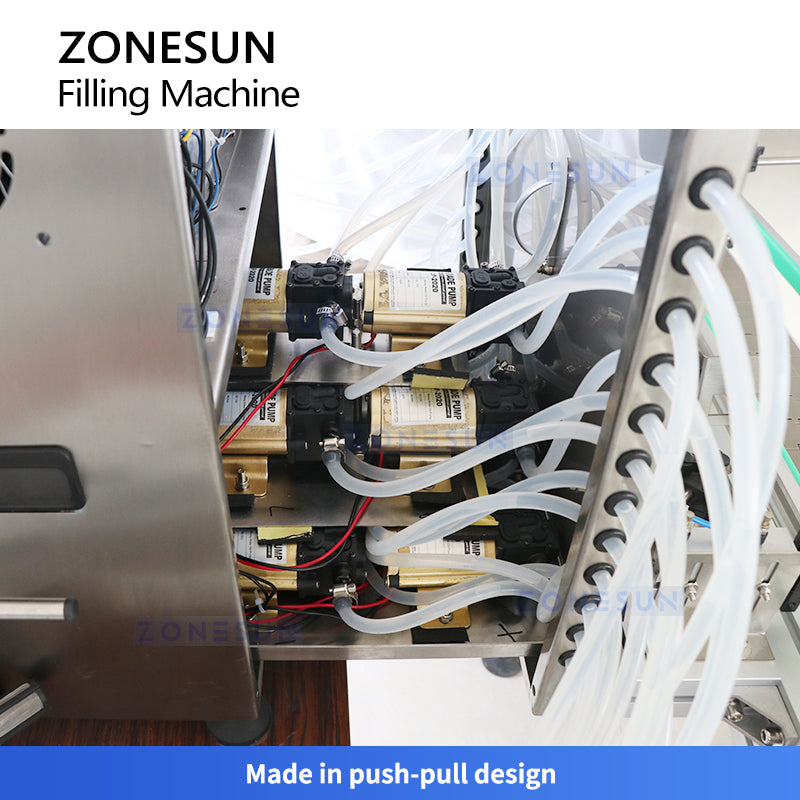

Humanized Design
Made in push-pull design, it is convenient to maintain or inspect the machine. Easy to operate.
