DESCRIPTION

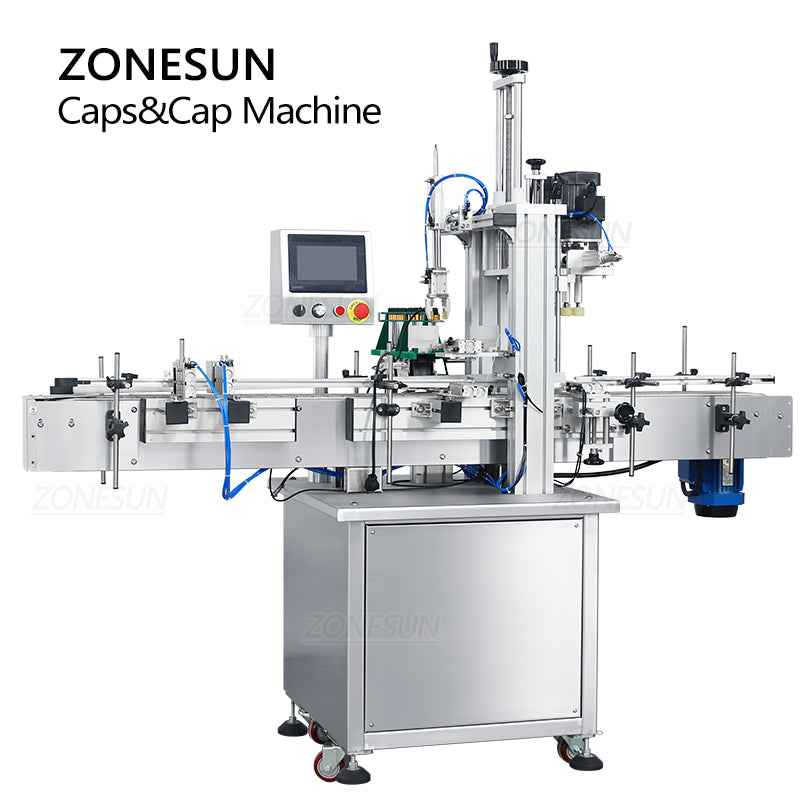

This automatic capping machine can feed droppers, clamp droppers, put them into bottles and tighten bottles automatically. The vibratory bowl can be customized according to the dropper. It is good for capping essential oil bottles and nail polish bottles.
PARAMETER
Machine model
|
ZS-XG16E
|
Bottle height
|
30-300mm
|
Cap diameter
|
18-70mm
|
Bottle diameter
|
20-160mm
|
Working speed
|
20-60 bottles / minute
(Depending on bottle and cap size and shape)
|
Working voltage
|
AC220V/110V 50-60HZ
|
Working pressure
|
0.4-0.6MPa
|
Machine size
|
About 1930*740*1600mm
|
Package size
|
About 1970*990*1740mm
|
Net weight/Gross weight
|
About 150kg/334kg
|
PRODUCT DETAILS

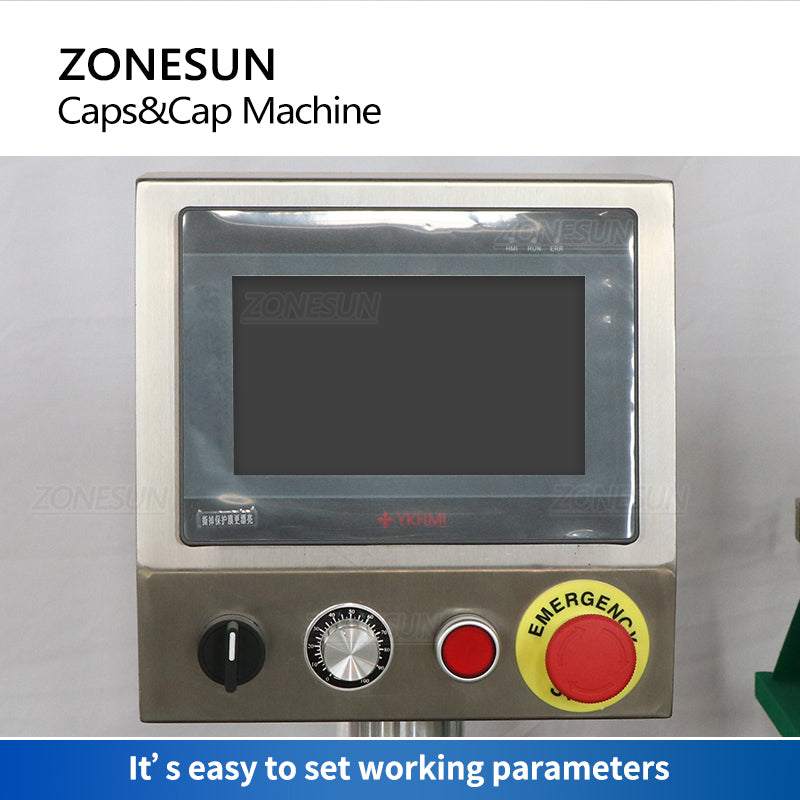

CONTROL PANEL
PLC controls, English version

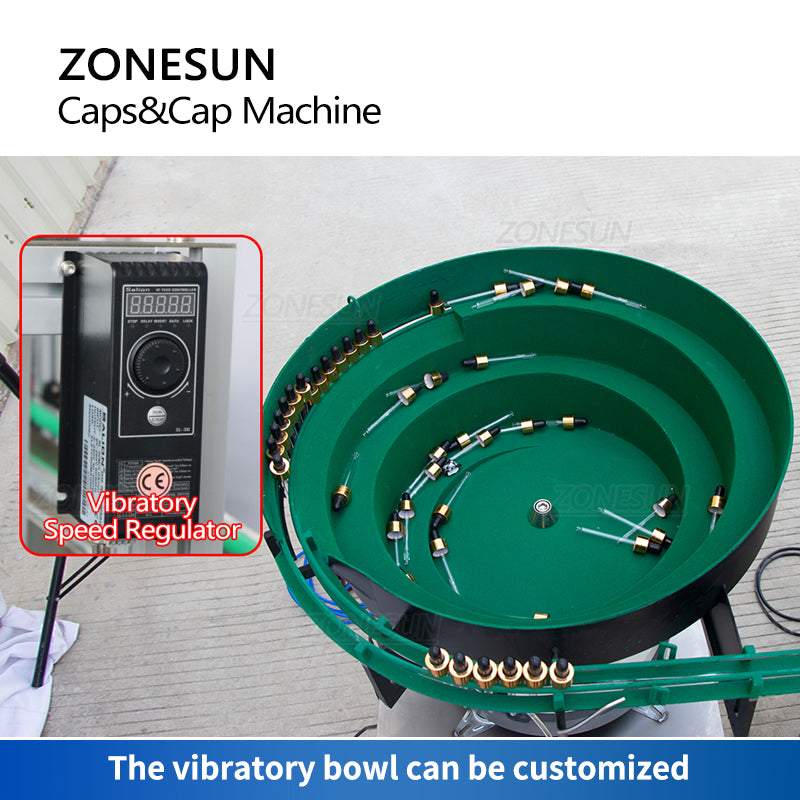

FEEDING
Automatically feed the cap, with a speed regulator.

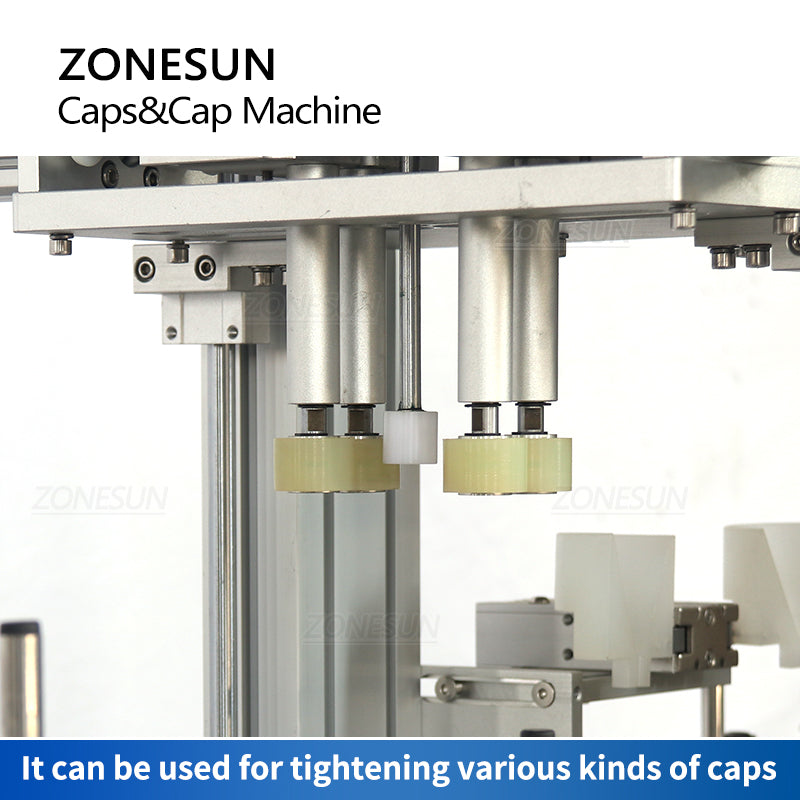

CAPPING
Used for sealing various kinds of screw caps, like twist-off caps and flip-off caps.

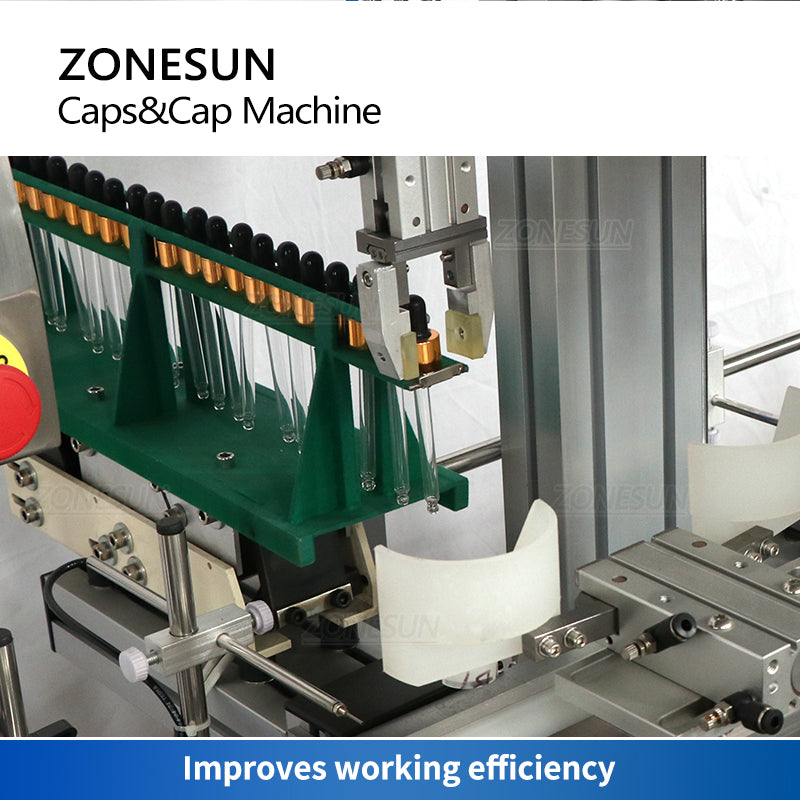

ROBOTIC ARM
Automatically hold the caps and drop them into the bottles.
CONVEYOR
Large capacity, stable and efficient.
