DESCRIPTION

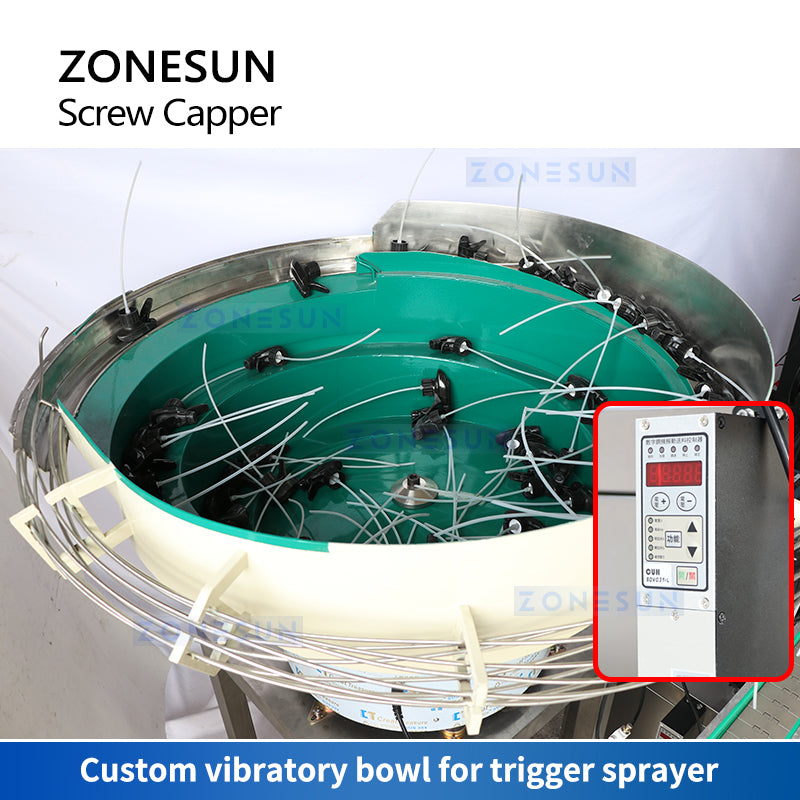

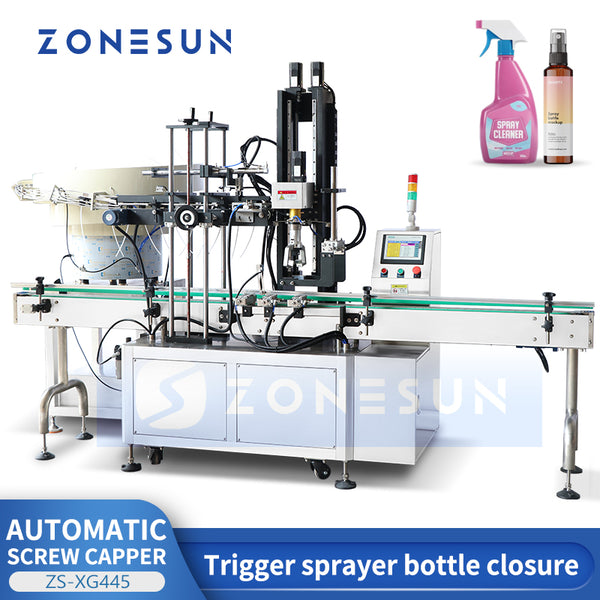

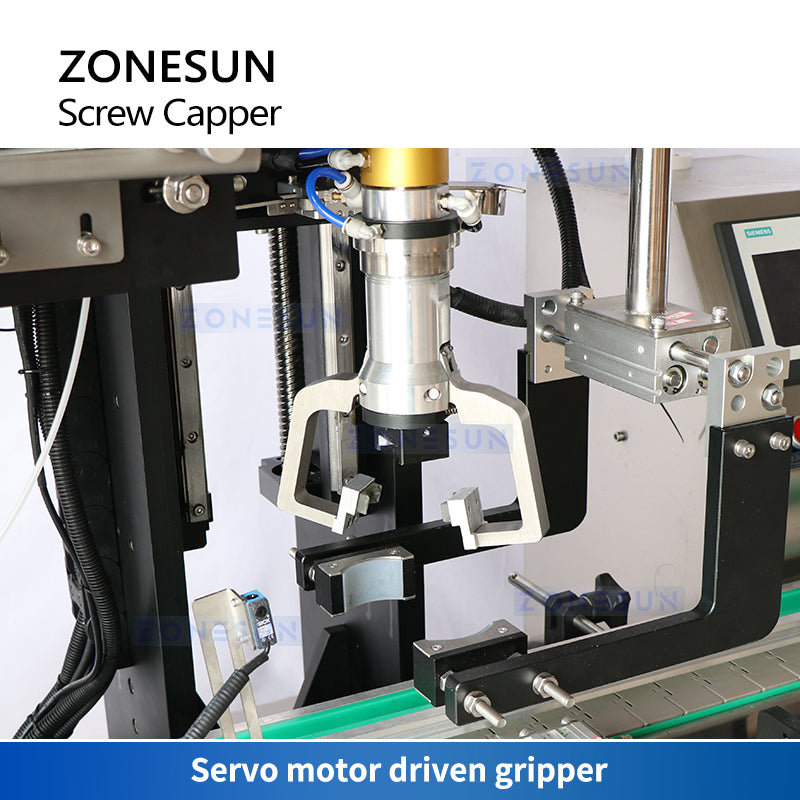

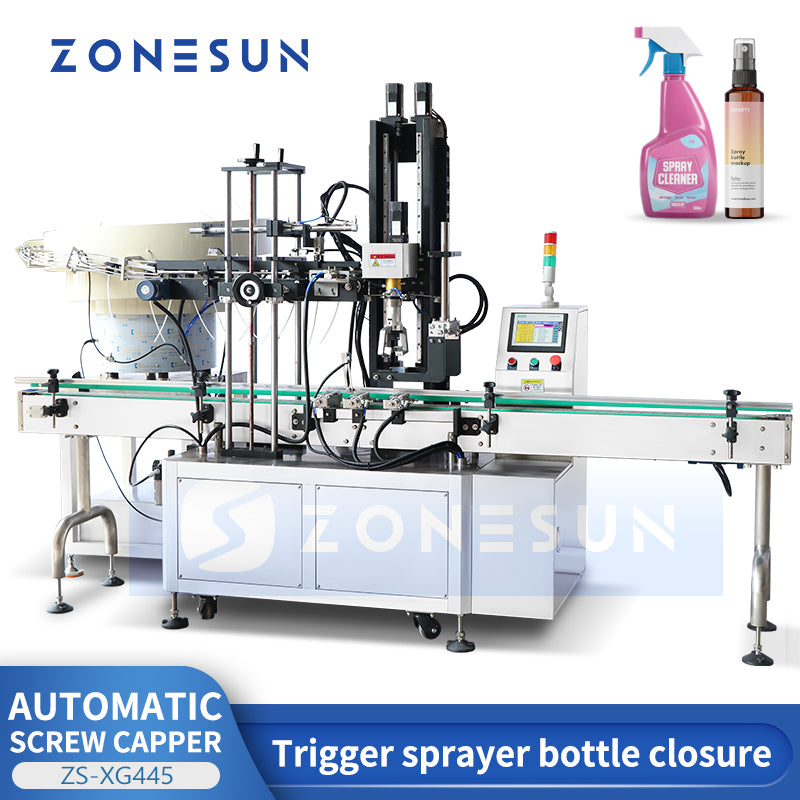

This is an automatic bottle capping machine for trigger spray bottles. The vibratory bowl feeder sorts the trigger sprayers and aligns them for the capping process. It uses a servo motor-driven gripper to screw the trigger sprayer onto the bottle with precise control and accuracy, giving each bottle a tight seal. Whatever your packaging needs are, you can rely on ZONESUN.
PARAMETER
Machine Model
|
ZS-XG445
|
Voltage
|
110/220V
|
Power
|
900W
|
Capacity
|
5-25 bottles/min (based on bottle and cap size)
|
Material
|
SUS 304
|
Air Pressure
|
0.6-0.8Mpa
|
Suitable Bottles
|
According to the sample
|
Cap Feeding Way
|
Pneumatic fetch
|
Capping Way
|
Servo motor driven screwing
|

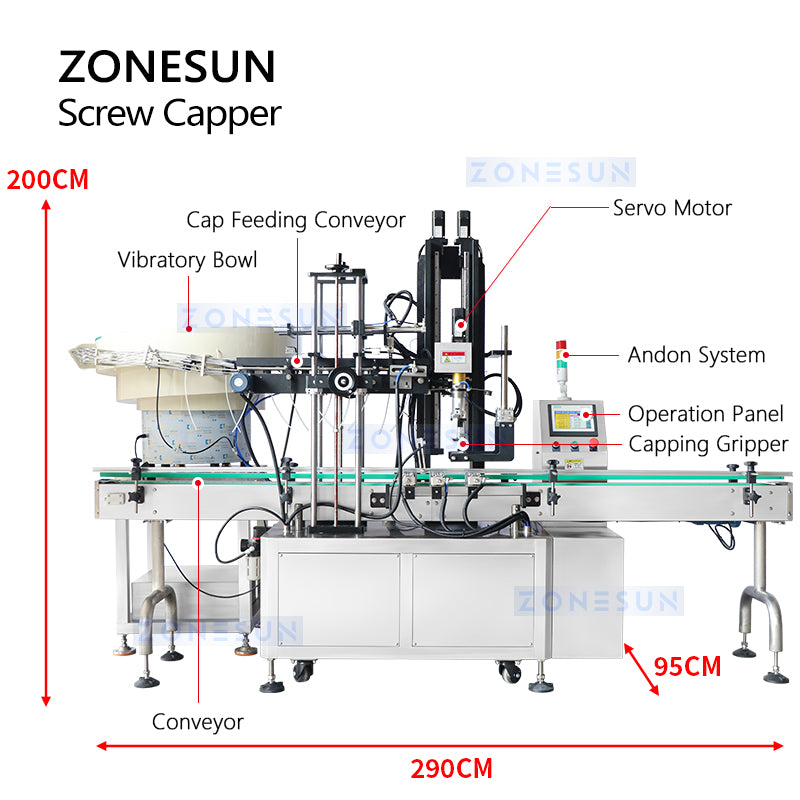

Machine Size
|
About 2900*950*2000mm
|
Packaging Size
|
About 3020*905*2140mm (machine),
1870*1220*840mm (Vibratory bowl sorter)
|
Packaging Weight
|
About 600kg(machine), 316kg (Vibratory bowl sorter)
|
