Application
This machine is suitable for filling liquid, such as shampoo, laundry detergent, cooking oil, etc. It can work with automatic labeling machine and capping machine, realizing automated production.
Parameter
- Machine model: ZS-YT4TZ
- Machine power: 110/220V, 800W
- Air pressure: 0.5–0.8MPa
- Filling range: 100–1000ml (5–100ml / 10–300ml / 50–500ml / 500–3000ml / 1000–5000ml can be chosen)
- Filling accuracy: About ±3g
- Filling speed: 20–50 bottles/min
- Conveyor belt size: 1980×100mm
- Machine size (L×W×H): About 1025×900×1700mm
- Machine weight: About 259kg
- Package size (L×W×H): About 2060×960×1880mm
- Package weight: About 360kg
The touchscreen simplifies machine setup and allows convenient adjustment of filling parameters. The electric eye detects passing bottles and coordinates automatic filling to reduce missed containers. Dedicated cylinders support separate control of each filling channel for consistent output. The nozzles use adjustable holders to match different bottle openings and help reduce splashing. Large cylinders and hoses support a higher working flow for efficient multi-head filling.

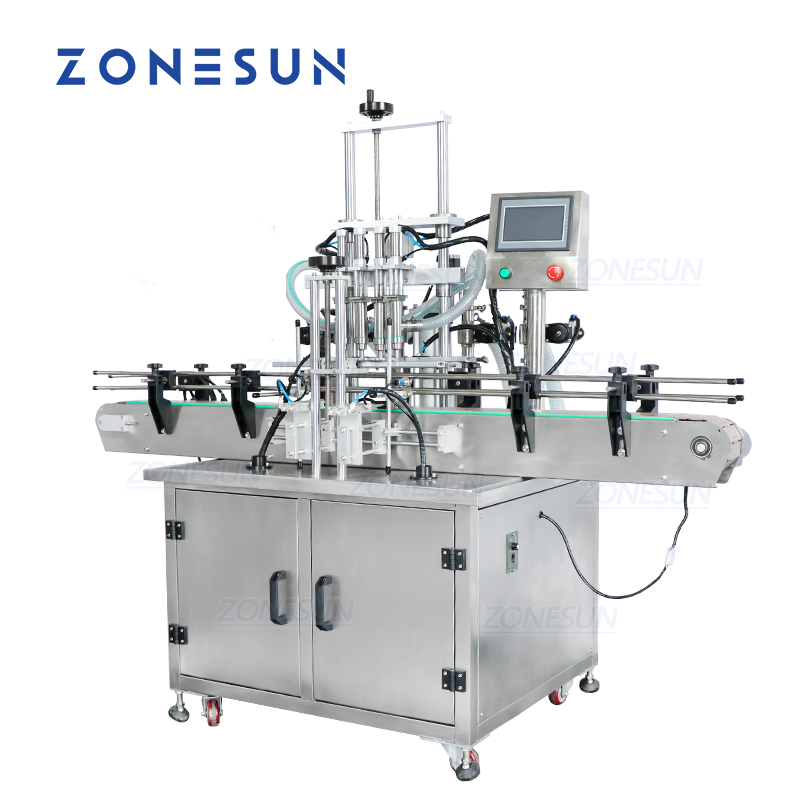

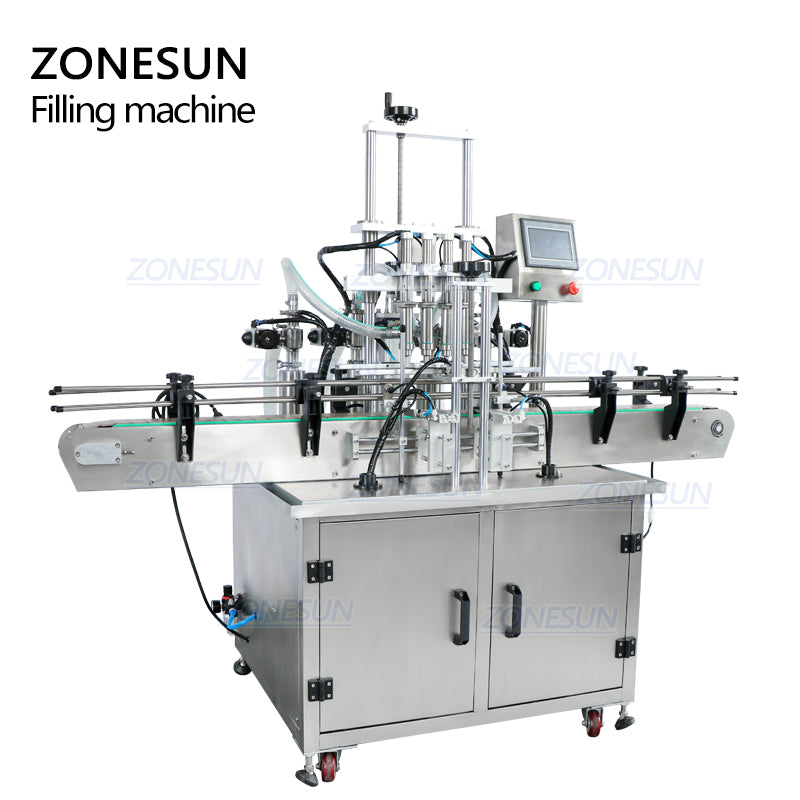

Touchscreen Control Panel
Photoelectric Detection

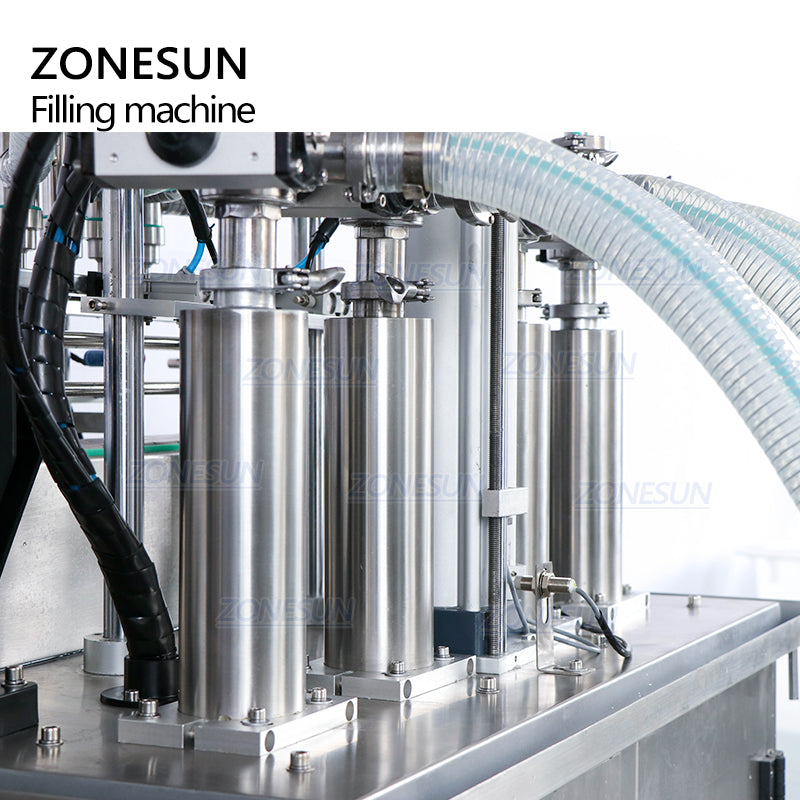

Independent Filling Cylinders

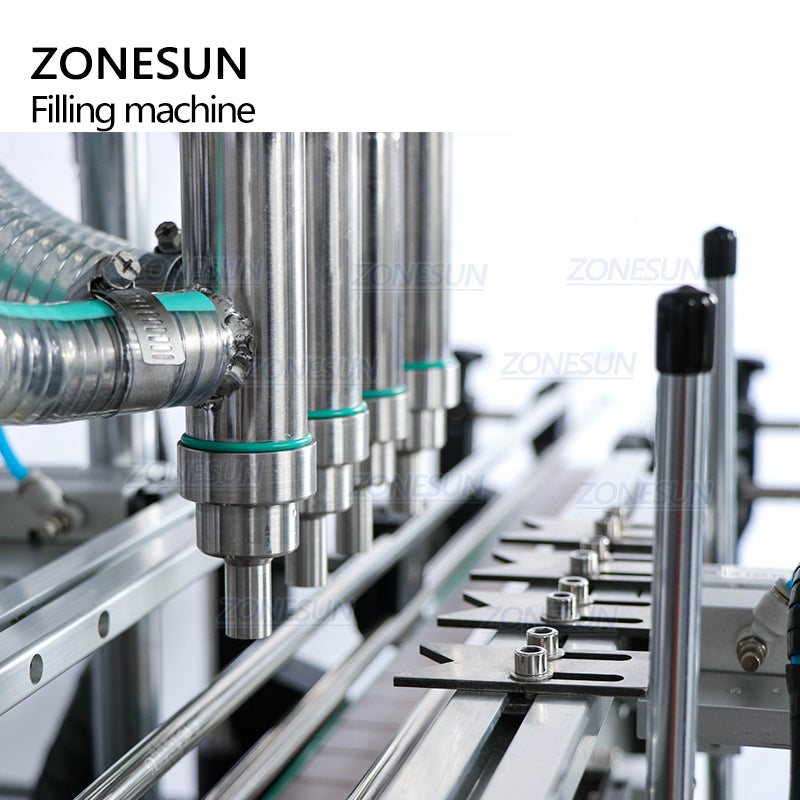

Pneumatic Filling Nozzles

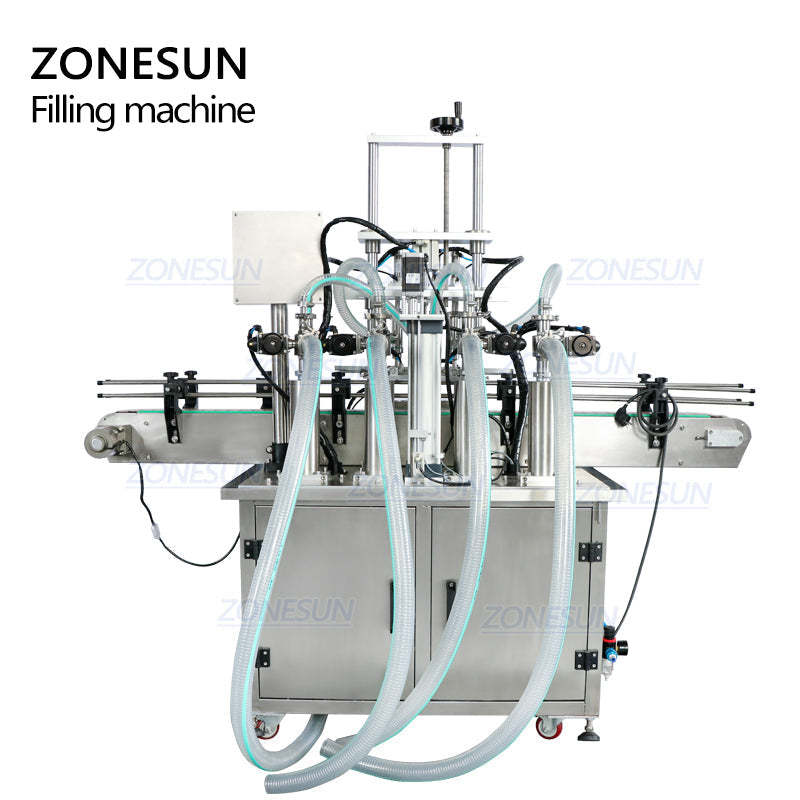

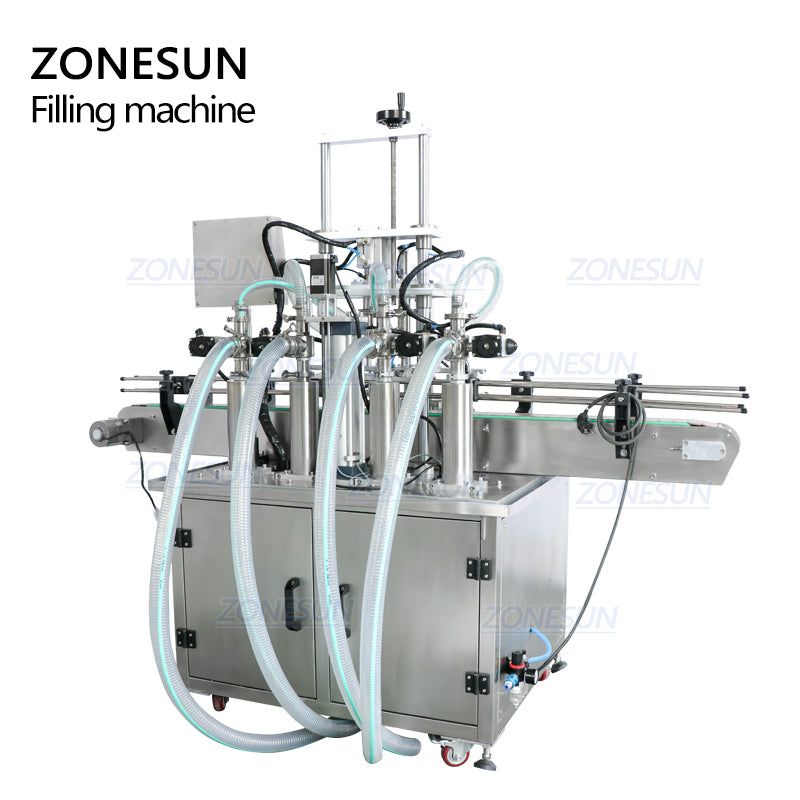

High-Capacity Filling System
