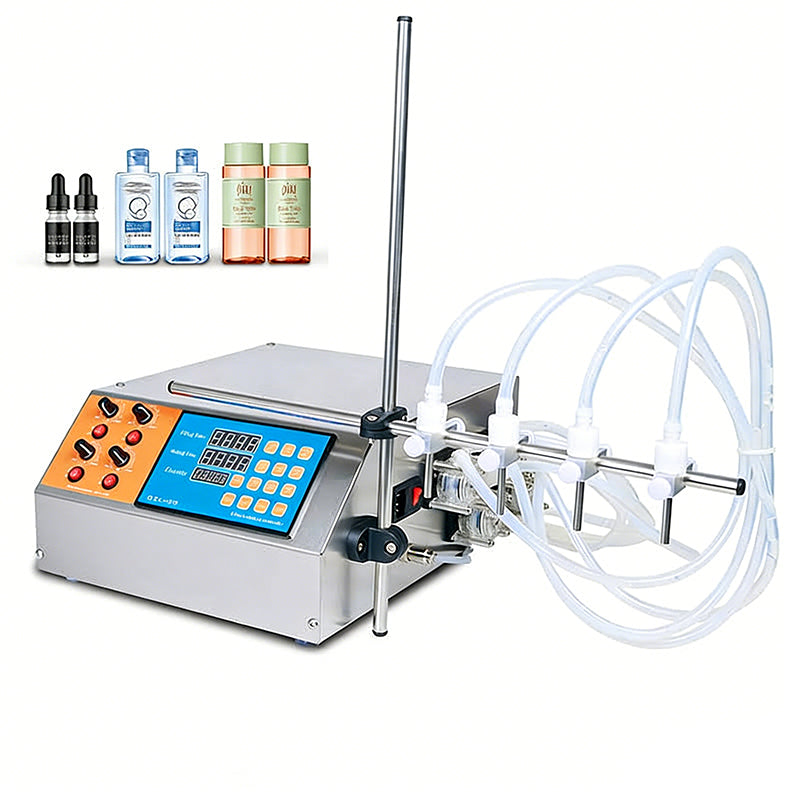

The ZONESUN ZS-YTPP4T Semi-automatic Liquid Filling Machine is designed for precise, hygienic filling of low-viscosity liquids such as perfumes, essential oils, and juices. Equipped with a high-accuracy peristaltic pump and four filling nozzles, it offers adjustable speed and volume control for small-batch production. Its anti-drip and power-off memory functions ensure clean, consistent operation. Widely used in cosmetics, beverages, and daily chemical industries, this compact machine is ideal for small bottle filling in both lab and commercial settings.
ZS-YTPP4T Peristaltic Pump Liquid Filling Machine – Technical Specifications
Parameter Specification
Machine Model ZS-YTPP4T
Voltage 220V / 110V, 50–60Hz
Power 60W
Pump Type Peristaltic Pump
Filling Range 0.5–50ml
Max Filling Speed 650ml/min × 4 (based on water)
Filling Accuracy ±1%
Filling Nozzle Diameter Outer Diameter: 4mm & 6mm
Power-Off Memory Function Available
Anti-Dripping Function Available
Machine Dimensions (L × W × H) 310 × 400 × 160mm
Machine Weight Approx. 8.5kg
Package Dimensions (L × W × H) 415 × 405 × 210mm
Package Weight Approx. 9.5kg
Digital Control Panel and Adjustable Filling NozzlesThe digital panel makes it easy to set filling speed and filling time, and it displays the number of filled bottles for clear monitoring. The anti-drip filling nozzles support accurate filling, and their height and filling speed can be adjusted as needed.
Peristaltic Pumps and Pedal ControlWith peristaltic pumps, liquid flows only through the tubes to help maintain cleanliness. The tubes are easy to replace when changing liquids. The machine supports both automatic operation and pedal-switch control.
